Product Descriptions

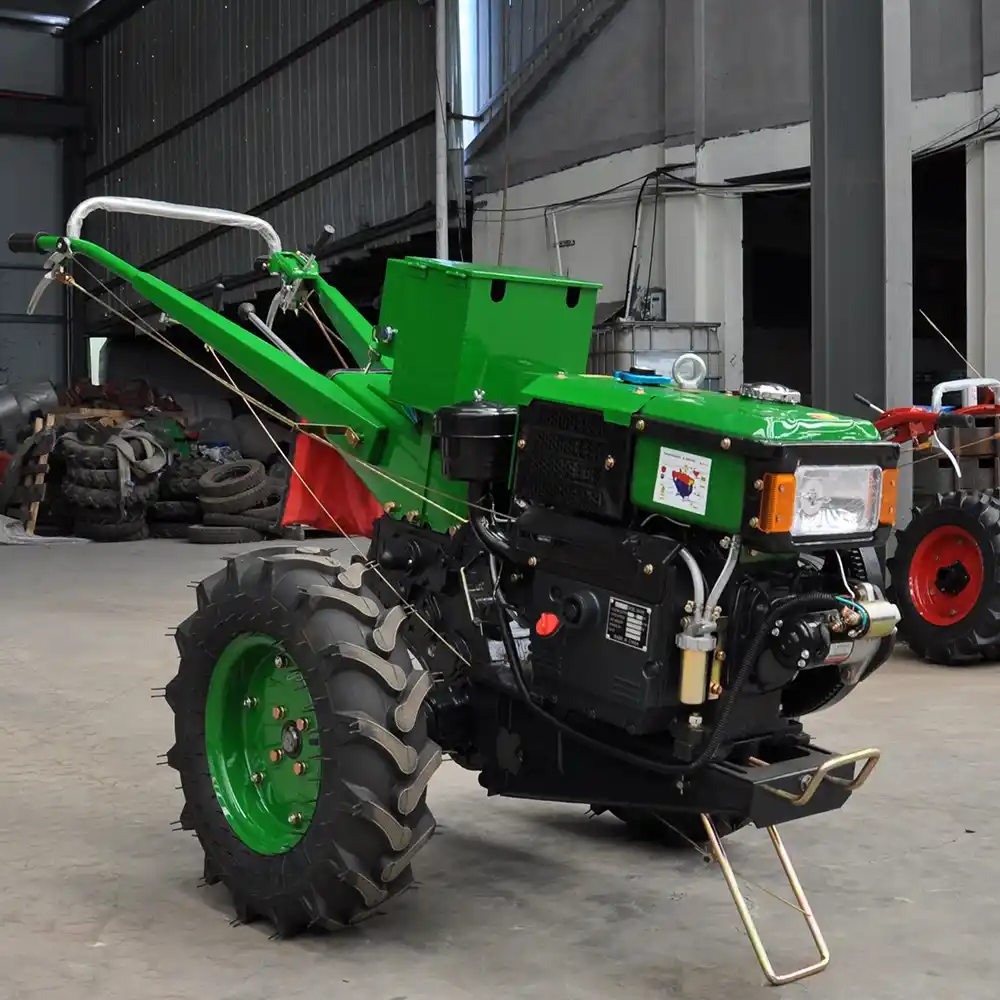

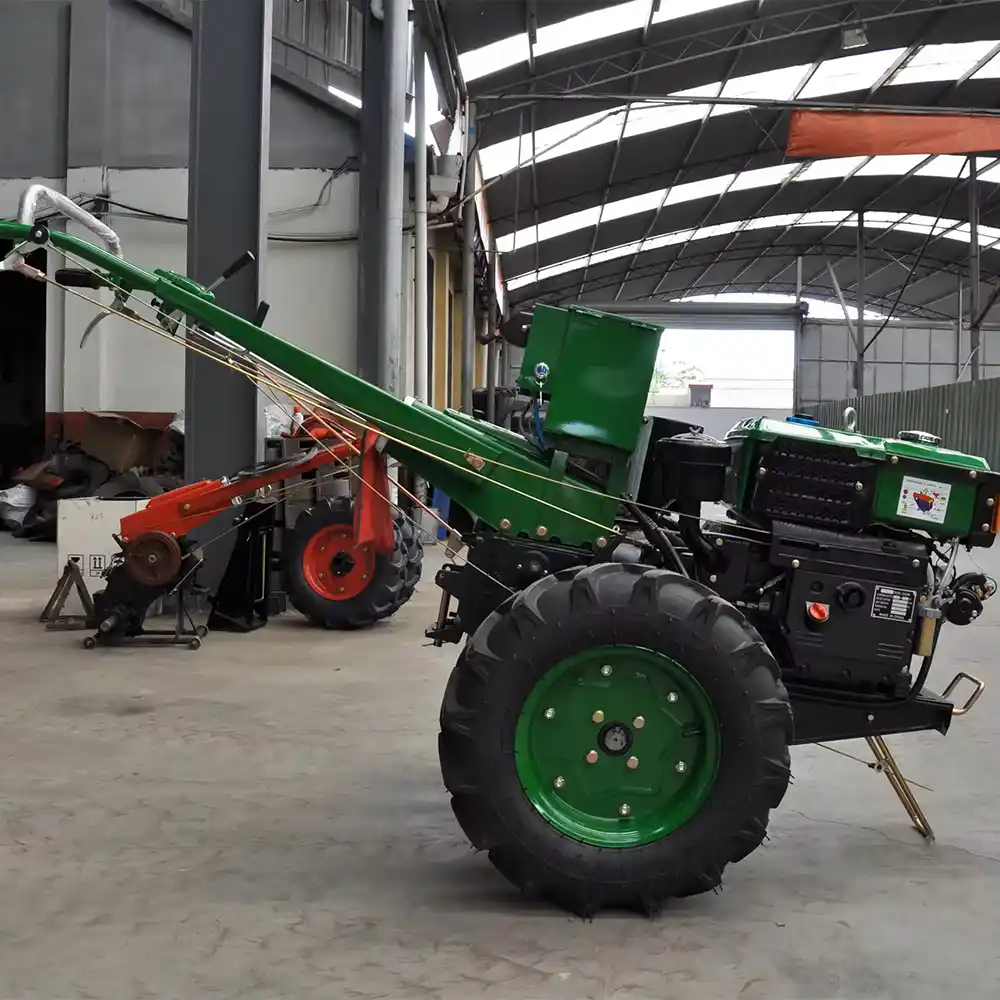

China Hand Tractor SX walking tractor with ZS1105 diesel engine has simple and compact structure, manipulate, light weight, can be widely used for various field, like small farmland, vineyards, flower garden, greenhouse particularly ideal for mountainous field.
| Mode | SX-8 | SX-10 | SX-12 | SX-15 | SX-18 | SX-20 |
| Structure weight | 270 | 290 | 300 | 480 | 480 | 480 |
| Overall dimensions (L*W*H) | 2170x 845 x 1150 | 2220x 1250 x 1220 | ||||
| Power | 8HP | 10HP | 12HP | 15HP | 18HP | 20HP |
| Tire size | 6.00-12（ w-tire） | 6.00-16（ w-tire） | ||||
| Transmission | two belt | three belt | ||||
| Drivetrain final drive | single-stage spur gear circle column wheel drive | |||||
| The fuel tank volume (L) | 11 |
13
|
||||
| Engine lubricating oil （L） | 1.5-2 | 2.5-3.2 | ||||
| Gearbox lubricants (L) | 3-3.3 | 3-3.3 | ||||
| The cooling water injection amount (L) | 12-13 | 13.5-15 | ||||
| Clutch style | riple-plate,single-action,standard,dry-friction,long engaging friction | |||||
| Gearbox style | main transmission and vice- transmission , 6 forward gears, 2 reverse gear full power shift. (3 + 1)×2 composition formula circular gear wheel column. | |||||
| Basic | Basic | |||||
