Product Descriptions

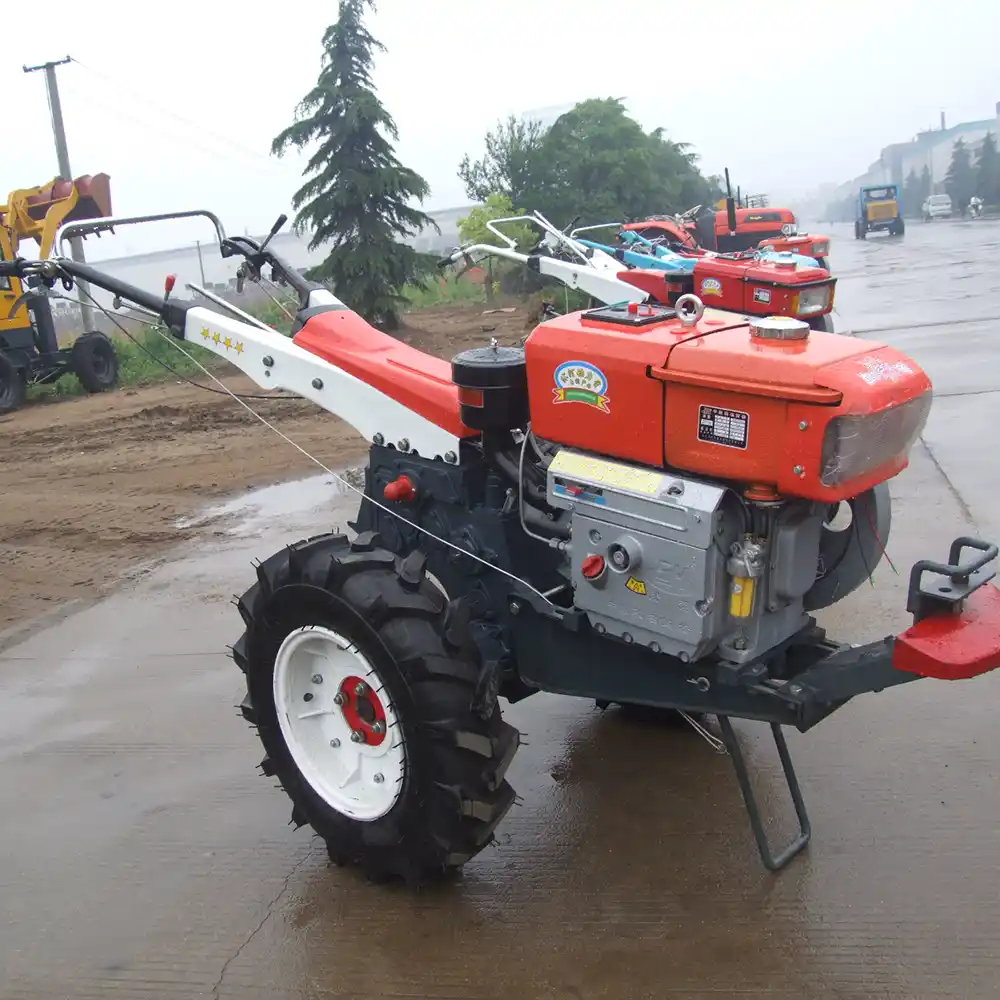

Single Axle Tractor, As One of the smallest, most basic types of tractors is the single-axle, or walking, tractor. It is a small tractor carried on a pair of wheels fixed to a single-drive axle; the operator usually walks behind, gripping a pair of handles. The engine is usually in front of the axle, and the tools are on a bar behind
| Overall dimensions, mm | Length 2180 | Width 890 | Height 1100 |
| Ground clearance, mm | 200 |
| Structural weight without attachments, kg | 310 |
| Wheel size | 6.12 "-12" |
| Track, mm | 600-750 |
| BOM type | Belt + gear |
| Engine driven | Pair of V-belts B1950 |
| Transmission type | Combined type driven by spur gear |
| Number of gears | (3 + 1) × 2 |
| Braking system type | Ring type with inner pads |
| Clutch type | Single disc, dry type, permanent clutch, friction type |
| Differential lock | Separate for each wheel |
| Light system | Headlamp high / low |
| Minimum turning radius, cm | U-turn in place |
| Tillers type | Active rototiller driven by rear gear PTO |
| Minimum loading weight for a trailer, kg | 1000 |
