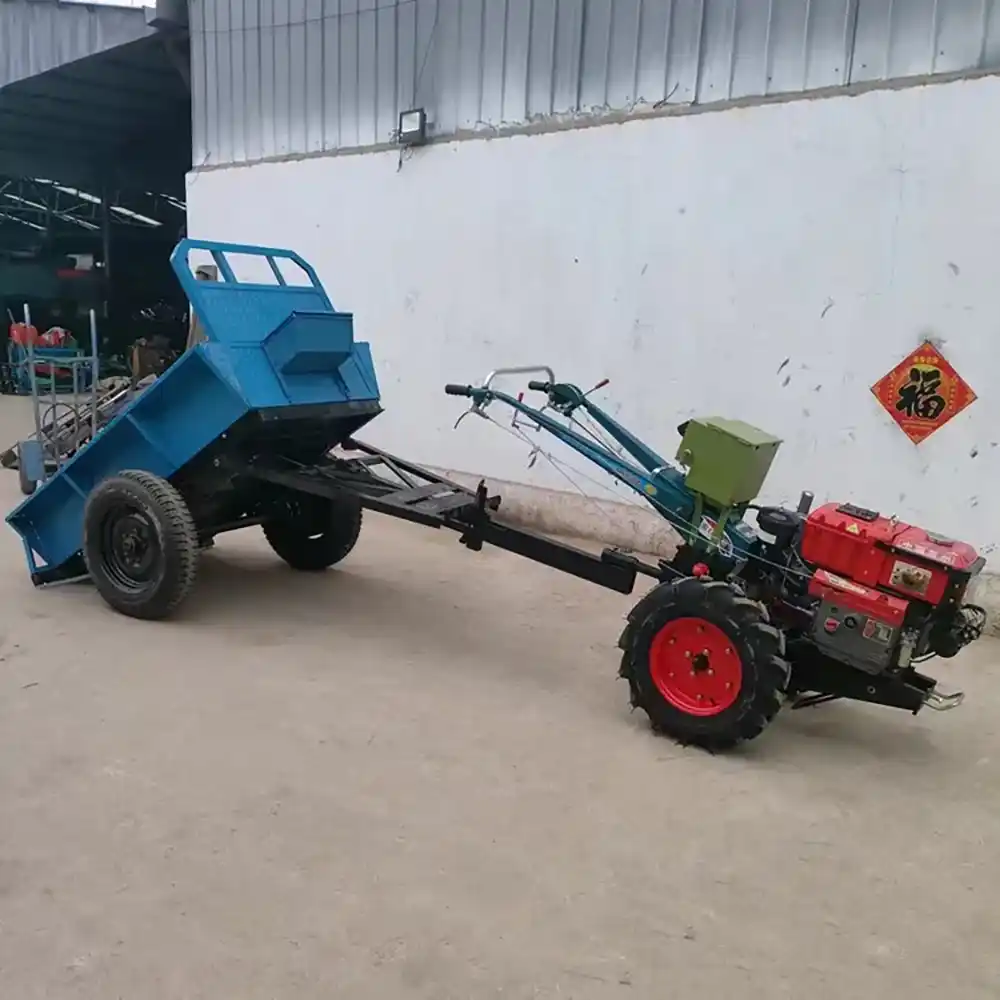

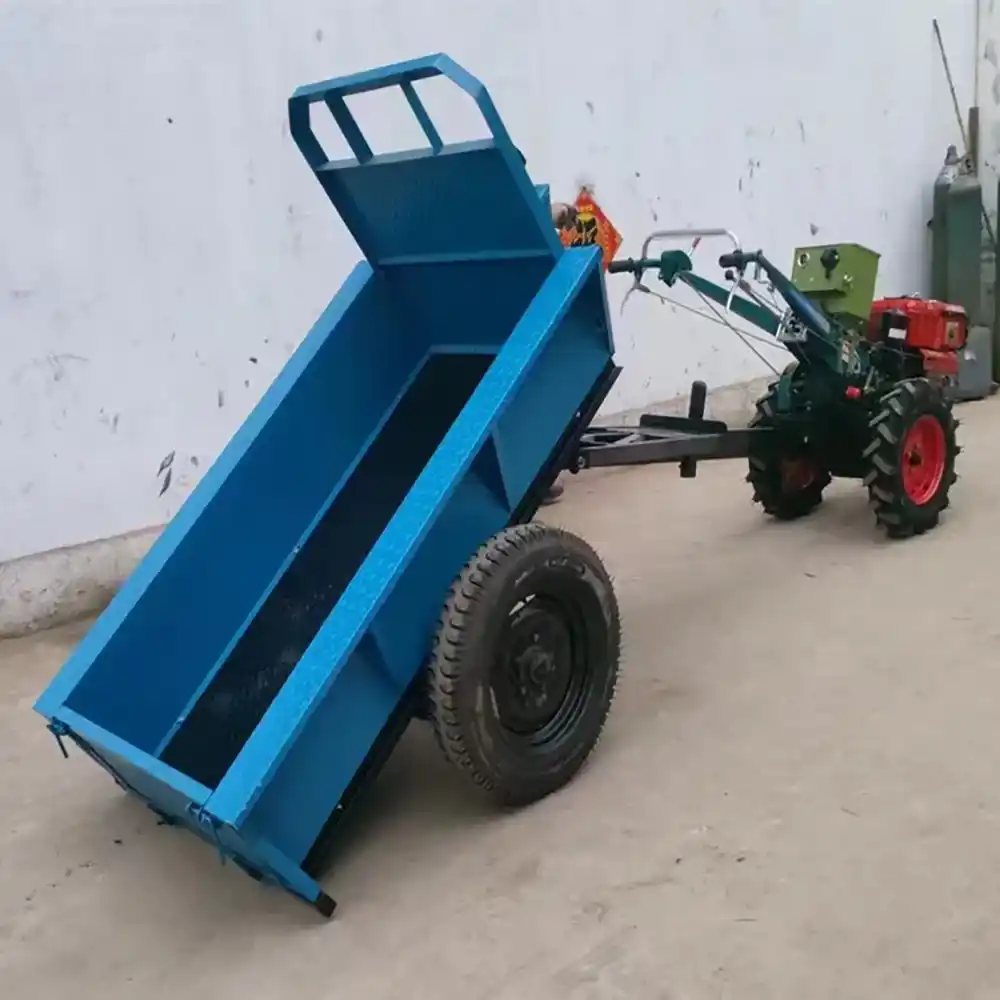

2WD Walk Behind Tractor Trailer Designed for durability with a dry multiple disc clutch and SAE No.90 lubricating oil in the transmission, it ensures reliable performance. The tractor supports small-scale braking and includes a 1-year warranty with a 1-year warranty on core components like the engine and geaf
| Technical parameters | ||
| Dimensions of tractor | width | 1050/1200mm |
| length | 2960(2360)mm | |
| height | 1220mm | |
| diameter of engine pulley | 140mm(5.5 in) | |
| diameter of transmission pully | 180mm(7 in) | |
| diameter of cage wheel | 800mm | |
| diameter of rubber tire | 7.50-16 in | |
| diameter of towing pin | 26mm | |
| v-belt | length | 1905mm(75 in) |
| quantity | 2 | |
| brake system | small-scale braking | |
| clutch type | dry multiple disc clutch | |
| lubricating oil in transmission | type | sae No.90 |
| capacity | 5.5-6L | |
| tractor max speed | 23.5km/h | |
| transmission ratio | low speed 1st gear | 44:1 |
| mid speed 2nd gear | 23:1 | |
| high speed 3rd gear | 8:1 | |
| reverse gear | 56:1 | |
| tractor weight(without engine) | 210kg | |
| diesel engine max output | 8-15.5hp | |
