Product Descriptions

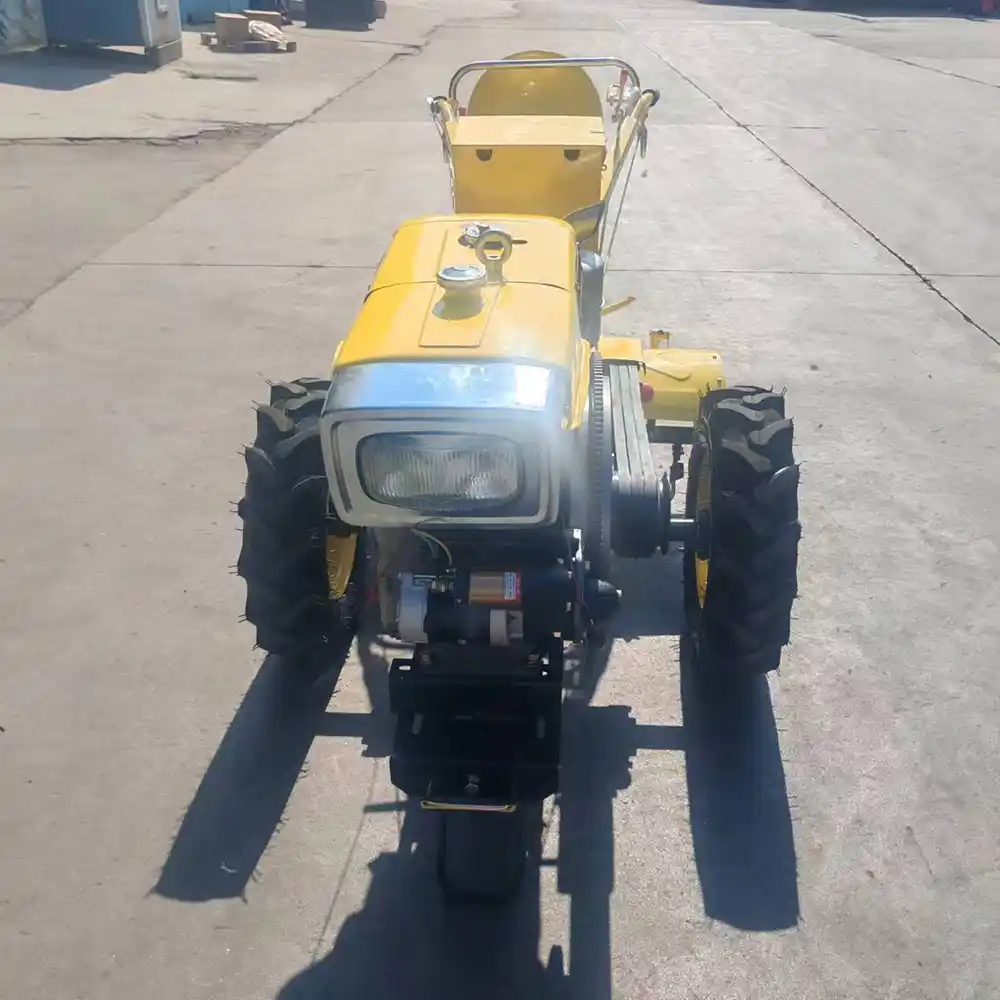

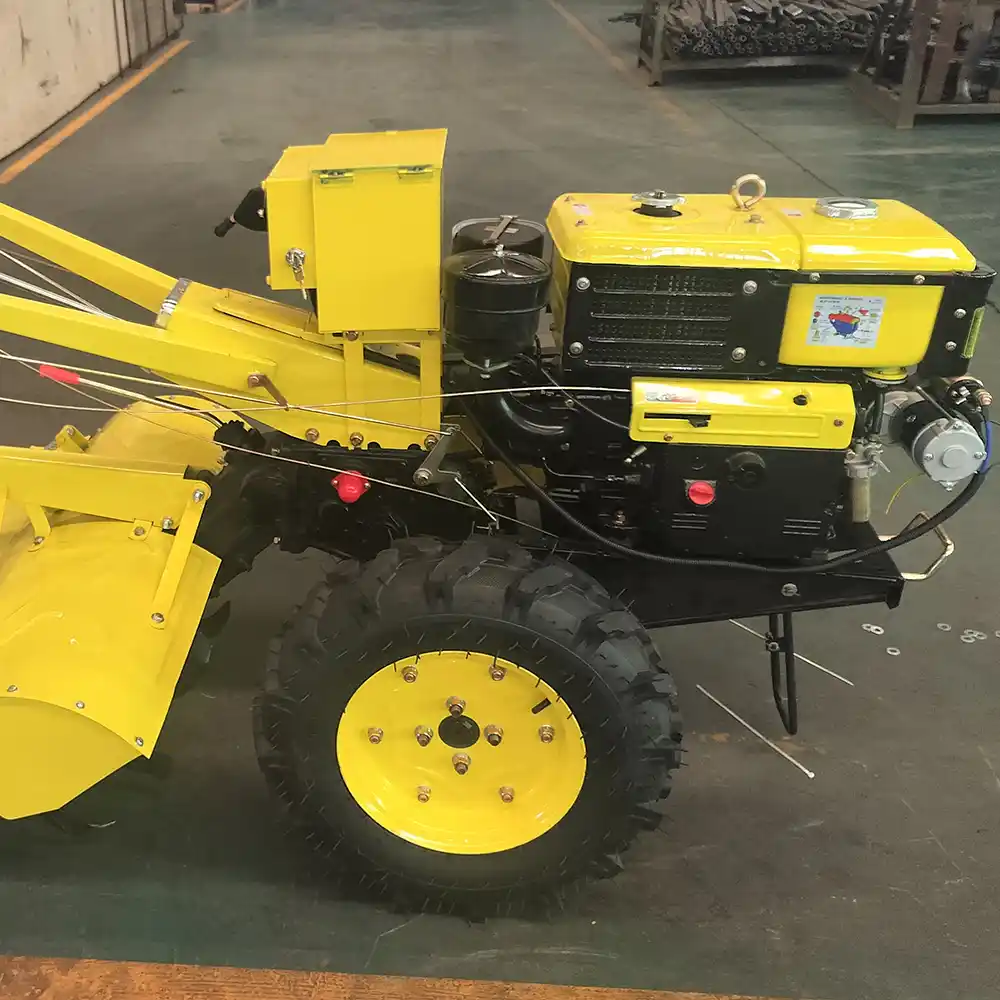

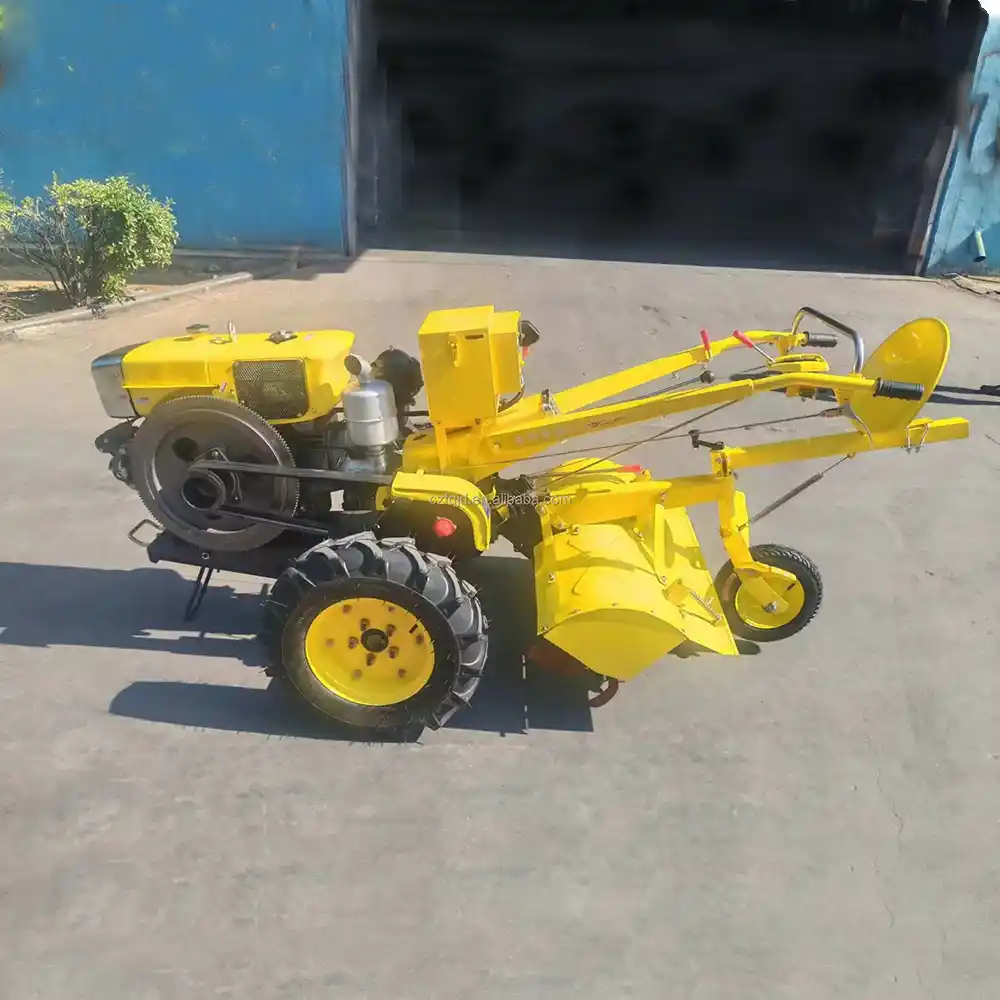

The 101 walking tractor features a compact size, compact structure, well-matched powertrain, easy maneuverability, a small turning radius, convenient use and maintenance, and stable performance. It is suitable for operations in a variety of areas, including plains, mountainous areas, gently sloping hills, paddy fields, dry land, orchards, vegetable plots, and forest areas
| Model | Unit | 101-1 | |
| Structure weight | Without rotavator | kg | 270 |
| With rotavator | 325 | ||
| Overall dimensions (LxWxH) | mm | 2180×840×1250 | |
| Number of blades | PCS | 18 | |
| Rototilling width | mm | 800 | |
| Type of tractor | Single axle, dual-purpose for both traction & drive | ||
| Travelling speed | Forword | Km/h | 1.98, 3.08, 4.98, 8.04, 12.49, 20.2 |
| Reverse | 1.53, 6.18 | ||
| Type size | 6.00-12 | ||
| Wheel track | mm | 680~740(adjustable) | |
| Min. ground clearance | mm | 210 | |
| Min. turning radius | m | 0.71 (without rotavator) | |
| Model of engine | 190N | ||
| Type of engine | Single cylinder Horizontal ,4-stroke,water cooling | ||
| Bore x stroke | mm | 90×80 | |
| Total displacement | L | 0.501 | |
| Compression ratio | 21:1 | ||
| Turing speed of crankshaft | rpm | 2600 | |
| Rated output(12-hour) | KW/hp | 7.35KW/10HP | |
| Specific fuel consumption | g/kw.h | ≤278.8 | |
| Specific lube oil consumption | g/kw.h | ≤2.72 | |
| Cooling mode | Condenser (Radiator) | ||
Main farm implements (optional)
|
|||
