Product Descriptions

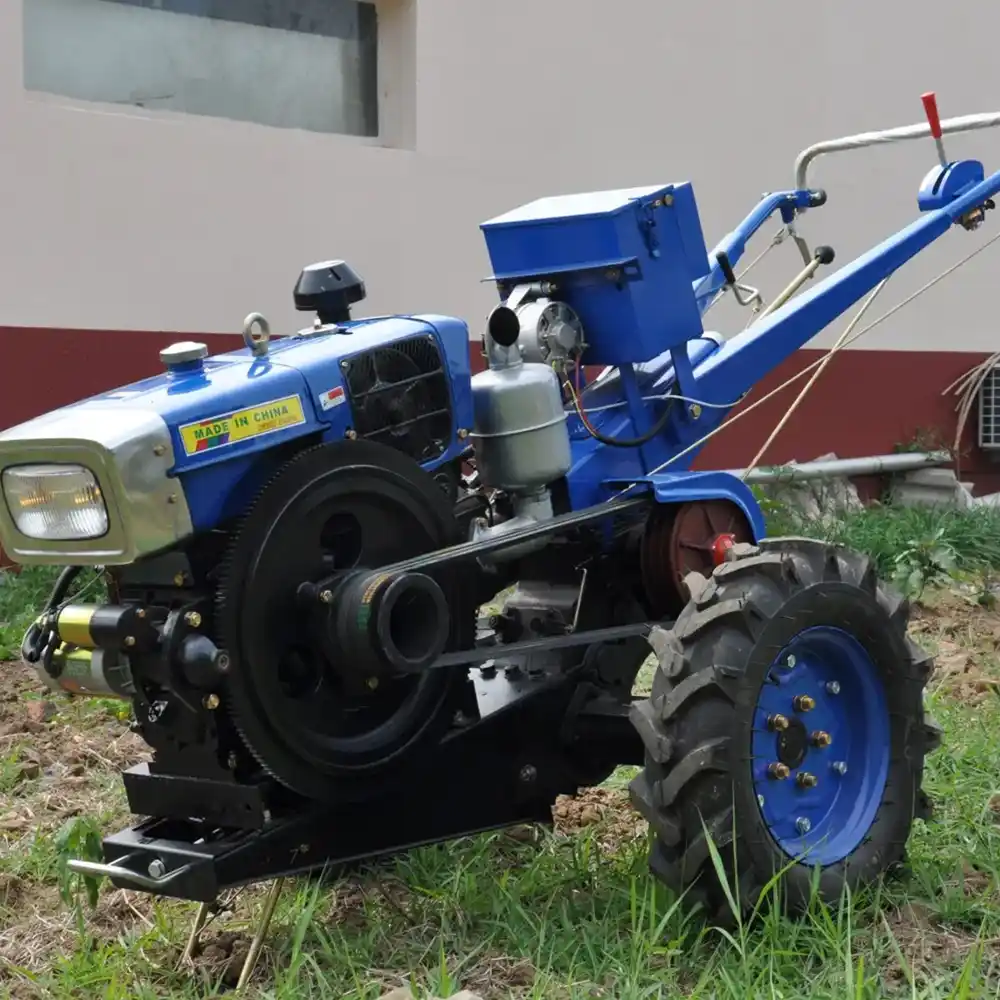

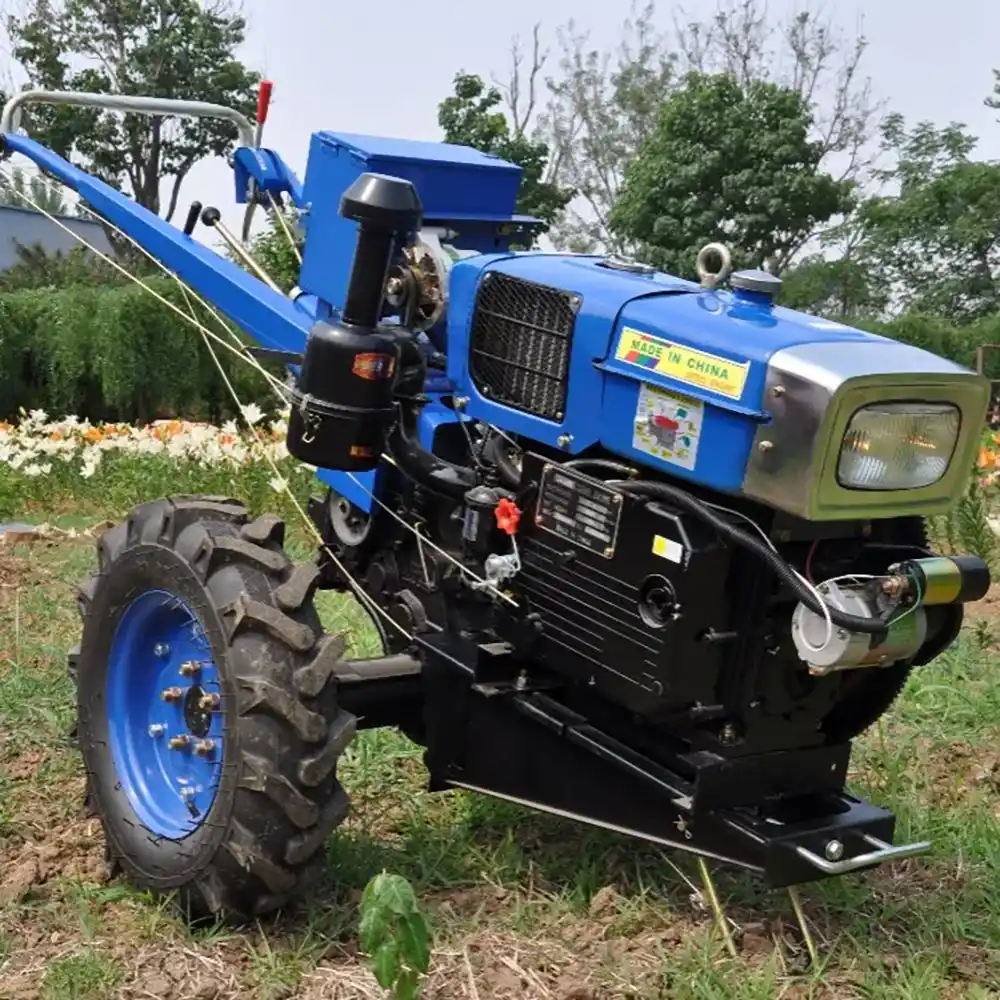

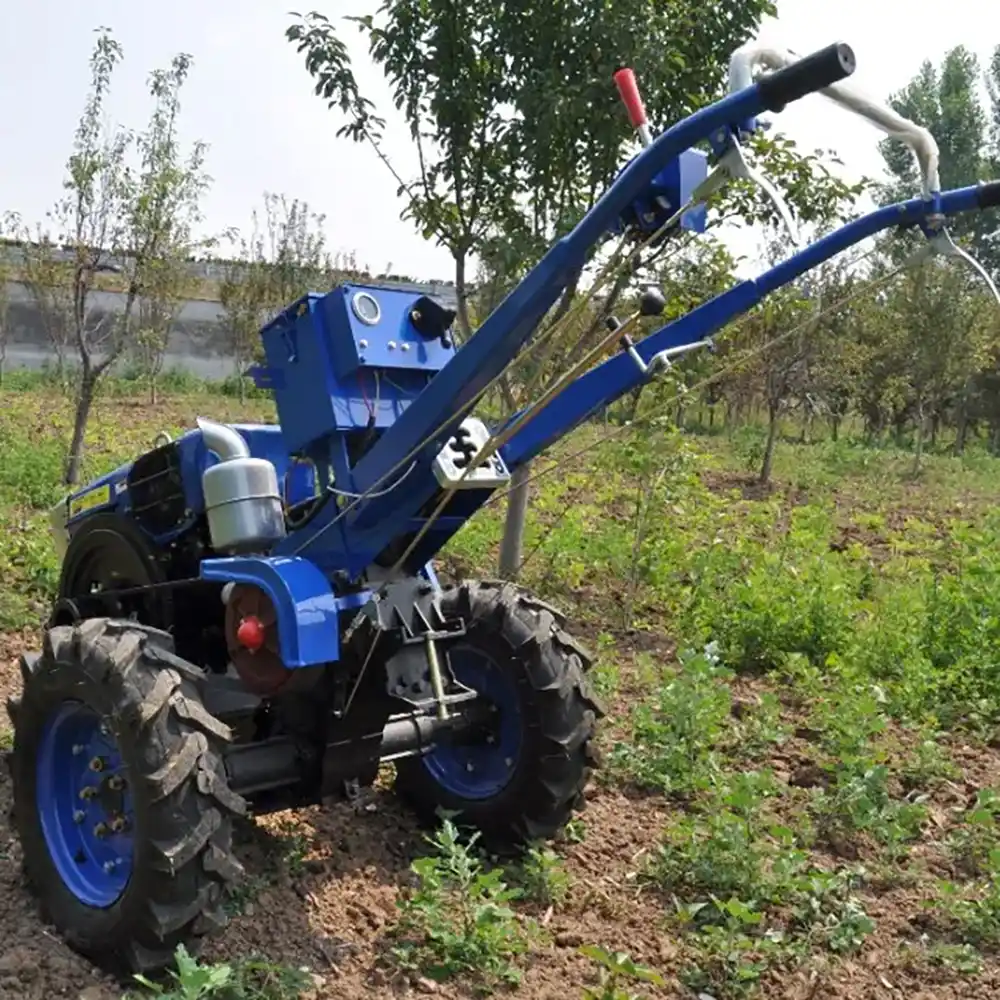

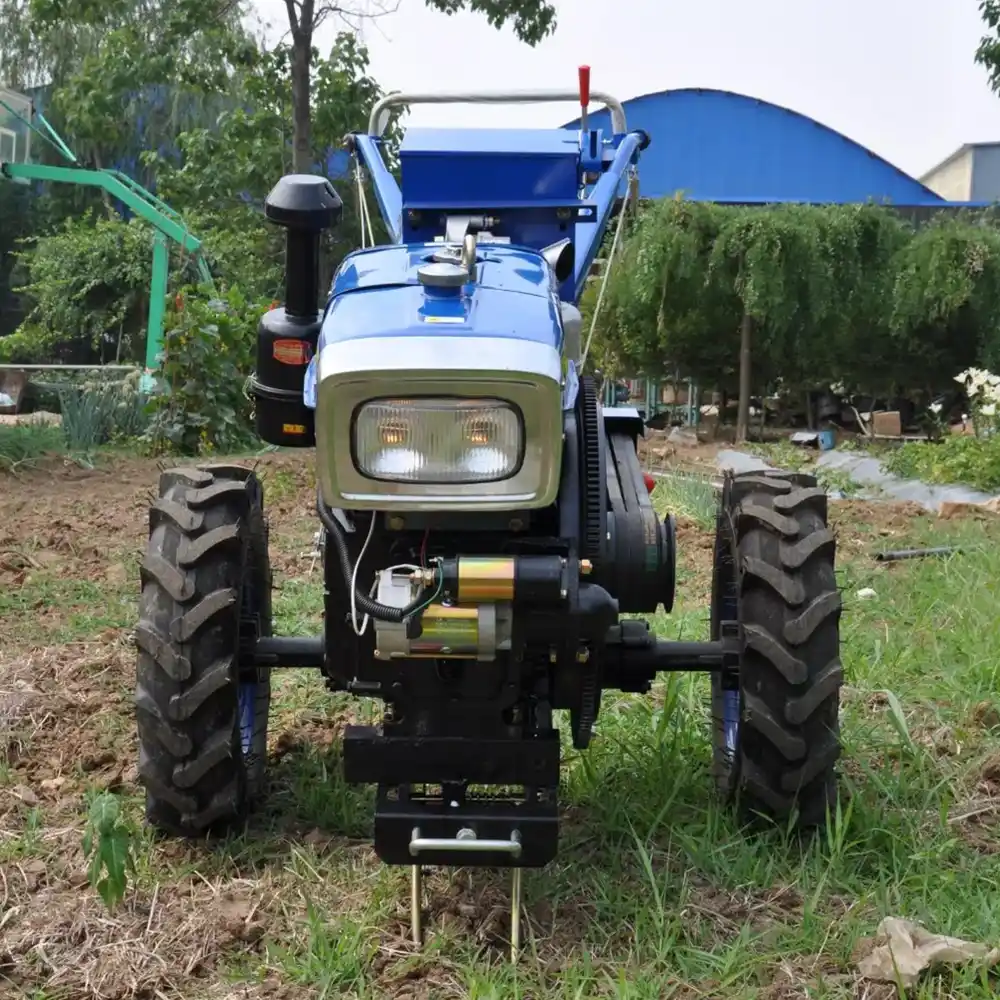

15HP walk behind tractor, traction type, mainly supporting traction type farm tools; The dual-purpose type can be used for rotary tiller operation (see Figure), tractor operation or trailer transportation.
Two wheel walk behind tracker can be divided into wheel type, crawler type and plough type according to the walking device. Wheeled walking tractor can be divided into single wheel and double wheel according to the number of walking wheels.
We are confident enough to bring more profits to our company with high quality 8 HP Mini 2 Wheel Walk Hand Tractor Farm Agriculture Walking Tractor Price at a reasonable price. We adhere to the concept of talents first, deeply understand and give full play to the fundamental and strategic role of talents in the development of the company. In any case, our staff can maintain a positive work attitude, they have a good work attitude and can work under pressure.
1. 15HP Direct Injection type diesel with double bearing system for the crankshaft, it is easy for the starting and fuel save.
2. Special designed heavy type gearbox assy, strengthen gears, shaft and gearbox housing, which make it could bear the more heavy work.
3. Big tilling width rotary tiller.
4. Dual-function type that can be used as a means of traction as well as drive.
5. It is featured by its simple and compact structure, good reliability, long service life, easy operation, ample output, light weight and good cross-country ability.
6. It is very suitable for use in paddy fields, dry fields, orchards, vegetable gardens and hilly land with a little inclination.
7. It can be used for plough, rotary tilling, harrowing in paddy fields, harvesting, drilling, ditching, transportation and etc. If suitable farm implements or accessories are attached.
8. In addition, it can also be extensively used as a stationery power source for small scale drainage and irrigation, sprinkling, grain threshing, cotton ginning, flour milling, fodder cutting and so on.
| odel |
8HP Walking tractor |
10HP Walking tractor |
11HP Walking tractor |
12HP Walking tractor |
13HP Walking tractor |
15HP Walking tractor |
18HP Walking tractor |
20HP Walking tractor |
22HP Walking tractor |
| Diesel engine |
ZR180 8HP |
ZR190 10HP |
ZR192 11HP |
ZR195 12HP |
ZR196 13HP |
ZS1100 15HP |
ZS1105 18HP |
ZS1110 20HP |
ZS1115 22HP |
| Engine Type | Single, horizontal, water cooled,four stroke | ||||||||
| Starting method | Hand start /Electric start | ||||||||
| Combustion System | Direct injection | ||||||||
| Cooling way | Evaporative/Condensing | ||||||||
|
Power (1 hour ) |
5.88kw /8hp |
7.92kw /10hp |
8.47kw /11.5hp |
9.68kw /13hp |
9.92kw /13.5hp |
12.13kw /16hp |
13.31kw /18hp |
14.56kw /20hp |
16.17kw /22hp |
|
Power (12 hour ) |
5.35kw /8hp |
7.0kw /9.5hp |
7.7kw /11hp |
8.8kw /12hp |
9.5kw /13hp |
11.03kw /15hp |
12.1kw /16hp |
13.24kw /18hp |
14.7kw /20hp |
| Dimensions(LxWxH) | 2170×890×1150mm | 2680×960×1250mm | |||||||
| Min.Ground Distance | 210mm | 185mm | |||||||
| Parameter | Tread:640-800mm,Clutch:Sing/double friction disc of constant conjunction,6 pieces Forward gear,2 pieces Reverse gear.Tyre:6.00-12 | Tread:580-600mm,Tyre:6.00-12,Weight 350kg | |||||||
| Tire Pressure | Field Work: 80~200(0.8~2.0kgf/cm2) | ||||||||
| Transportation Work:140~200(1.4~2.0kgf/cm2 ) | |||||||||
| Triangle belt | 2 pcs or 3 pcs B1750 | 3 pcs B1800 | 2 pcs or 3 pcs B1850 | 4 pcs B1880 | |||||
