Product Descriptions

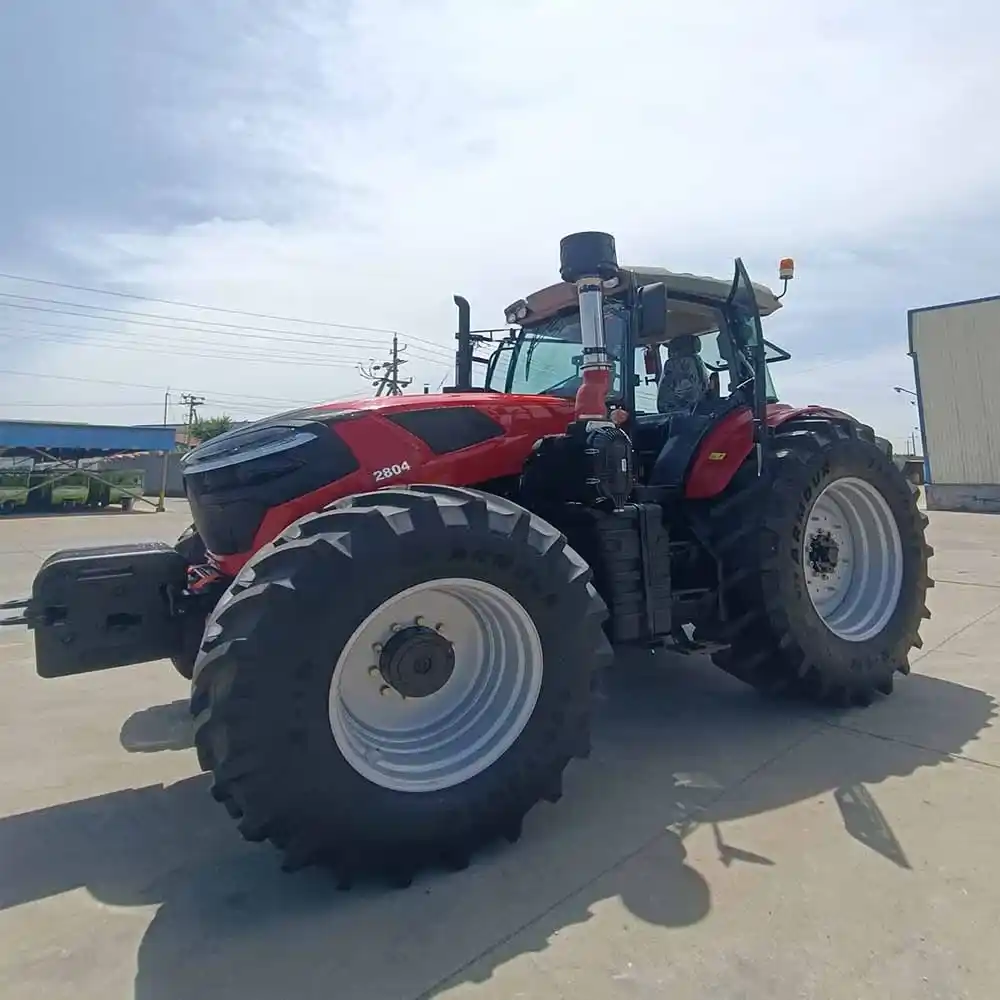

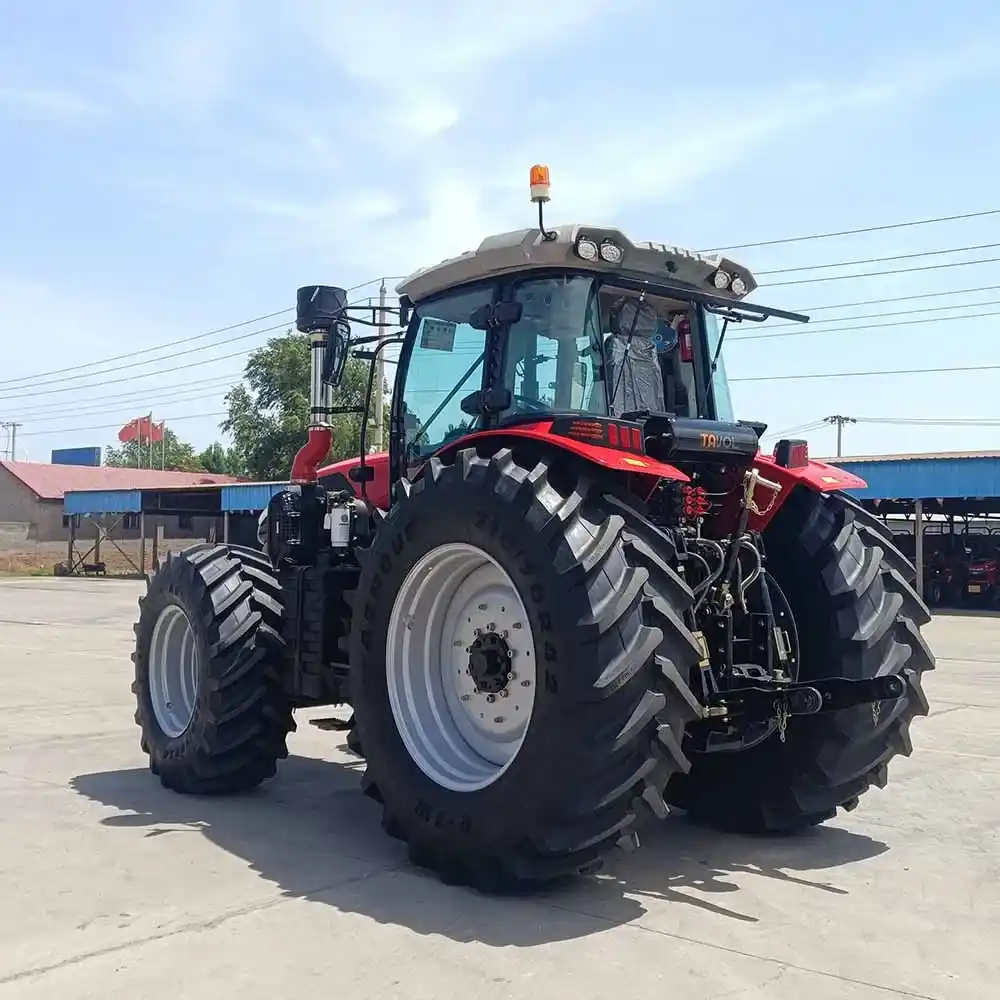

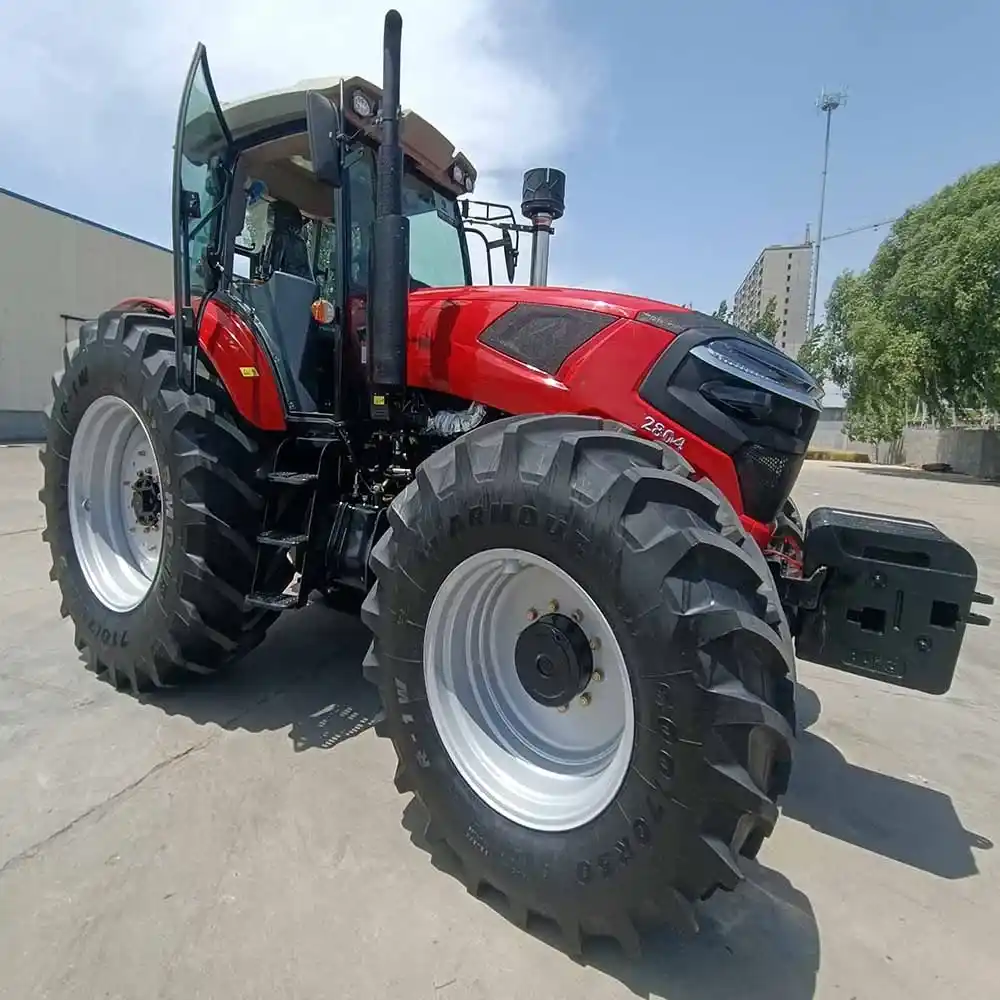

CE Approved 280HP 4WD Large Power Agricultural Farm Tractor with Air Conditioner Cabin
| Model | 2804 | |
| Machine parameters | Type | 4×4 |
| Rated Traction( KN) | 38 | |
| PTO Max Power (KW) | 125 | |
| Dimensions(mm) | 5400*2430*3140 | |
| Wheelbase(mm) | 2668 | |
| Track(mm) | Front wheel(mm) | 1900 |
| Rear wheel(mm) | 1700-2300 | |
| Ground clearance(mm) | Minimum ground clearance(mm) | 400 |
| Minimum turning cricle radius | Use unilateral braking | ≤6.2 |
| Not unilateral braking | ≤7.0 | |
| Minimum use quality | 6400 | |
| Gearbox | 16F+16R Shuttle Shift | |
| Steering System | hydraulic steering gear | |
| Drive Train | Clutch | double acting clutch |
| Working equipment | Maximum lifting force at 610mm(KN) | ≥35 |
| Suspension mechanism | Three-piont suspension type 1 | |
| PTO shaft | PTO Spedd(r/min) | 540/760/1000 |
| Tire | Front wheel specifications | 16.9-28 |
| Rear wheel specifications | 18.4-42 | |
| Engine | Type | Inline, 4 stroke, Water cooled |
| Cylinder | 4 | |
| Optional | Cabin | AC/Heater |
| Roll bar | ||
| Canopy | ||
| Perfusion volume | Radiater(L) | 28 |
| Fuel tank(L) | 325 | |
| Engine oil pan(L) | 22 | |
| Driveline oil (L) | 110 | |
| Lifter(L) | 65 | |
| This parameter table is for reference only, everything is based on actual products | ||
