Product Descriptions

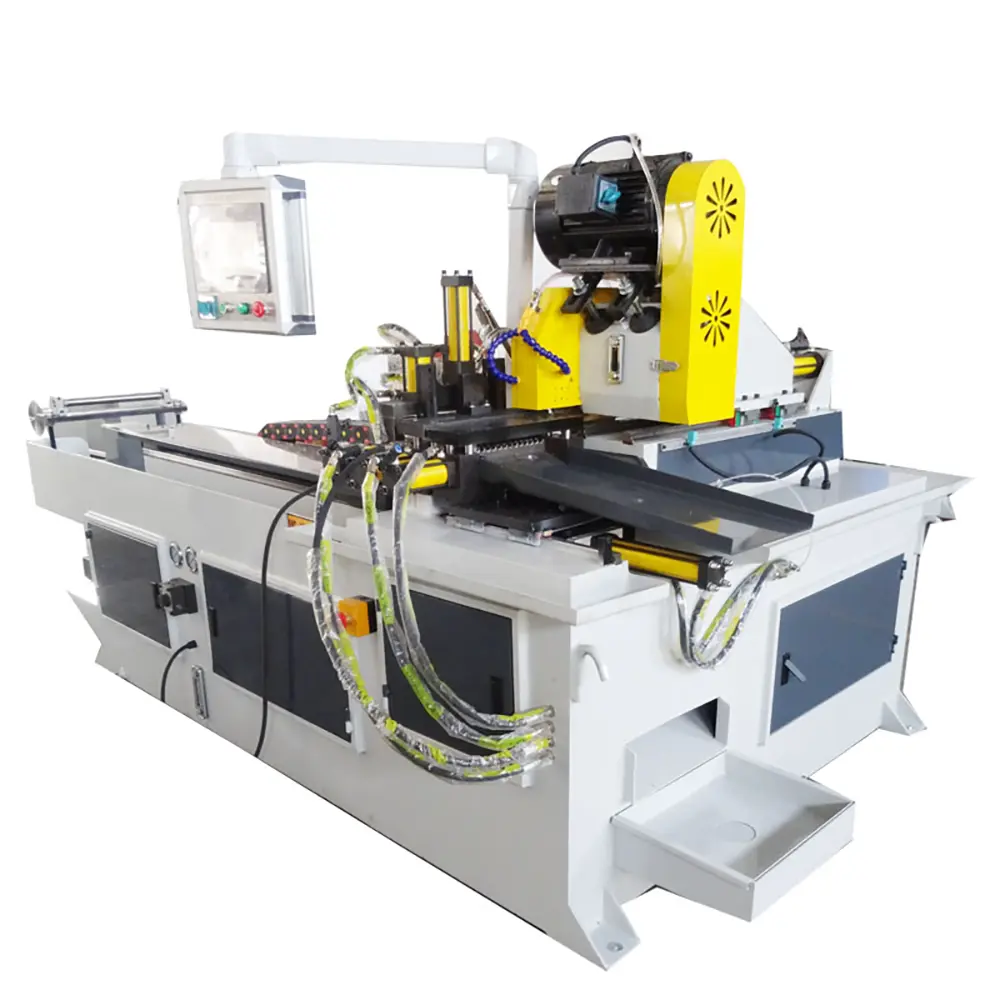

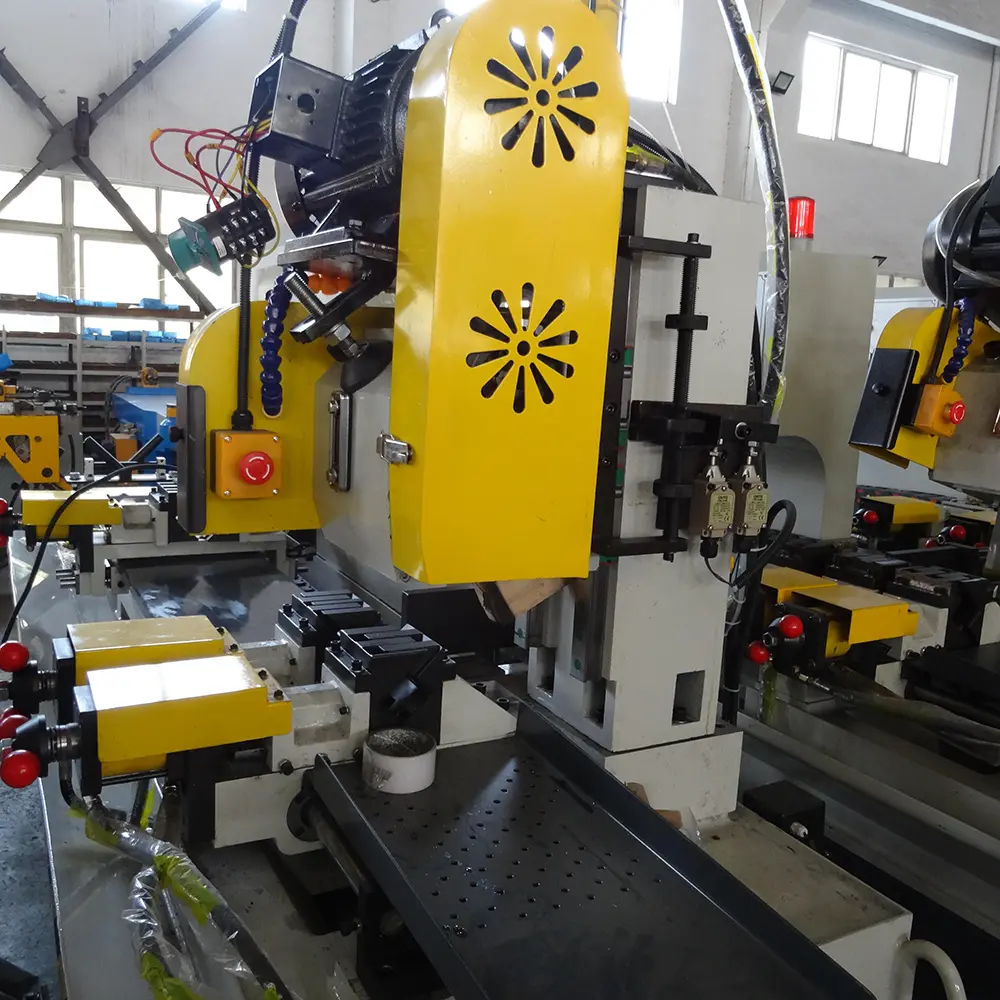

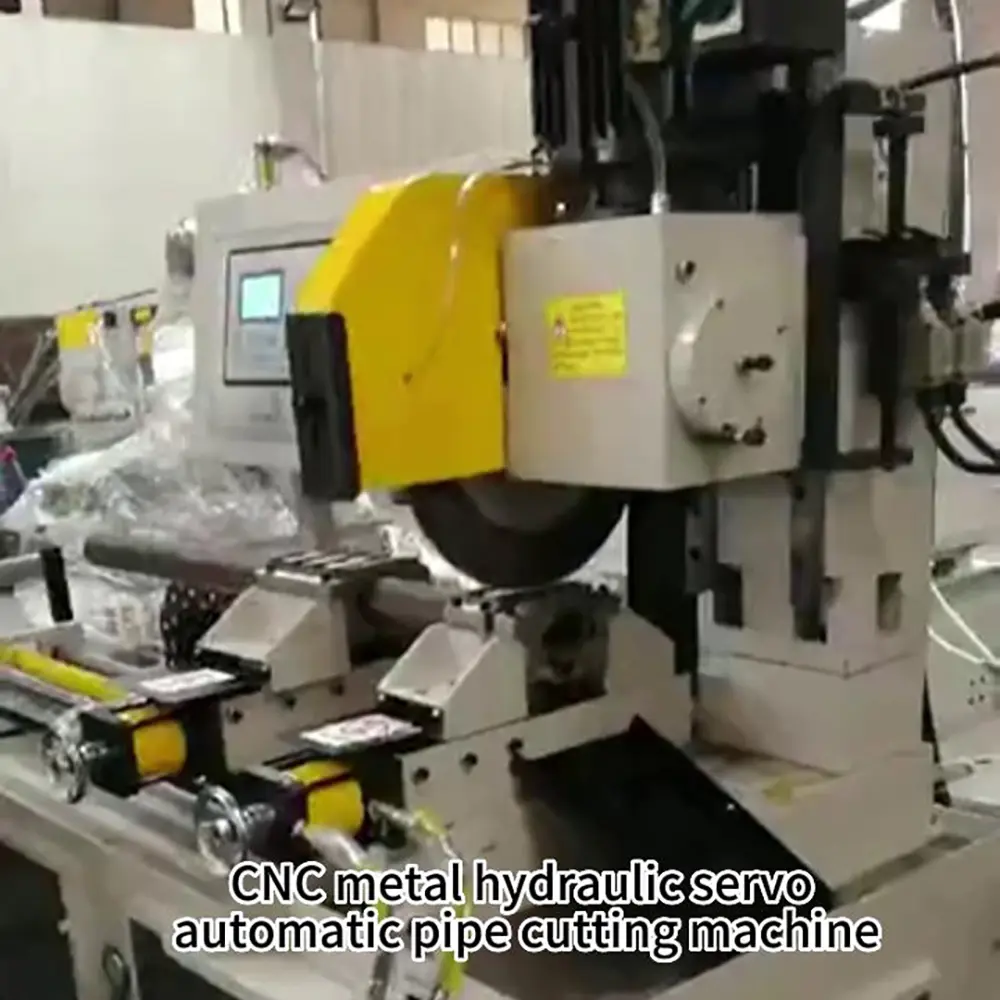

The 425 CNC Hydraulic Pipe Cutting Machine is a high-performance automatic metal tube cutting system designed for precision cutting of large diameter pipes and profiles. Equipped with advanced CNC control technology and a powerful hydraulic cutting system,this machine delivers accurate,stable,and efficient cutting performance for industrial manufacturing applications.With a maximum cutting capacity of 425mm,the machine is suitable for processing large steel pipes,stainless steel tubes,carbon steel pipes,and various metal profiles. It is widely used in steel structure manufacturing,metal furniture production,automotive parts,construction materials,mechanical fabrication,and industrial pipe processing.
Compared with traditional manual or semi-automatic cutting equipment,the CNC hydraulic pipe cutting machine provides higher accuracy,faster production speed,and better consistency. The automatic control system reduces operator dependence and makes it suitable for modern intelligent manufacturing production lines.
| Model | 425CNC | |
| Power mode | Hydraulic | |
|
Sawing& cutting capacity mm |
○ | φ130 |
| □ | 130×130 | |
| ┗ | 130×110 | |
| 150×90 | ||
| ● | φ 76 | |
| ■ | 65×65 | |
| Suitable size of saw blade | Saw diameter | φ250-450mm |
| Hole diameter | Φ32mm | |
| pin hole | 2XΦ11X65mmPCD | |
| Power of the motor | Main motor | 2.4/3kw |
| Servo motor | 1kw | |
| Oil pump | 2.2kw, 25-35kg/c㎡ | |
| Cooling motor | 0.09kw | |
| precision | Feeding | ±0.1mm |
| Cutting | ±0.1mm | |
| Drive method of cutting head | Gear | |
| Feed way | Servo motor | |
| Length of feed | 1500mm( 1000 and 2000mm are available) | |
| Clamp the end raw material | 100-150mm | |
| Clamp way | horizontally or vertically | |
| Weight | 1400 KG | |
| Over size | 2950x1550x2100 mm | |
