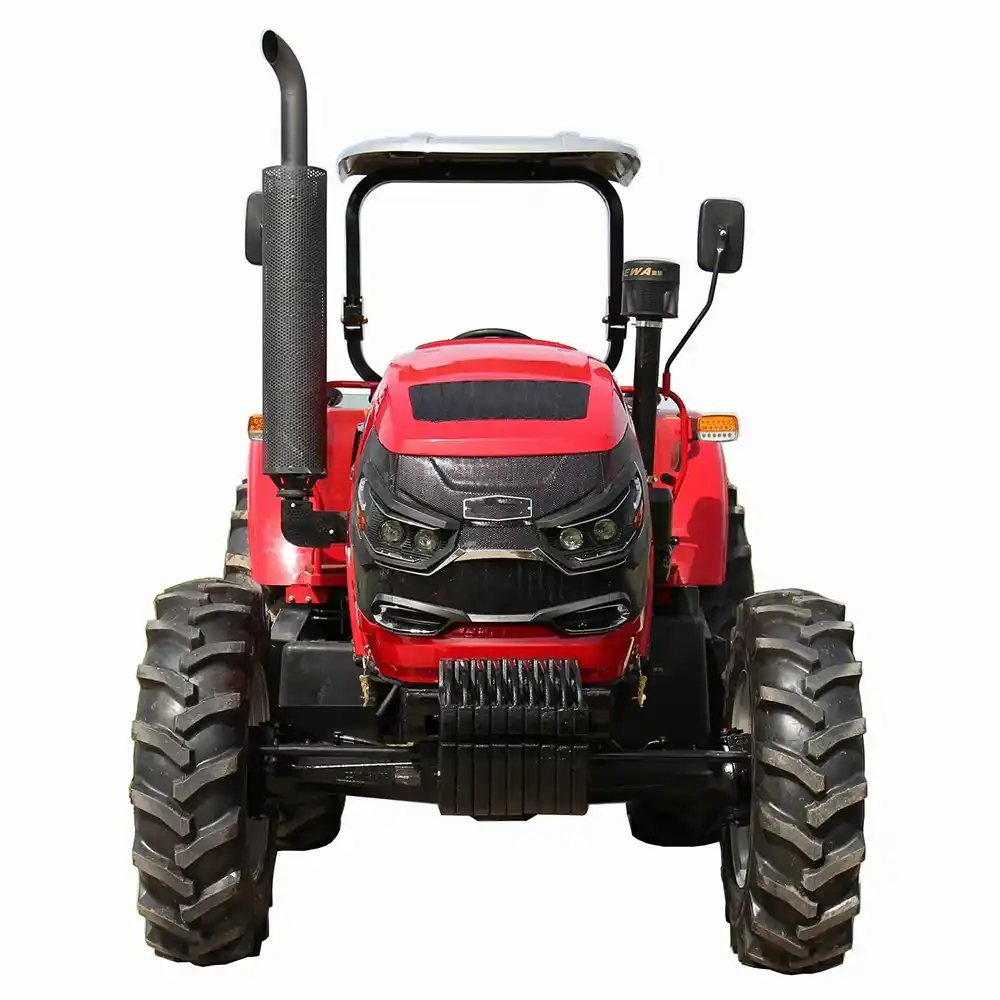

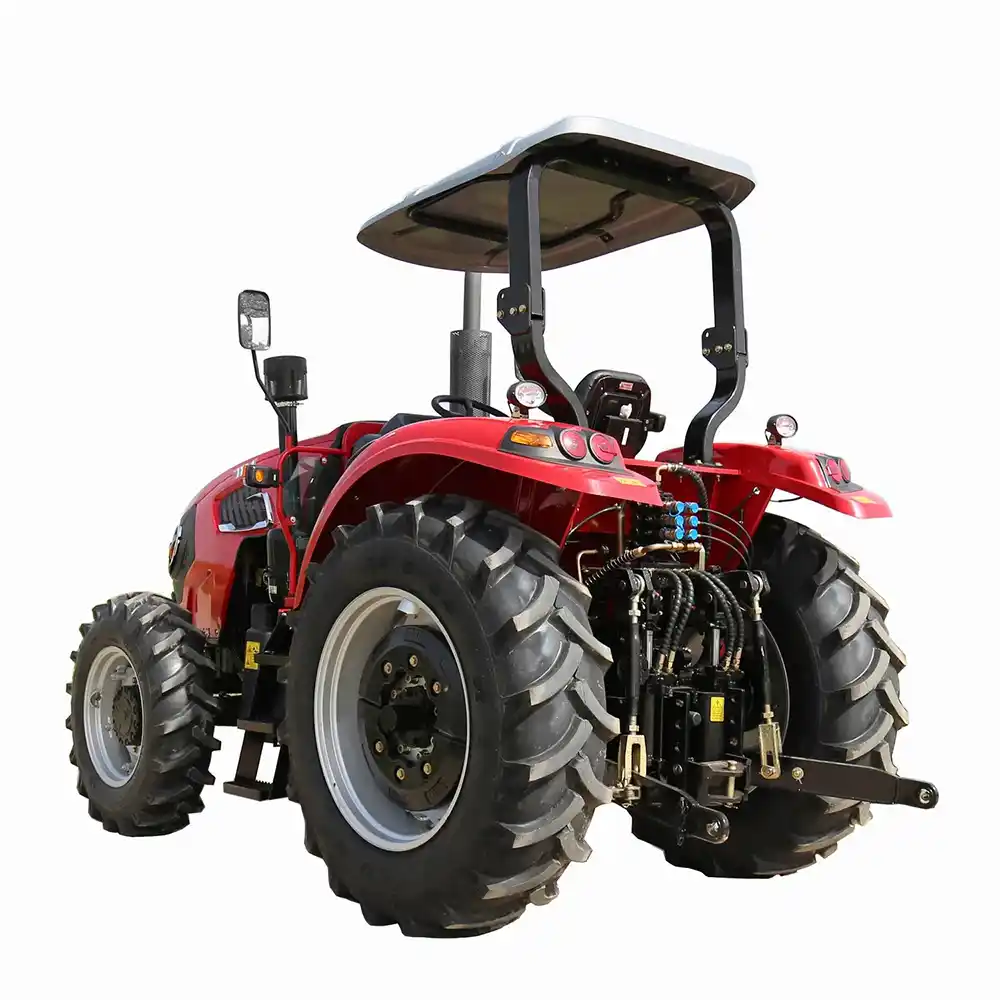

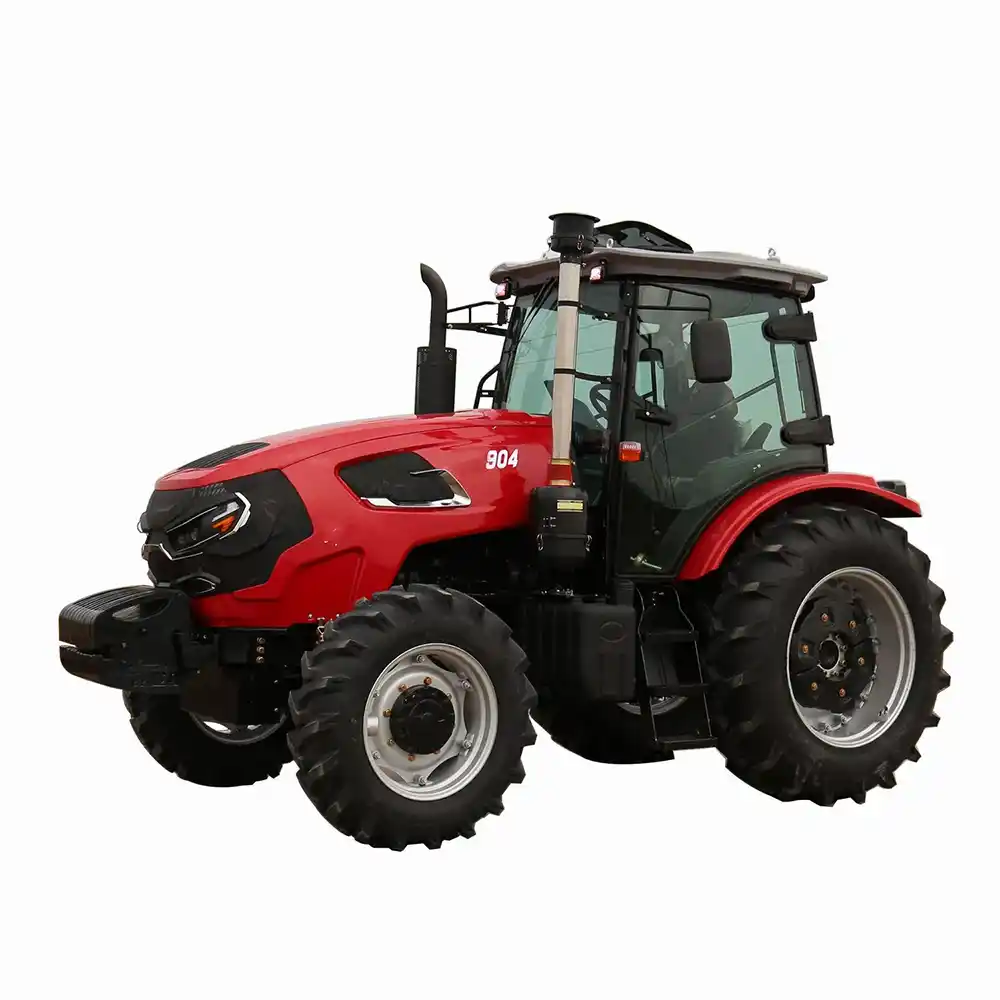

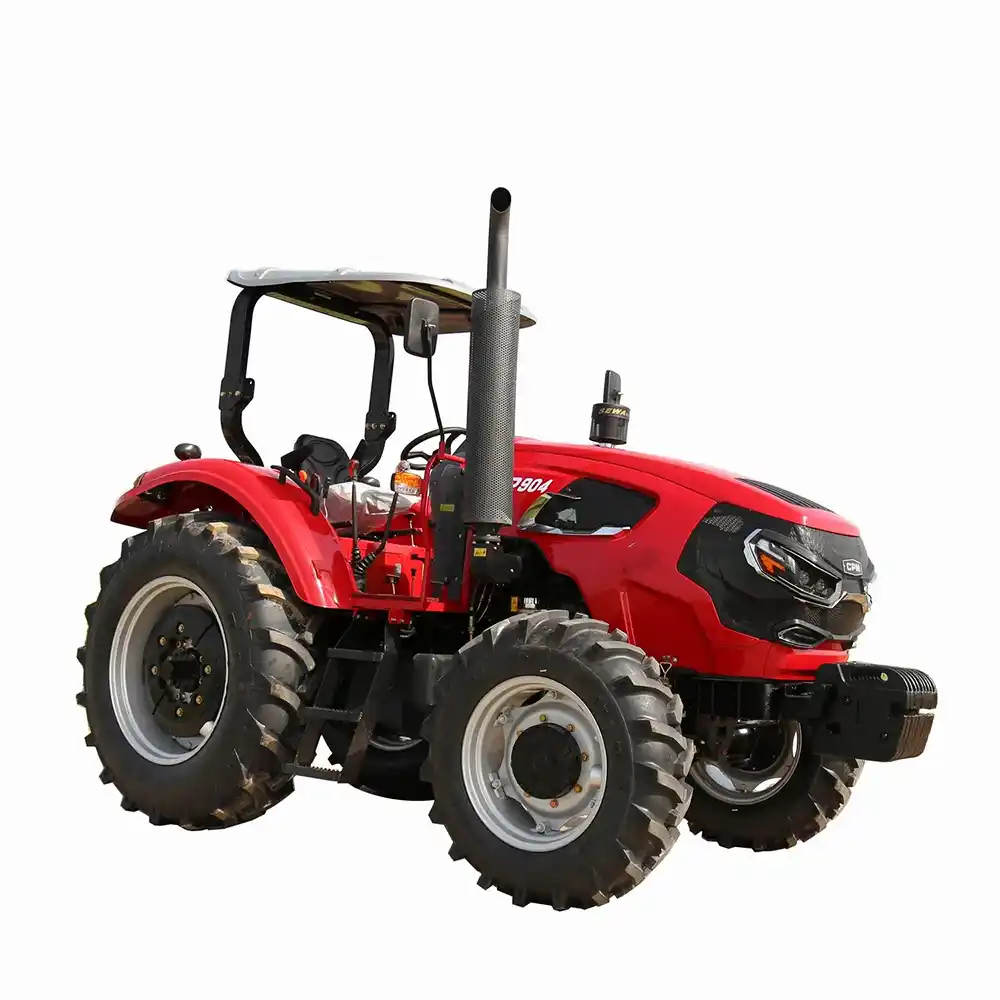

90 HP Tractor, 90 Horsepower Tractor farm machine equipment 4WD 4x4 cheap 90hp tractor
| PECIFICATIONS FOR 90HP TRACTOR | ||
| (mm)Dimensions of Tractor | Length (to front ballast) | 4290mm |
| Width | 1910mm | |
| Height (to the exhaust vent) | 2760mm | |
| Wheel Base(mm) | 2273 | |
| Track base(mm) front wheel | 1450 | |
| Track base(mm) rear wheel | 1430-1830(Usual 1530) | |
| Min.Ground Clearance(mm) | 335 | |
| Engine | Model | Quanchai 4JR3ABT9, 4 Cylinders |
| Type | Vertical,4-Cylinder,Water Cooled and 4-stroke | |
| Rated Power(kw) | 66.2Kw | |
| Rated speed (r/min) | 2200rpm | |
| Fuel | Diesel | |
| Tires | Front Wheel | 8.3-24 |
| Rear Wheel | 14.9-30 | |
| Structure weight (kg) | 3580Kg | |
| Clutch | Dual-stage clutch | |
| Steering | Hydraulic steering | |
| Transmission Type | 10+10 shift | |
| Suspension Type | 3-point links(Category II) | |
| PTO | Type and Rev | Semi-independent Type 540/760r/m |
| Spline Size | I35 Rectangle Spline with 6 teeth/8 teeth | |
