Articulating Tractor, Articulated Narrow-Track Tractor for Hills
It main used in hill, Garden,fit for higher slope operations, The traction is strong,
The articulated Tractor front and rear box hinged, can realize the body torsion, so as to reduce the turning radius, but also to achieve greater climbing ability; The center of gravity of the machine is closer to the front to ensure the stability and safety of the work in the mountains and hills. Compared with traditional tractors, the biggest advantage is that the tractor can handle both climbing and descending hills easily, especially suitable for mountainous and hilly areas.
| 604 Articulated Tractor | ||||
| Technical Parameter: | ||||
| Item | Unit | Designed value | ||
| Machine | Model | / | 604 | |
| Type | / | 4WD | ||
| Purpose | / | General purpose | ||
| Overall dimension(L*W*H) | mm | 3490× 1355×2190(Top ROPS) | ||
| Wheelbase | mm | 1410 | ||
| Wheel tread(Front wheel/Rear wheel) | mm | 960-1300/960-1300 | ||
|
Normally used Wheel tread (Front wheel/Rear wheel) |
mm | 1020/1020 | ||
| Min. ground clearance | mm | 250( Rear axle bottom) | ||
| Min. operation weight | kg | 1780 | ||
| Max. Ballast(front/rear) | kg | 0/56 | ||
| Gear(Forward, backward) | / | 8/2 | ||
| Theoretical speed of each gear | km/h |
Forward:1.52, 2.24, 3.53, 4.86, 7.02, 10.36, 16.30, 22.46 Backward: |
||
| Connection mode of engine and clutch | / | Direct connect | ||
| Start mode | / | Electric start | ||
| PTO power | kW | 37.5 | ||
| Max. traction force | kN | |||
| Engine | Type | / | Inline, water cooled, four strokes | |
| Mode | / | 3G25TC-60G31C | ||
| Manufacture | / | CHANGCHAI | ||
| Intake mode | / | Turbocharged inter-cooled | ||
| Cylinder No. | / | 3 | ||
| Rated power | kW | 44.1 | ||
| Rated speed | r/min | 2300 | ||
|
Steering system |
Type of steering system | / | Bending steering | |
| Type of steering gear | / | Hydrostatic steering gear | ||
|
Transmissio n system |
Clutch type | / | Dry, single disc, constant joint | |
| Transmission type | / | Mechanical plane composition | ||
| Gearbox shift mode | / | The meshing sleeve shifts gears | ||
| Tire mode(Front/rear) | / | 13.2-16(9.5-16)/13.2-16(9.5-16) | ||
| Tire Pressure (Front/Rear) | kPa | 80~120/80~120 | ||
|
Working device |
Hydraulic suspension system type | / | separated type | |

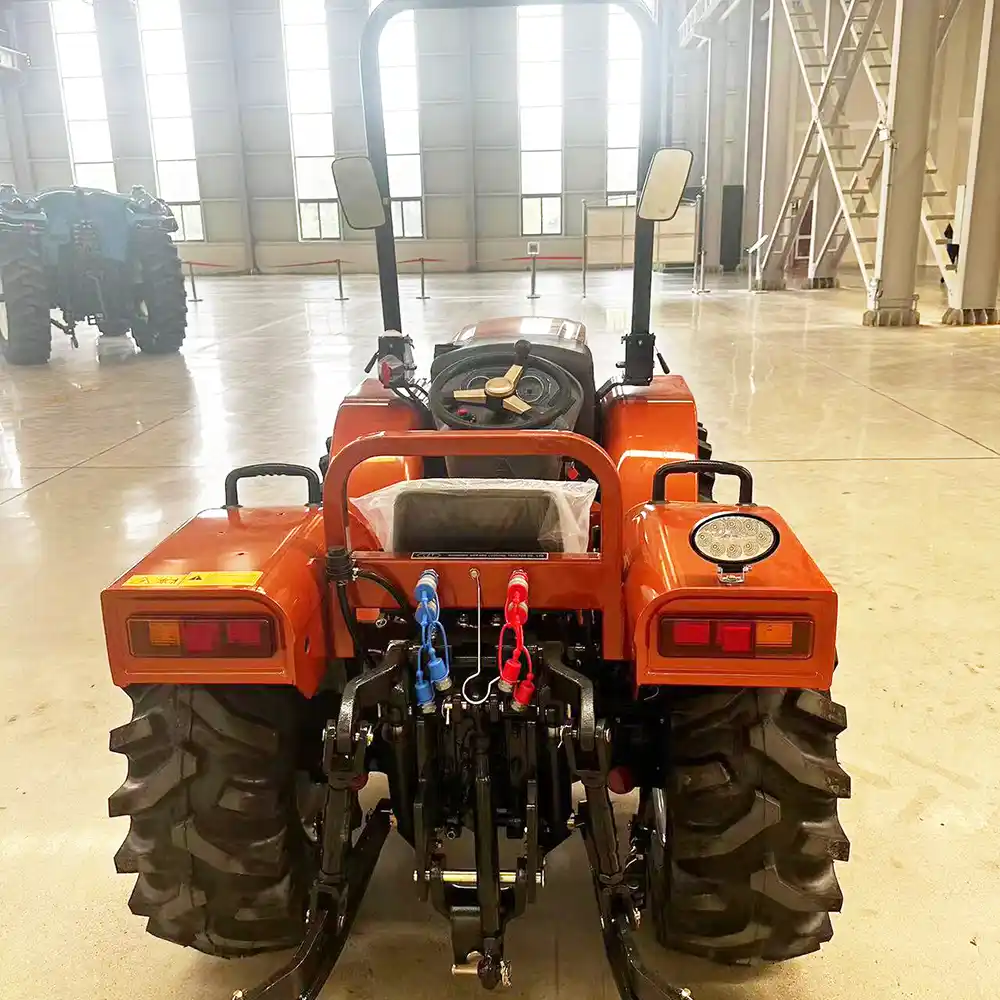

| Suspension device mode | / | Rear mounted, three point linkage | ||
| Suspension device category | / | 1 category | ||
| Hydraulic oil pump type | / | Gear pump | ||
| Hydraulic output | / | One group | ||
| Full opening pressure of relief valve | MPa | 18±0.5 | ||
| PTO mode | / | Rear mounted, semi-independent | ||
| PTO spline | / | 6 | ||
| PTO spline OD | mm | Φ35 | ||
| PTO speed | r/min | 540/760( 540/1000 or 720optional | ||
