Product Descriptions

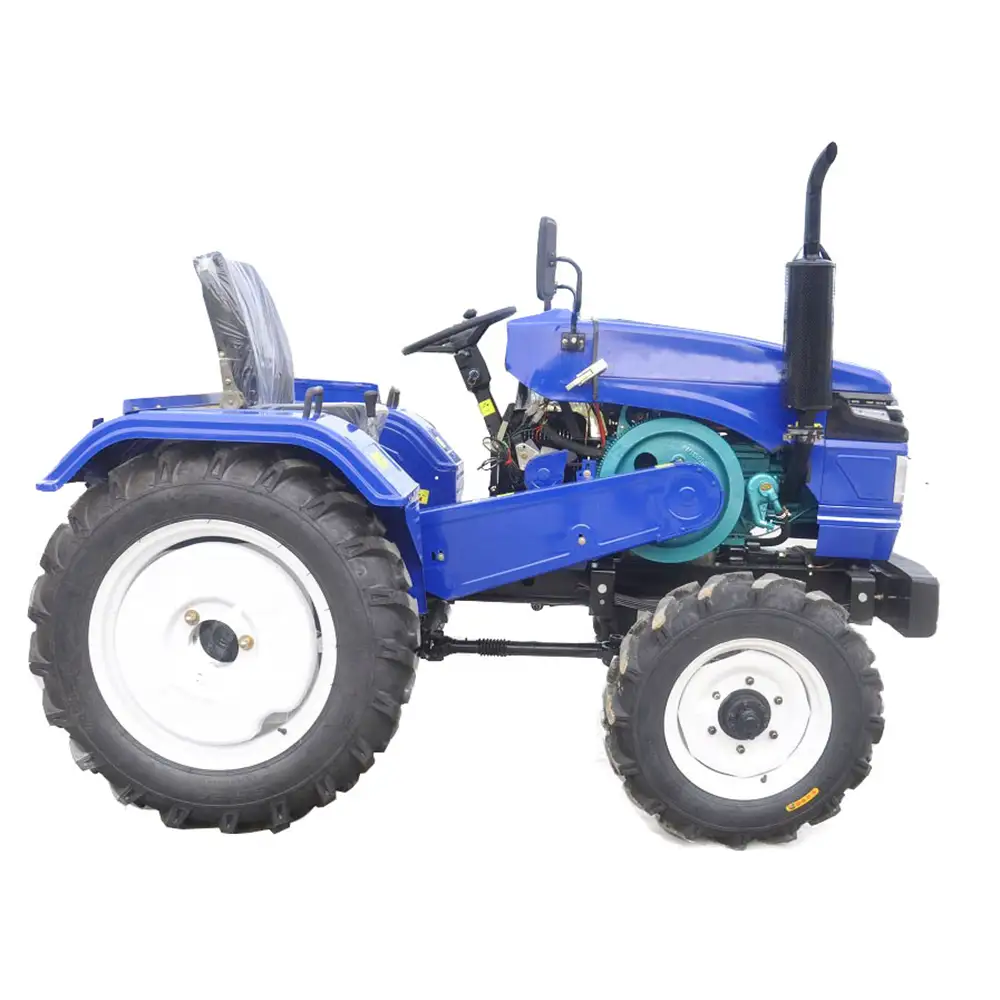

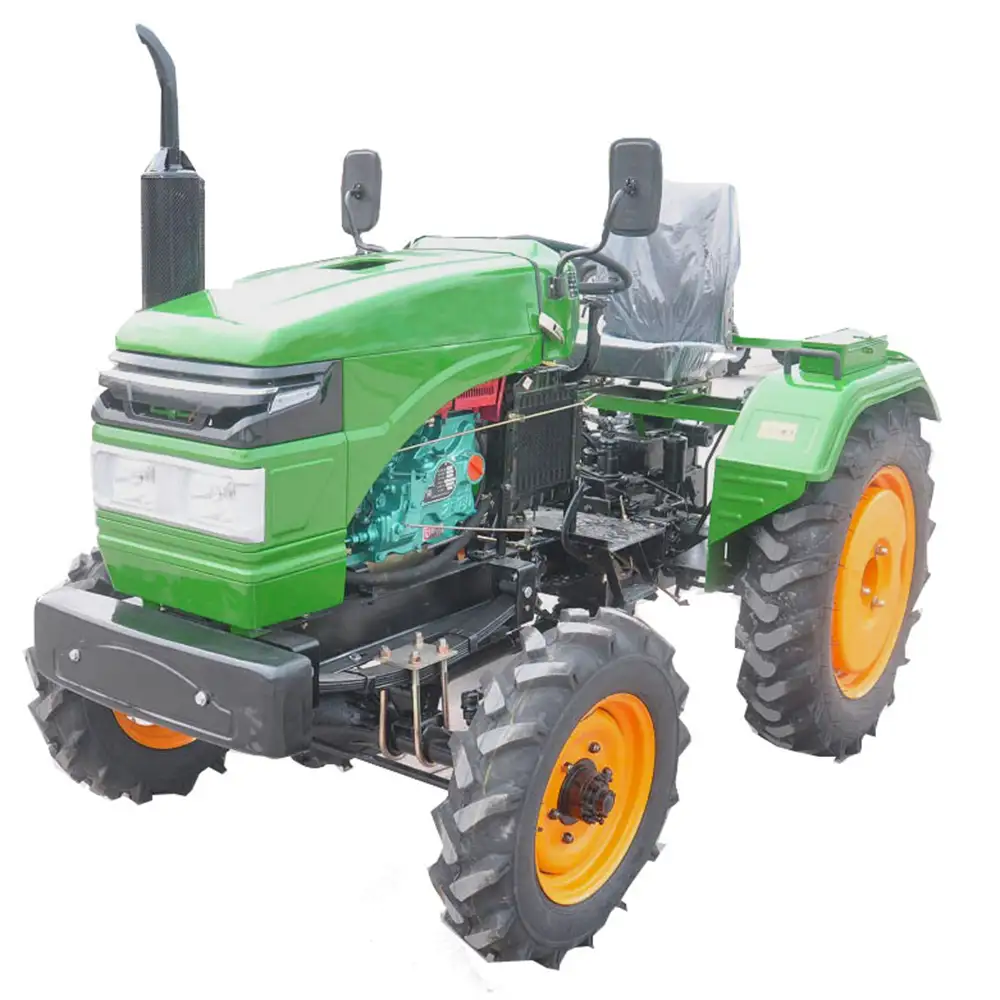

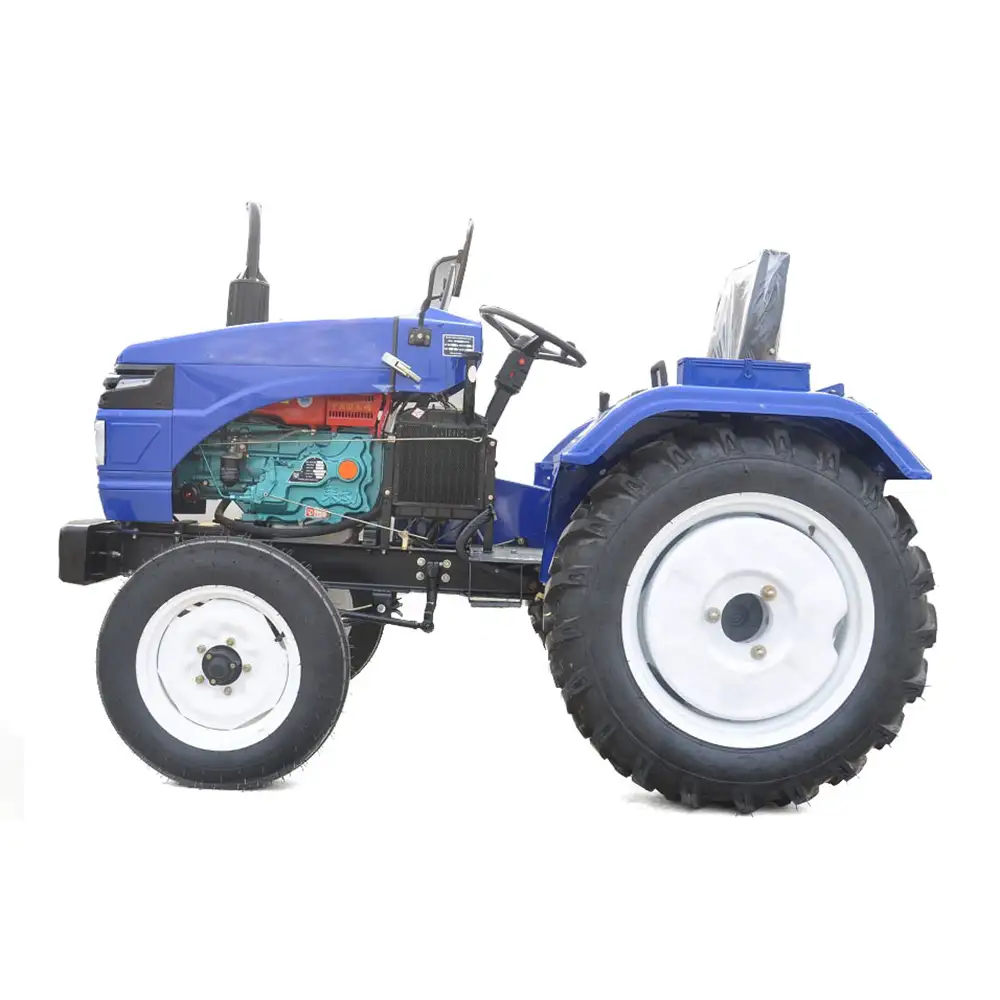

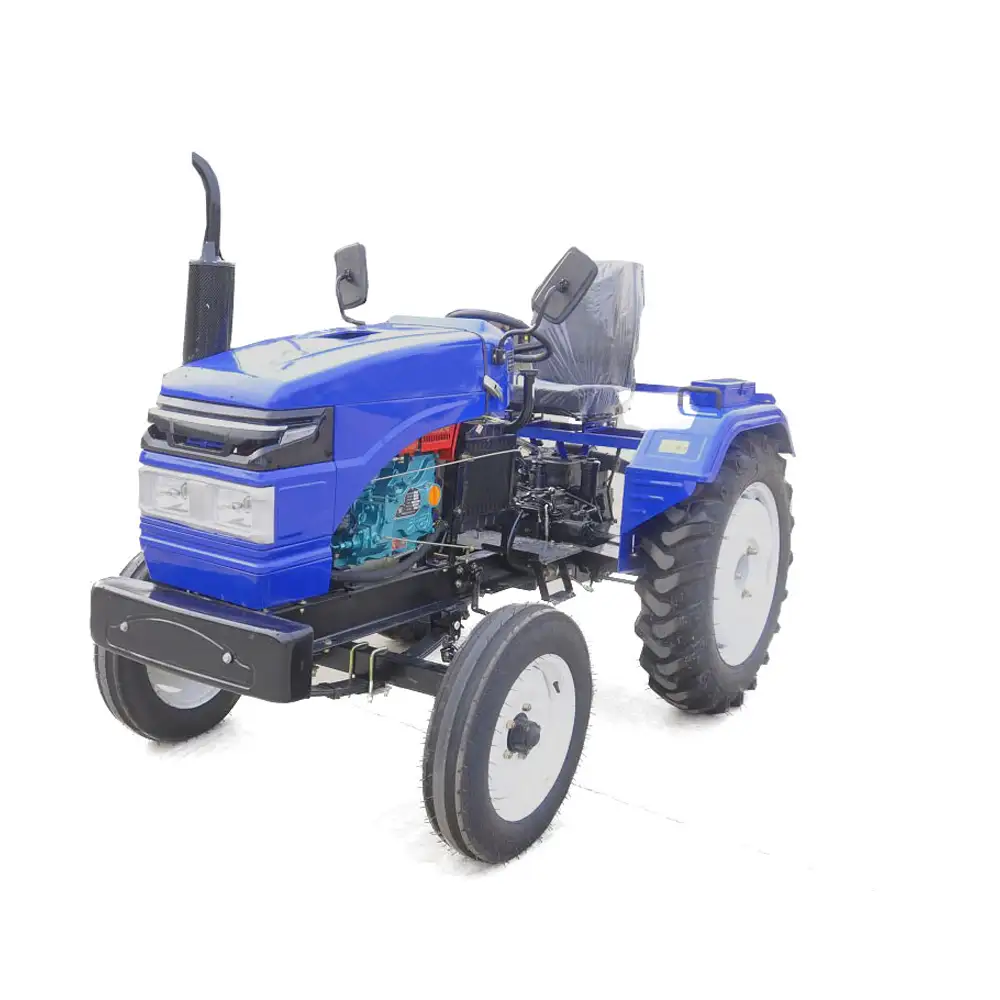

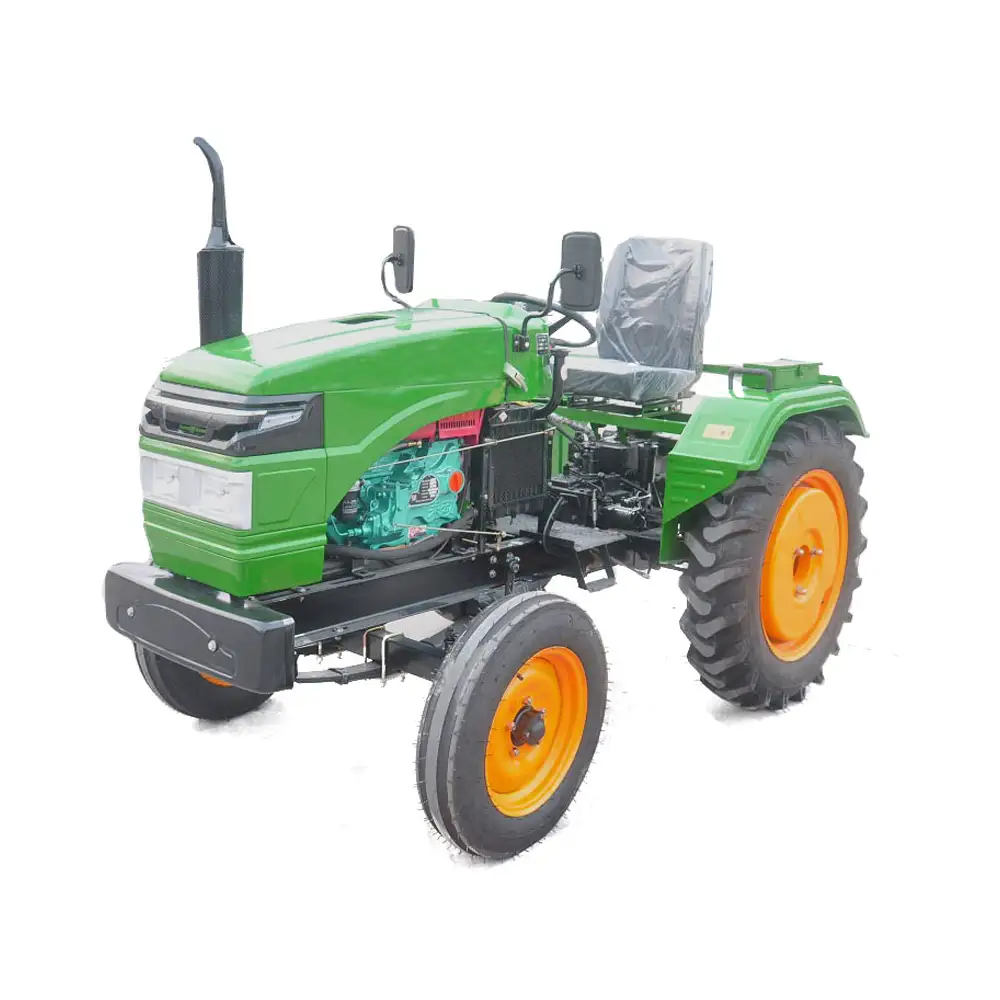

High Quality Belt Tractor With Mechanical steering, high reliability. Double reinforced clutch, more reliable power take-off coupling.
Work efficiency
1. 8F + 2R multi-gear speed change is adopted, with more gear and speed matching and high work efficiency.
2. Meet the general needs of different farm tools, it has water cooling system, four stroke, hydraulic suspension, PTO speed 540rpm, strong lifting force.
3. Large tank can work for a long time
| Model |
Model
|
T-180
|
T-200
|
T-220
|
|
Power & Type
|
18HP, 4×2
|
20HP, 4×2
|
22HP, 4×2
|
|
|
Engine
|
Model
|
ZS1105
|
ZS1110
|
ZS1115
|
|
Bore×Stroke(mm)
|
105
|
110
|
115
|
|
|
Cooling System
|
Water-Cooled, Four Strokes,Direct in Injection
|
|||
|
Starting System
|
Electrical Starting
|
|||
|
Dimension
|
Size L*W*H (mm)
|
2400×1310×1750
|
||
|
Wheel Base (mm)
|
1100~1400
1370 |
|||
|
Wheel Tread (mm) F/R
|
F:960/1100/1200 R: Adjustable 860~1300
|
|||
|
Min Ground Clearance(mm)
|
270
|
|||
|
Structure Weight(kg)
|
750
|
|||
|
Transmission
|
Type
|
Sliding
|
||
|
No. of Gear
|
(4F + 1R)×2
|
|||
|
Clutch Type
|
Dry, Double Discs, Normally Jointing and Fricting Type
|
|||
|
Running System
|
Tyre F/R
|
6.00-12/9.50-16/7.50-20
|
||
|
Steering
|
Mechanical Steering
|
|||
|
Brake
|
Toe Type Brake
|
|||
|
Sensors On The Dashboard
|
Water Temperature Gauge, Oil Pressure Gauge
|
|||
|
Ammeter Electric, Hour Meter Electric
|
||||
|
Working System
|
Hitch System
|
3-Point hydraulic hitch
|
||
|
PTO
|
Rear Rectangle Spline, 6 Teeth
|
|||
|
PTO Speed
|
540rpm
|
|||
