Product Descriptions

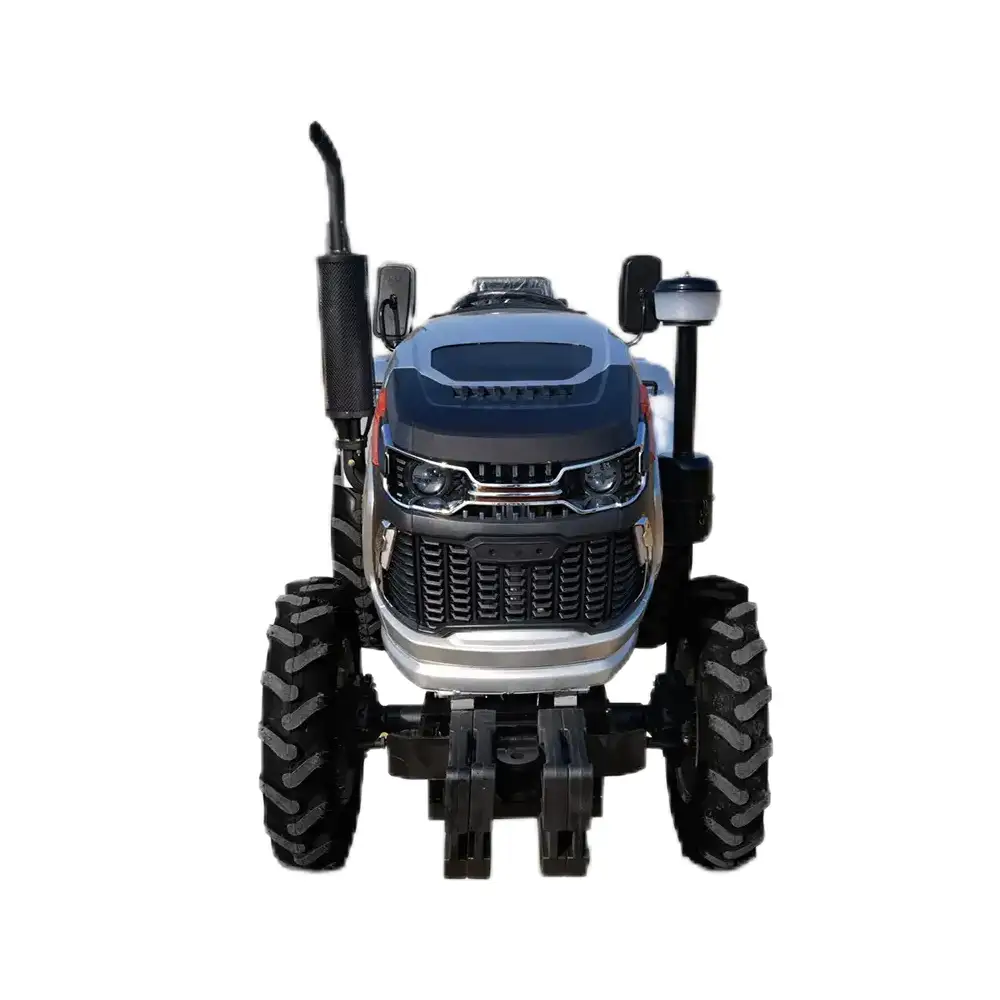

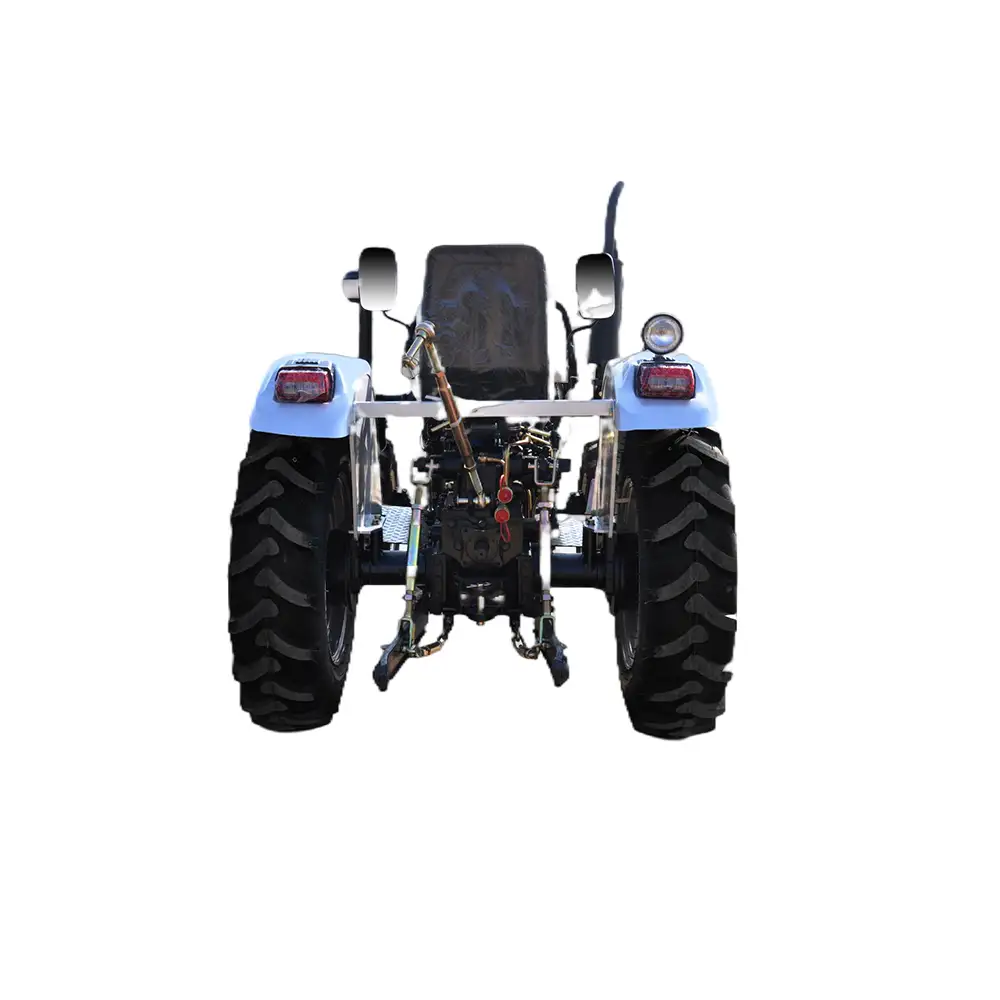

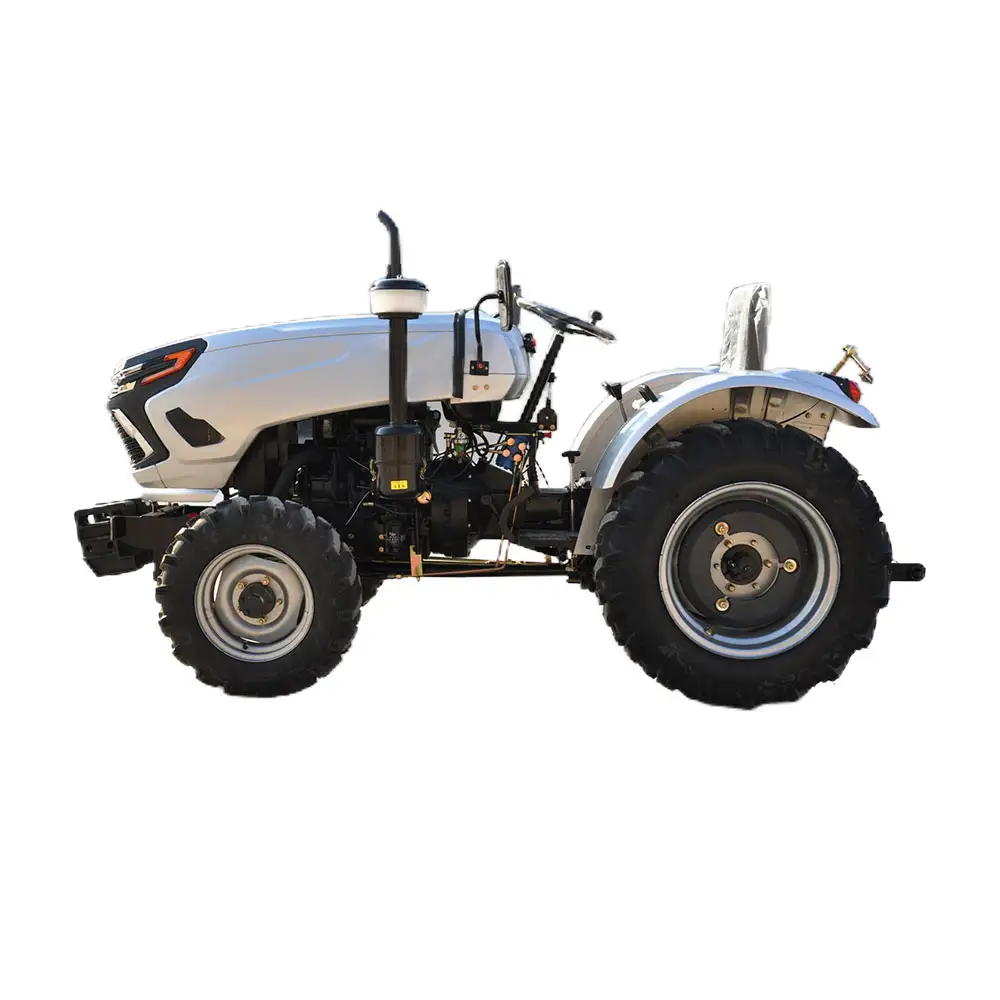

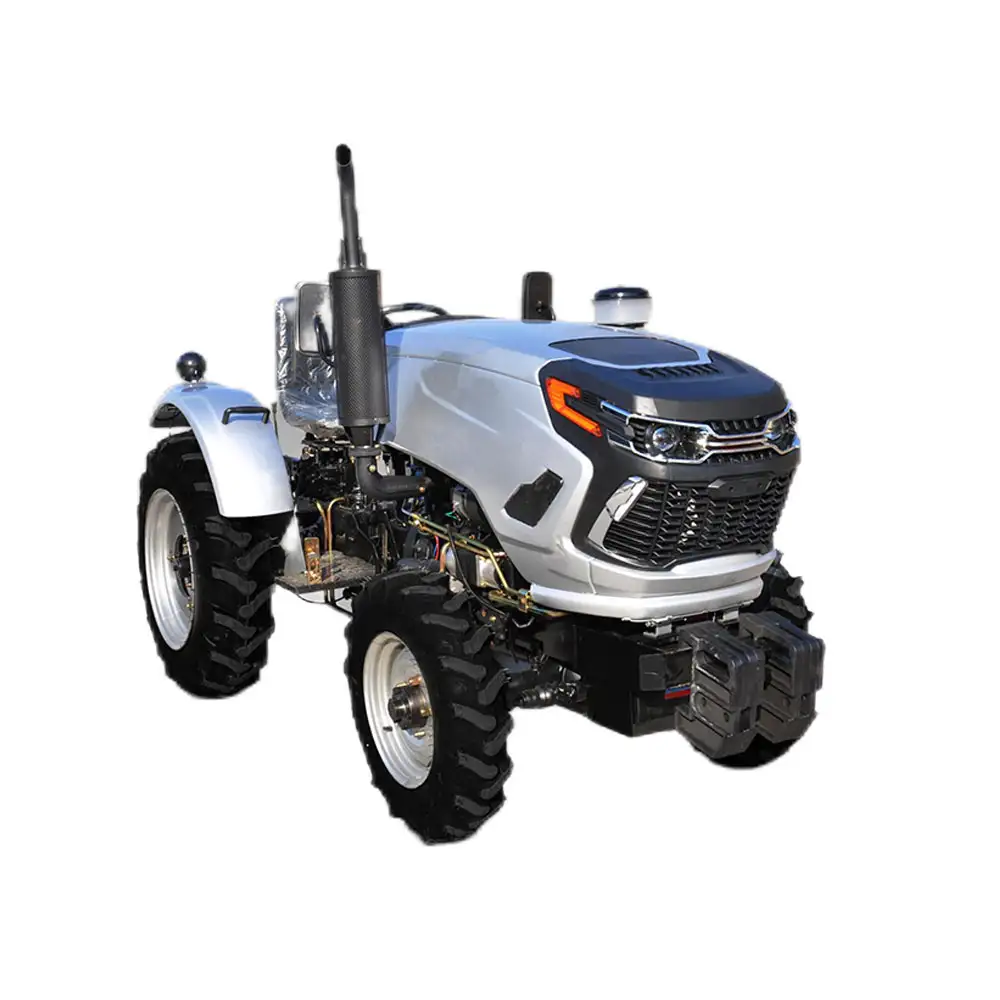

High quality 22hp,24hp,25hp 4x4 mini tractor for farm/agriculture XT224/XT244/XT254 1) 2wd and 4wd options 2) 22hp,24hp,25hp options 3) Red/Blue/White/Dark/Silver/Orange options 4) 6 Forward/2 Reverse----(3+1)x2 gearbox 5) Gear drived, stronger than belt tractor.
| Mode | Model | T-254 |
| Power & Type | 25HP, 4×4 | |
| Engine | Model | YTO385 |
| Bore×Stroke(mm) | 85×90 | |
| Cooling System | Vertical, Water-Cooled, Four Strokes, Direct in Injection | |
| Air Intake Type | Naturally Aspirated | |
| Rated Output(kW) | 18.5 | |
| Naturally Aspirated | 2350 | |
| Starting System | Electrical Starting | |
| Dimension | Size L*W*H (mm) | 3000×1600x2000 |
| Wheel Base (mm) | 1670 | |
| Wheel Tread (mm) F/R | F:1000/1100/1250; R:1200-1450 | |
| Min Ground Clearance(mm) | 280 | |
| Structure Weight(kg) | 1320 | |
| Transmission | Type | Sliding |
| No. of Gear | 8F + 2R | |
| Differential Type | Closed Planetary Gear | |
| Differential Lock | Tooth Inlayed Type | |
| Clutch Type | Dry, Single-stage | |
| Running system | Tyre F/R | 6.00-16/9.5-24 |
| Steering | Hydraulic Steering | |
| Steering Device | Cycloidal Steering Valve Hydrostatic Steering Device | |
| Brake Type | Toe Type Brake | |
| Parking Brake | Mechanical, Manually | |
| Speed Range | 2.00 to 30 km/h | |
| Sensors On The Dashboard |
Water Temperature Gauge, Oil Pressure Gauge |
|
| Ammeter Electric, Hour Meter Electric | ||
| Working system | Hitch System | 3-Point hydraulic hitch，cat1 |
| Hydraulic Pump | Gear Pump | |
| PTO | Rear Rectangle Spline, 6 Teeth | |
| PTO Speed | 540/720rpm |
