Product Descriptions

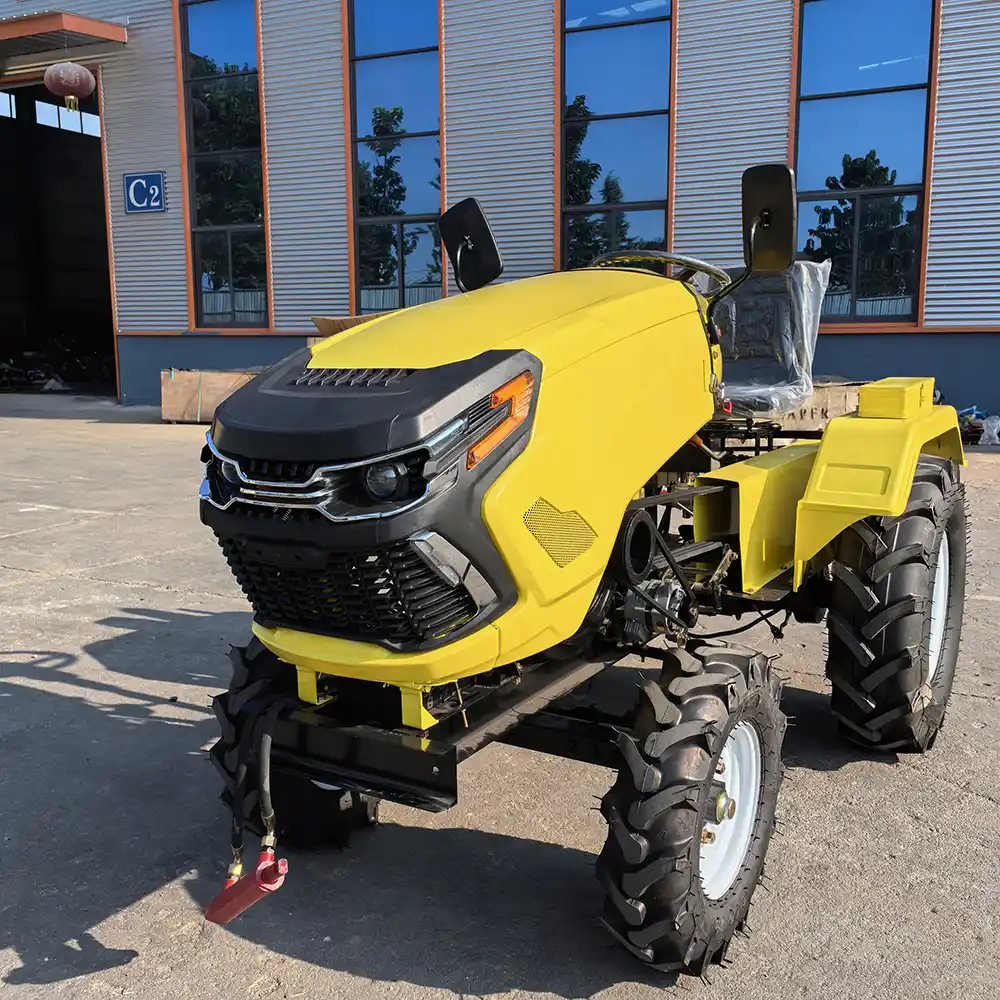

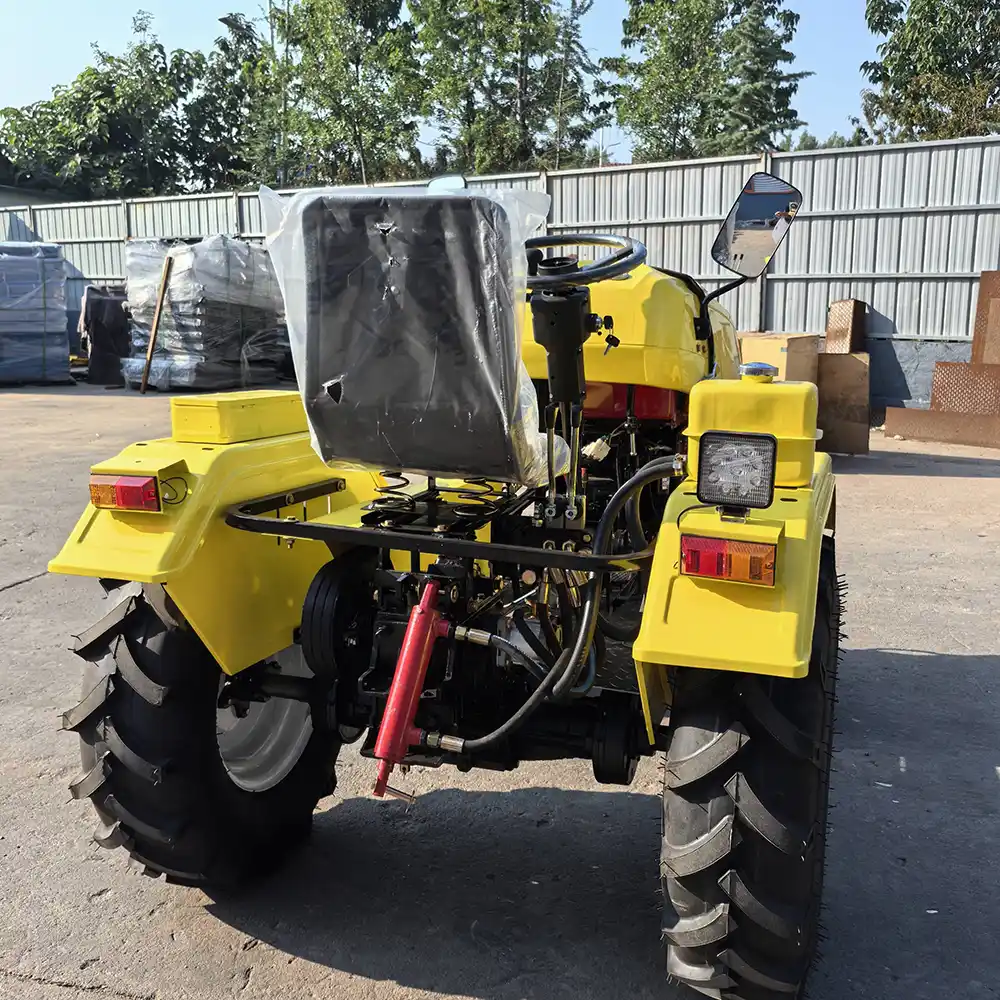

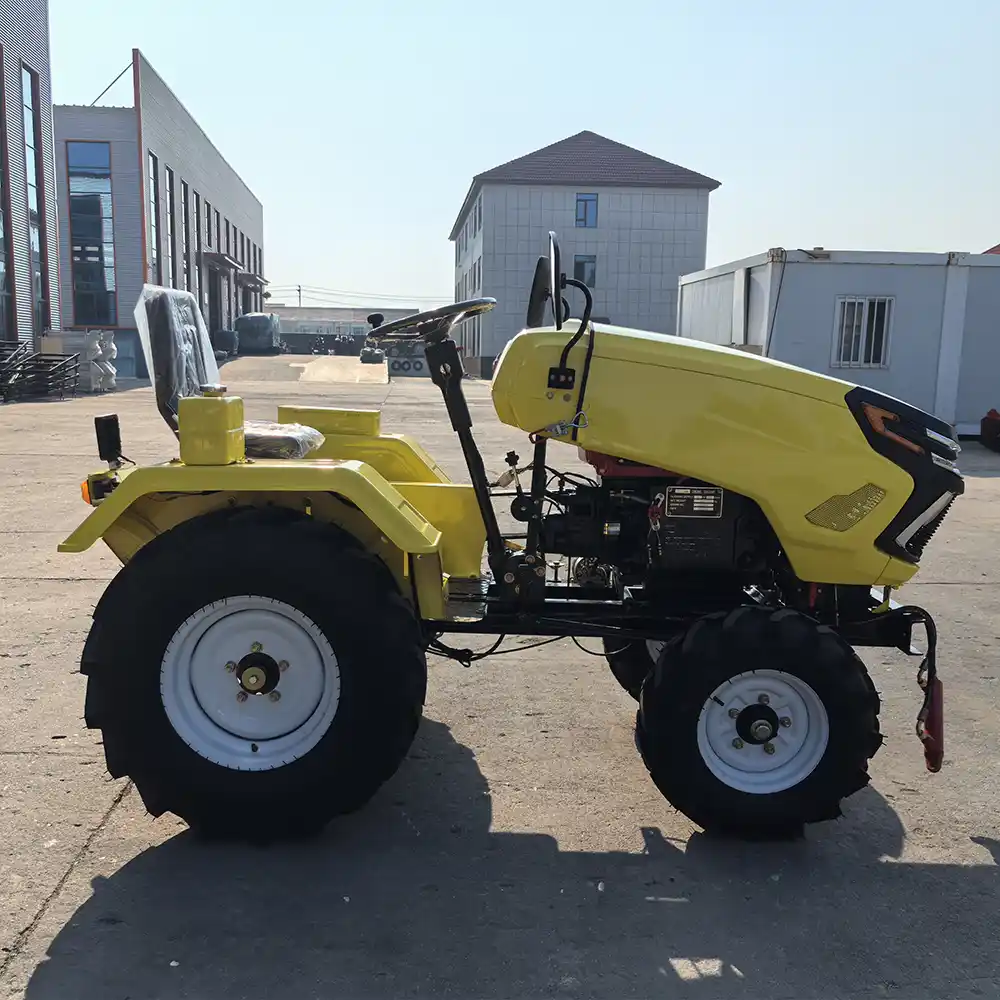

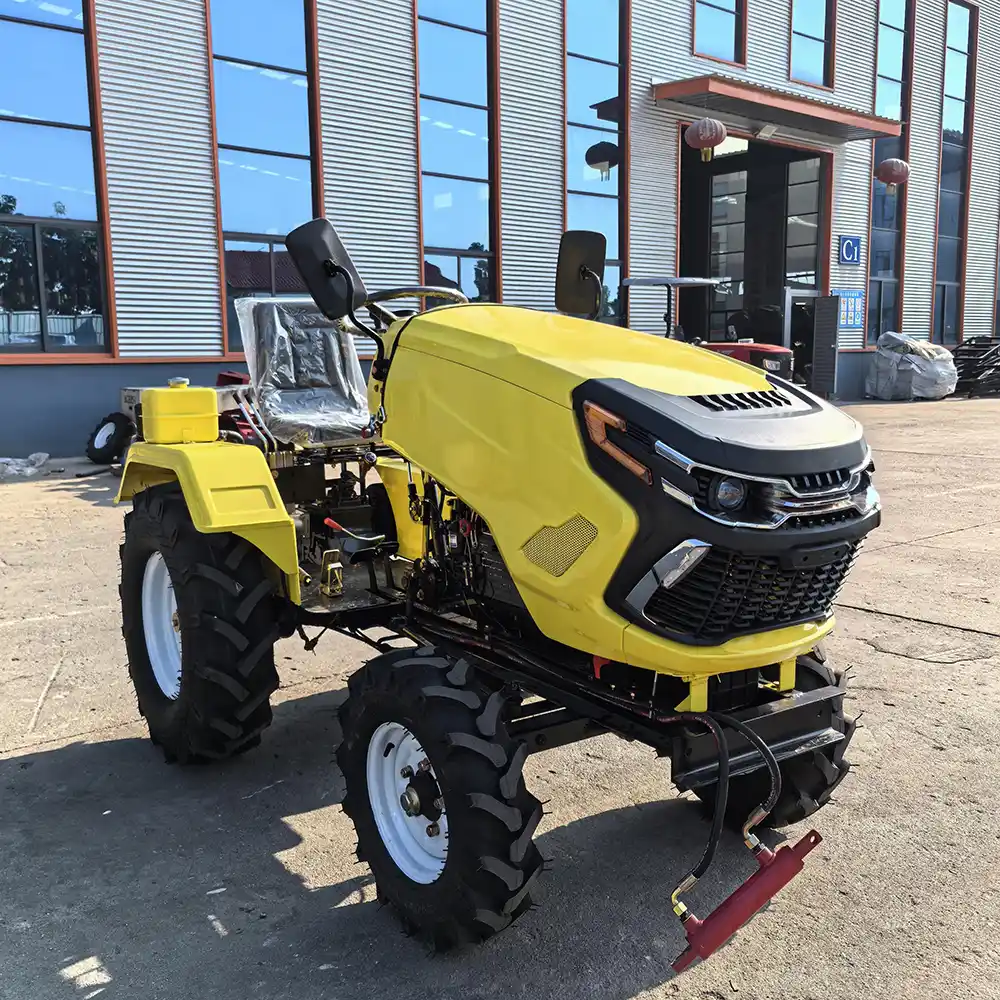

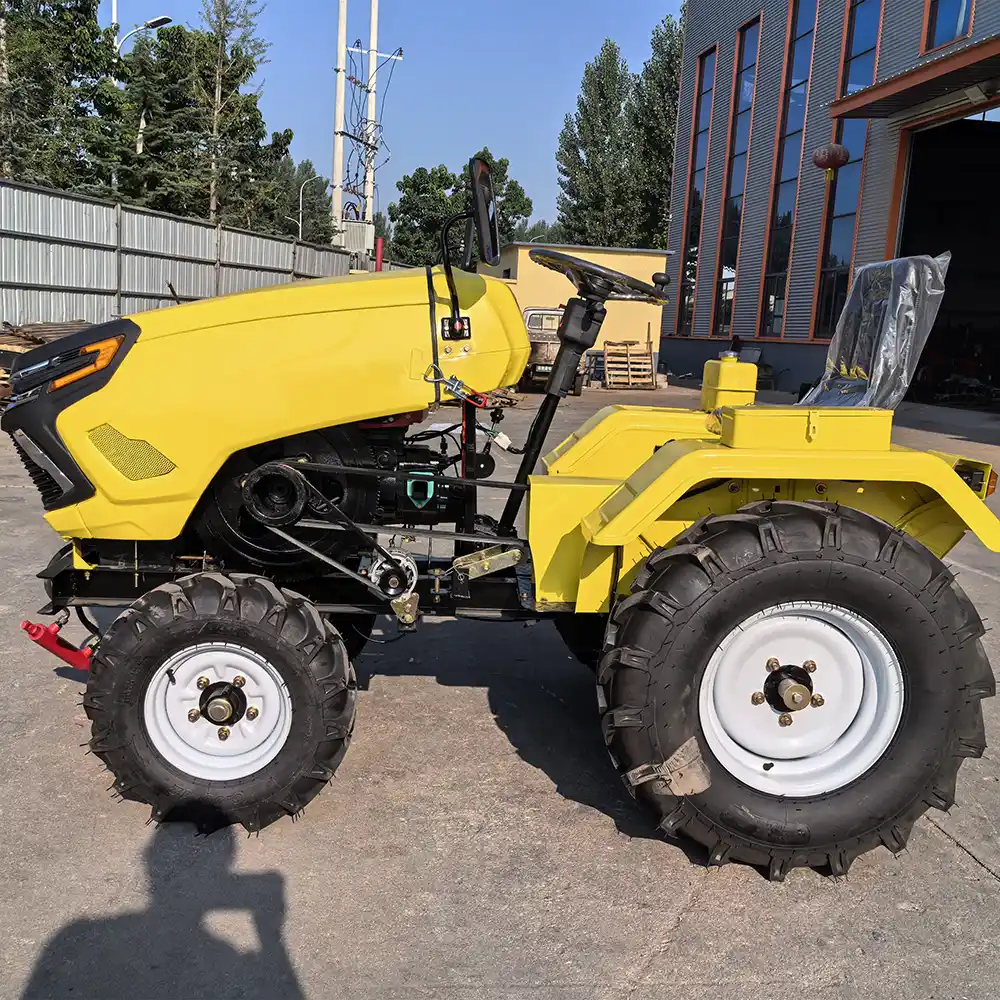

Redefining mini tractor, As an all-year-round tractor, the mini tractor can work in the field and your property.It may come at a compact price but there is nothing compact about its capability.Instead of traditional 3-point-hitch implements suspension system,the mini tractor comes with a hydraulic gear kit for taking implements and power take-off in one combination, which allow rotary tiller to directed connected with tractor.As for the towed implements like plough and trailer, there is a towing cover to take them by pin-on. At the front of the mini tractor, the chassis has a front implements structure for taking implements like snow blade or mower in the front part. With its versatility and extensibiliity, the mini tractor is sure of a good helper on your land.
| Minimum tractor | 12HP | 15HP | ||||
| Engine | 195 | 1100 | 195 | S1100 | s1105 | s1110 |
| standard |
1.1.75meters long ,with totary tiller 2.5meters 2.widerearwheel85-120cm adjustable; 3.1.2m high; 4.Groud charance 25m acklights |
1.1.75meters long ,with totary tiller 2.5meters 2.widerearwheel85-120cm adjustable; 3.1.2m high; 4.Groud charance 25m acklights |
1.Front and rear mudguards 2.Double brakes,handbrakes 3.Backlights 4.Voltemeters,hour meters 5.Mirrors,combination meters,horn |
1.Front and rear mudguards 2.Double brakes,handbrakes 3.Backlights 4.Voltemeters,hour meters 5.Mirrors,combination meters,horn |
1.Front and rear mudguards 2.Double brakes,handbrakes 3.Backlights 4.Voltemeters,hour meters 5.Mirrors,combination meters,horn |
1.Front and rear mudguards 2.Double brakes,handbrakes 3.Backlights 4.Voltemeters,hour meters 5.Mirrors,combination meters,horn |
| gear | 6+2 | 6+2 | 6+2 | 6+2 | 6+2 | 6+2 |
| weight | 460kg | 480kh | 510kg | 560kg | 580kg | 585kg |
| Built-in differential lock | Yes | Yes | Yes | Yes | Yes | Yes |
| Hydraulic system | single -way floating walve | single -way floating walve | single -way floating walve | single -way floating walve | single -way floating walve | single -way floating walve |
| Front and rear track | 0.9-1.2 | 0.9-1.2 | 1m-1.2m | 1m-1.4m | 1m-1.4m | 1m-1.4m |
| Tire model | 400-10/600-12 | 500-10/600-14 | 500-12/650-16 | 600-12/750-16 | 600-12/950-16 | 600-12/950-16 |
| Battery | 45A | 45A | 45A | 60A | 60A | 60A |
| 40HQ packing volum (set) | 60units (include rotary) | 55units (include rotary) | 50units (include rotary) | 45units (include rotary) | 42units (include rotary) | 42units (include rotary) |
| Packing | SKD | SKD | SKD | SKD | SKD | SKD |
