Product Descriptions

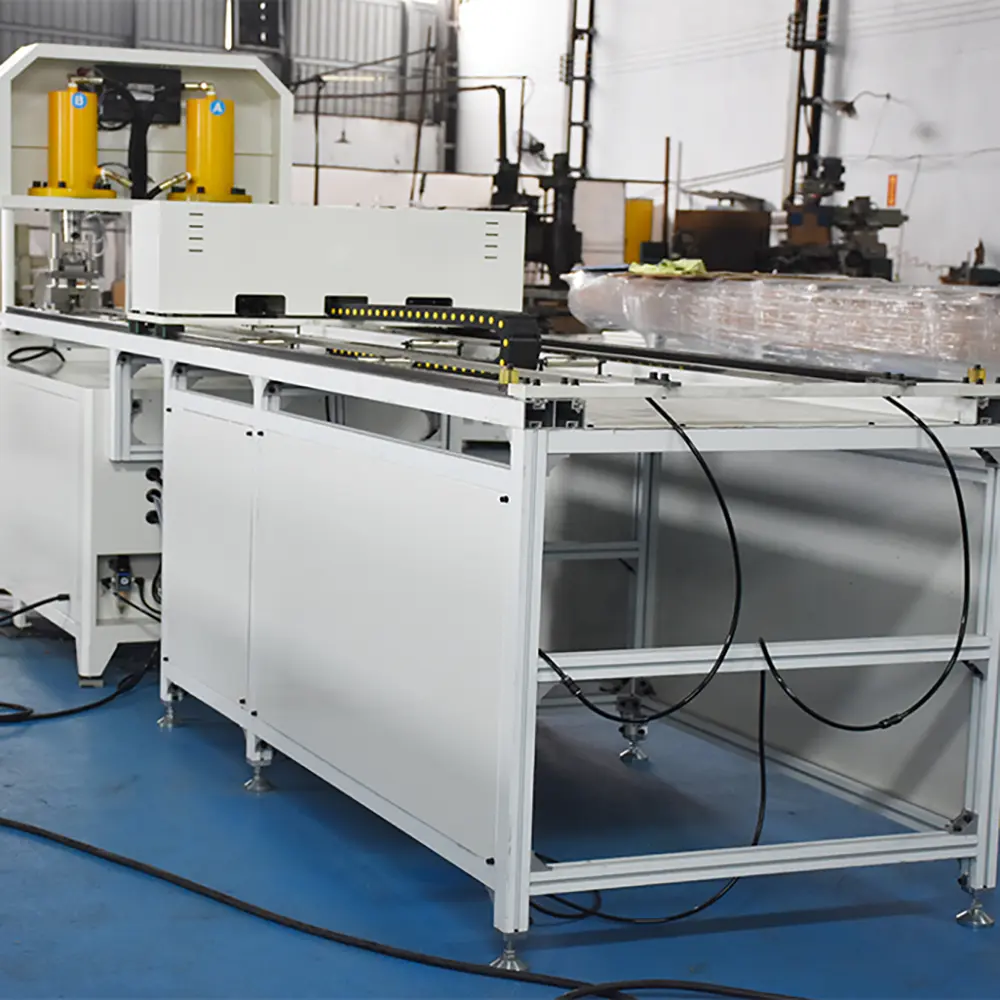

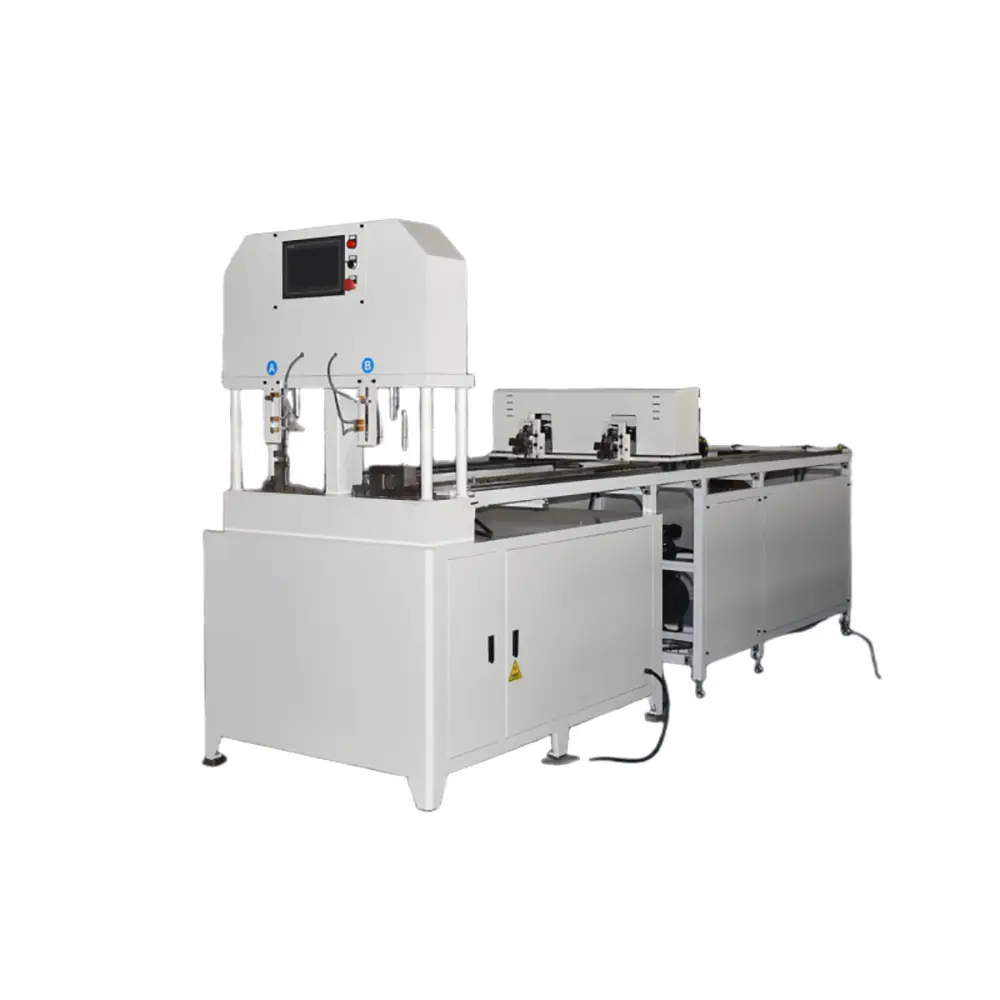

The CNC 15 Ton 3m Single Line Cutting And Punching Tube Pipe Angle Hole Punching Machine is an advanced automatic metal tube processing machine designed for precision cutting and punching operations on steel pipes, square tubes, rectangular tubes, and angle profiles. Equipped with a powerful 15-ton hydraulic punching system and CNC control technology, this machine provides an efficient and reliable solution for metal fabrication, furniture manufacturing, construction components, and industrial tube processing applications. Traditional tube drilling and punching methods usually require manual measurement, positioning, and repeated processing, which can lead to low production efficiency and inconsistent hole accuracy. This CNC tube cutting and punching machine integrates automatic positioning, hydraulic punching, and cutting functions into one system, greatly improving processing speed and product quality. With a 3-meter processing length, single-line punching design, and intelligent CNC operation, this equipment is suitable for manufacturers requiring accurate and continuous production of metal tubes and profiles. Product feature: 1.Touch Screen settings, CNC control system, precise servo motor positioning, module storage memory function.2. Structure: Steel plate welded structure
3. Mould replacement: change the dies easily without adjusting the dies to reduce mould damage rate , Skilled workers can change the mould within 10 minutes.

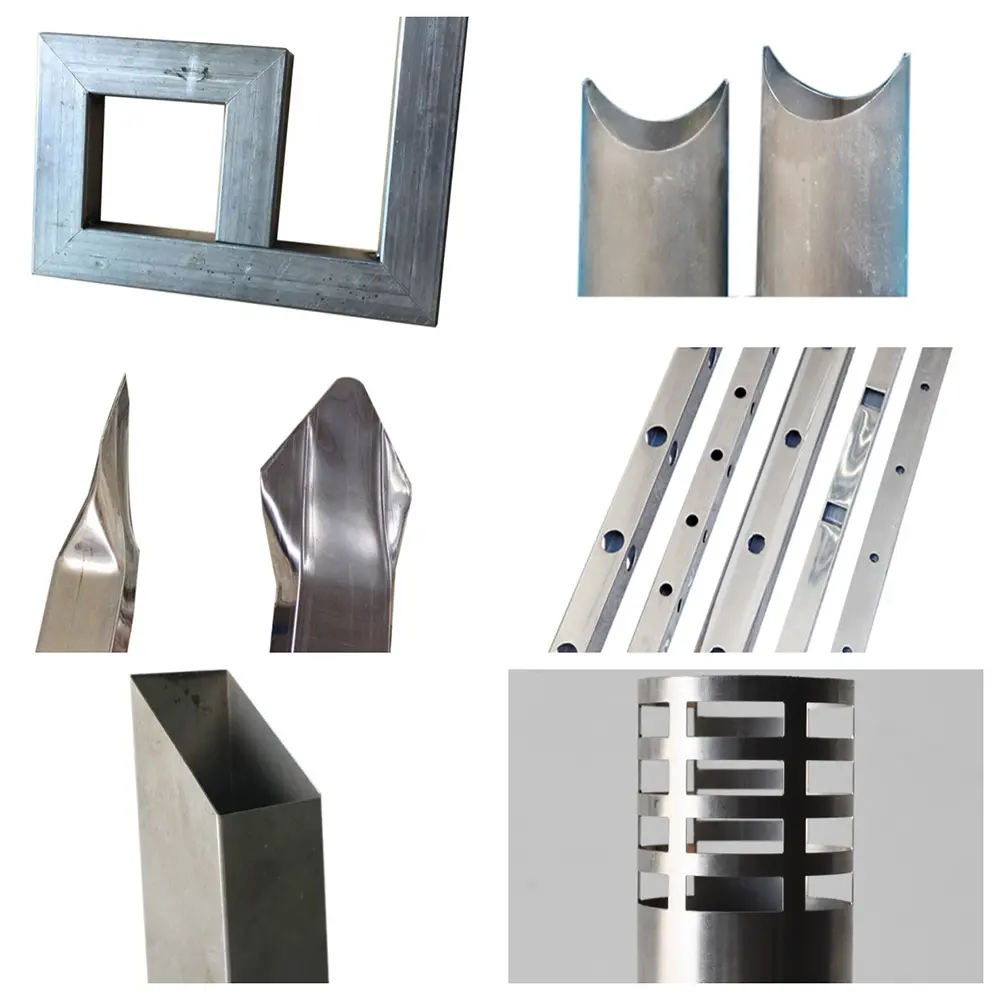

4. Punching Category: (1).single hole punching; (2).double hole punching; (3).Isometric hole punching; (4). none- Isometric hole punching,(5) rotary punching(only for round pipe).(6) punch from upward side and horizontal two sides
5. Hydraulic ,pneumatic and Servo System.
6. Step-less operation adjustment, hydraulic loops designed with zero load, combined with extremely low frequency oil pump motor, effectively reduced noise, increased motor efficiency and service duration.

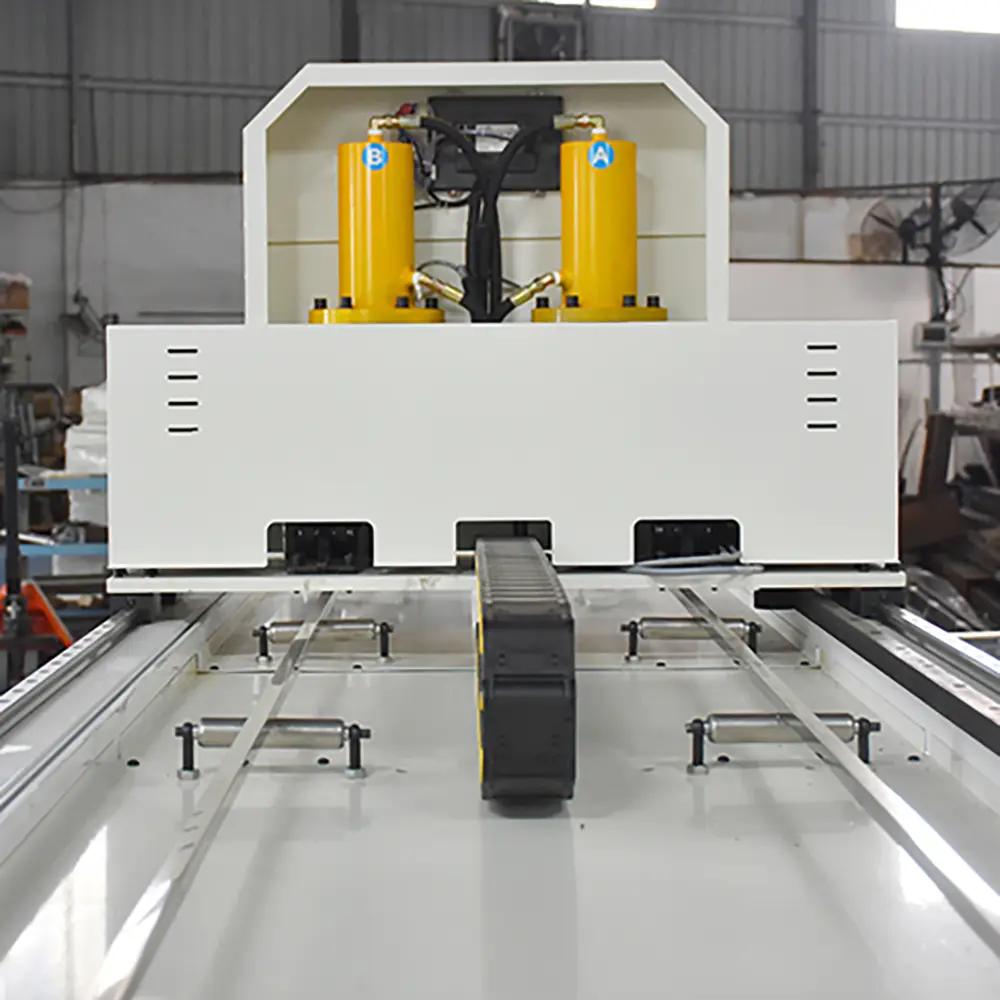

7. double punching heads machine can punch hole with two hydraulic cylinders, or only one cylinder punch separately. Note: A mean single machine head, B mean double machine heads
The above data is standard configuration, it can be customized in feed length, oil pressure, operation system langue and so on ,also with cutting function or not. Just let us know what you need Products Description
| Model | 15TA | 15TB | 20TA | 20TB | |
| Feed length | 3000 | 6000 | 3000 | 6000 | |
| Nominal force | 150kn | 250kn | |||
| Stroke | 120mm | 150mm | |||
| Max punch Thickness | SS 2.4mm,MS:3mm | SS 4mm,MS:5mm | |||
| Motor power | 5.5kw | 7kw | |||
| Punching capacity（metal thickness） | ≤3mm | ≤5mm | |||
| Fit to material | Fiberglass Carbon steel, stainless , copper, aluminum, iron, and so on | ||||
| Fit to shape | Round, square, rectangle ,oval, angle steel | ||||
| Tube and hole size |
Moulds can be customized as different requirement Depend on tube material and thickness, also hole size, |
||||
| Punching hole accuracy | 0.01mm | ||||
| Feed accuracy | 0.1mm | ||||
| Color | white , or customized | ||||
| Feed way | Slideway and servo motor | ||||
| Control way | PLC, 10 inch Touch Screen | ||||
| Clamping way | Pneumatic(air compressor is with machine) | ||||
| programs stored | 200 sets, each program store different processing message | ||||
| Operation language | Chinese and English， or customized | ||||
| Voltage | 220V,380V,415V,440v, customized as requirement | ||||
| Cutting method(option ) | Saw blade ,or hydraulic punch cutting | ||||
|
Measure |
Machine head | 1500x1000x1700mm | |||
|
Feed frame |
3500x600x12500mm(single，3m feed) 3500x900x12500mm(double，3m feed) 6500x600x12500mm(single，6m feed) 6500x900x12500mm(double，6m feed) |
||||
