Product Descriptions

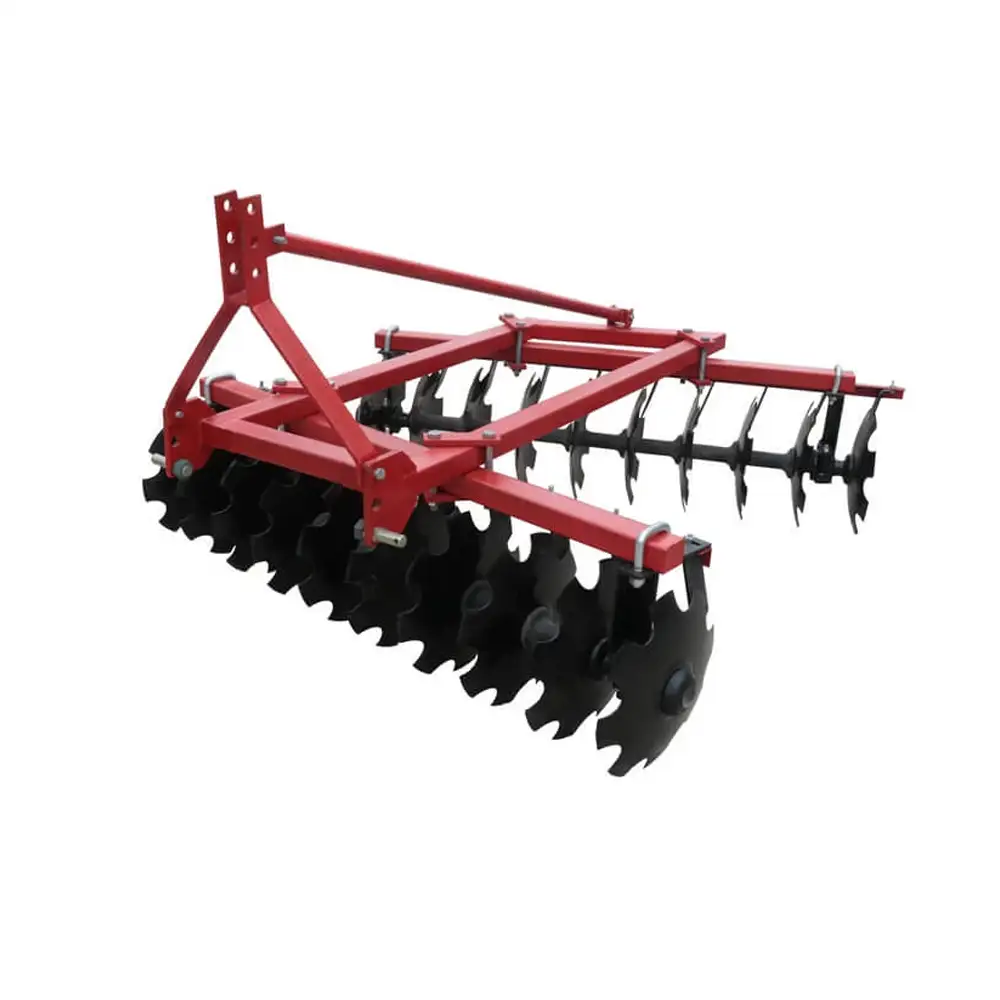

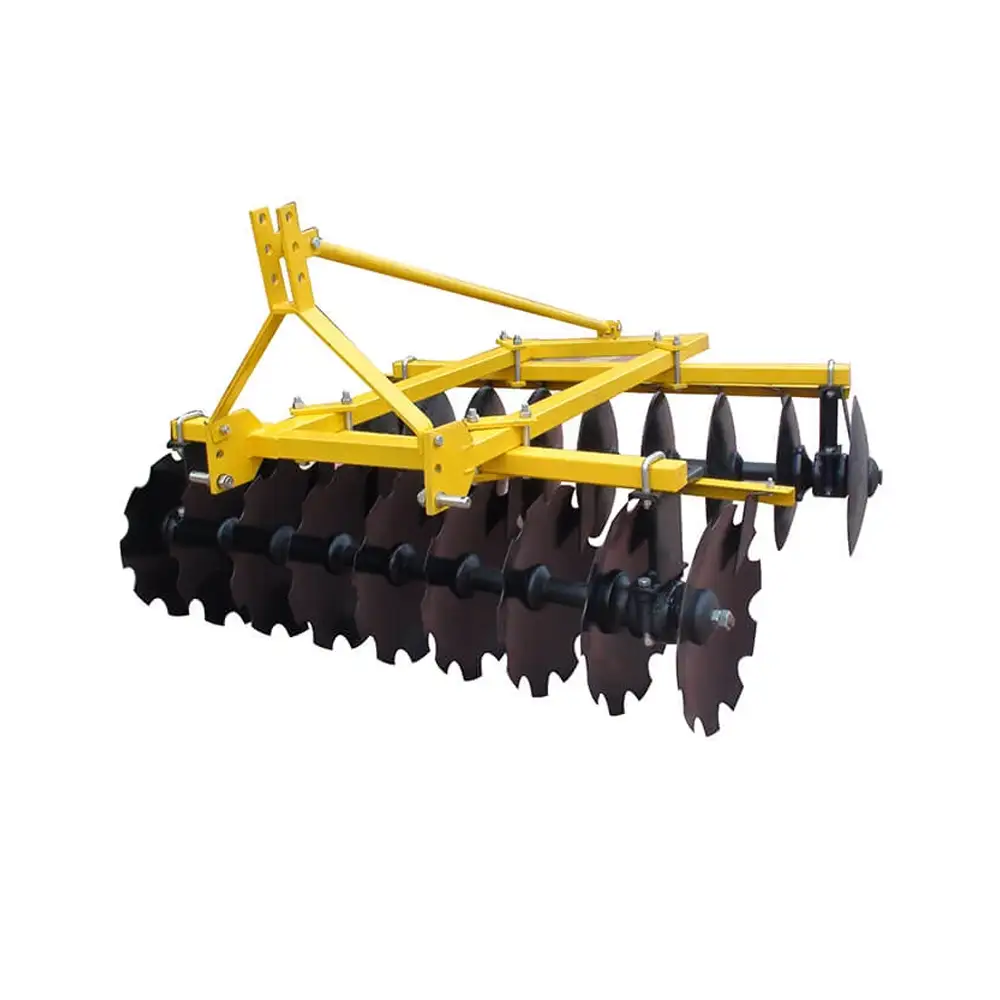

Disc harrow is used in open field working for the superficial ploughing, for the shattering of clods, preparation of soil for sowing, burial of organic matter and remains.
. Front and back notched harrow disc, easily broken soil and chopped straw.
. High quality 65Mn disc blade, HRC：40-44.
. Easily attached and mounted.
| Model | 1BQX-1.1 | 1BQX-1.3 | 1BQX-1.5 | 1BQX-1.7 | 1BQX-1.9 | 1BQX-2.3 |
| Working width (mm) | 1100 | 1300 | 1500 | 1700 | 1900 | 2300 |
| Working depth (mm) | 120 | |||||
| Gang bolt | 28 Solid shaft | |||||
| Disc blade | 460x3mm | |||||
| No of discs (pcs) | 12 | 14 | 16 | 18 | 20 | 24 |
| Total weight (kg) | 200 | 220 | 240 | 260 | 310 | 360 |
| Tractor power (hp) | 15 | 18 | 25 | 40 | 50 | 60 |
| Mounted cat | Cat I | Cat II | ||||
