Product Descriptions

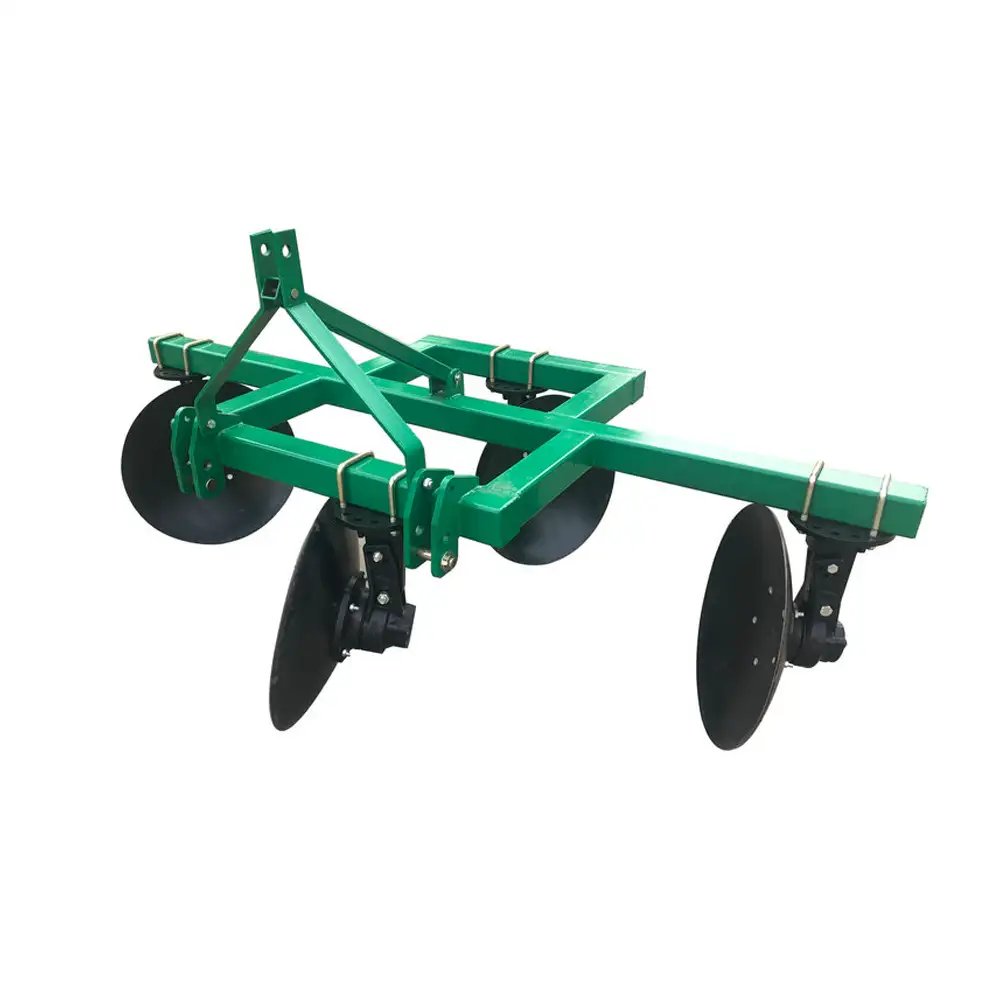

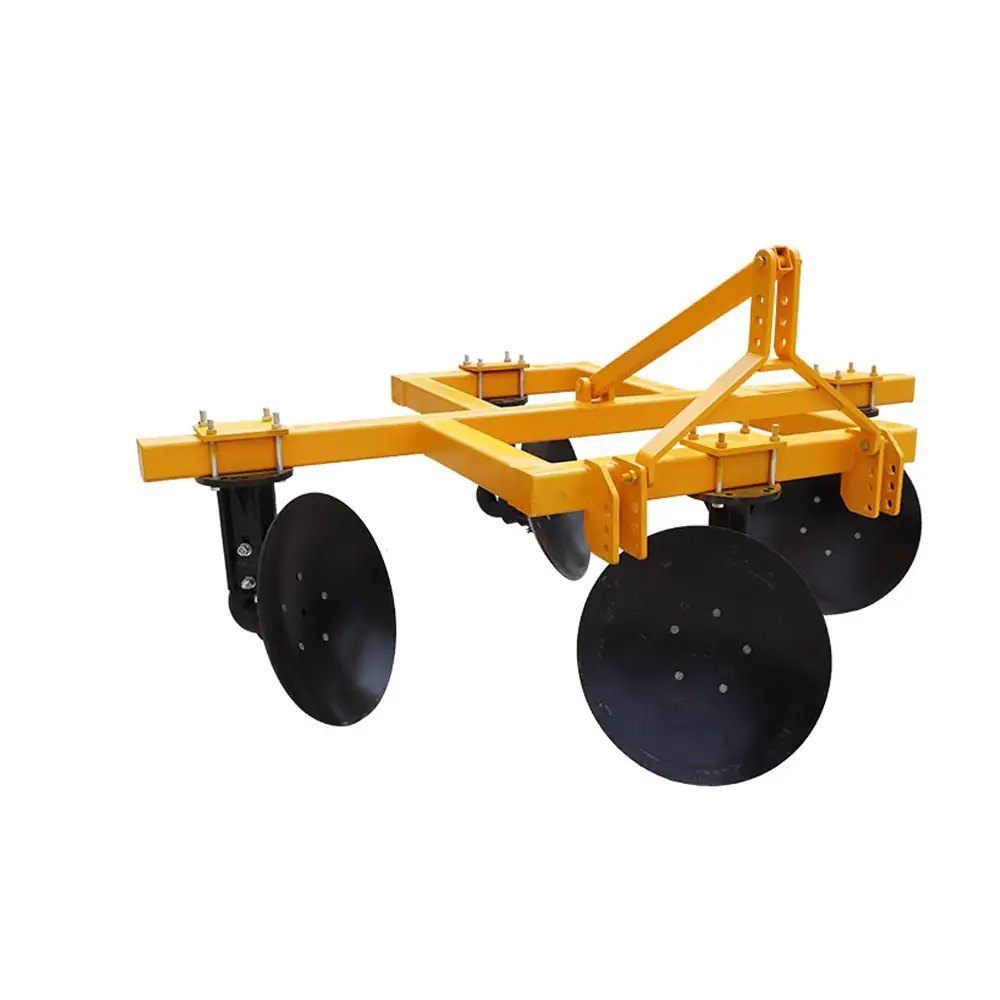

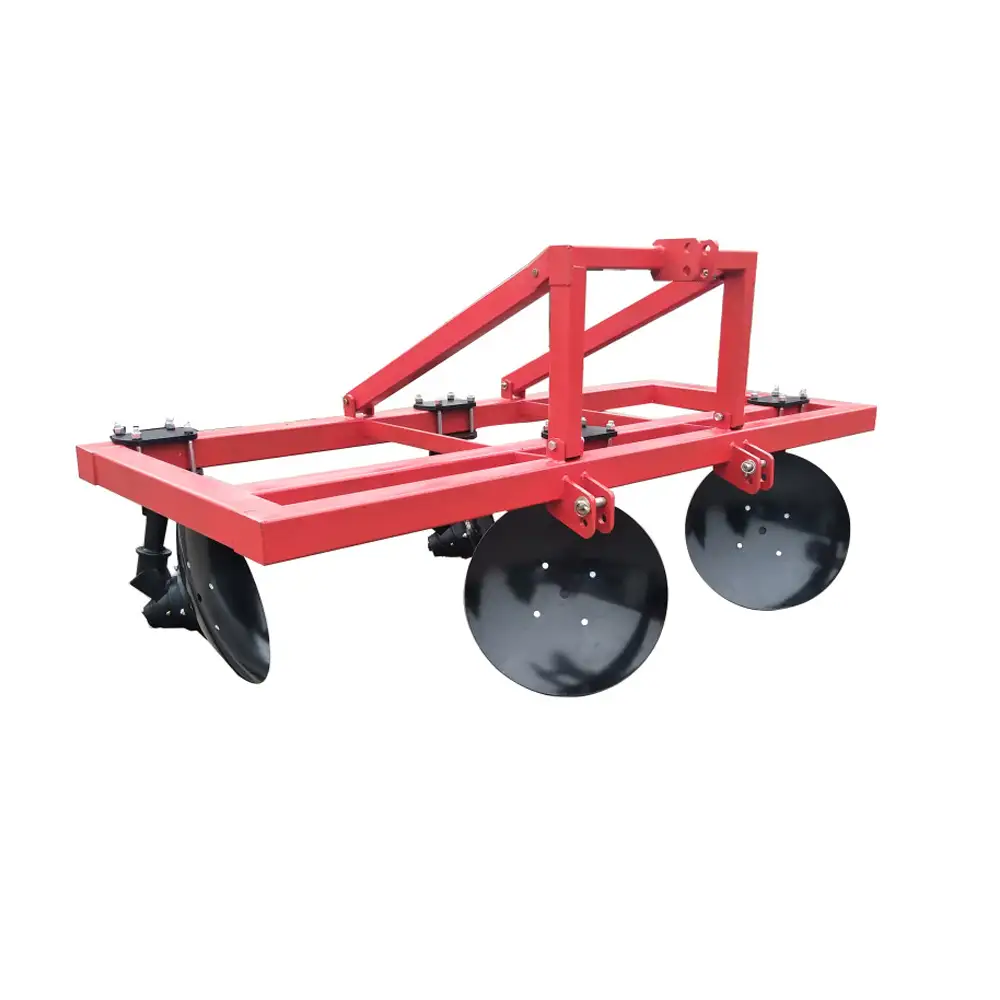

3Z series of disc ridger is suitable for ridging after the tillage in the farm field.it consists of heavy duty tubular box frame, 3 point hitch system and discs. The disc blades are made after the heat treatment in the material of 65Mn spring steel that has better hardness. The machine is reasonable for construction, conveniently to transport, easy to adjust, and conveniently to use and maintain.
| Model | 3Z-80 | 3Z-120 | 3Z-140 | 3Z-180 | 3Z-260 |
| Width of cut (mm) | 800 | 1200 | 1400 | 1800 | 2600 |
| Ridging width (mm) | 200~450 | 300-500 | |||
| Ridging height (mm) | 150-260 | 150~300 | |||
| Ridging of rows | 1(2) | 1(2) | 1 | 1(2) | 1(2) |
| Weight (kg) | 120 | 140 | 220 | 200 | 246 |
| Tractor power (kg) | 20~30 | 30-40 | 50-60 | 60-70 | 70-90 |
| Mounted cat | Cat l | Cat ll | |||
It can produce ridge with maximum width of 1000 mm.
Available in 2 bottoms & 4 bottoms to make one ridge & two ridges respectively.
It has heavy duty box type frame.
Size and depth of the ridge can be adjusted.
| Model | DR-1 | DR-2 |
| No. of Disc | 2 | 4 |
| Type of Disc | Notched or Plain Disc (Optional) | |
| Disc Diameter | 26x6mm | |
| Maximum Width Between Ridges | 1000mm | |
| Ridge Height | 330mm | |
| Bearing Hub | 2 | 4 |
| Weight | 230kg | 440kg |
| Tractor Power | 50-65HP | 70-90HP |
