Product Descriptions

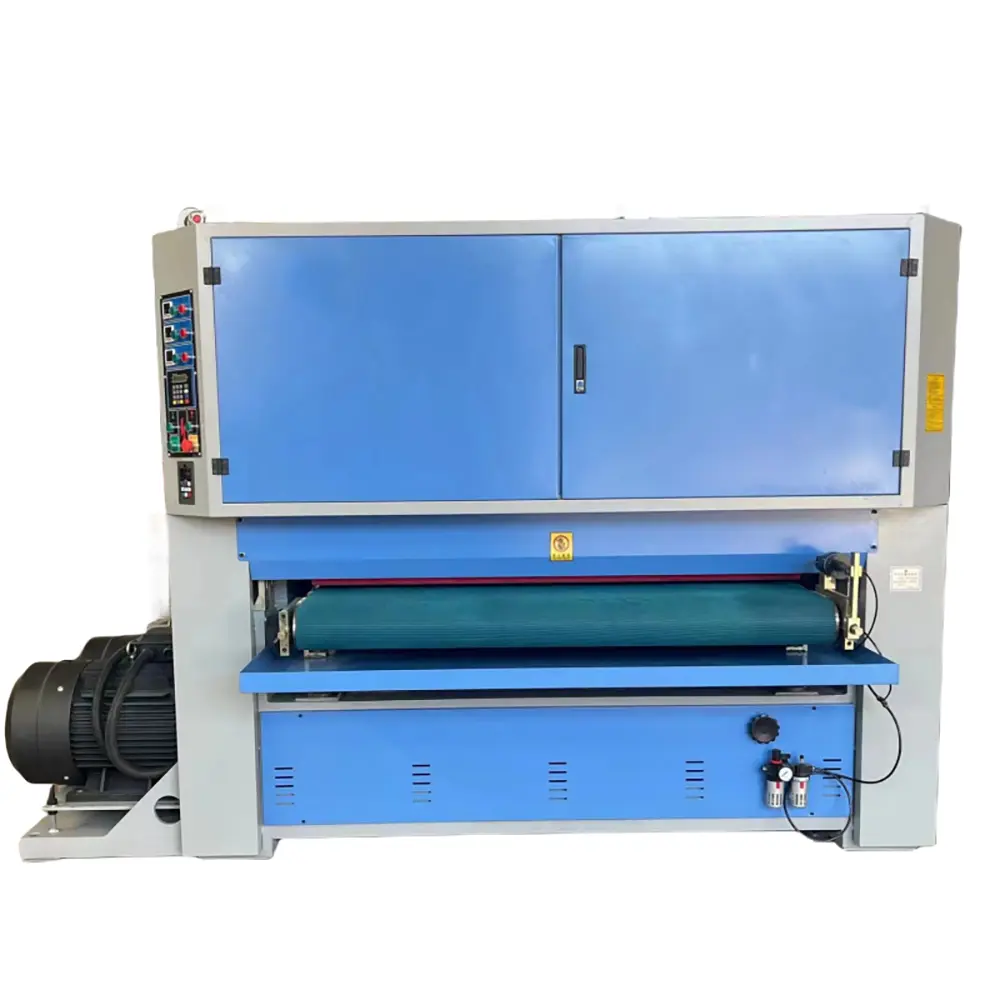

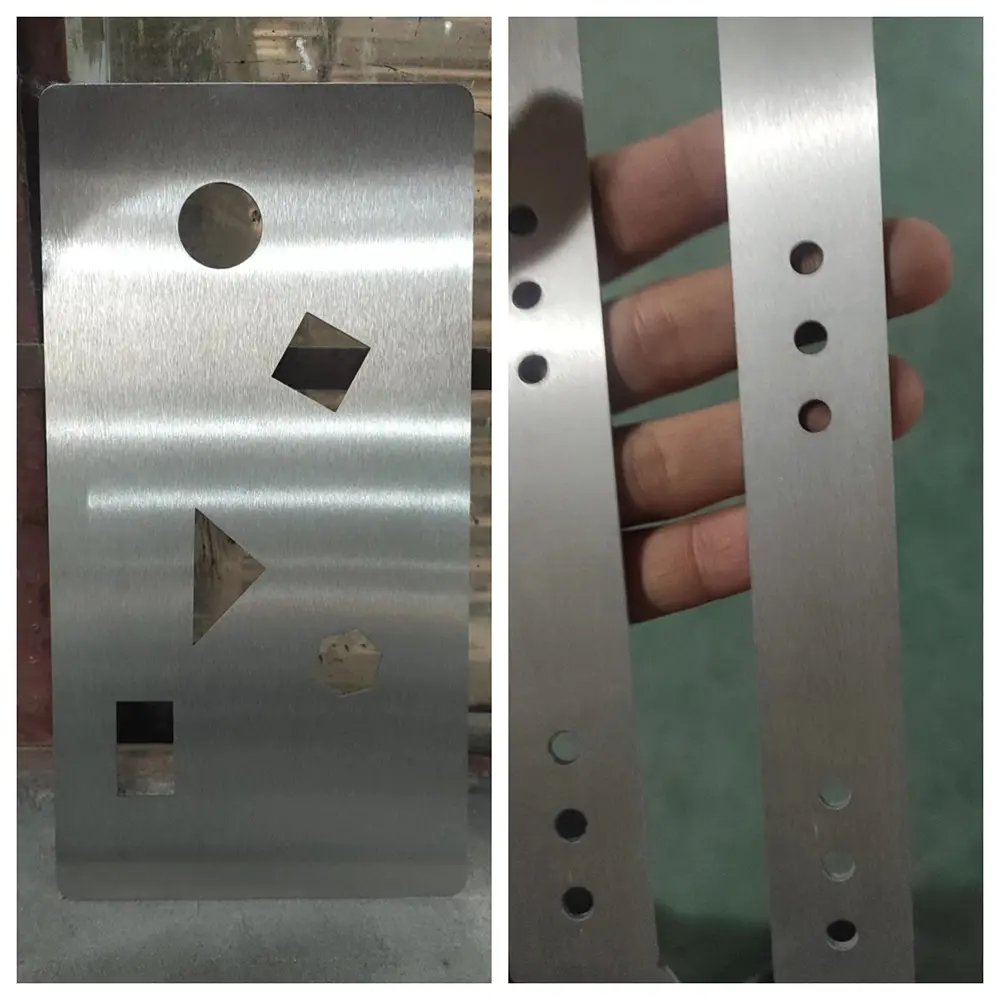

High-efficiency automatic water grinding wire drawing machine is a widely used flat plate surface drawing, drawing pattern processing and can be sanded and deburred polishing machine, such as aluminium, copper, stainless steel plate, locking surface, heat sinks, drawing processing, winter kinds of metal plate, etc., glueboard or wood surface drawing processing, wherever the workpiece to pull out the grain of the flat material, can be used to complete the equipment. After processing the product workpiece surface texture is clear. Enhance the aesthetics of the workpiece, looks high-grade, especially after drawing the workpiece, after oxidation treatment, it is an adult to enhance the value of the product, so that the product is more competitive in the market.|
Model
|
650MM
|
|
Effective width
|
630mm
|
|
Effective thickness
|
0.4-110mm
|
|
Drawing plate larger than
|
300mm
|
|
Front belt speed
|
20m/s
|
|
Rear belt speed
|
16m/s
|
|
Conveyor speed
|
6-24m/min
|
|
Sanding belt size
|
650*1900mm
|
|
1 Sanding motor
|
7.5KW
|
|
2 Sanding motor
|
5.5KW
|
|
Conveyor Motor
|
1.1KW
|
|
Lifting platform motor
|
0.37kw
|
|
External Dimensions
|
1590*1320*2100mm
|
|
Machine weight
|
1400kg
|
Flat Wire Drawing Polishing Machines are specialized metal processing equipment designed for precise drawing, surface grinding, and polishing of flat wires, metal strips, and profile materials. Combining wire forming and surface finishing functions, these machines help manufacturers achieve smooth surfaces, accurate dimensions, and consistent product quality.
Suitable for processing stainless steel wire, copper wire, aluminum wire, and other metal materials, flat wire drawing polishing machines are widely used in electronics, automotive components, springs, hardware products, decorative materials, and precision metal manufacturing industries.
Featuring advanced drawing systems, abrasive polishing units, automatic feeding mechanisms, and stable control technology, these machines provide efficient continuous processing with reduced material waste and improved production productivity. They are capable of creating various surface finishes, including brushed, satin, and polished effects, according to customer requirements.
Designed for high-volume industrial production, flat wire drawing polishing machines offer excellent durability, easy operation, and reliable performance. As a professional manufacturer and supplier, we provide customized wire processing solutions to meet the demands of global metal fabrication and finishing industries.
