Product Descriptions

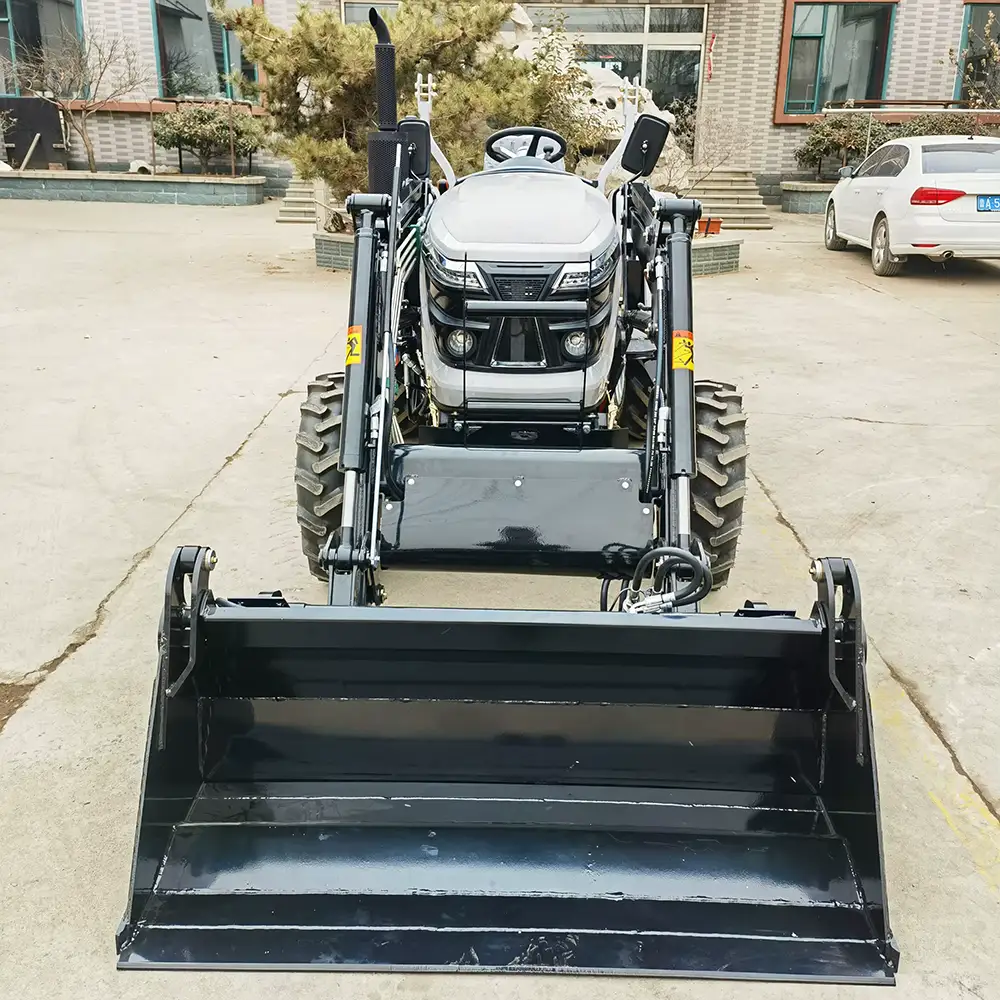

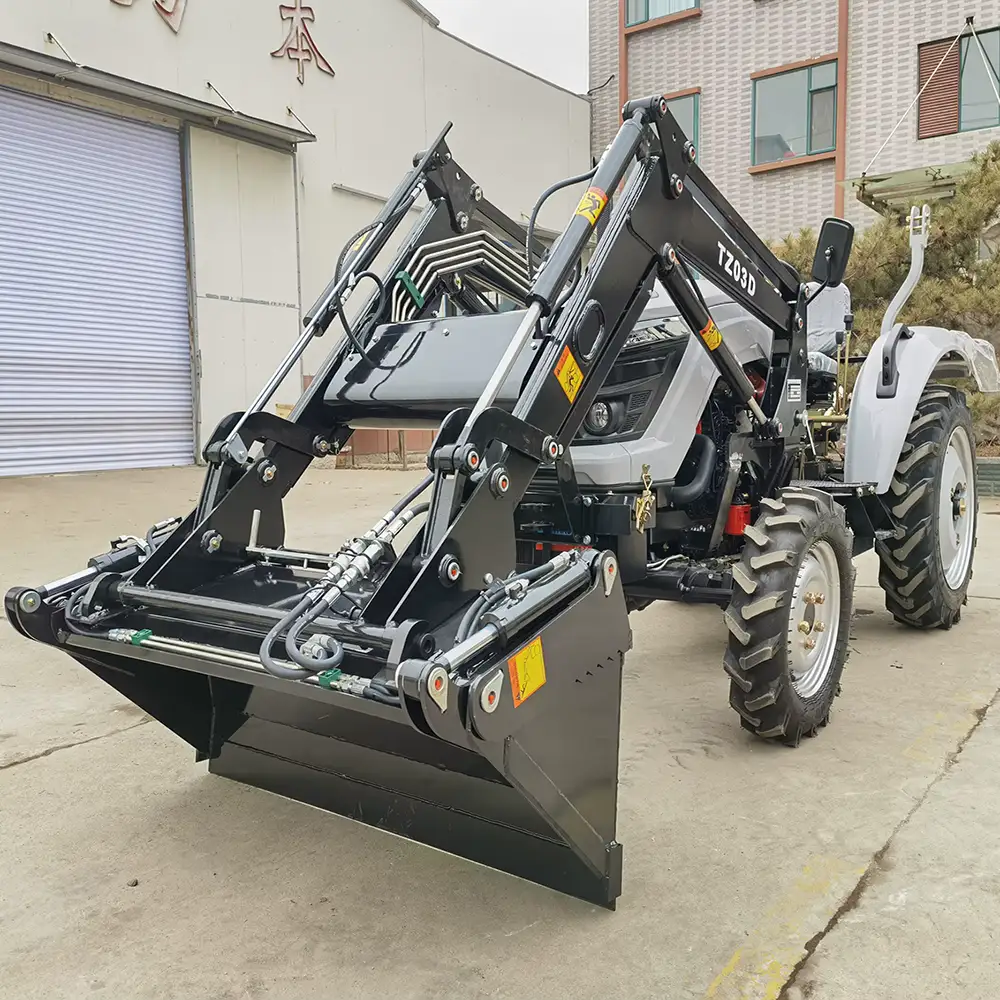

Front end loader Quick release arms design, high lifting, self-leveling for extra safety, quick release bucket for easy use with available attachment, 4 in 1 combined bucket, grating cover bucket, timber grab and bale spilke attachments available, high control for precision loading, easy to handle hydraulic control panel, support legs when detached. Used widely for loading, grading, grabbing, transporting, clearing debris after storms, transferring soil, gravel and other materials, relocating dead trees, forklift attachment for lifting machinery and transporting hay bales.
| Front End Loader | ||||||||
| Model | TZ02D | TZ03D | TZ04D | TZ06D | TZ08D | TZ10D | TZ12D | TZ16D |
| Matching Power(hp) | 15-25 | 20- 40 | 30-55 | 45-60 | 55-75 | 70-100 | 90-140 | 140-180 |
| Machine Weight (kg) | 200 | 300 | 400 | 600 | 800 | 1000 | 1200 | 1600 |
| Max. Lifting Height at Implement Pivot Pin(mm) | 2350 | 2550 | 2740 | 3010 | 3400 | 3710 | 3970 | 4260 |
| Overloading Height(mm) | 2170 | 2370 | 2560 | 2830 | 3220 | 3490 | 3770 | 4000 |
| Dumping Distance(mm) | 370 | 500 | 600 | 640 | 690 | 740 | 900 | 900 |
| Bucket Width(mm) | 1250 | 1250 | 1400 | 1500 | 1600 | 1700 | 2000 | 2400 |
| Lifting Force at Implement Pivot Pin(kg) | 1821 | 2224 | 2144 | 2150 | 1997 | 2308 | 2403 | 2620 |
| Digging Depth(mm) | 90 | 100 | 100 | 120 | 140 | 180 | 200 | 200 |
| Max. Tip in Angle(°) | 48 | 48 | 48 | 48 | 54 | 54 | 54 | 54 |
| Crowd angle at Lowered Lift Arm(°) | 140 | 135 | 135 | 135 | 135 | 145 | 145 | 145 |
