Product Descriptions

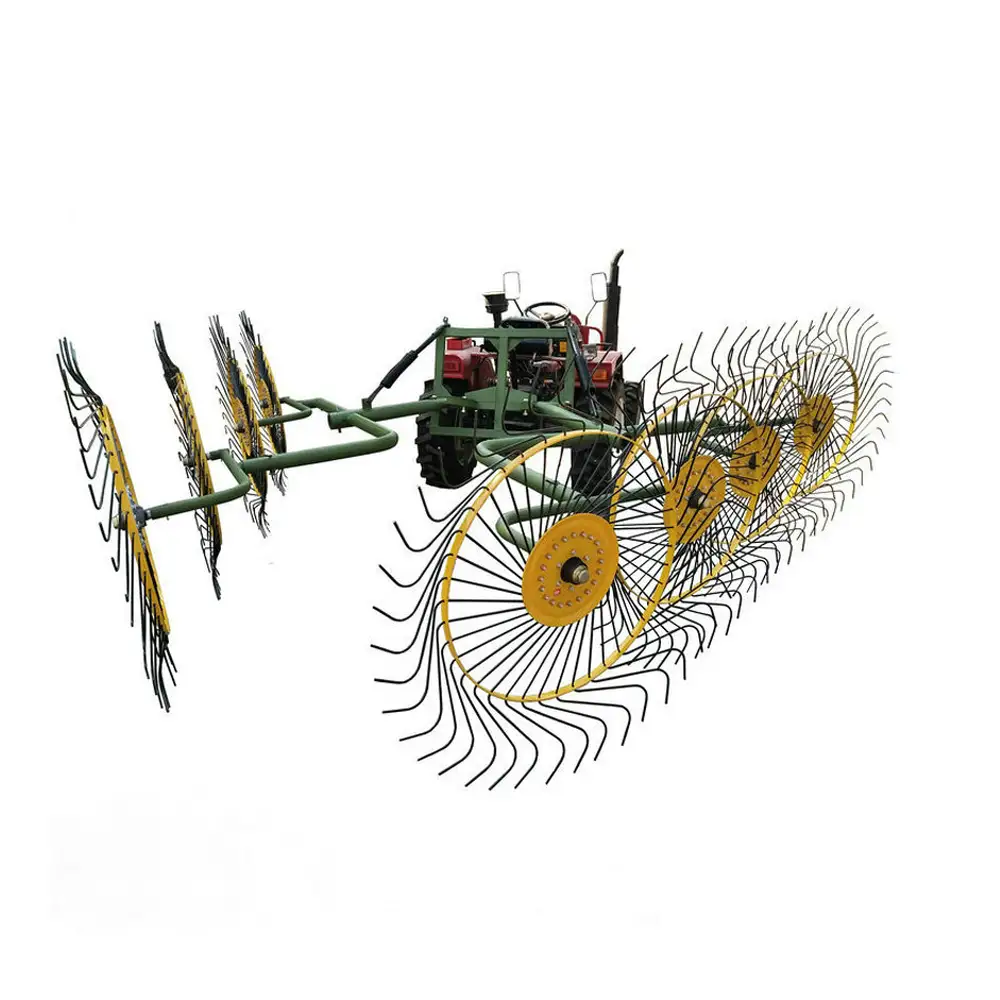

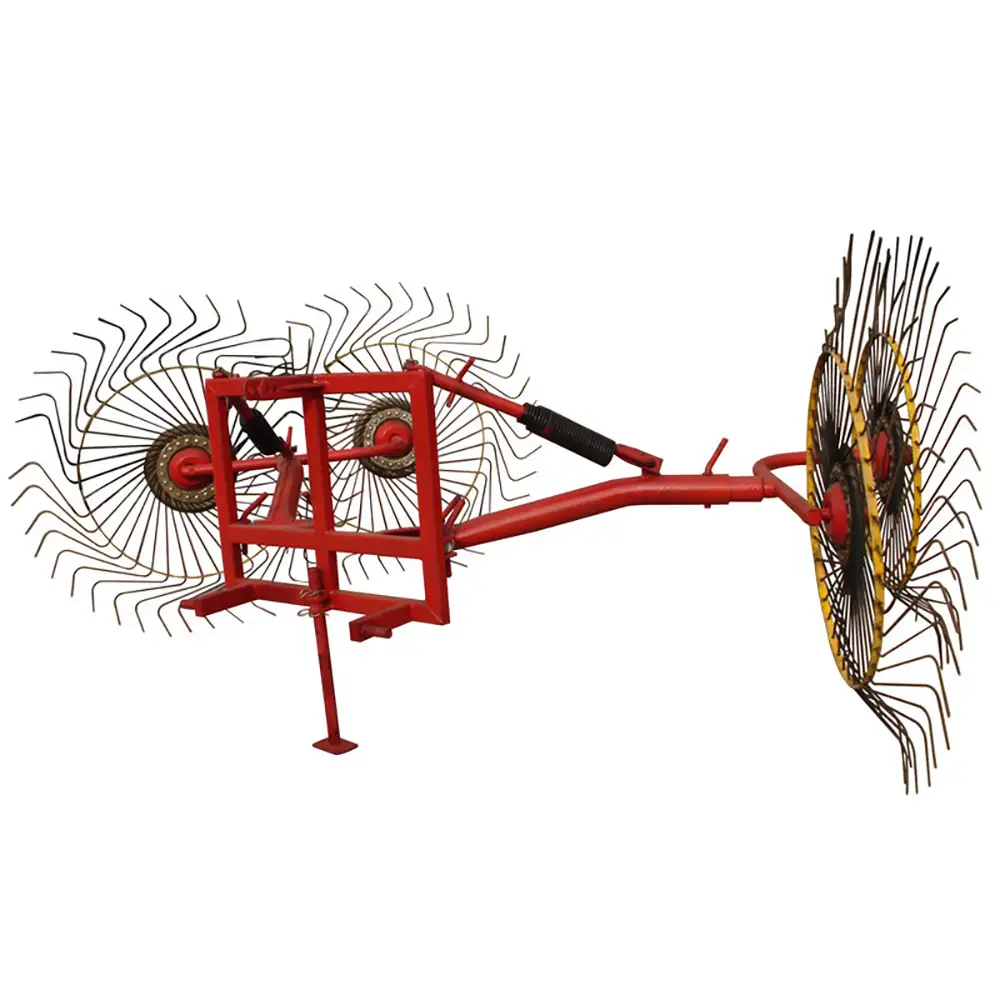

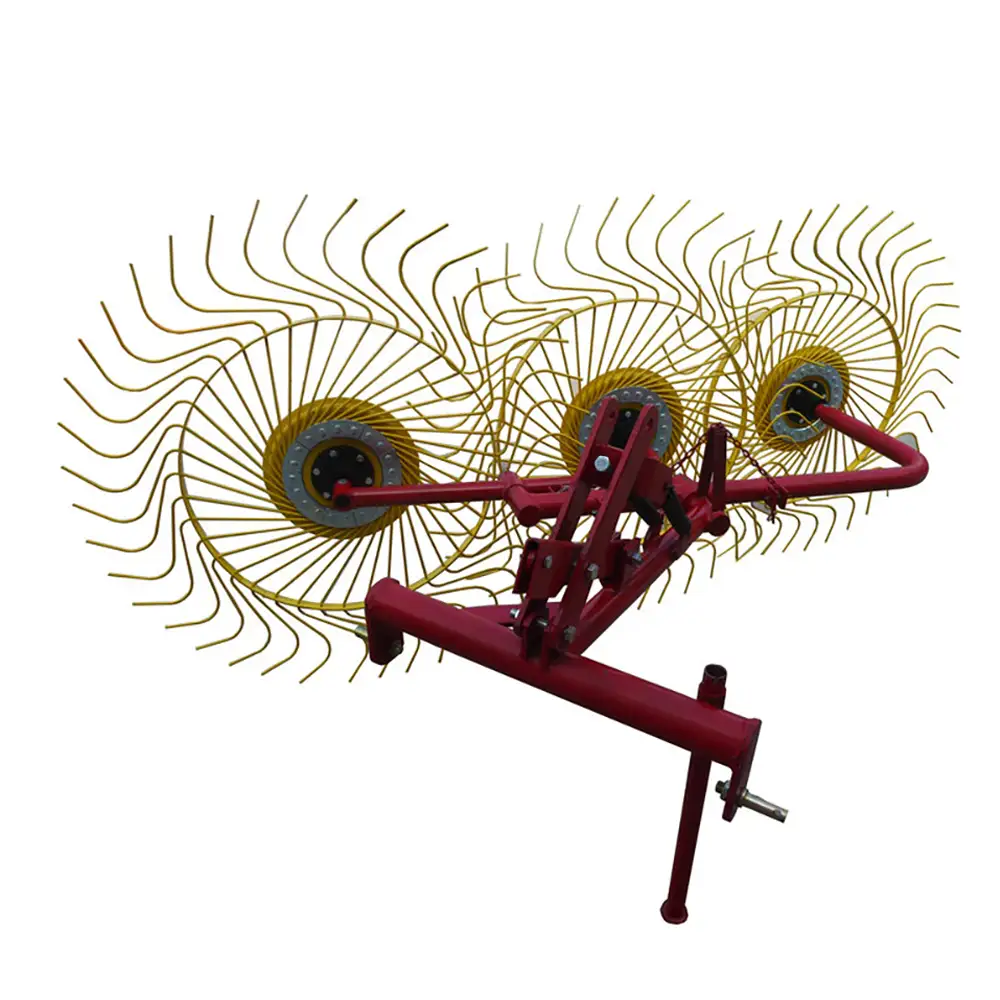

9LZ series of wheel hay rake is mounted on the 4 wheel tractor, the material of tine is 65Mn spring steel to keep durable.
This machine has simple structure, convenient operation and reliable use, less failure and high efficiency.
This rotary rake could be used together with our lawn mower.
| Model | 9LZ-3.0 | 9LZ-4.0 | 9LZ-4.8 |
| Working width (mm) | 3.0 | 4.0 | 4.8 |
| Matched tractor (hp) | 25-40 | 40-60 | 60-110 |
| Capacity (hm/h ) | 1.0-1.5 | 1.5-3.5 | 3-5 |
| Wheels No. | 4 | 6 | 8 |
| Wheel diameter (mm) | 1460 | 1460 | 1460 |
| Raking grass width (mm) | 900-1200 | 1000-1500 | 1000-1500 |
| Weight (kg) | 150 | 295 | 350 |
| Linkage | 3 point hitch linkage | 3 point hitch linkage | 3 point hitch linkage |
