Product Descriptions

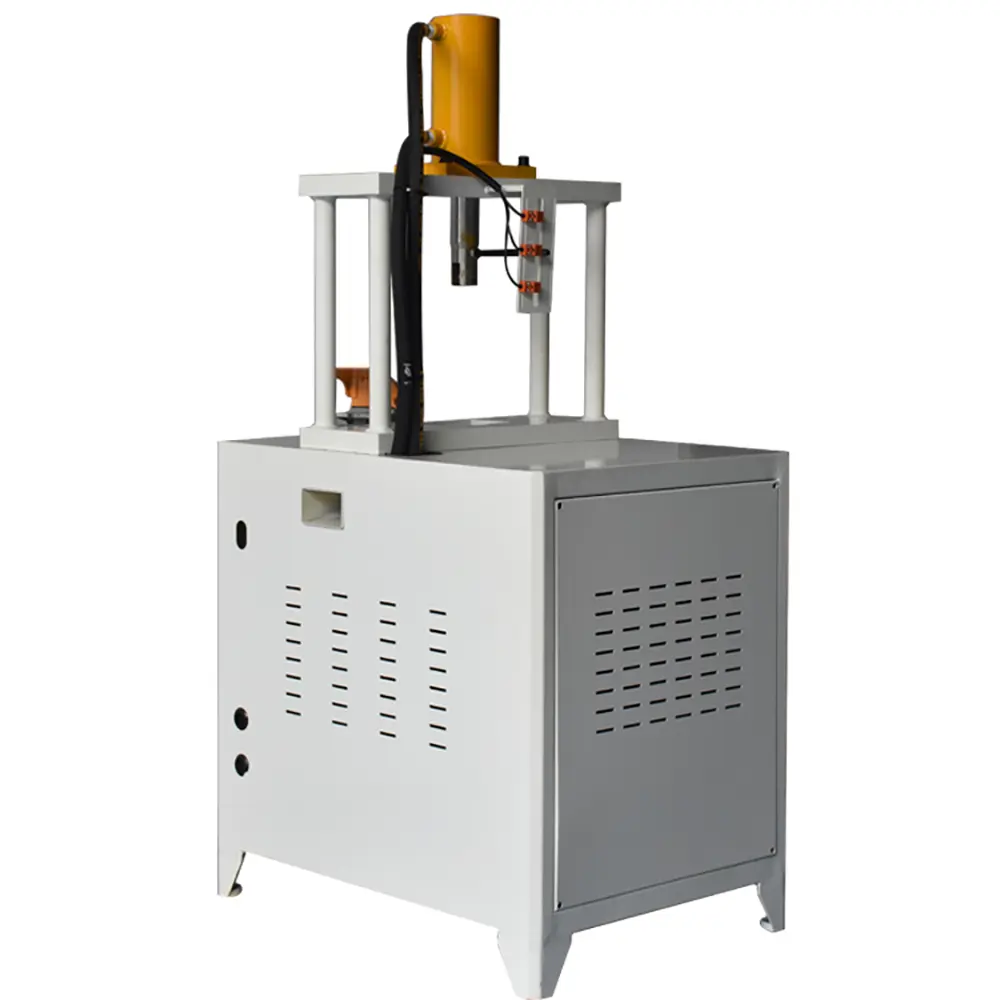

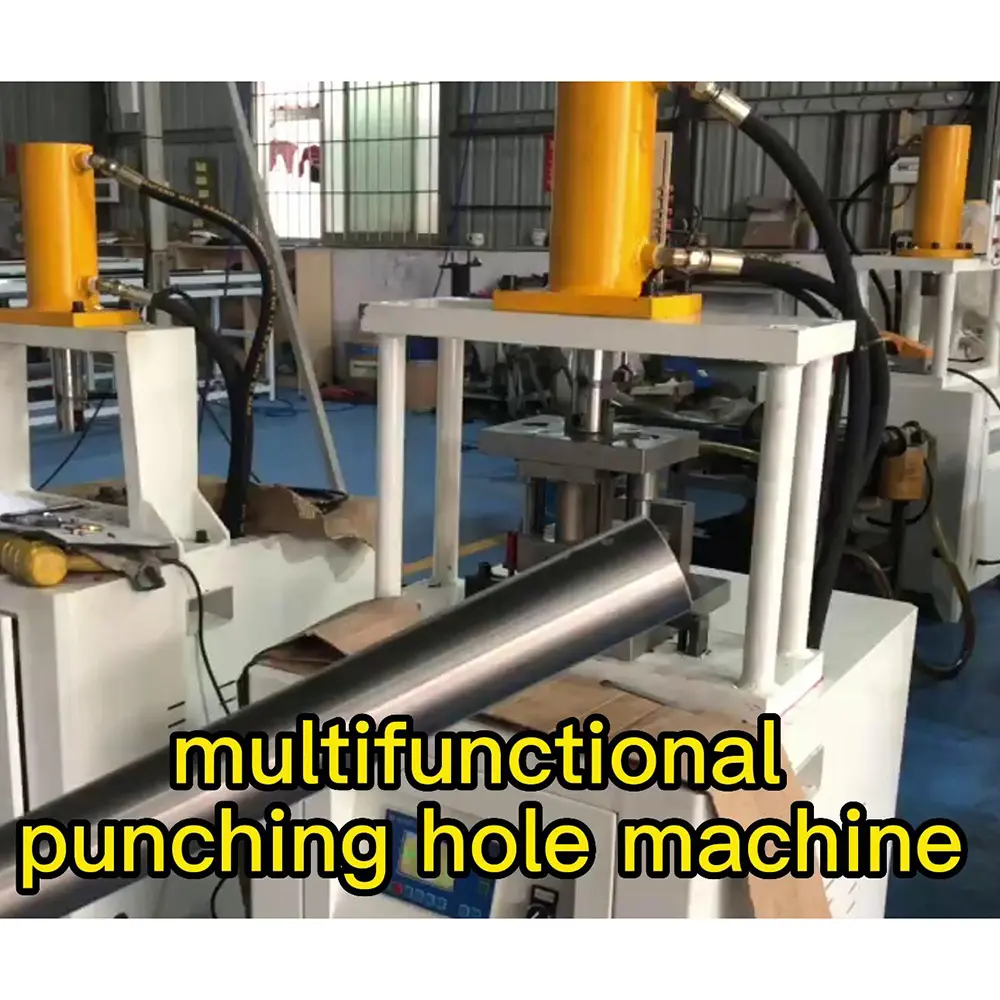

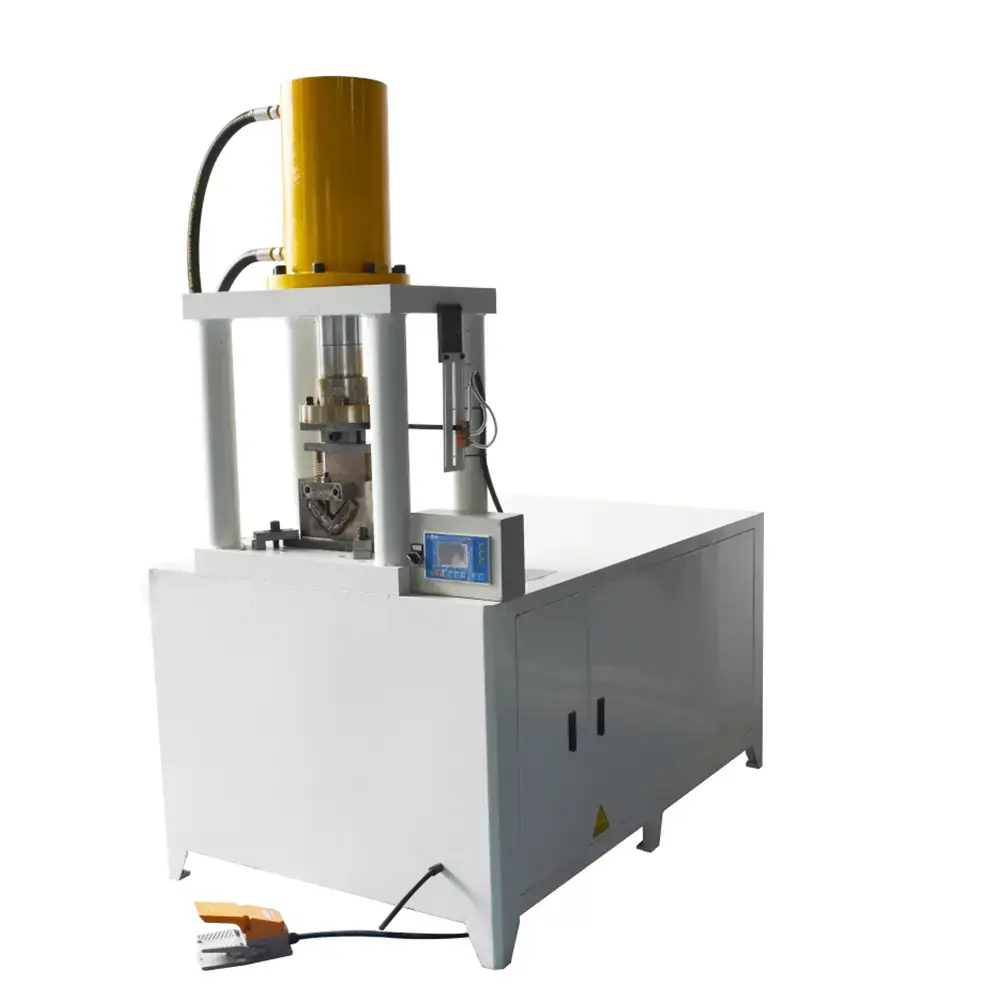

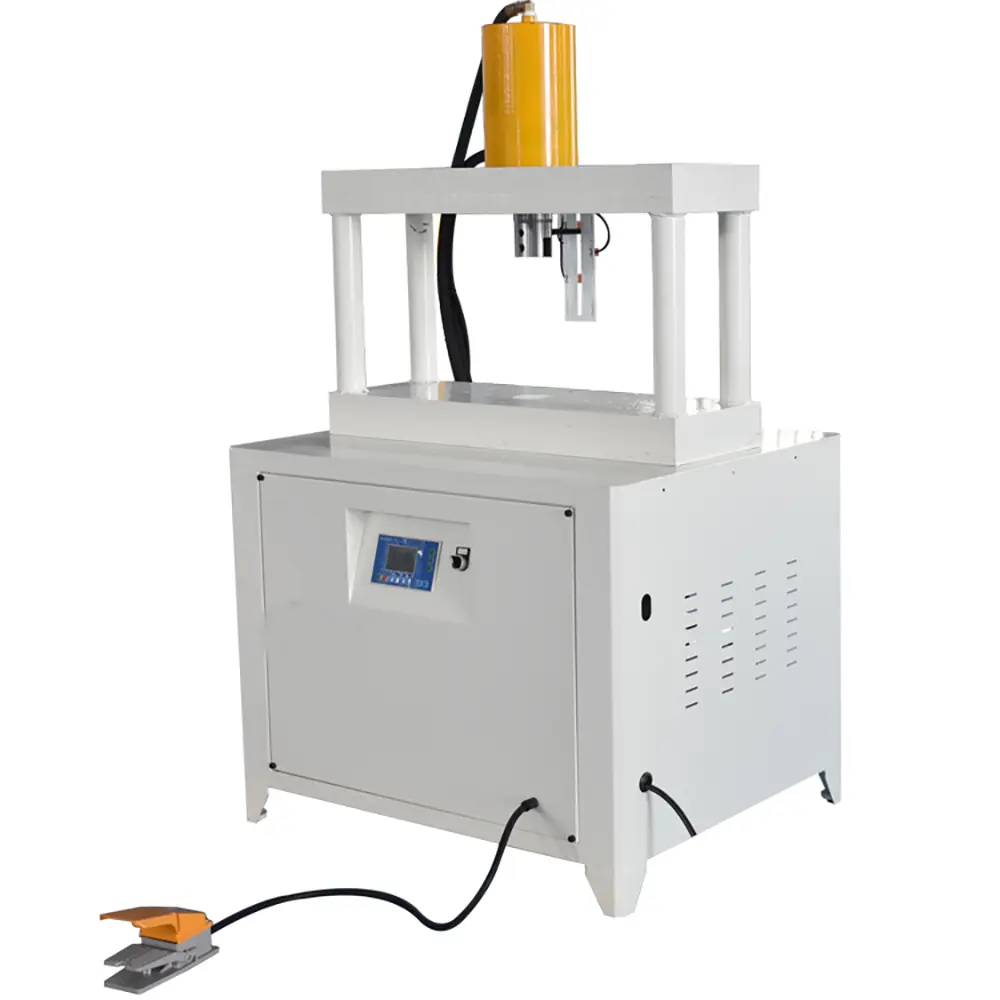

Hydraulic Single Head 8T 15T 20T 25T 30T 50T Pipe Punch Hole MachineThe Hydraulic Single Head 8T 15T 20T 25T 30T 50T Pipe Punch Hole Machine is a professional hydraulic metal processing machine designed for accurate hole punching on steel pipes,tubes,profiles,and metal sections. Available with multiple punching force options including 8 Ton,15 Ton,20 Ton,25 Ton,30 Ton,and 50 Ton, this machine provides flexible solutions for different material thicknesses and production requirements.
Featuring a strong hydraulic system,single-head punching structure,and precision tooling,this pipe punch hole machine delivers stable punching performance with high accuracy and excellent repeatability. It is widely used in metal furniture manufacturing,steel structure production,automotive components,solar mounting systems,construction materials,and general metal fabrication industries.
Compared with traditional drilling methods,the hydraulic pipe punching machine offers faster processing speed,lower labor costs,better hole consistency,and reduced secondary finishing requirements. It is an ideal choice for factories requiring reliable and cost-effective tube punching solutions.
1 feed pipe by manual,machine can punch hole, cut notching, press and punch hole on top of pipe,cut pinnacle
2 carbon steel, stainless steel , copper, aluminum,glass fiber steel
3 hole shape: round, square, rectangle, ellipse, and notch
4 punching type. half(one wall/side), through(two side/wall) Products Description
| Pressure (ton) | Max Punching thickness | Nominal force(Kn) |
Power (KW) |
Stroke(mm) | Model | |
| SS(mm) | MS(mm) | |||||
| 5 | 1 | 1.2 | 50 | 3 | 70 | H5A, H5B, H5C, |
| 8 | 1.6 | 2 | 80 | 4 | 100 | H8A, H8B, H8C, |
| 15 | 2.4 | 3 | 150 | 4 | 120 | H15A, H15B, H15C,H15D |
| 20 | 4 | 5 | 200 | 5.5 | 150 | H20A, H20B, H20C,H20D, H20E and so on |
| 25 | 5 | 6 | 250 | 5.5 | 150 | |
| 30 | 6 | 7 | 300 | 7.5 | 200 | |
Professional Hydraulic Pipe Punching Solution
The Hydraulic Single Head Pipe Punch Hole Machine is designed for efficient hole processing on various metal tubes and profiles.
The machine can perform:
Pipe hole punching
Tube opening processing
Metal profile punching
Connection hole forming
Customized punching operations
Suitable materials include:
Square steel tubes
Round pipes
Rectangular tubes
Stainless steel pipes
Carbon steel profiles
Aluminum tubes
The flexible design allows manufacturers to process different products by changing punching dies.
Multiple Tonnage Options For Different Applications
The machine is available in several hydraulic punching force configurations:
8 Ton Hydraulic Pipe Punching Machine
Suitable for:
Thin wall tubes
Small metal profiles
Light-duty fabrication
15 Ton Hydraulic Pipe Punching Machine
Suitable for:
Furniture tubes
General steel pipe processing
Medium production requirements
20 Ton Hydraulic Punching Machine
Suitable for:
Industrial tube processing
Medium thickness steel pipes
Structural components
25 Ton Hydraulic Punching Machine
Suitable for:
Stronger metal profiles
Heavy-duty fabrication applications
30 Ton Hydraulic Punching Machine
Suitable for:
Continuous industrial production
Higher strength materials
50 Ton Hydraulic Punching Machine
Suitable for:
Thick steel pipes
Heavy metal processing
Large-scale manufacturing
Customers can select suitable punching force according to material thickness and production capacity.
Powerful Hydraulic Punching System
The machine adopts a high-performance hydraulic system to provide stable and powerful punching force.
Main advantages:
Strong punching pressure
Smooth operation
Accurate hole forming
Low noise performance
Long equipment lifespan
The hydraulic system ensures consistent punching quality during long-term operation.
It can produce:
Round holes
Square holes
Slot holes
Mounting holes
Customized hole shapes
Single Head Punching Design
The single-head structure provides a simple and efficient solution for tube punching applications.
Advantages include:
Easy operation
Quick tooling replacement
Lower equipment investment
Flexible production adjustment
Convenient maintenance
The machine is especially suitable for manufacturers producing different tube products with various hole requirements.
High Precision Metal Tube Hole Processing
The Hydraulic Single Head Pipe Punch Machine provides accurate and repeatable hole processing.
Processing advantages:
Precise hole positioning
Clean punching edges
Reduced material deformation
Stable production quality
Improved assembly accuracy
It helps manufacturers improve welding,assembly,and connection efficiency.
Wide Application Industries
Metal Furniture Manufacturing
Applications:
Chair frames
Table frames
Bed frames
Storage racks
Office furniture structures
Steel Structure Industry
Used for:
Steel brackets
Support frames
Construction components
Metal structures
Solar Mounting System Production
Applications:
Solar support rails
Photovoltaic brackets
Mounting profiles
Automotive Industry
Used for:
Vehicle frame tubes
Metal supports
Structural components
General Metal Fabrication
Suitable for:
Customized tube products
Industrial metal parts
Fabrication workshops
Suitable Materials
The hydraulic pipe punching machine can process:
Carbon Steel Pipe
Stainless Steel Tube
Galvanized Steel Pipe
Square Tube
Round Tube
Rectangular Tube
Aluminum Profile
Metal Sheet
Different punching molds can be customized according to product requirements.
Easy Operation And Maintenance
The machine is designed for convenient industrial use.
Features include:
Simple control operation
Fast die changing
Stable hydraulic performance
Strong machine structure
Low maintenance requirements
Operators can quickly adjust the machine for different tube sizes and applications.
Key Features Of Hydraulic Single Head Pipe Punch Hole Machine
1. Multiple Hydraulic Force Options
Available from 8T to 50T for different punching requirements.
2. Single Head Punching Structure
Provides flexible and economical tube processing.
3. Powerful Hydraulic System
Ensures stable punching performance.
4. High Precision Hole Processing
Creates accurate and consistent holes.
5. Wide Material Compatibility
Suitable for various metal tubes and profiles.
6. Customized Punching Dies
Supports different hole shapes and applications.
Why Choose Our Hydraulic Pipe Punch Hole Machine?
Professional Metal Processing Equipment Manufacturer
We specialize in manufacturing hydraulic tube punching machines and complete metal fabrication solutions.
Flexible Production Solutions
Different tonnage options meet various industrial applications.
Reliable Processing Quality
Advanced hydraulic technology ensures stable performance and accurate punching.
Customized Machine Design
Punching force,tooling,tube sizes,and machine configuration can be customized.
Factory Direct Supply
Direct manufacturer supply provides competitive pricing,reliable quality,and professional technical support.
Complete Technical Service
We provide installation guidance,operation training,maintenance support,and spare parts supply.
FAQS
Q1: What is a Hydraulic Single Head Pipe Punch Hole Machine used for?
It is used for punching holes on steel pipes,tubes,profiles,and metal sections.
Q2: What tonnage options are available?
The machine is available in 8T,15T,20T,25T,30T,and 50T models.
Q3: What materials can be processed?
It can process carbon steel,stainless steel,galvanized steel,aluminum,and other metal materials.
Q4: What hole shapes can be punched?
The machine can punch round,square,slot,and customized holes.
Q5: What are the advantages of hydraulic punching?
Hydraulic punching provides stronger force,better accuracy,and more stable performance.
Q6: Is this machine suitable for mass production?
Yes. It is designed for stable industrial production and continuous operation.
Q7: Can the machine be customized?
Yes. Punching force,die design,tube size range,and machine functions can be customized.
