Product Descriptions

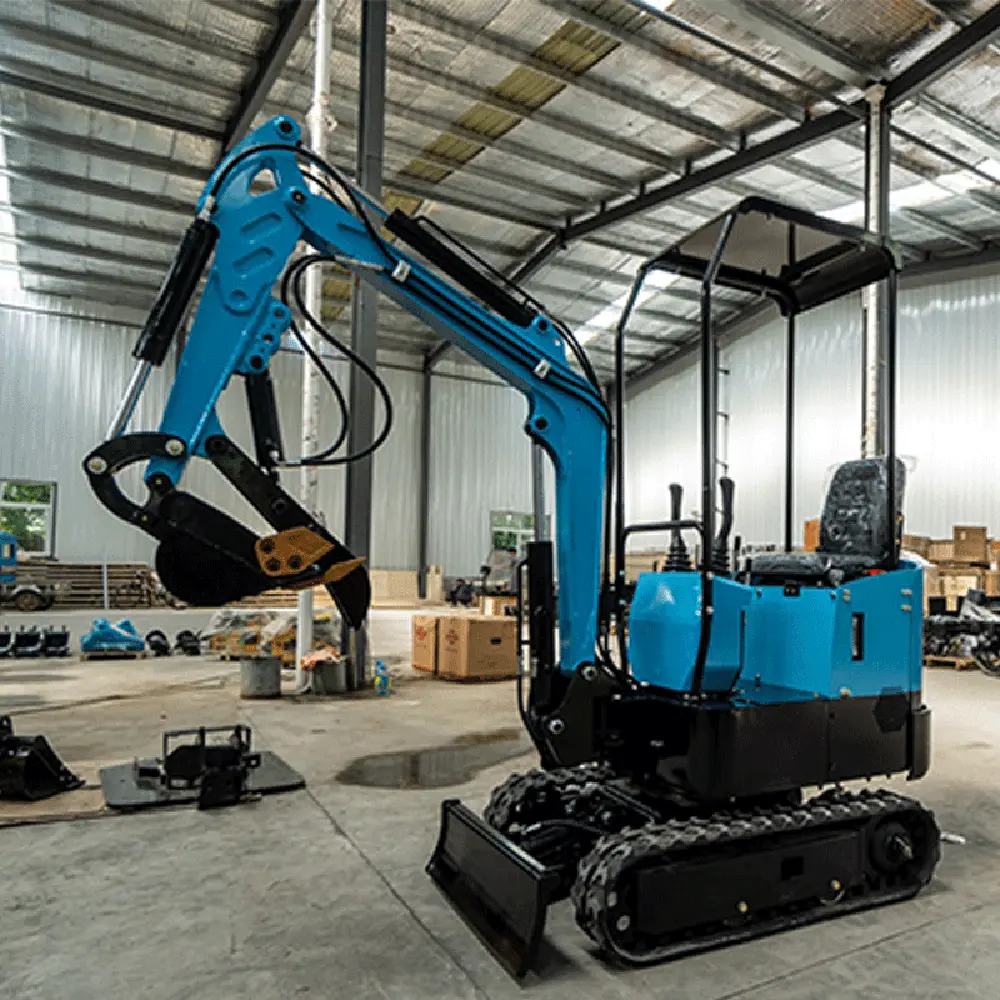

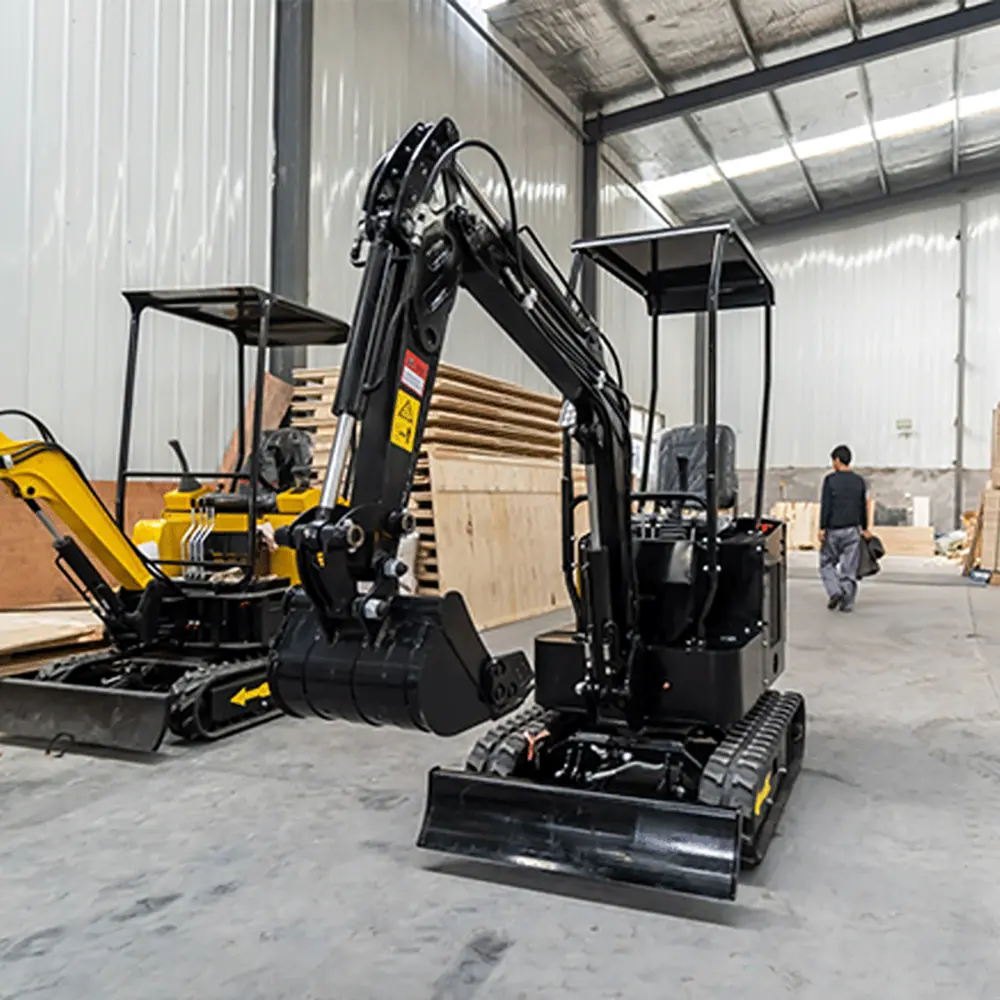

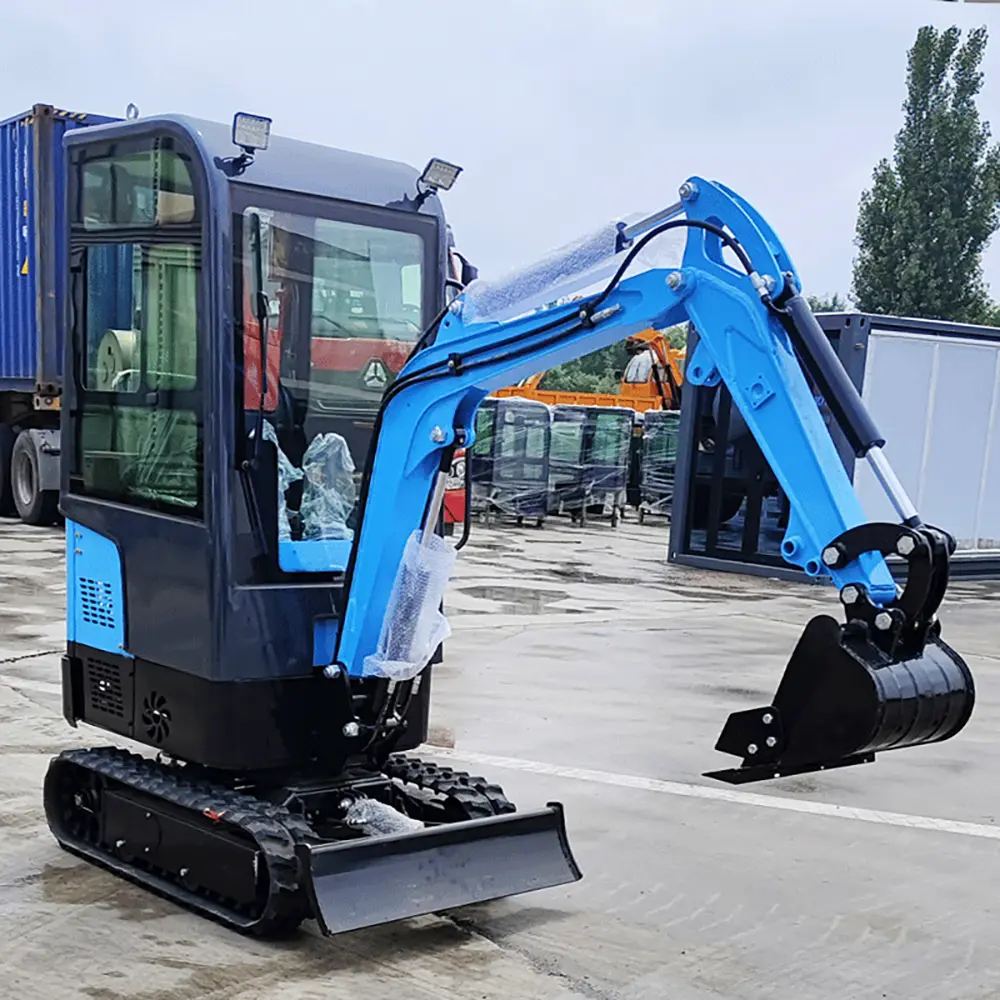

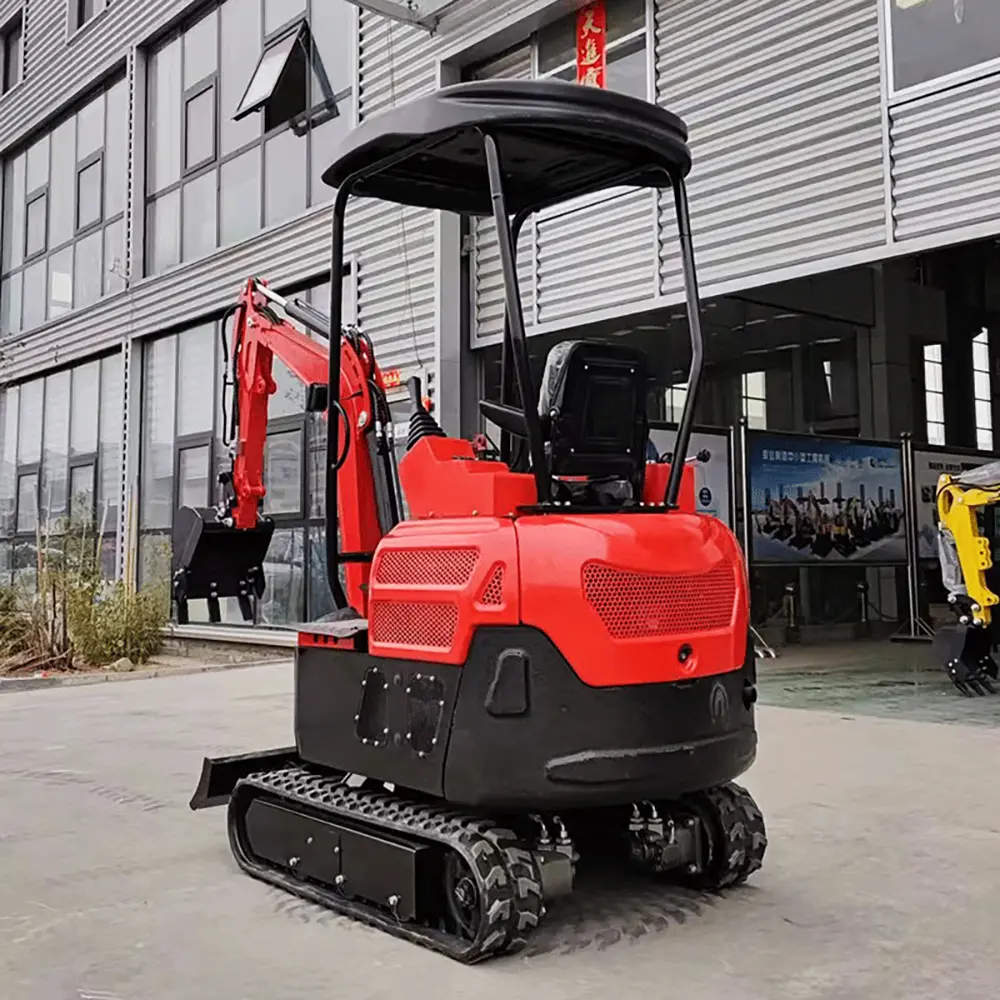

The Mini Crawler Digger Excavator Machine is a compact, powerful, and versatile construction machine designed for agriculture, landscaping, municipal maintenance, utility installation, and building projects. Available in 1 Ton, 2 Ton, 2.5 Ton, and 3.5 Ton models, this mini excavator combines excellent digging performance, fuel efficiency, and easy operation.Equipped with CE and EPA certified engines, the machine meets international emission and safety requirements, making it an ideal choice for global markets including North America, Europe, Australia, and Southeast Asia.
Its compact dimensions allow efficient operation in narrow spaces such as farms, orchards, gardens, greenhouses, residential construction sites, and urban infrastructure projects.
Why Choose a Mini Crawler Excavator?
Mini excavators have become one of the most popular compact construction machines because they provide powerful digging performance while maintaining low operating costs and excellent maneuverability.
Main Benefits
✔ Compact size for restricted work areas
✔ CE and EPA approved engine options
✔ Strong digging force
✔ Easy transportation
✔ Low fuel consumption
✔ Comfortable operation
✔ Multiple attachment compatibility
✔ Reduced maintenance costs
| Engine | Travel System | |||||||||
| Model | KOOP( KD192F-1) | Travel motors | BMT-310 | |||||||
| Type | Direct injection, air cooled, natural intake | Support roller quantities | 2×2 | |||||||
| Carrier roller quantities | 0 | |||||||||
| No.engine cylinder | 1 | Travel speed | 2(km/h) | |||||||
| Bore and stroke | 92x75 | Drawbar pulling force | 8.3KN | |||||||
| Displacement | 0.499 | Gradeability | 58%(300) | |||||||
| Power output | 7kw/3000rpm | Rubber track width | 180mm | |||||||
| Max. torque | 27N.m/2200rpm | Rubber track Thickness | 40mm | |||||||
| Hydraulic System | ||||||||||
| Pump | CBT-F306R6H1R | |||||||||
| Type | Gear pump | |||||||||
| Max. discharge flow | 18 (L/min) | |||||||||
| Main control valves | DL80 | |||||||||
| Oil cooler | Air cooled type | |||||||||
| Swing System | Refilling Capacity & lubrication | |||||||||
| Swing motor | BMR200 | Fuel tank | 7L | |||||||
| Swing motor type | Gerotor motor | Engine oil | 1.2L | |||||||
| Swing speed | 13 r/min | Hydraulic oil tank | 14.5L Oil Tank Level | |||||||
| 21.5L Hydraulic System | ||||||||||
