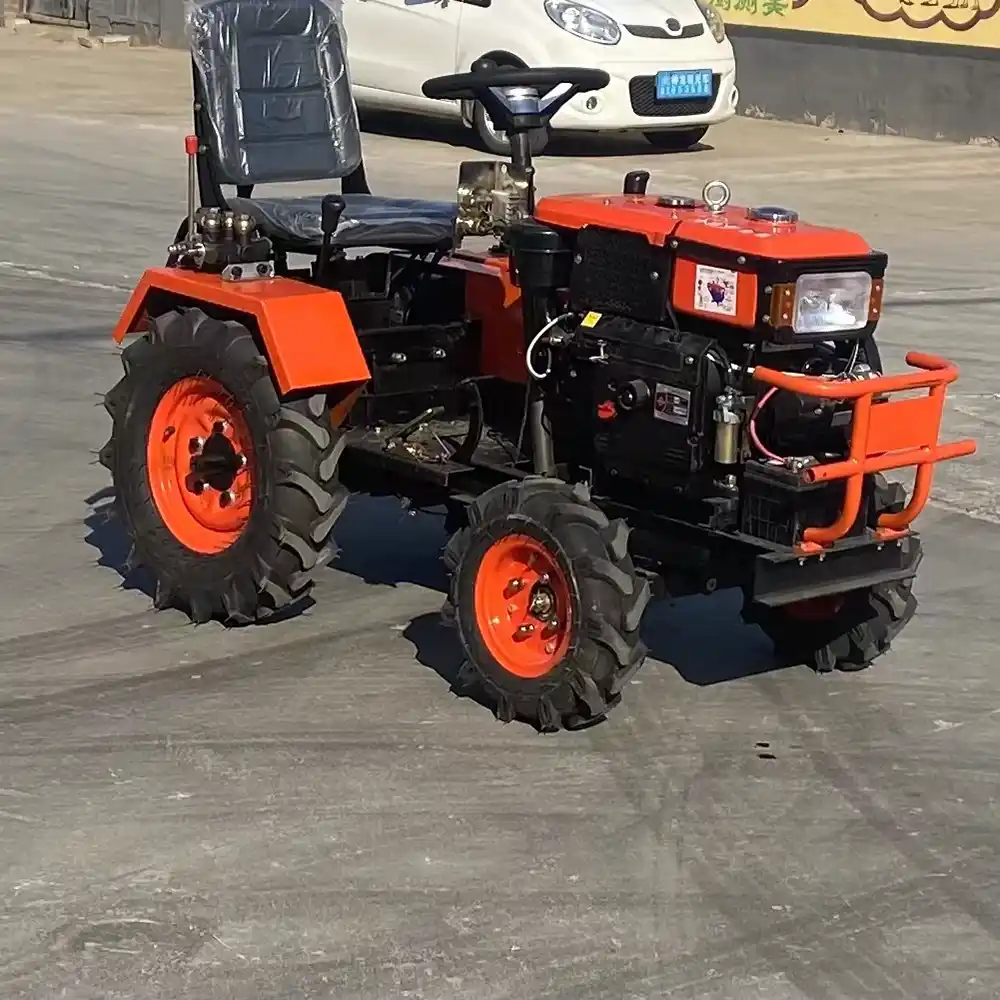

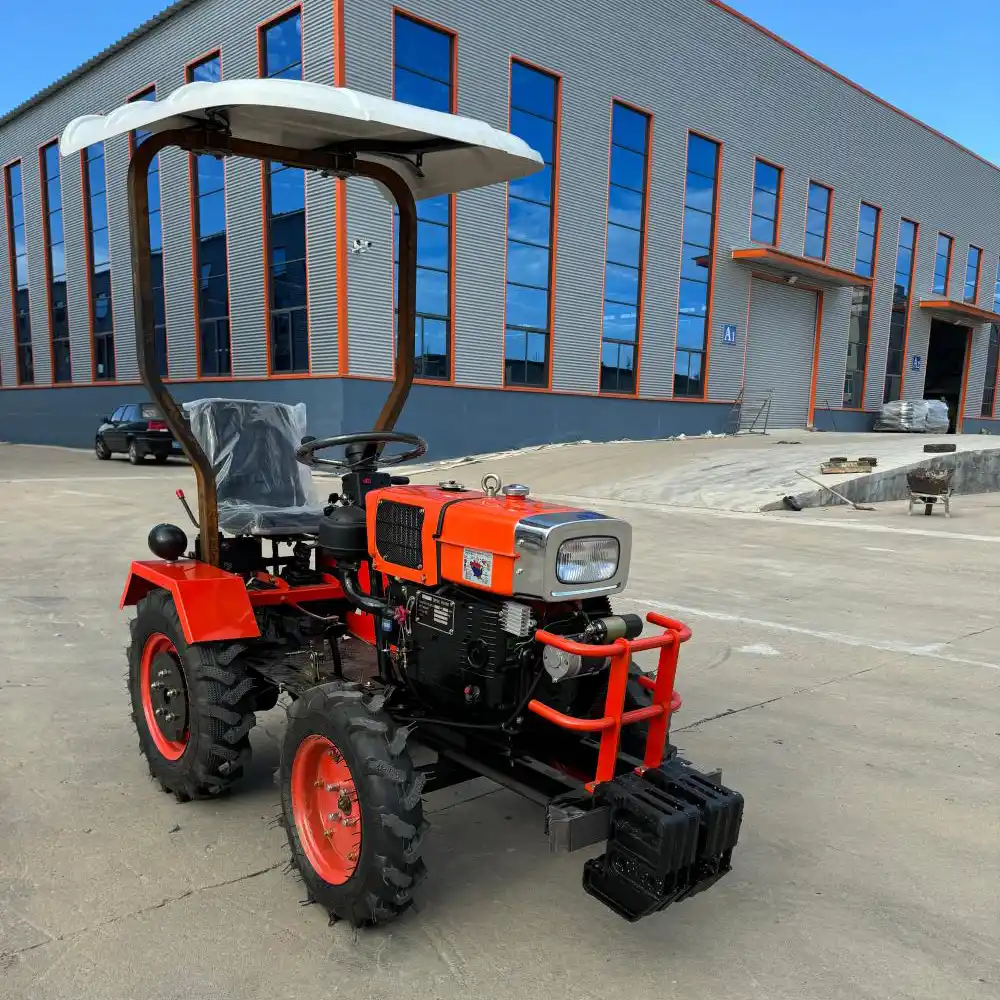

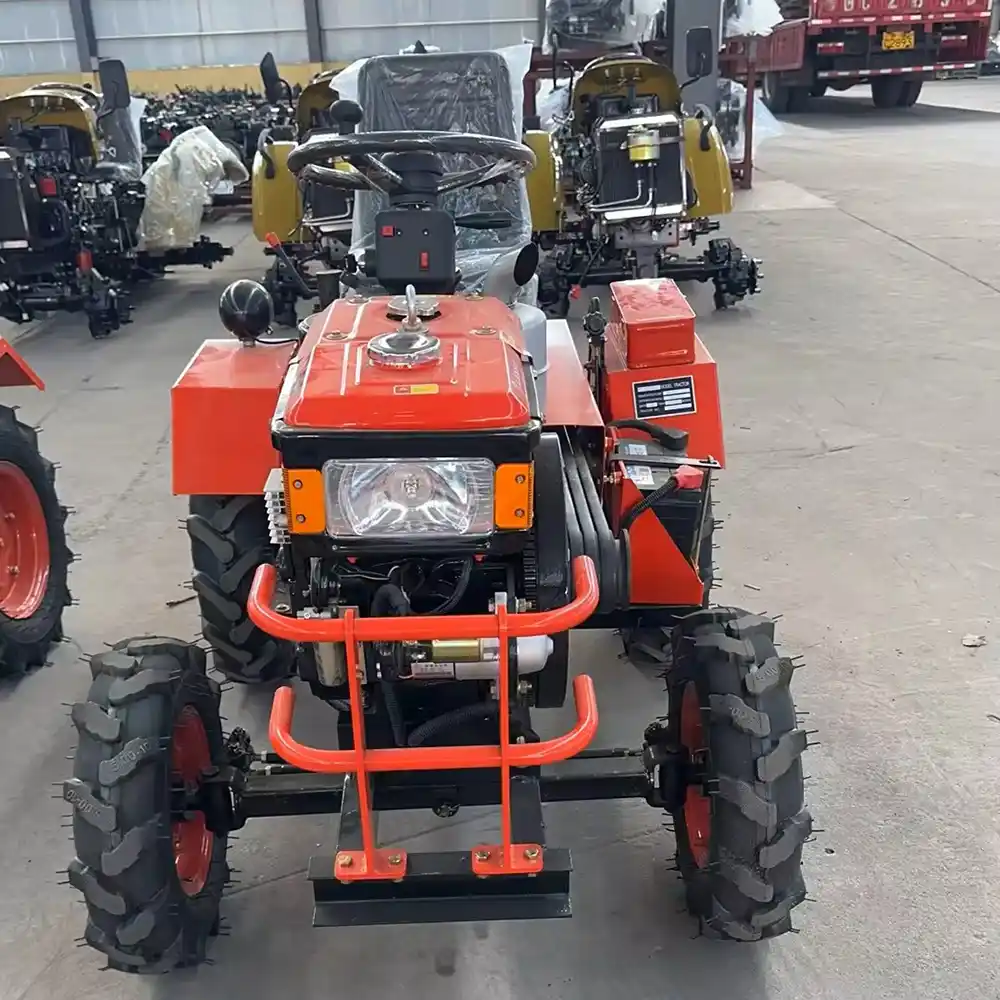

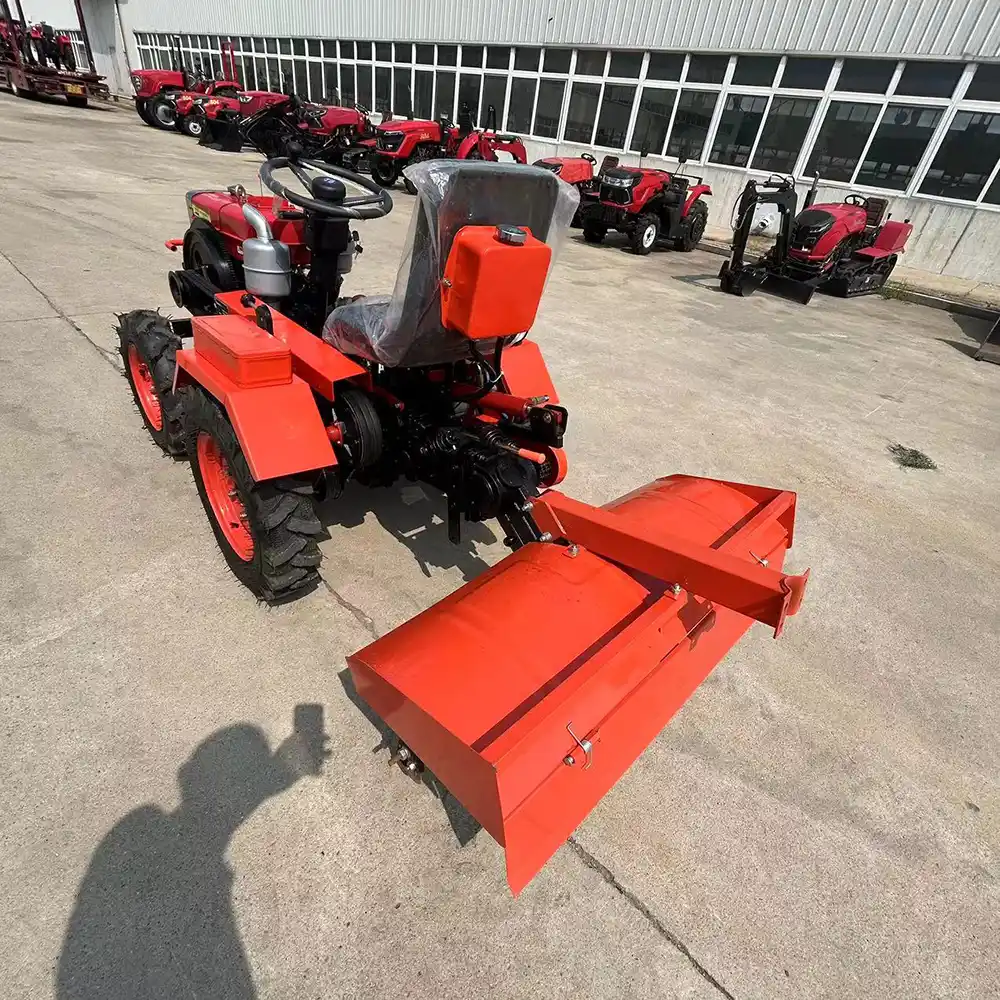

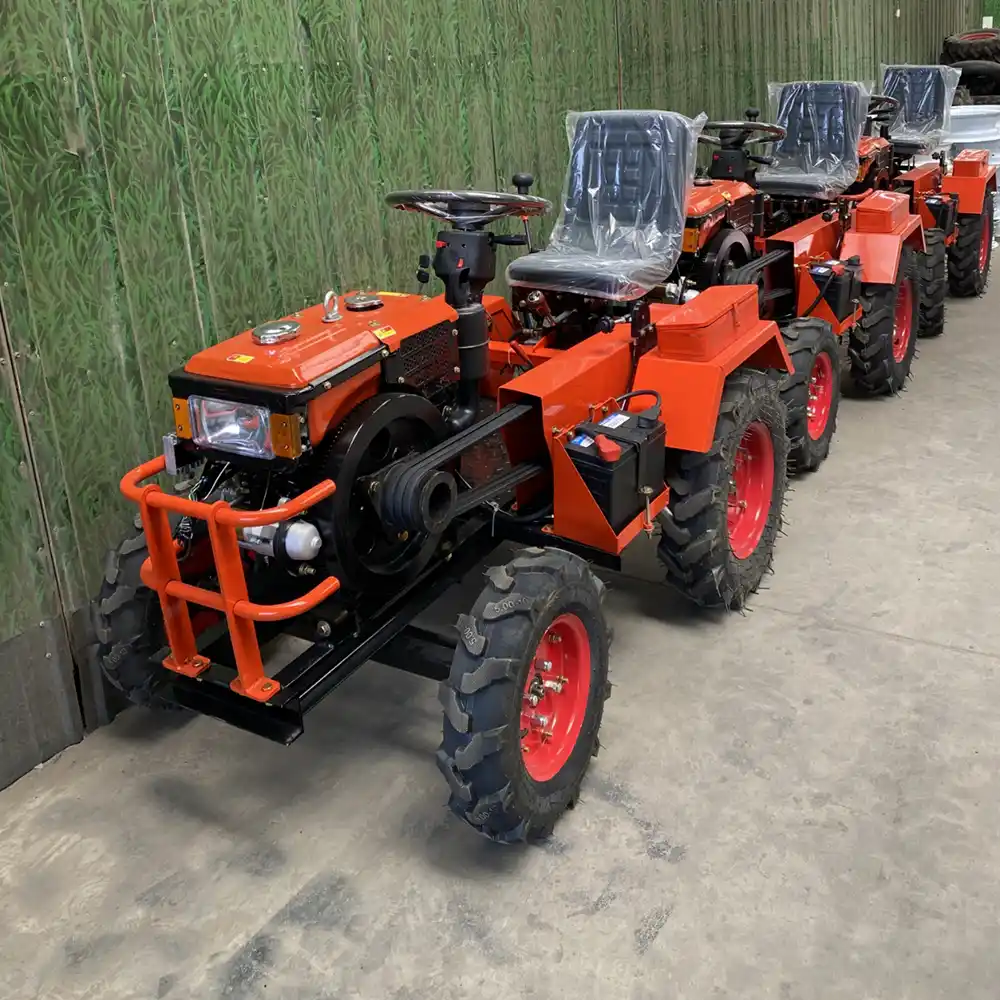

Mini Garden Tractor
| Mode | WT-12HP-15HP | |
| Dimensions of Tractor | Overall dimensions(L*W*H) | 2140×905×1175mm |
| Front wheel size | 4.00-8/4.00-10/4.00-12/4.00-14 | |
| Back wheel size | 5.00-12/6.00-12/6.50-16/7.50-16 | |
| Ground clearance | 180mm | |
| working weight | 484kg | |
| Transmissions tyle | Vee-belt tension | |
| Vee-model | B3200 | |
| Steering style | Steering wheel power steering system | |
| Brakes | Two side wheel brake | |
| Starter | Electric start | |
| Seat | Adjustable | |
| Gear style | 6F+2R | |
| Speed | Forward | 1.68,2.61,4.22,6.79,10.57,17.08 |
| Reverse | 1.29.5.22 | |
| Engine | Type | 1 cylinder,4-stroke horizontal,water-cooled diesel |
| Cooling mode | Condenser(Radiator) | |
| Power | 12HP/15HP/18HP/20HP | |
| Combustion system | Direct Injection | |
| Cylinder bore | 92mm/95mm/105mm/110mm | |
| Piston stroke | 95mm/98mm/115mm/115mm | |
| Compression | 18:01 | |
| Rated speed | 2400rpm | |
| Fuel efficiency | ≤250g/kw.hr/≤245g/kw.hr | |
| Displacement | 0.5L/0.694L/0.903L/1.093L | |
