Product Descriptions

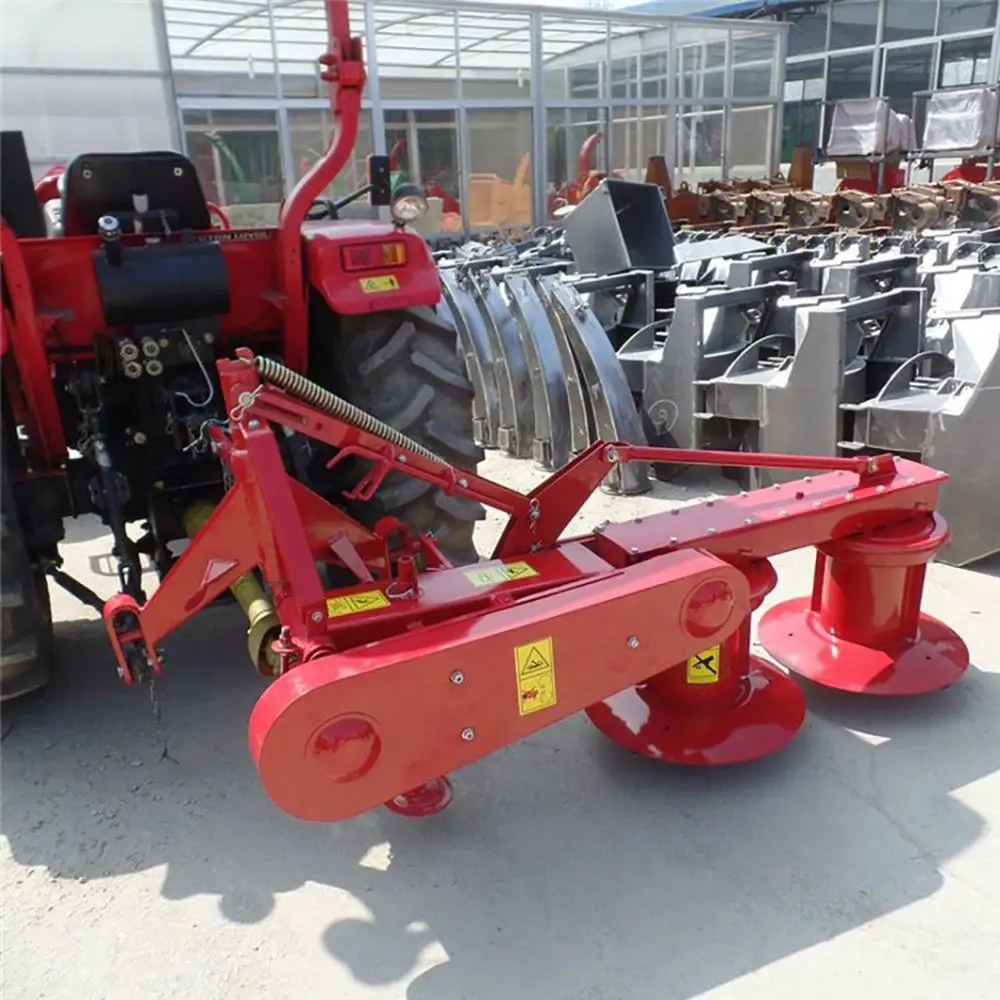

The DM165 mower is a two—drum mower. Each drum has three knives, which can be changed quickly with a simple tool. The hay cut by the knives is carried between the drums and put in a loosely laid swath. Three V—belts transmit power to the input gear shaft, then to the main drive shaft, which in turn drives the drums through the bevel gears.
A breakaway device is incorporated on this machine, which automatically operates when the mower hits an obstruction. This protects the drums from damage.
- Move at High Speeds.
- No Hydraulics Necessary (unless using Hydraulic Conversion Kit).
- Few Moving Parts & Easy Maintenance.
- Great Alternative to Disc & Sickle bar Mowers for Small Hay Producers.
- Easily Cuts Through Tall & Thick Grass.
- Designed for Reliable Mowing in All Conditions.
| Model | WTDM135 | WTDM165 |
| Cutting Width | 135cm | 165cm |
| Cutting Height | 3cm | 3cm |
| Transport Width | 95cm | 140cm |
| Transport Length | 265cm | 285cm |
| Height | 110cm | 110cm |
| Weight | 340kg | 390kg |
| Drums | 2pcs | 2pcs |
| Blades | 6pcs | 6pcs |
| P.T.O Speed | 540rpm | 540rpm |
| P.T.O Drive Shaft | with | with |
| Mounted Cat | Cat1 | Cat1 & 2 & 3 |
| Tractor power | ≥20hp | ≥28hp |
