Product Descriptions

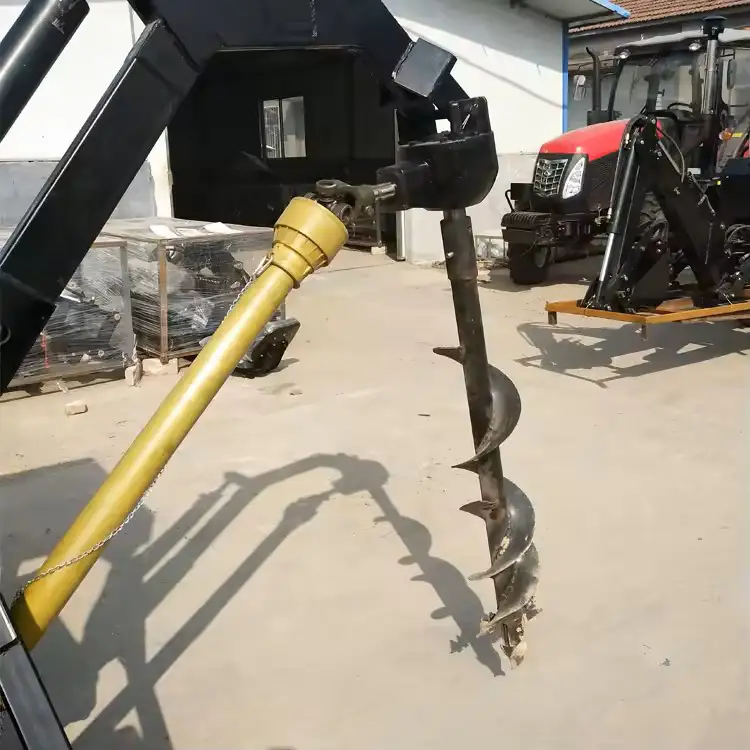

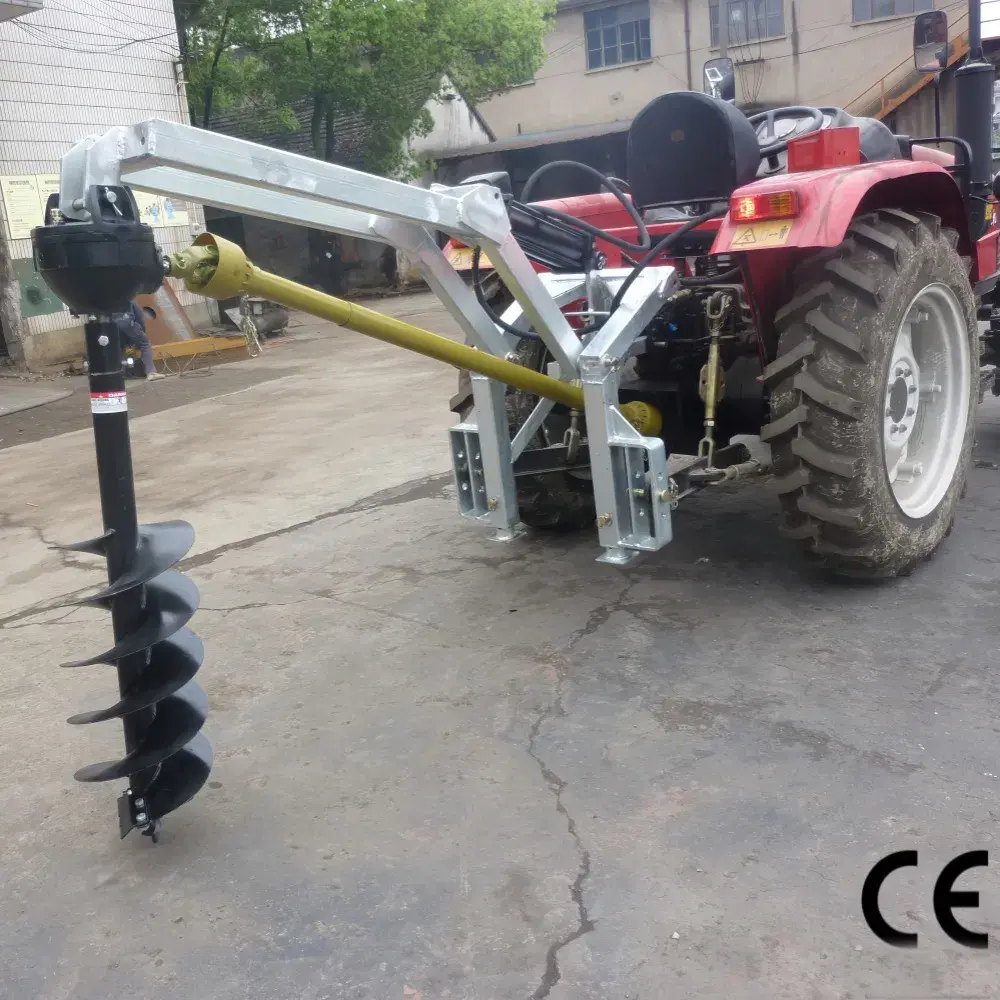

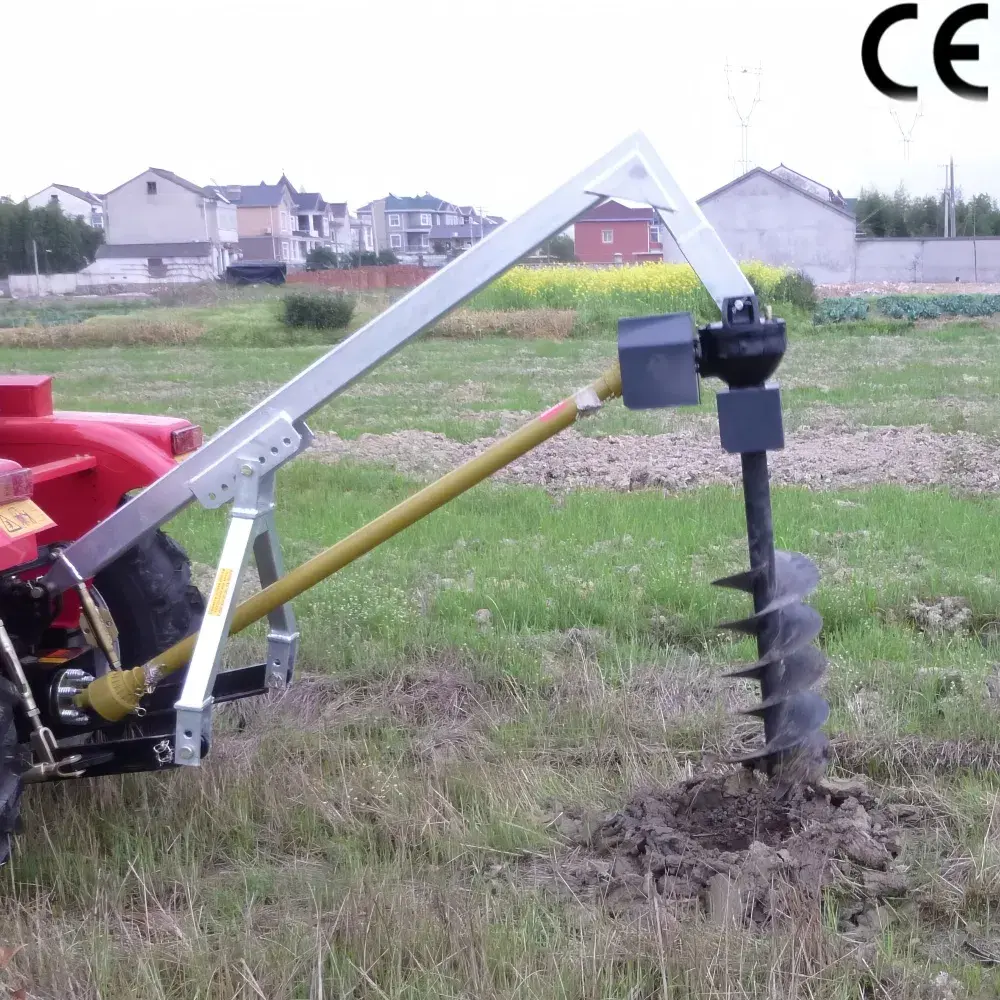

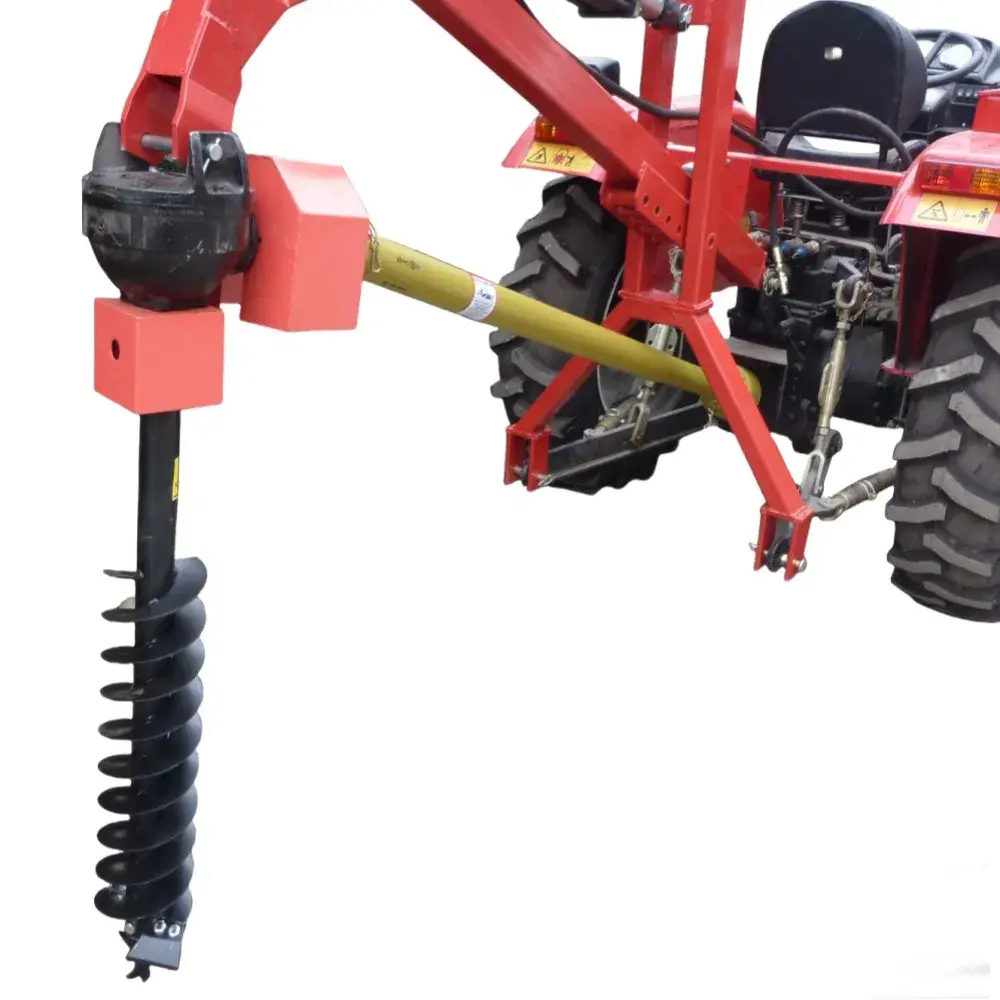

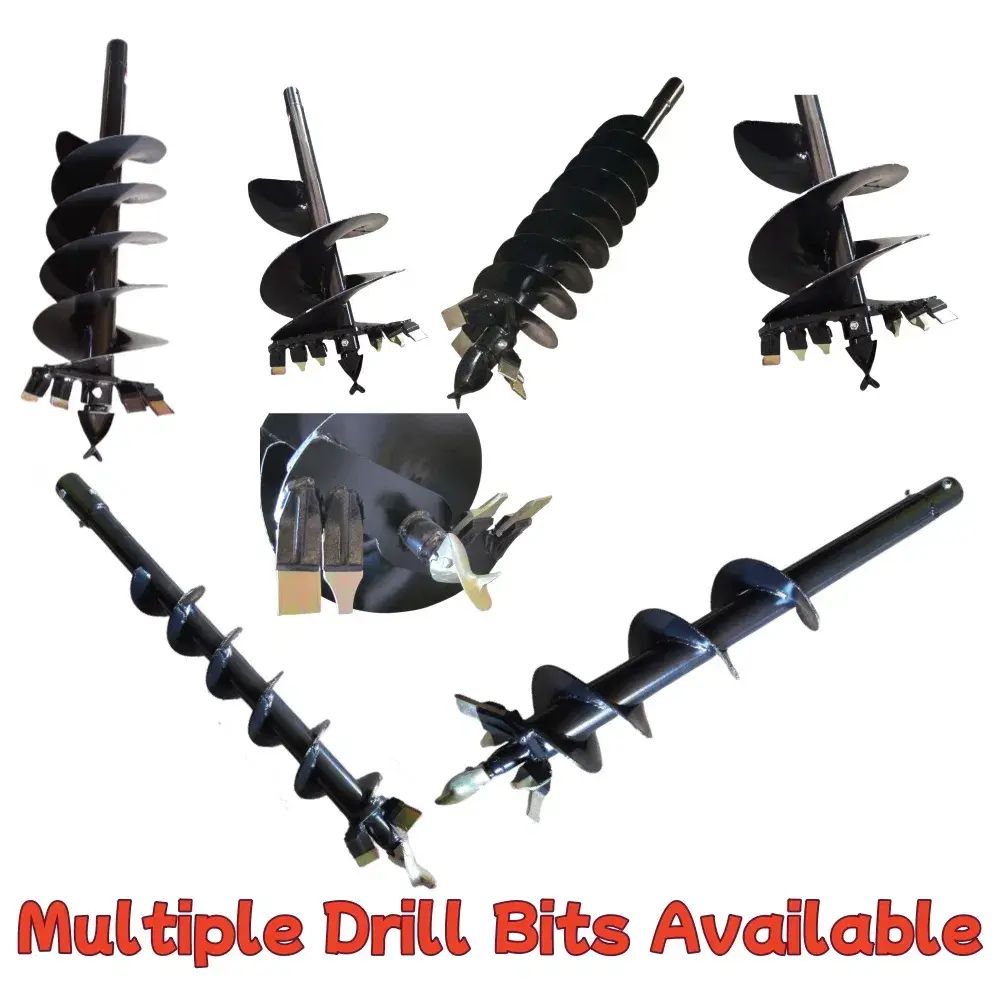

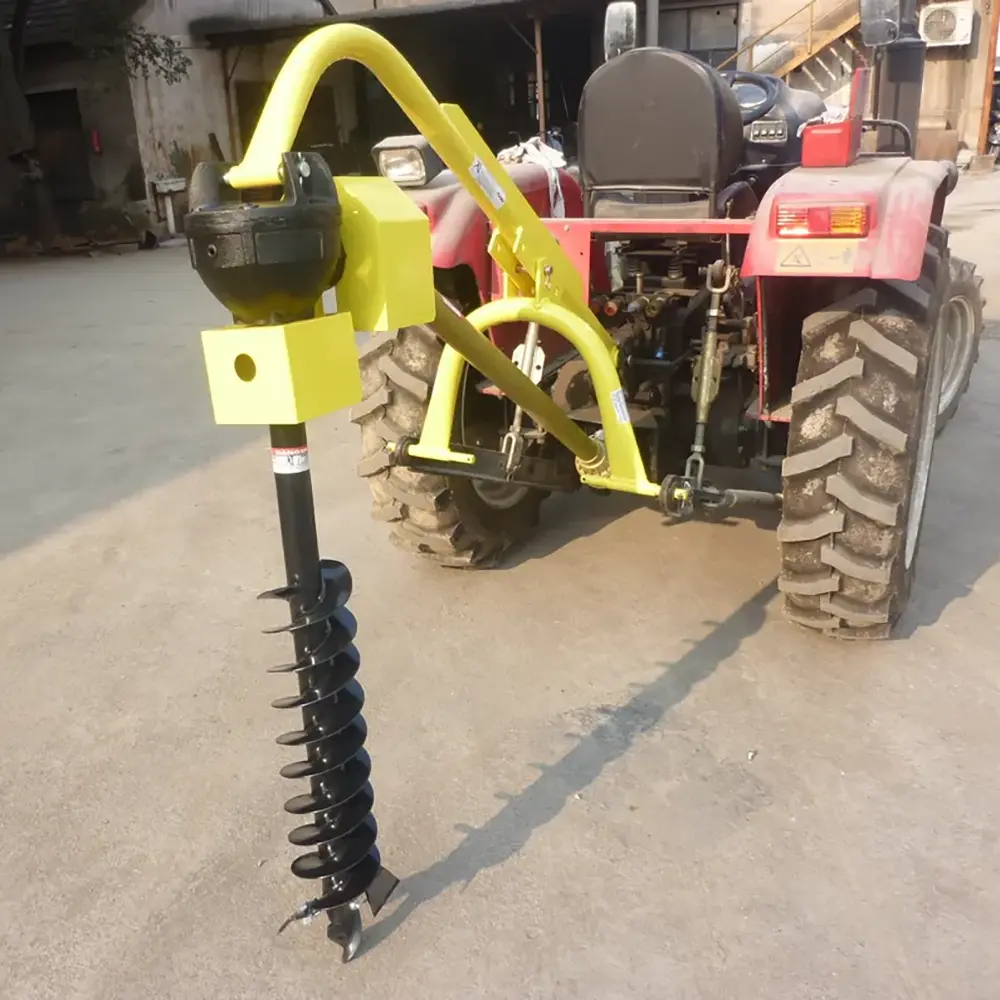

Post hole digger descriptionThe PTO Post Hole Digger and Hydraulic Post Hole Digger are efficient agricultural and construction tools designed for fast and precise drilling of holes in soil for fence posts, tree planting, foundation work, and landscaping projects. Powered by tractor PTO or hydraulic systems, these machines significantly reduce manual labor while increasing digging speed and accuracy. Built with a heavy-duty frame and high-strength auger bits, the post hole digger delivers reliable performance in a wide range of soil conditions, including clay, sand, and mixed terrain.
Post hole digger is driven by tractor PTO,also have hydraulic valve connect to tractor back,can make hole digger,widely used on tree planting eg agriculture work.
Hydraulic post hole digger specification
|
Model
|
Dimension(L*W*H)mm
|
Weight
|
Max hole diameter
|
Power required
|
|
PD-4''
|
1700*720*1860
|
70kg
|
100mm
|
20-30HP
|
|
PD-6''
|
1700*720*1860
|
80kg
|
152mm
|
20-30HP
|
|
PD-9''
|
1700*720*1860
|
90kg
|
228mm
|
20-35HP
|
|
PD-12''
|
1700*720*1860
|
100kg
|
305mm
|
25-35HP
|
|
PD-14''
|
1700*720*1860
|
105kg
|
355mm
|
25-40HP
|
|
PD-16''
|
1700*720*1860
|
115kg
|
406mm
|
35-50HP
|
|
PD-18''
|
1700*720*1860
|
125kg
|
457mm
|
35-50HP
|
|
PD-20''
|
1700*720*1860
|
135kg
|
508mm
|
35-55HP
|
