Product Descriptions

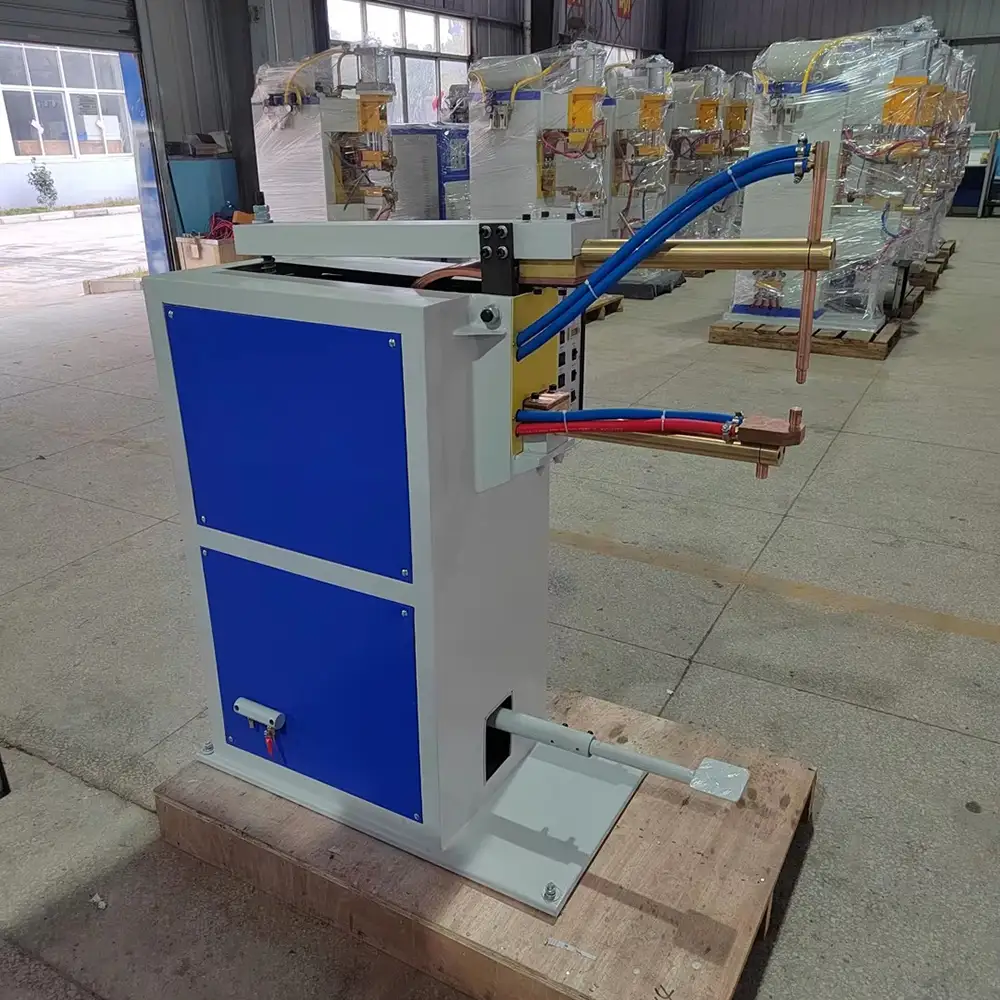

Foot pedal operated spot welding machine adopts lever pedal type spring pressurized structure. Easy operation, quick response. Suitable for various kind of positioning accuracy and complicated shape welding occasion. Under the operation of transformer, foot pedal spot welding machine utilizes the general mains supply to lower the voltage and increase the electric current. Such kind of low voltage but large current will be transmitted from the electrode to the linked point of two work pieces. On the linkage, due to the resistance of work piece, high temperature will occur so the metal will therefore generate high heat to make the work pieces in the molten condition. Thus, the purpose of welding the two pieces of work pieces is achieved.Simple Structure with Durable Quality
Easy Operation for worker. Low machine cost
Raw materials made to standard

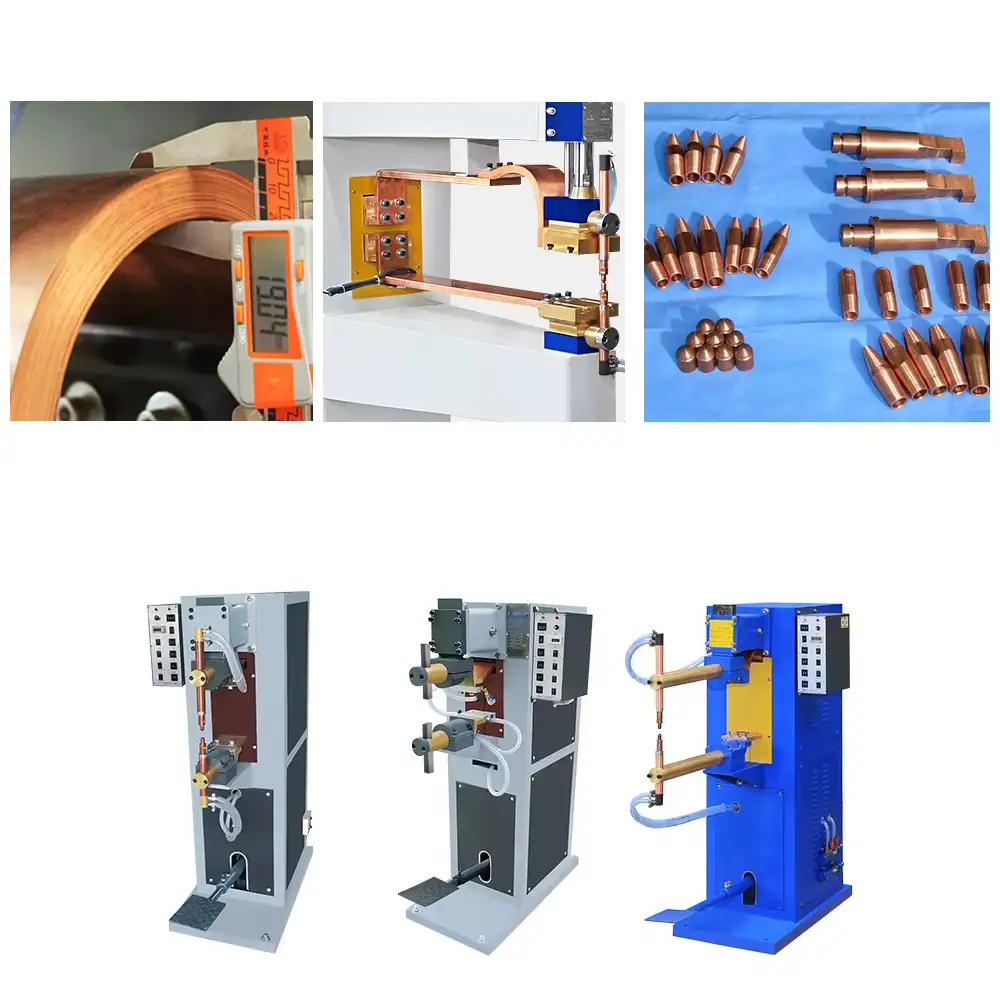

Thicker Copper Plate or Copper Belt
To ensure stable conductivity in welding
Custom processing of electrodes
Customized Electrodes which will be suitable for
Welding material like steel, aluminium, silver, stainless
Steel, and nickel steel.
Plenty of machines in stock, fast delivery
We keep more than hundreds set of machines in stock. We can deliver the machines to you within 1 week.
Features of The AC Pulse Spot Welding Machine
1. Multiple same ways forced water cooling system to ensure stability and reliability of long-term operation.
2. Pressurized electrode speed can be adjusted, slow down the impact to welding work piece when pressuring, also reduces the noise when welding.
3. Integrated pressurizing mechanism with good followability, fast welding speed and long service life.
4. High permeability silicon steel transformer and high power silicon controlled components provide strong output power.
5. Different output currents can be controlled and adjusted at will to satisfy various welding processes.
| Model |
Input Voltage |
Input Power |
Output Current | Adjustable stroke | Electrode Distance | Cooling Water |
| V | KVA | A | mm | mm | L/min | |
| WL-FT-16K | 380/1 phase | 16 | 10000 | 30 | 100 | 6 |
| WL-FT-25K | 380/1 phase | 25 | 12000 | 30 | 100 | 6 |
| WL-FT-35K | 380/1 phase | 35 | 14000 | 30 | 100 | 6 |
| WL-FT-50K | 380/1 phase | 50 | 18000 | 30 | 100 | 6 |
