Product Descriptions
Frontal snow blower with hydraulic system front end loader hitch

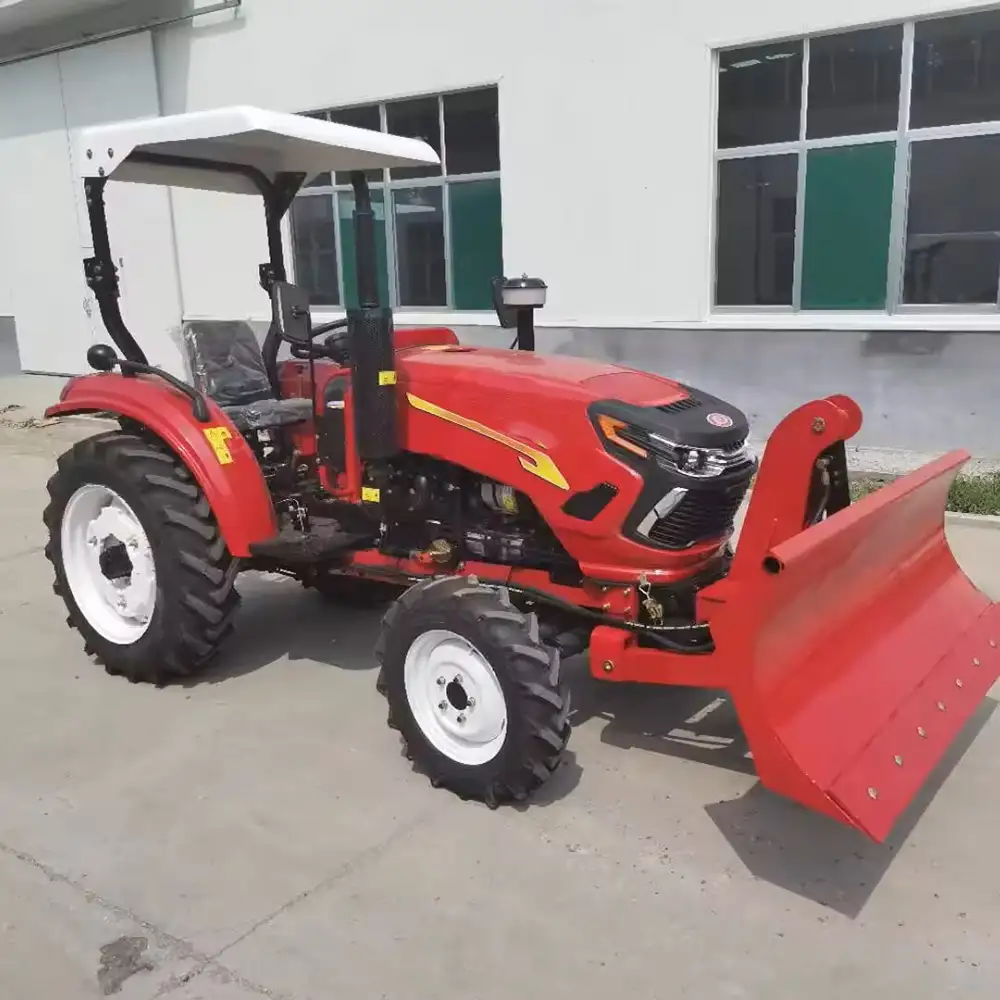

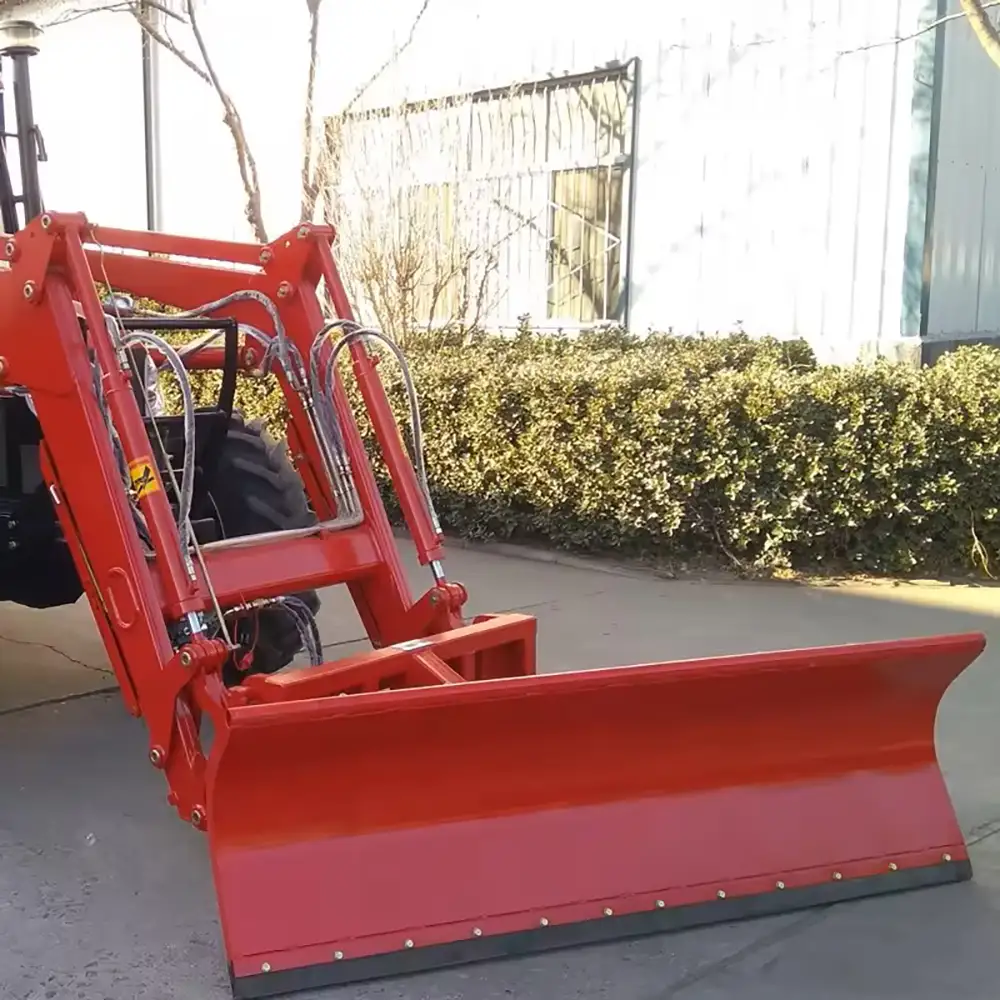

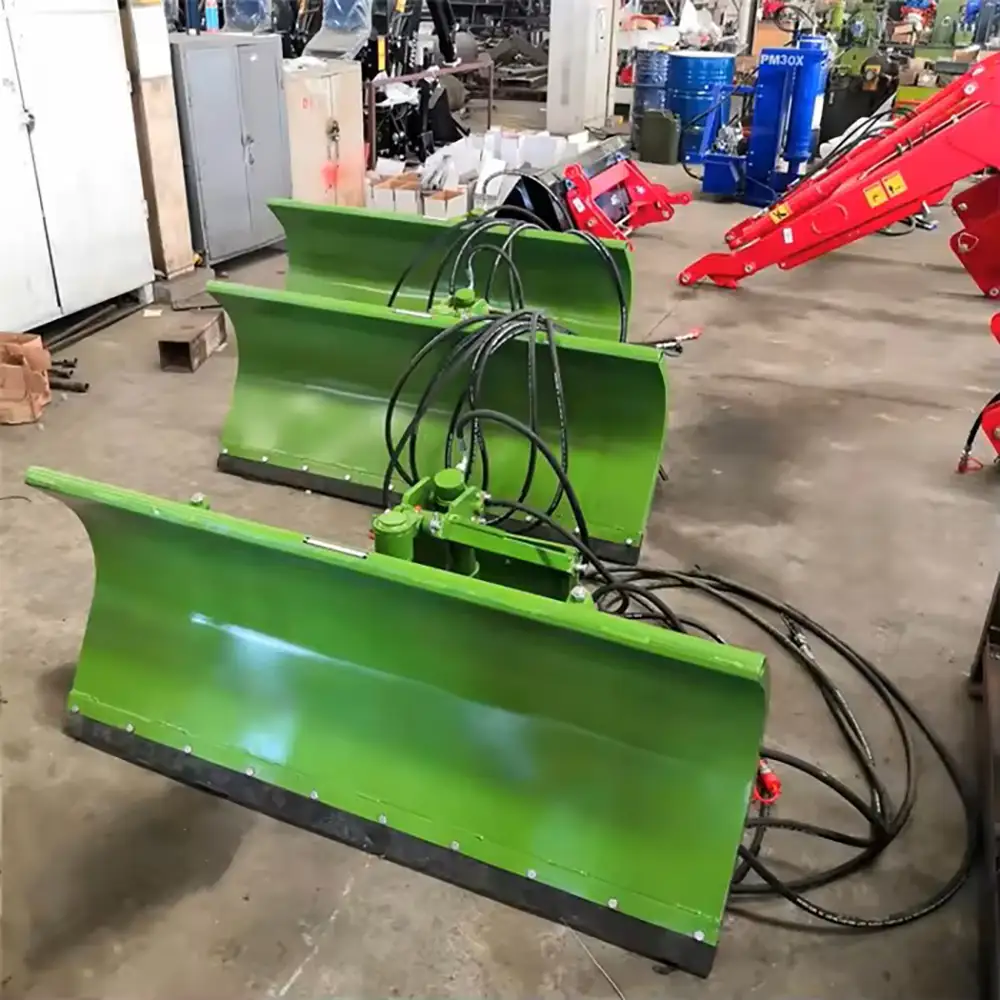

Snow Blade for Tractor, snow blower,snow shovel, snow thrower,snow plow, snow remover,snow cleaner, snow plough,snow pusher,
| THE MAIN TECHNICAL SPECIFICATIONS | ||||||
| MODEL | 518FRT | 518PTO | 618FRT | 618PTO | 718FRT | 818FRT |
| Cuting Width | 54" | 54" | 66" | 66" | 70" | 84" |
| Cuting Height | 24" | 24" | 24" | 24" | 24” | 24" |
| Fan No. | 4 blades | 4 blades | 4 blades | 4 blades | 4 blades | 4 blades |
| Fan Diameter | 18" | 18" | 18" | 18" | 18" | 18" |
| Auger Diameter | 4.8" | 4.8" | 4.8" | 4.8" | 4.8" | 4.8" |
| Drive Fan | Hyd w/gearbox | Hyd w/gearbox | Hyd w/gearbox | Hyd w/gearbox | Hyd w/gearbox | Hyd w/gearbox |
| Drive auger | Gearbox w/chain | Gearbox w/chain | Gearbox w/chain | Gearbox w/chain | Gearbox w/chain | Gearbox w/chain |
| Hitch Type | Front end loader | 3-point Cat,1or 2 | Front end loader | 3-point Cat,1or 2 | Front end loader | skid steer |
| Hitch adjustment | FEL quickly move LD PIN | 3 position | FEL quickly move LD PIN | 3 position | FEL quickly move LD PIN | FEL quickly move LD PIN |
| Chute Deflector | Handing/4position/115°-145° | Handing/4position/115°-145° | Handing/4position/115°-145° | Handing/4position/115°-145° | Handing/4position/115°-145° | Handing/4position/115°-145° |
| Cutting Edge | 3/8”X4”Beveled | 3/8”X4”Beveled | 3/8”X4”Beveled | 3/8”X4”Beveled | 3/8”X4”Beveled | 3/8”X4”Beveled |
| Skid Shoes | Cut type adjustable | Cut type adjustable | Cut type adjustable | Cut type adjustable | Cut type adjustable | Cut type adjustable |
| System controls&drive | Hyd.Loader sensing block flow | PTO w/shear pin | Hyd.Loader sensing block flow | PTO w/shear pin | Hyd.Loader sensing block flow | Hyd.Loader sensing block flow |
| Hyd.Requirement | 6.6-13.2gpm 2000psi min | NO | 6.6-13.7gpm 2000psi min | NO | 6.6-13.7gpm 2000psi min | |
| Tractor HP | 25-35HP | 25-35HP | 25-55HP | 25-55HP | 45-65HP | 50-75hp |
| Approx. Weight | 700lbs | 700lbs | 800lbs | 800lbs | 890lbs | 980lbs |
