Product Descriptions

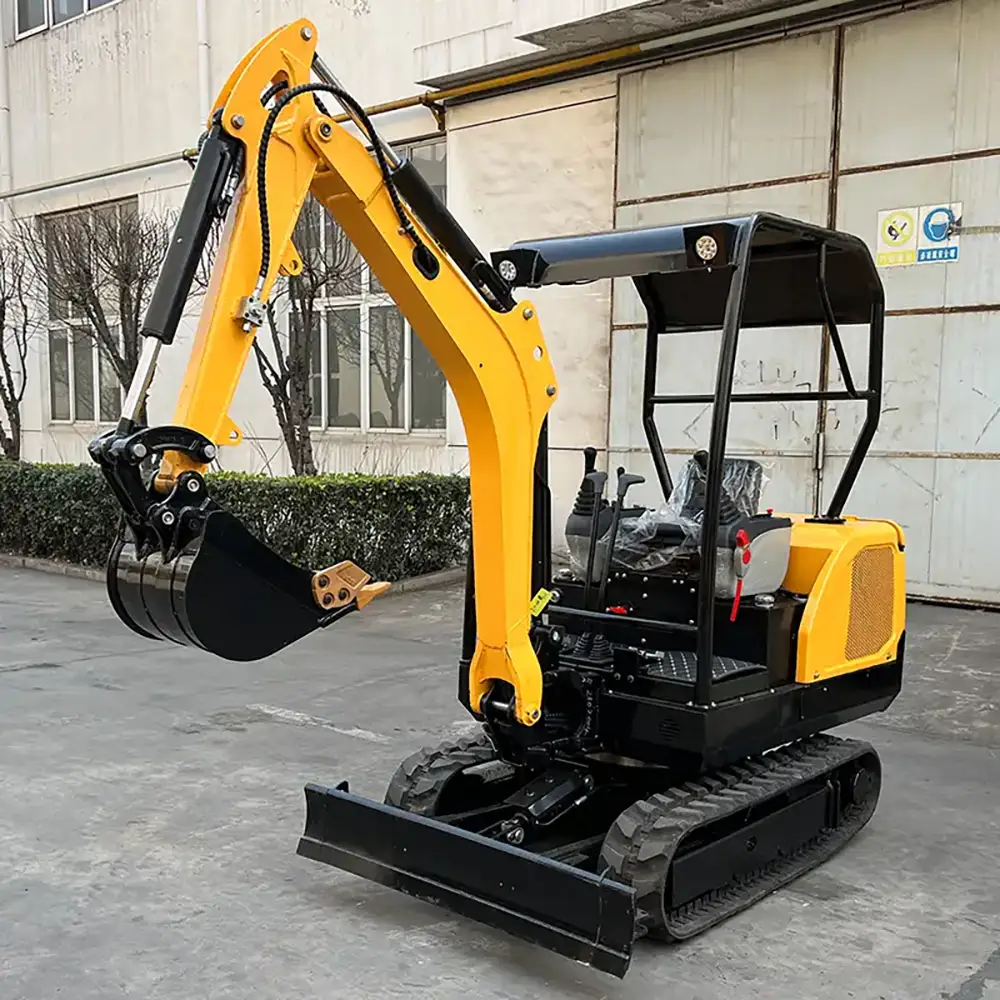

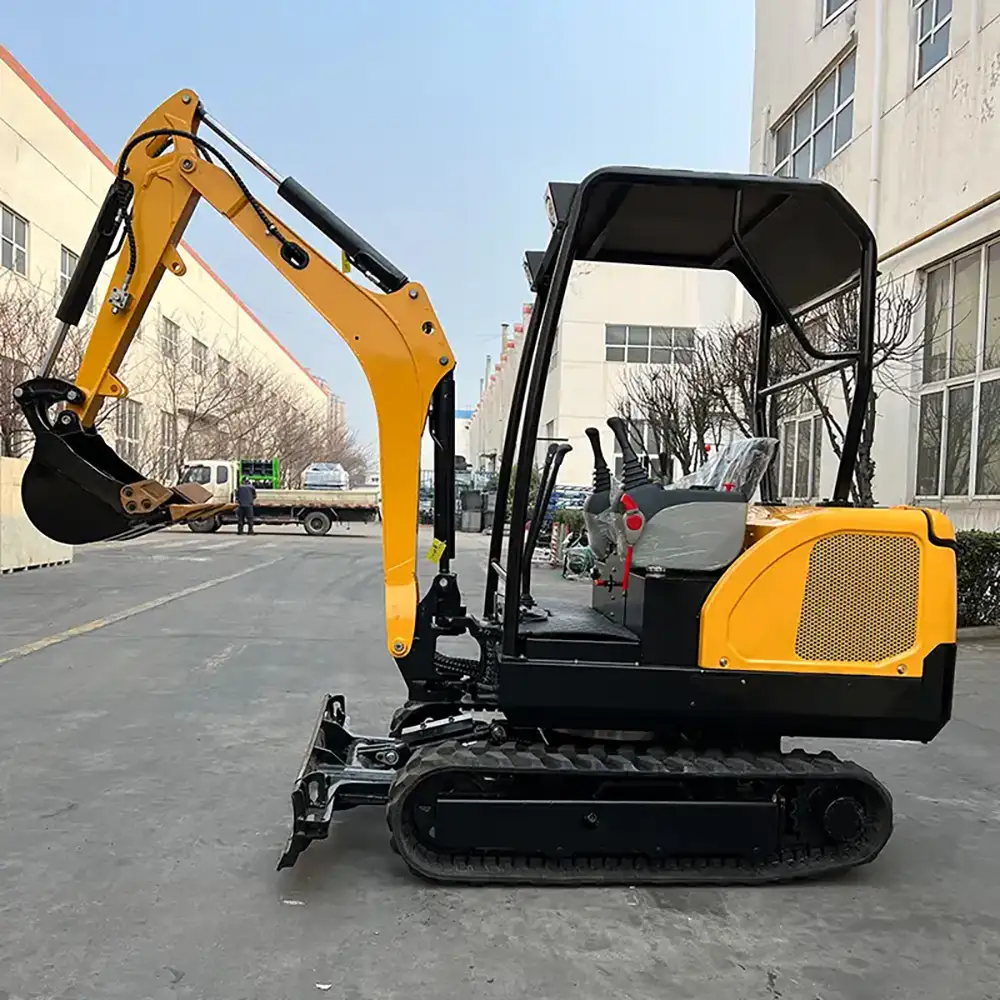

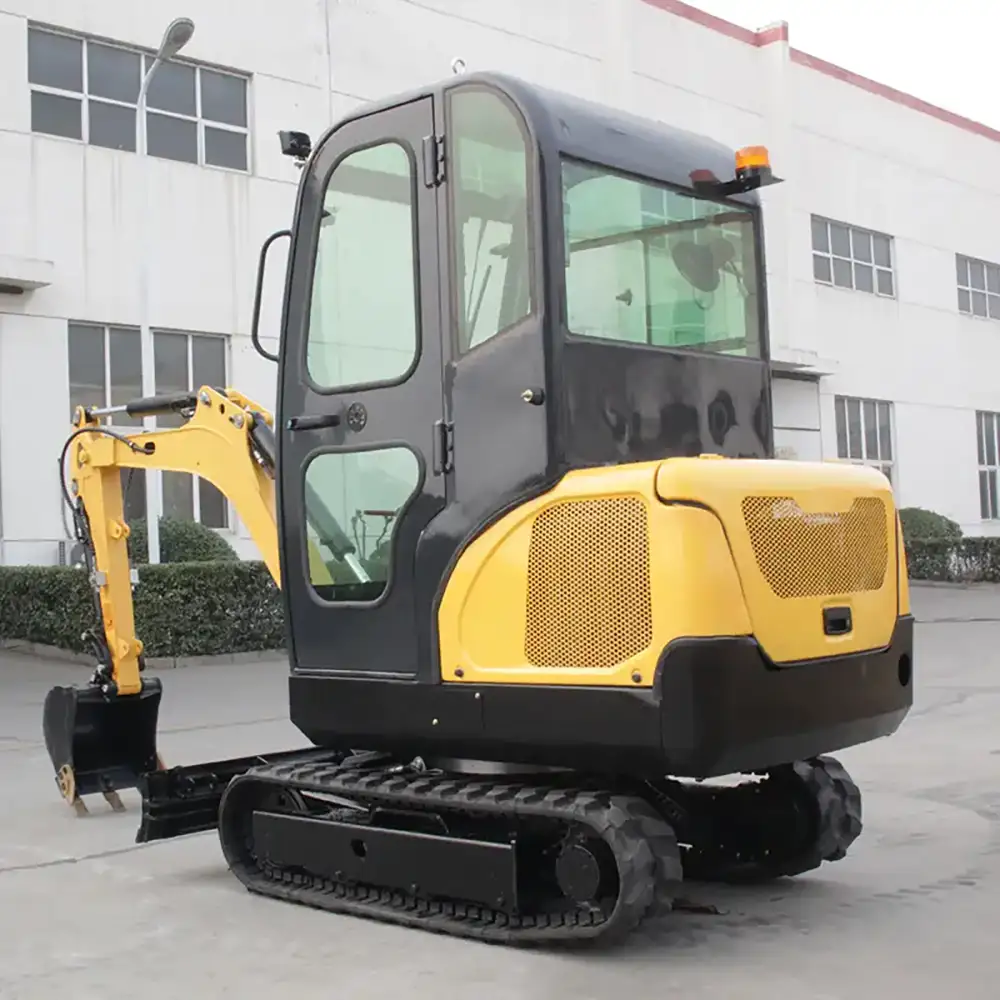

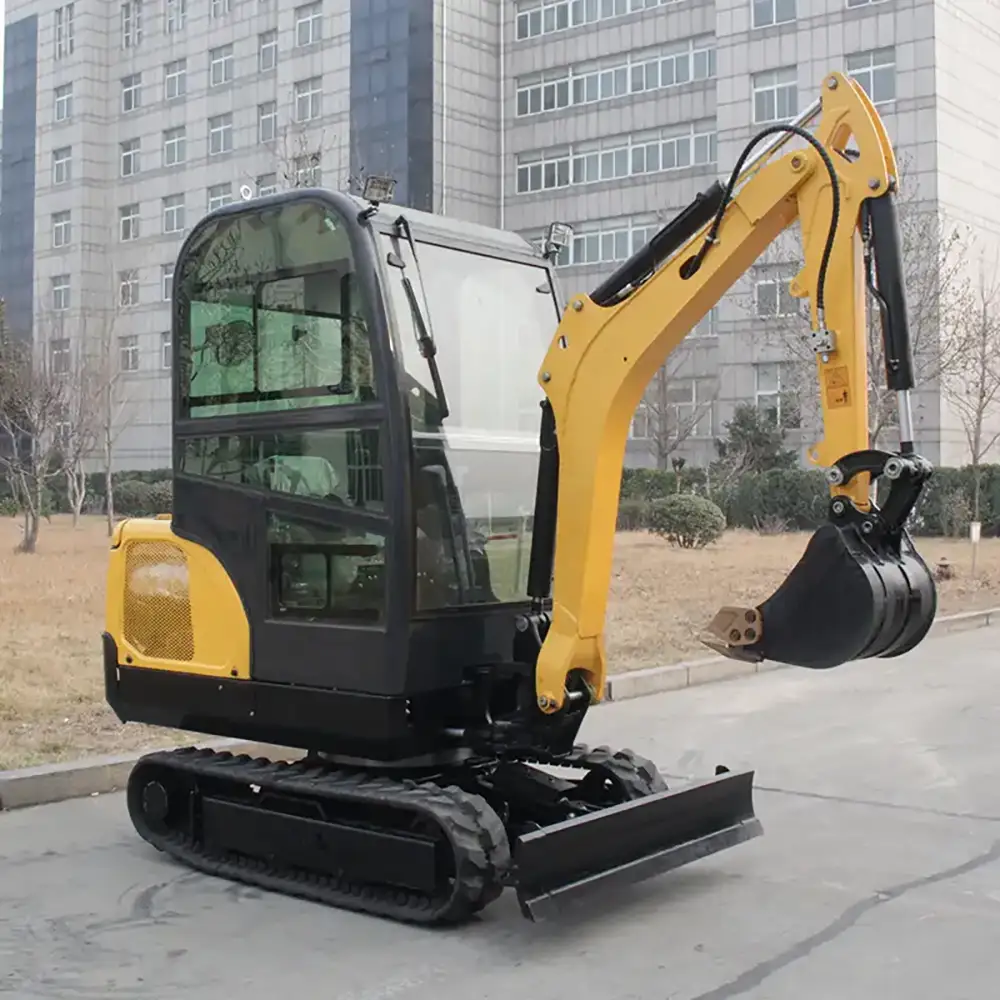

WTKV25 Mini Excavator, Bucket Capacity 0.04m³ Power 18.4kw, Digging Depth 2350mm Weight 2000kg| MODEL | WTKV25 | |
| Bucket capacity | cbm | 0.04 |
| Chassis width | mm | 1100-1400 |
| Track length | mm | 1500 |
| Gradeability | degree | 40 |
| Chassis ground clearance | mm | 385 |
| Track width | mm | 230 |
| Volume of fuel tank | L | 16 |
| Overall dimension | mm | 3700*1100*2203 / 3700*1400*2203 |
| Transport length | mm | 3700 |
| Excavatr height | mm | 2200 |
| Hydraulic flow | L/Min | 40 |
| Hydradulic tank capacity | L | 16 |
| Working pressure | Mpa | 16 |
| Engine |
Laidong 385 Diesel Engine,18.4KW or Yanmar 3TNV80F |
|
| Engine power | kw | 18.4 |
| Max.digging height | mm | 3200 |
| Max. dumping height | mm | 2290 |
| Max.digging depth | mm | 2240 |
| Max.digging radius | mm | 3060 |
| Turning radius | mm | 1645 |
| Bucket excavating force | KN | 16 |
| Operating weight | KG | 2000 |
| Configuration | Valve:beifang brand | |
| Pump:xingzou brand | ||
| piston pump load sensitive |
