Product Descriptions
25-50hp farm can be used for light ,medium and heavy duty farm work.By using famous diesel engine,reliable gear box,and heavy duty chassis,our tractors has sold to Europe,Australia,South American and Africa ,Asia eg many countries.Taiyue tractor also can be equiped with loader,backhoe,wood chipepr,trencher,mower,plough,harrow,trailer,baler eg many implements,can do multy farm work.
| SPECIFICATION | |||
| Model | 304 | 404 | 504 |
| Drive type | 4*4 | ||
| Engine | |||
| Engine brand | YTO Yangdong Or Laidong | YTO Yangdong or laidong | YTO Yangdong Or Laidong |
| Type | 3 cylinder, Water-cooling, In-line, 4 stroke | 4 cylinder, Water-cooling, In-line, 4 stroke | 4 cylinder, Water-cooling, In-line, 4 stroke |
| Rated speed (r/min) | 2300 | 2300 | 2300 |
| Engine power (hp) | 25hp/30hp/18.4kw/22.1kw | 40hp/29.4kw | 50hp/36.8kw |
| Transmission | |||
| Clutch | Dry, Single or dual type | Dry, Single or dual type | Dry, Single or dual type |
| PTO size | 6teeth-φ35 | 6teeth-φ35 | 6teeth-φ35 |
| PTO Speed(rpm) | 540/720 or 540/1000 | 540/720 or 540/1000 | 540/720 or 540/1000 |
| Gear shift | 8F+2R or 8F+8R | 8F+2R or 8F+8R | 8F+2R or 8F+8R |
| Hydraulic system | |||
| Hydraulic output valve | 2-Way optional | 2-Way optional | 2-Way optional |
| Three point linkage | |||
| Category of 3-point link | Category I | Category I | Category I |
| Technical parameter | |||
| Dimension(L*W*H) mm | 3000*1500*2100 | 3250*1500*2100 | 3250*1500*2100 |
| Min. Net weight | 1450 | 1550kg | 1650kg |
| Wheel base(mm) | 1900 | 1900 | 1950 |
| Track base(mm) front wheel | 1200 | 1200 | 1200-1300 |
| Track base(mm) rear wheel | 1200 | 1200 | 1200-1300 |
| The smallest clearance(mm) | 360 | 360 | 360 |
| Front tyre | 6.0-16/6.5-16 | 6.0-16/6.5-16 /7.5-16 | 6.0-16/6.5-16 /7.5-16 |
| Rear tyre | 9.5-24/11.2-24 | 9.5-24/11.2-24/12.4-24 or 11.2-28 | 9.5-24/11.2-24/12.4-24 or 11.2-28 |
| Steering type | Hydraulic power steering | Hydraulic power steering | Hydraulic power steering |

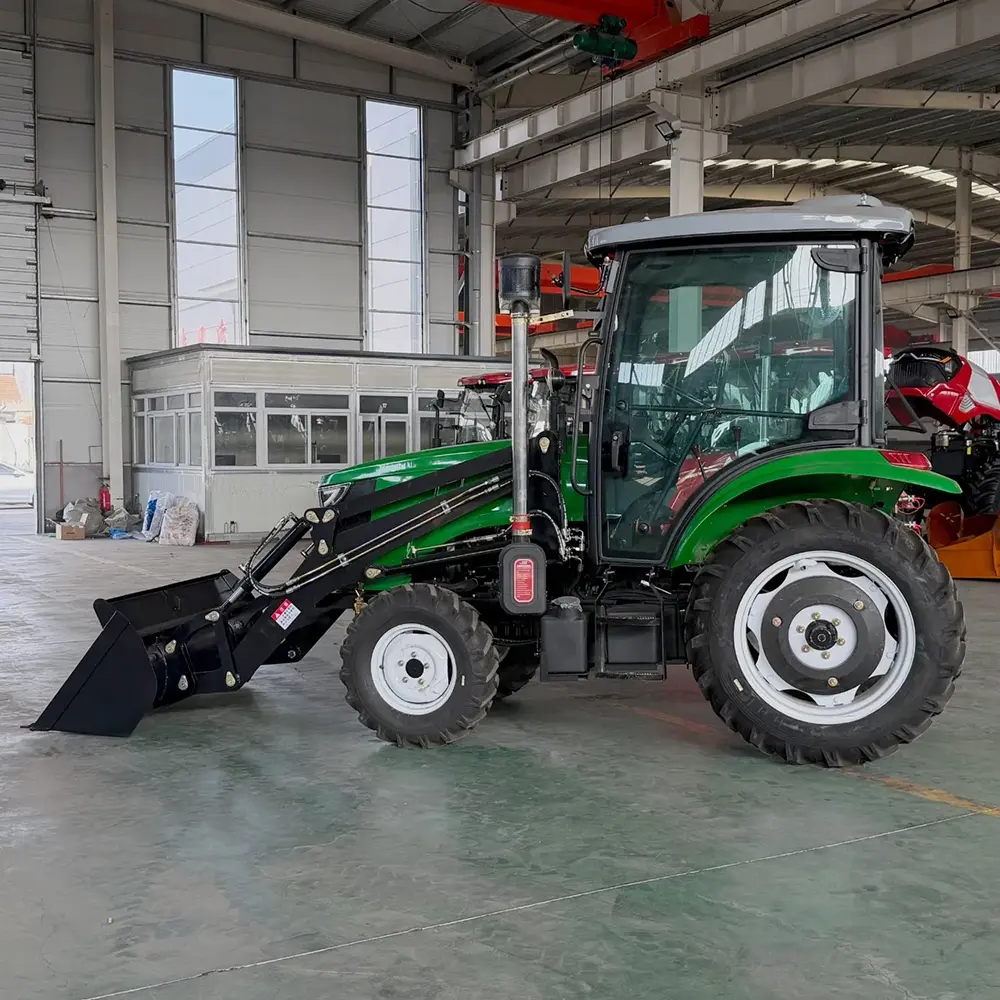

The 30–50HP Compact Agriculture Tractor with Front Loader is a versatile and efficient machine designed for small to medium-scale farming, landscaping, and material handling tasks. Built with a durable chassis and equipped with a powerful hydraulic front loader, this tractor delivers excellent performance in both agricultural and light construction applications.
Its compact size allows it to operate easily in orchards, greenhouses, small farms, and narrow working spaces while maintaining strong lifting capacity and stable performance.
