Product Descriptions

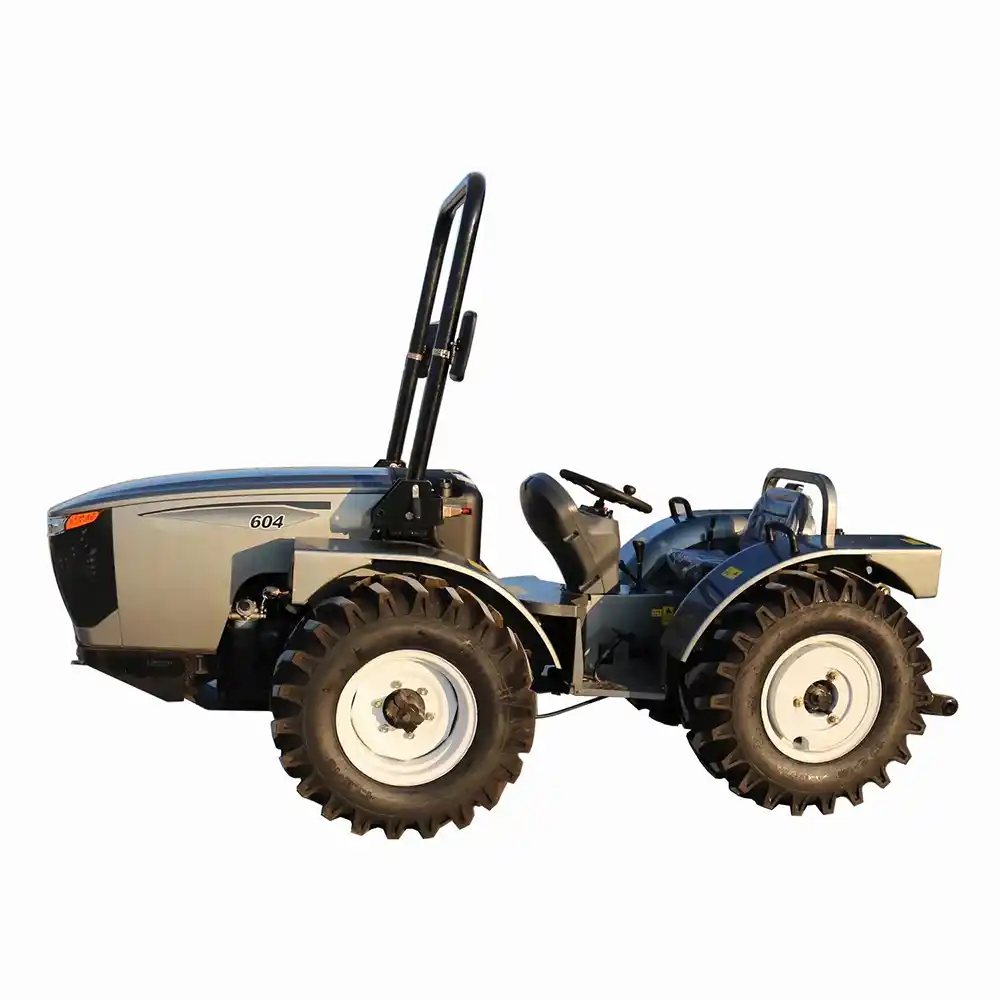

60 hp 70hp top quality cheap 4wd mini articulated garden tractors It main used in hill, Garden,fit for higher slope operations, The traction is strong, The articulated Tractor front and rear box hinged, can realize the body torsion, so as to reduce the turning radius, but also to achieve greater climbing ability; The center of gravity of the machine is closer to the front to ensure the stability and safety of the work in the mountains and hills. Compared with traditional tractors, the biggest advantage is that the tractor can handle both climbing and descending hills easily, especially suitable for mountainous and hilly areas.
| MODEL | UNIT | 604 | 704 |
| TYPE | / | DRIVE TYPE (4×4) | |
| POWER | kW | 44.1 | 51.5 |
| DIMENSION(L×W×H) | mm | 3490×1355×2190 | |
| WHEEL BASE | mm | 1410 | |
| MIN.GROUND CLEARANCE | mm | 250 | |
| MINIMUM OPERATING MASS | kg | 1780 | |
| TREAD | mm | 960-1300 | |
| CLUTCH TYPE | / | Dry friction, single plate, constant mesh | |
| ENGINE | / | Changchai 3 CYLINDER | |
| RATED SPEED | r/min | 2300 | |
| STEERING SYSTEM | Articulated steering | ||
| GEAR | / | 8F+2R | |
| PTO TYPE | / | 6 SPLINE,φ35,I TYPE | |
| PTO RATED POWER | kW | ≥37.5 | ≥43.8 |
| PTO SPEED | r/min | 540/760 | |

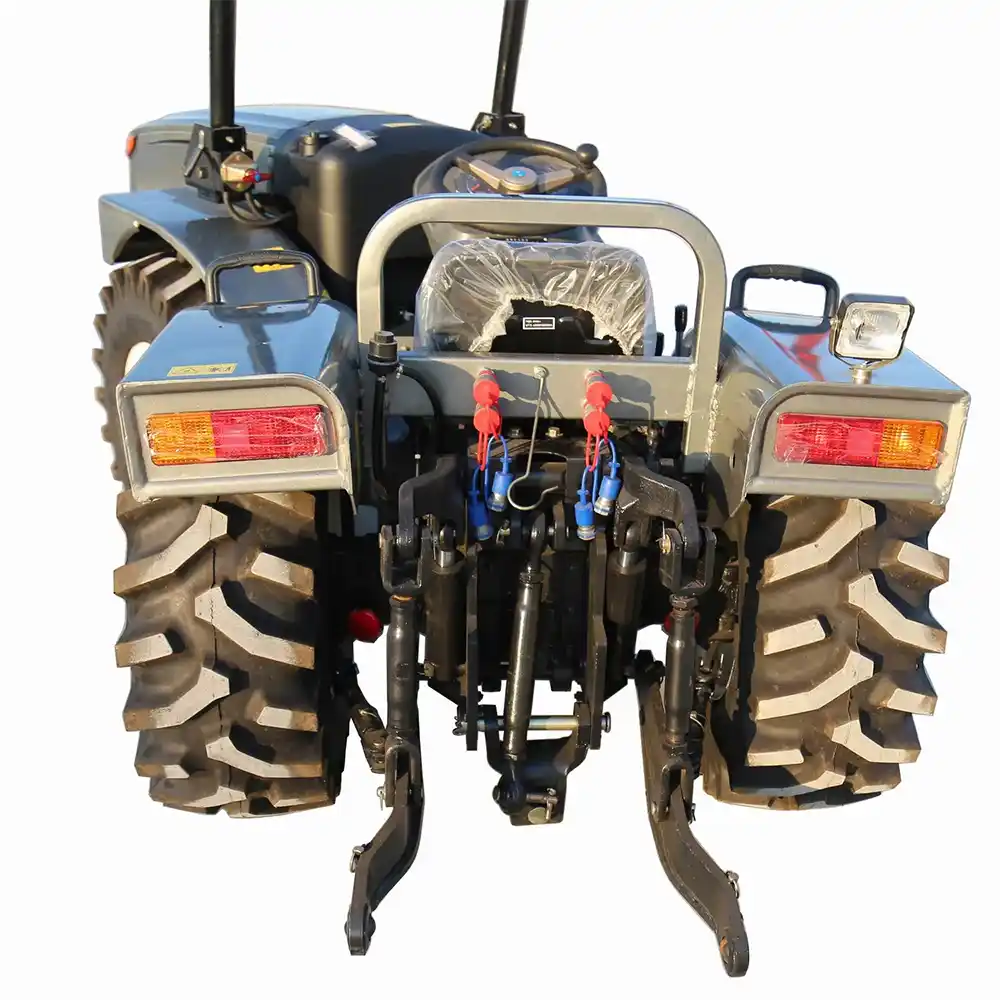

| THREE POINT LINKAGE | / | REAR,THREE-POINT SUSPENSION,CAT1 | |
| HYDRAULIC OUTPUT | / | 1-GROUP VALVE | |
| HYDRAULIC ADJUSTMENT MODE | / | Forced hydraulics, position control, float control | |
| MAX.LIFTING FORCE AT FRAME CENTER | kN | ≥13.5 | ≥15.8 |
| STANDARD TYRE SIZE (FRONT/REAR) | / | 13.2-16/13.2-16 | |
