Product Descriptions

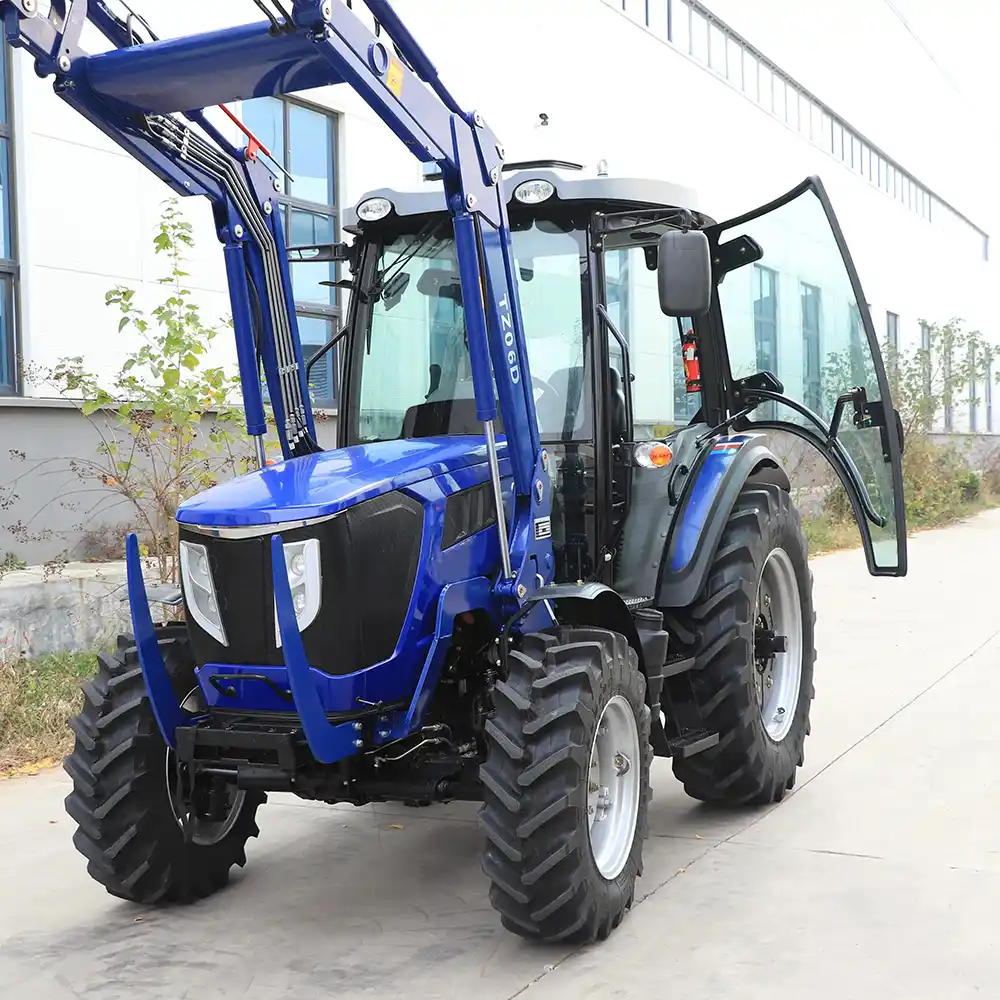

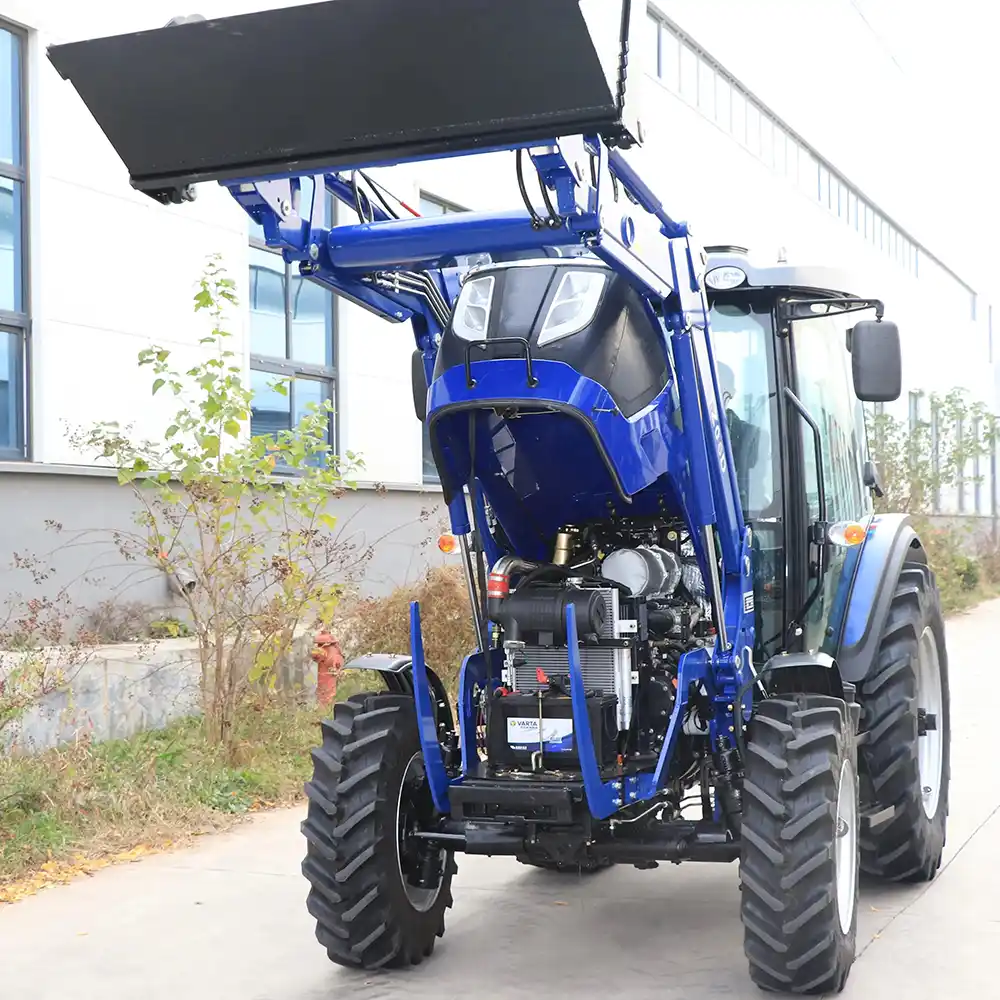

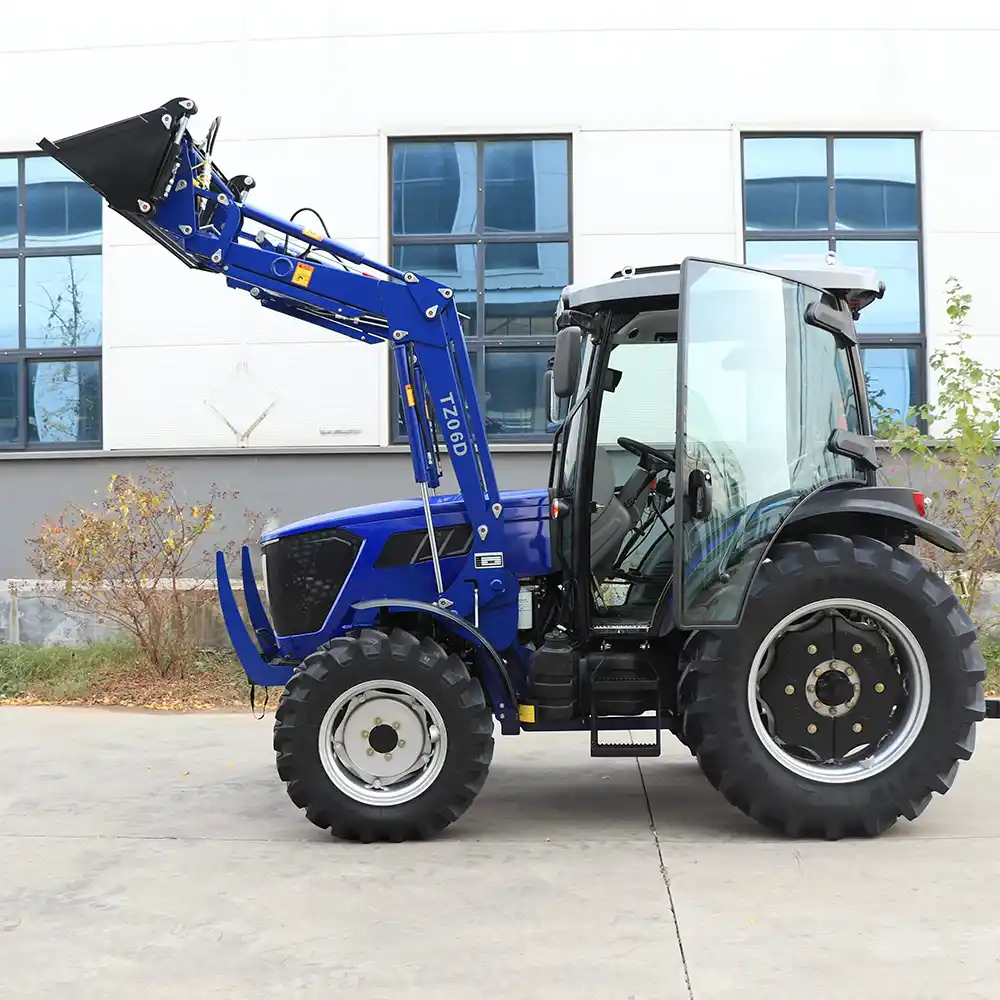

50HP EURO 5 4WD Agricultural Tractor – Compact Power for Modern Farms
The 50HP 4x4 Agricultural Tractor is a high-efficiency compact tractor equipped with a EURO 5-compliant diesel engine and a COC certificate, making it ideal for international markets, including Europe and countries requiring emissions compliance.
Built with 4WD capability, this model ensures superior traction and control in diverse farming environments, from wet paddy fields to dry orchards and uneven terrains. Despite its compact size, it offers full-scale functionality with rear PTO, hydraulic outputs, and strong lifting force, supporting a wide range of farm tools.
Whether you’re managing a fruit orchard, vegetable greenhouse, or hobby farm, the 50HP tractor delivers reliable performance, low fuel consumption, and long service life. It is the perfect solution for small to mid-size agricultural tasks.
Bullet Points
EURO 5 Emission Compliant Engine – Eco-friendly and fuel-efficient 50HP diesel engine meets EU standards with COC certificate for easy export.
4WD Traction for Versatile Terrain – Enhanced grip and balance for working in fields, orchards, and gardens.
Compact Size, Full Power – Ideal for small and medium-sized farms, gardens, and greenhouse operations.
Multifunction PTO and Hydraulics – Rear PTO and dual hydraulic outputs support various farm implements like plows, tillers, and trailers.

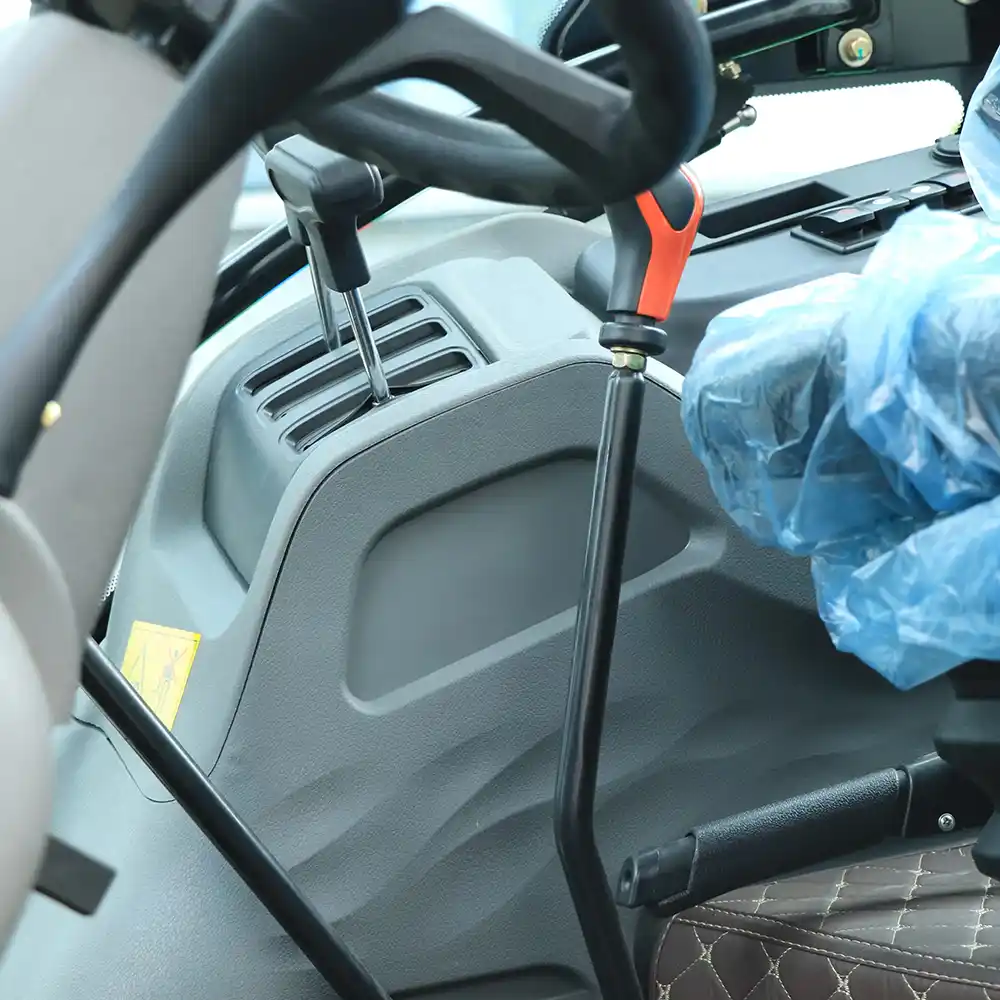

Comfortable Operation Cabin – Spacious platform, ergonomic controls, optional canopy or cab for operator comfort.
|
Tractor Parameters |
Model | 504 | |
| Drive Type | 4WD | ||
| Overall Dimensions L×W×H(mm): | 3980x1760x2800 | ||
| Wheel Track (mm) | Front | 1400/1450/1500/1550 | |
| Rear | 1300-1700 | ||
| Wheel Bass(mm) | 2010 | ||
| Ground Clearance (mm) | 308 | ||
| Rated Traction Force(N) | 9800 | ||
| Construction Mass(kg) | 2200 | ||
| Theoretical Speed (km/h) | Forward | 2.46—32.73 | |
| Reverse | 2.15—28.69 | ||
|
Engine Specifications |
Model | XINCHAI euro3 | |
| Type | 4-Cylinder Vertical,water cooled,4 stroke cycle | ||
| Rated Power(kw/hp) | 37/50 | ||
| Rated Speed (rpm) | 2400 | ||
| Bore×Stroke (mm) | 90×100 | ||
| Total Displacement(L) | 2.55 | ||
|
Drive System |
Clutch | 10" dual-stage | |
| Gear Box | (1+1)×4x3 | ||
|
Traveling Mechanism |
Tyre | Front | 9.5-20 |
| Rear | 14.9-28 | ||
| Steering Gear | Full Hydraulic Steering | ||
| Brake | Disc type | ||
|
Working Device |
Hydraulic System | Lifting Capacity at 610mm Behind Lift Point (N) | 7800 |
| 3-Point Suspension | Category:I | ||
| P.T.O Shaft |
Rotating Speed (rpm) |
540/1000 | |
| Spline Size | 6-∮35Rectangular Spline | ||
