Product Descriptions
Descriptions:
- This Euro V 50hp tractors is built with durablity,stability and efficiency. It is equipped with 8F+8R with shuttle with different speed to match diffierent work speed request.
- The control is within easy touch to make the job easier and driving more comfortable.
- Flat floor increases the working space enough wide and work easier.
>> Features:
- 2WD or 4WD, radial tire 280/70R16, 360/70R24 are selected.
- 8F+8R transmission with shuttle shift.

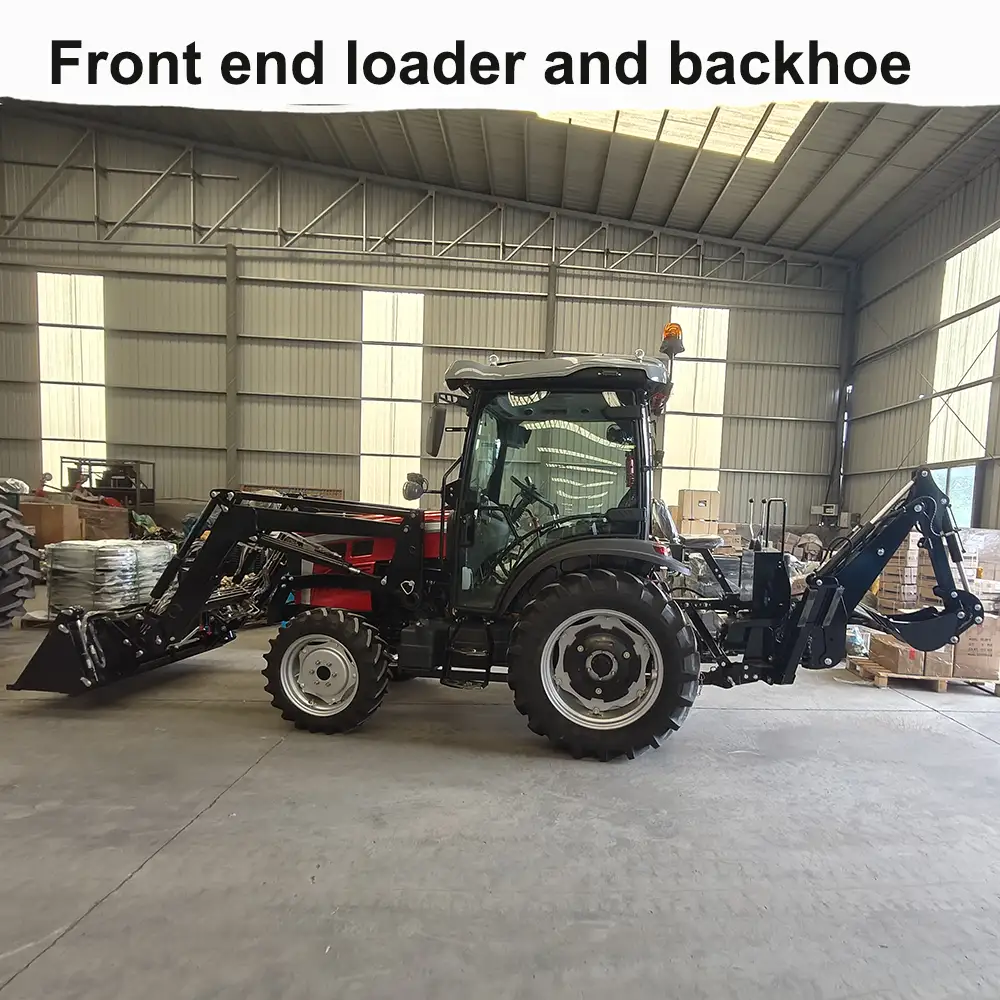

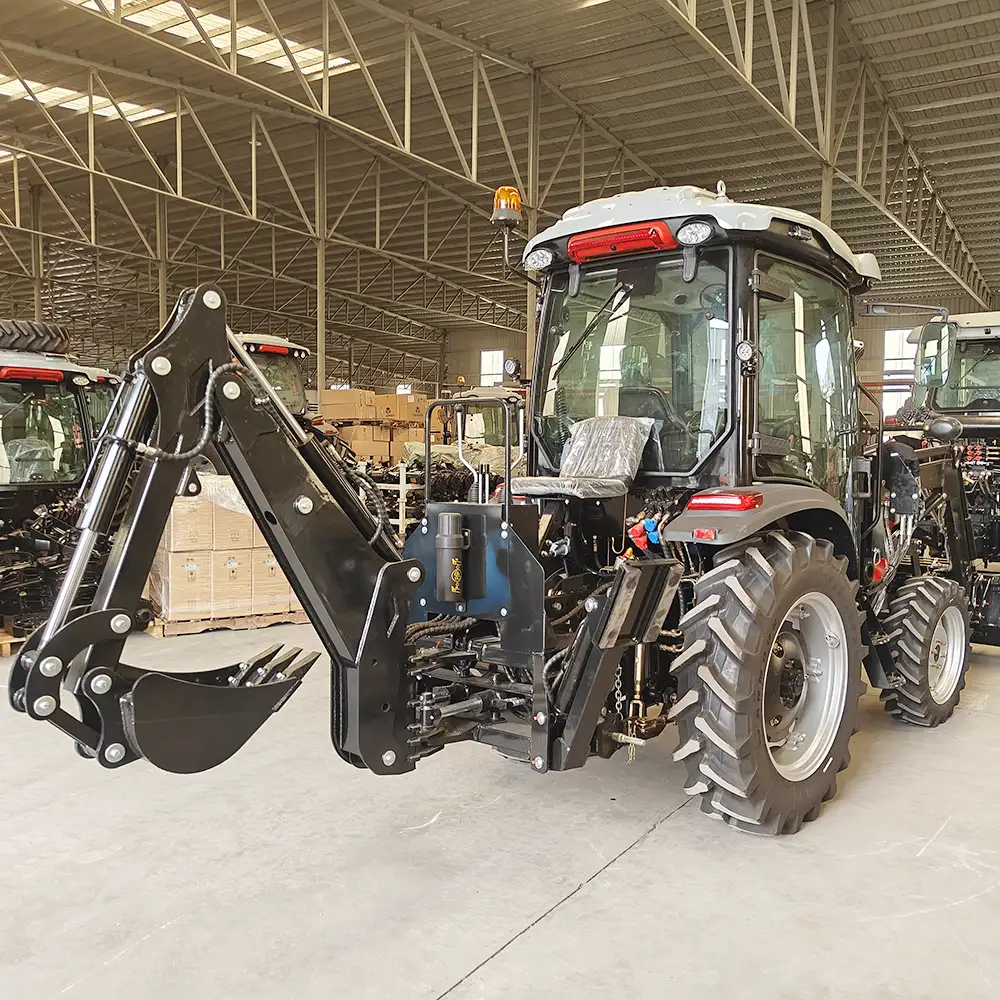

- Used for cultivating, tilling, mowering, planting, harvesting, loading, backhoe, baling,transporting etc.
- With radial tire to enlarge the ground contact.
>> Technical Data
| Model NO. | T504 |
| General Data | |
| Tractor Power | 50hp |
| Drive method | 4WD |
| Overall dimension（L*W*H）mm | 3340*1520*2600mm |
| Wheel tread (mm) | 1180-1200 adjustable |
| Wheel base (mm) | 1880 |
| Min Ground clearance (mm) | 320 |
| Min service weight (kgs) | 1980 |
| Diese engine | |
| Diese engine | Laidong EURO 5 |
| Type | inline, direct injection, water cooled |
| Intake method | NA |
| Engine power | 36.8kW/2400rpm |
| Cylinder NO.-BoreX stroke | 4-95*100 |
| Displacement (L) | 2.836L |
| Fuel | diesel |
| Clutch | dry type, dual action |
| Transmission shift | 8F+8R |
| Working Part | |
| Suspension type | three point linkage, CAT I |
| Hydraulic output | two group of hydraulic; Options: 3 groups |
| PTO speed | 540/1000rpm |
| PTO splines | 6 |
| Max traction power | ≥15.3kN |
| Max lifting power | ≥9kN |
| Travelling Part | |
| Tire size | 280/70R16, 360/70R24 |
| Theorectical speed | Forward:2.06-31.30; Reverse:2.71-12.52 |
