Product Descriptions

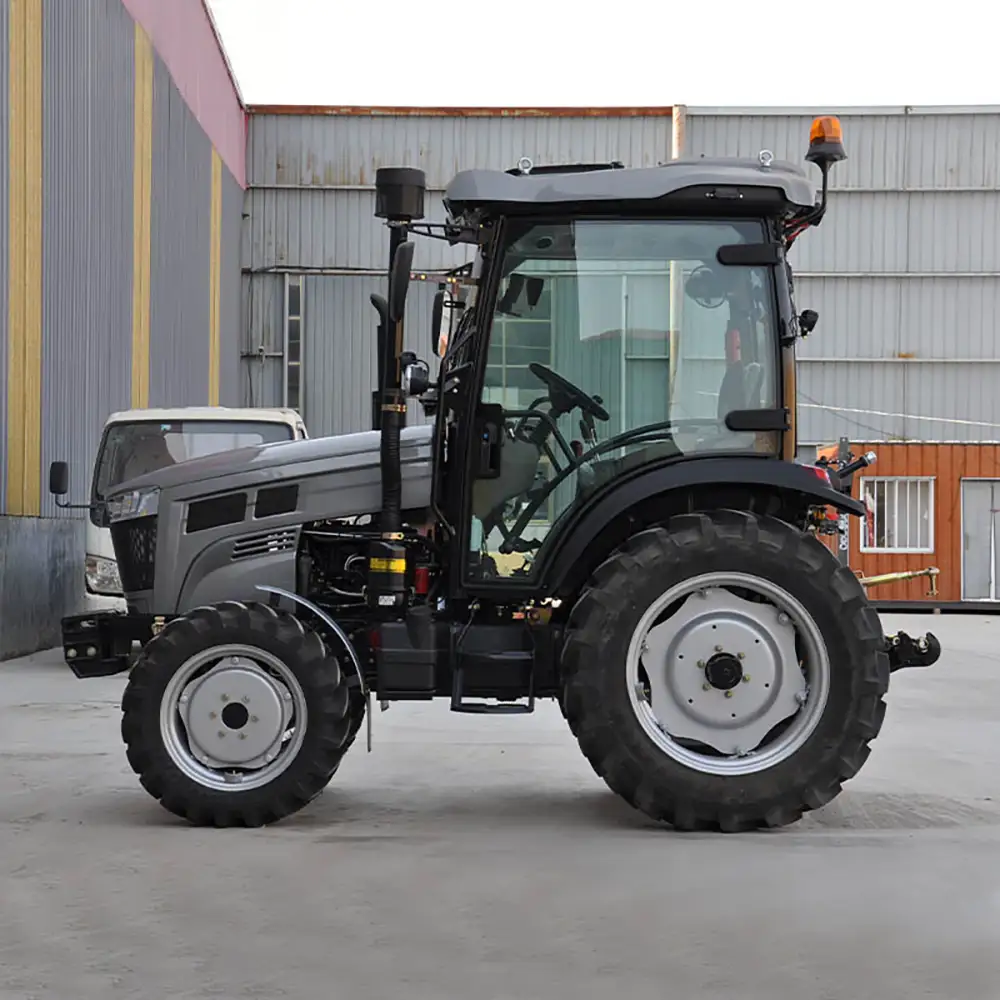

- This tractor is built with high stability and good performance with easy driving comfort. It is equipped with 12F+12R with shuttle with different speed to match diffierent work speed request.
- The control lever is within easy reach to make the job easier and driving more comfortable.
- Flat floor increases the working space enough wide and work easier.
>> Features:
- 2WD or 4WD, 9.5-24/14.9-30; 8.3-24/16.9-30;12.4-24 18.4-30 are selected
- 12F+12R transmission with shuttle shift.
- Synchronizer shift optional.
- Used for farm work of cultivating, mowering, loader, backhoe, baling,transporting or do some chore at ranch, farm, roadside and worksite.
>> Technical Data
| Model NO. | T604 |
| General Data | |
| Tractor Power | 60hp |
| Chassis Type | TB chassis |
| Drive method | 4WD |
| Overall dimension（L*W*H）mm | 4050×1795×2630 |
| Wheel tread (mm) | front 1050,1150, 1250; rear1000~1300 |
| Wheel base (mm) | 2010 |
| Min Ground clearance (mm) | 390 |
| Min service weight (kgs) | 2825 |
| Engine | |
| Diese engine | Laidong/Yangdong China Emission Stage II |
| Type | inline, direct injection, water cooled |
| Intake method | turbocharged |
| Engine power | 44.1kW/2400rpm |
| Fuel | diesel |
| Hydraulic system/working Part | |
| Suspension type | three point linkage, CAT II |
| Hydraulic output | two group of hydraulic; Options: 3 groups |
| Max traction power | ≥16kN |
| Max lifting power | ≥12kN |
| Rear PTO speed | 540/1000rpm |
| PTO splines | 6 |
| Travelling sysem | |
| Steering | hydraulic steering |
| Transsmission | gearshift 12F+12R |
| Clutch | dry type, dual stage |
| Brake | oil-immersed |
| Tire size | Optional 9.5-24/14.9-30; 8.3-24/16.9-30;12.4-24 18.4-30; radial tire 280/85R20,380/85R30 |
| Theorectical speed |
Forward: 2.46-32.73km/h Reverse: 2.15-28.69km/h |
