Product Descriptions

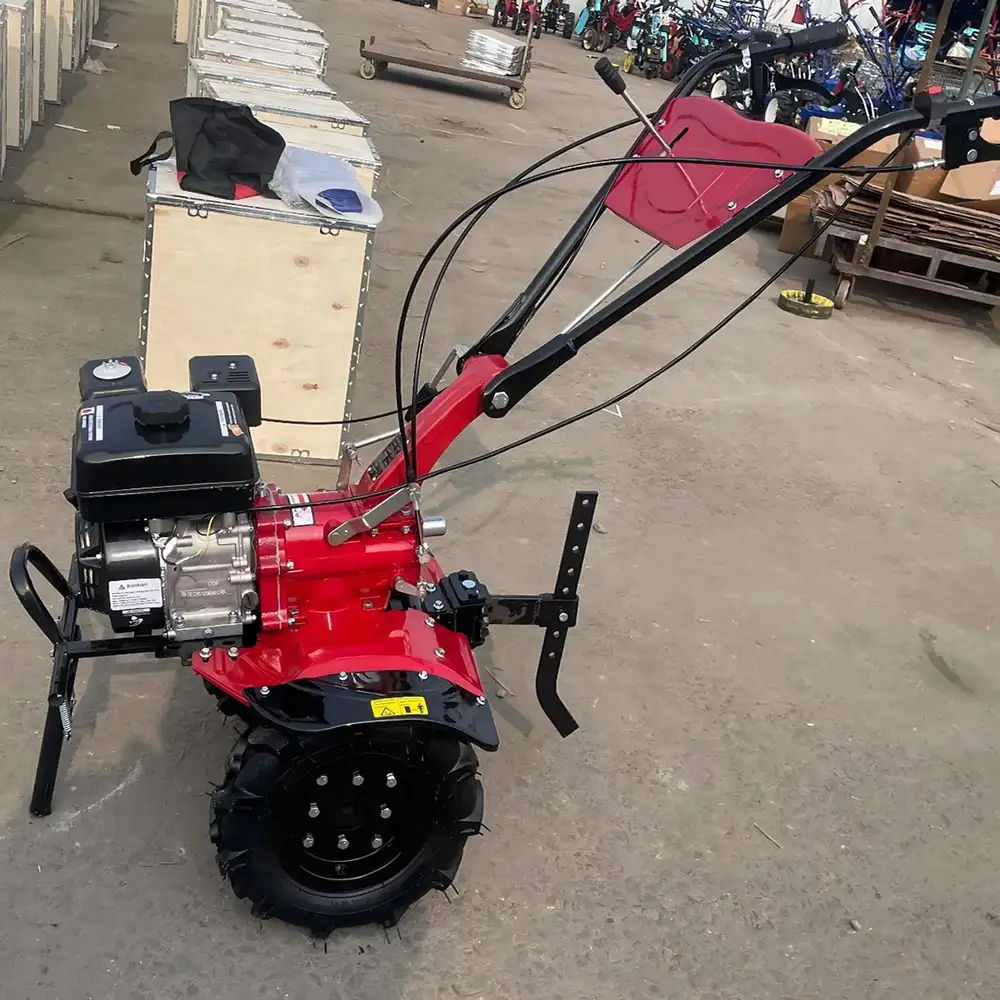

A tough, powerful mini rotovator that gives you reliability, efficiency and long-lasting durability. Easy-starting gasoline engine with oil bath air filter ensures long service life, even when used in dry, dusty environments while the fully sealed transmission (with direct clutch, two forward speeds and one reverse) means it's also perfectly suited to the wet. A wide range of useful accessories connected via the AUX PTO make it a truly versatile machine.

Product name			170 Gasoline Tiller	177 Gasoline Tiller	182 Gasoline Tiller	173 Diesel Tiller	178 Diesel Tiller	186 Diesel Tiller
Structure Type			Forced air-cooled, four-stroke, swashplate, single-cylinder	Forced air-cooled, four-stroke, swashplate, single-cylinder	Forced air-cooled, four-stroke, swashplate, single-cylinder	Forced air-cooled, four-stroke, swashplate, single-cylinder	Forced air-cooled, four-stroke, swashplate, single-cylinder	Forced air-cooled, four-stroke, swashplate, single-cylinder
Nominal Power			4 kW	4.5 kW	6.5 kW	4.05 kW	4 kW	6.5 kW
Overall dimension(mm)			1680x1000x800 mm	1680x1000x800 mm	1580x1010x950 mm	1580x1000x800 mm	1700x1050x800 mm	1470x1350x800 mm
Weights			70kg	90kg	100kg	100kg	100kg	100kg
Transmission mode			Gear	Gear	Gear	Gear	Gear	Gear
Connection mode			Direct connection	Direct connection	Direct connection	Direct connection	Direct connection	Direct connection
speed			Fast gear F:127 r/min Slow gear S:83 r/min	Fast gear F:145 r/min Slow gear S:83 r/min	Fast gear F:145 r/min Slow gear S:83 r/min	Fast gear F:130 r/min Slow gear S:93 r/min	Fast gear F:146 r/min Slow gear S:93 r/min	Fast gear F:146 r/min Slow gear S:93 r/min
Ploughing width			1000 mm	1050 mm	1350 mm	1000 mm	1050 mm	1350 mm
Ploughing depth			≥100 mm	≥100 mm	≥100 mm	≥100 mm	≥100 mm	≥100 mm
Working speed			0.1~0.3 m/s	0.1~0.3 m/s	0.1~0.3 m/s	0.1~0.3 m/s	0.1~0.3 m/s	0.1~0.3 m/s
Hourly productivity			≥0.04  hm²	≥0.04  hm²	≥0.04  hm²	≥0.04  hm²	≥0.04  hm²	≥0.04  hm²
Fuel consumption per unit of working area			≤35 kg/hm ²	≤35 kg/hm ²	≤35 kg/hm ²	≤30 kg/hm ²	≤30 kg/hm ²	≤30 kg/hm ²
