Product Descriptions

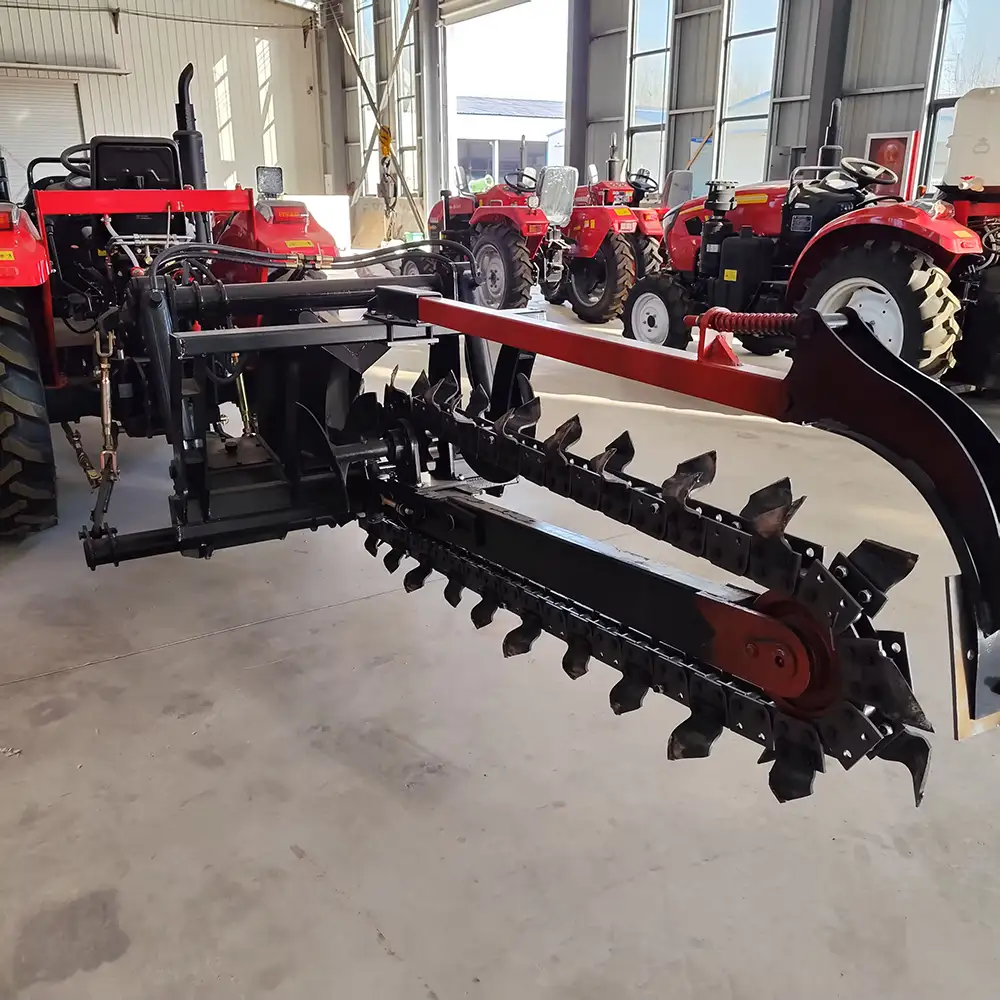

Chain Trenching Machine, Tractor 3 Point Chain Trencher, Trench Digger

Power	50-220HP
Depth	500-2000mm
Width	150-1000mm
Effiency	100-500m/h
Specification	1600*1400*1100mm
Quality	800KG

This chain trencher is mainly suitable for construction on less hard ground such as fields,
Tractors must be equipped with a crawling gear, and the crawling gear inspection standard is to engage the crawling gear and increase the fuel
Door, walk 4-8 meters in one minute. The gearbox is bored by a boring machine, resulting in higher concentricity. Adopting two decelerations, the speed ratio is more suitable
Li, the main shaft has three guarantees for one year. The sprocket adopts a split type, making replacement and maintenance more convenient.
The guide bar can move back and forth, adding a guide bar can turn it into a double chain.
The number of blades on the chain is welded according to the actual situation of the customer, and different blades can be
selected according to different ground conditions and qualities
The chain tension adjustment screw is designed inside, making it more convenient to tighten the chain. Attention: Fill all grease fittings with grease before work every day to improve the service life of bearings
