Product Descriptions
Self-walking Chain Ditching Machine, Single Chain Trencher Machine, Self-walking chain ditching machine Multi-functional

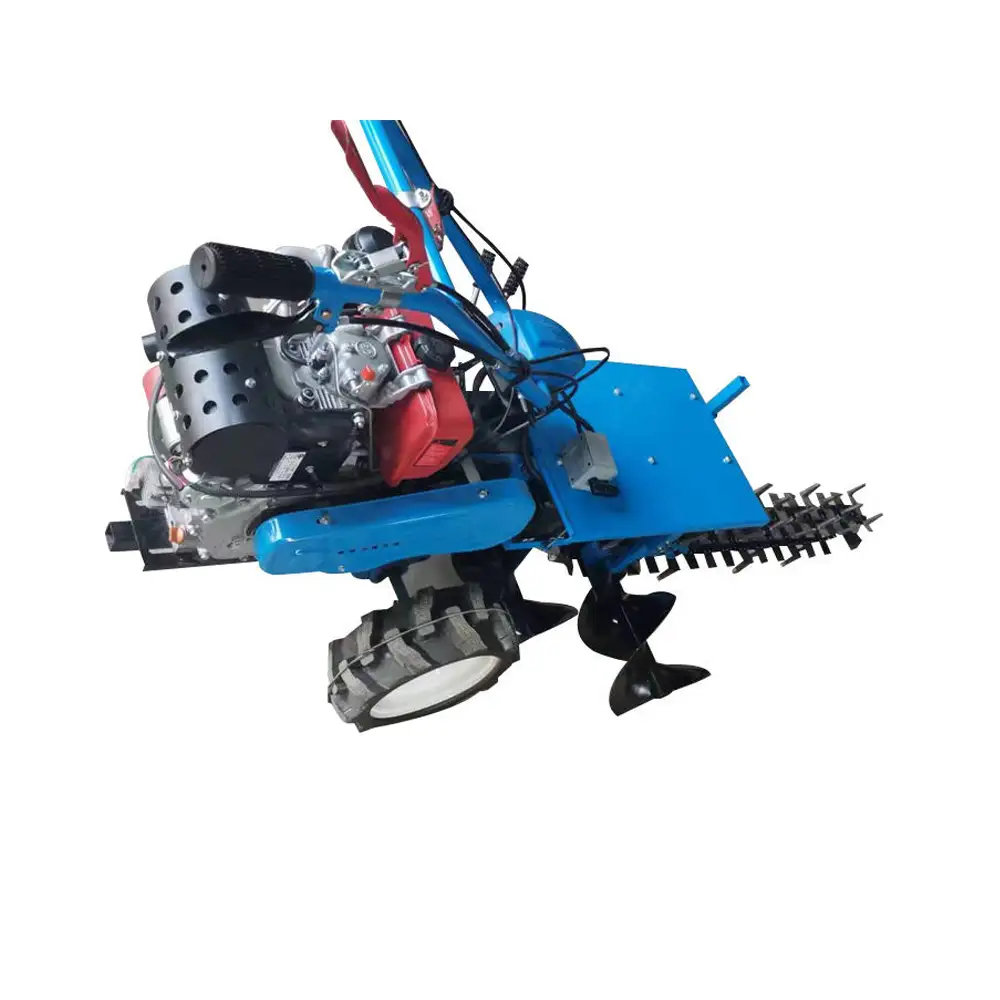

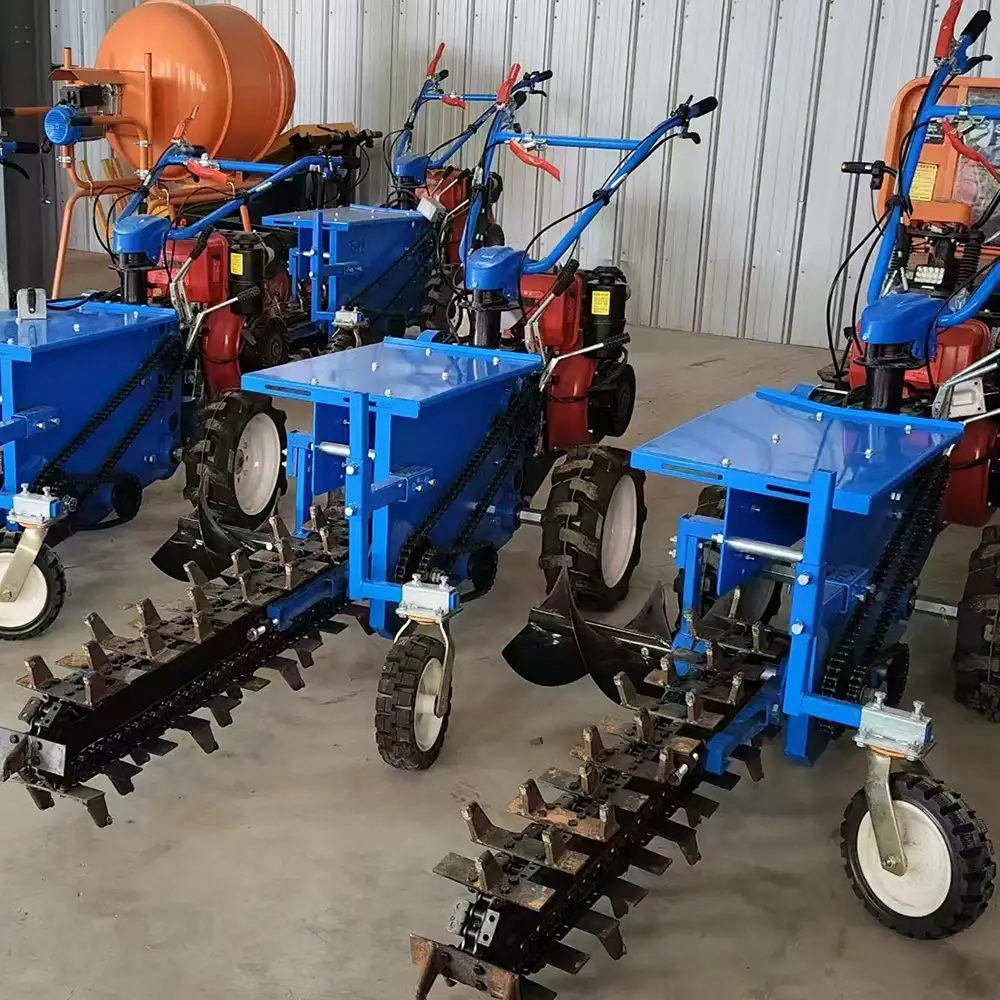

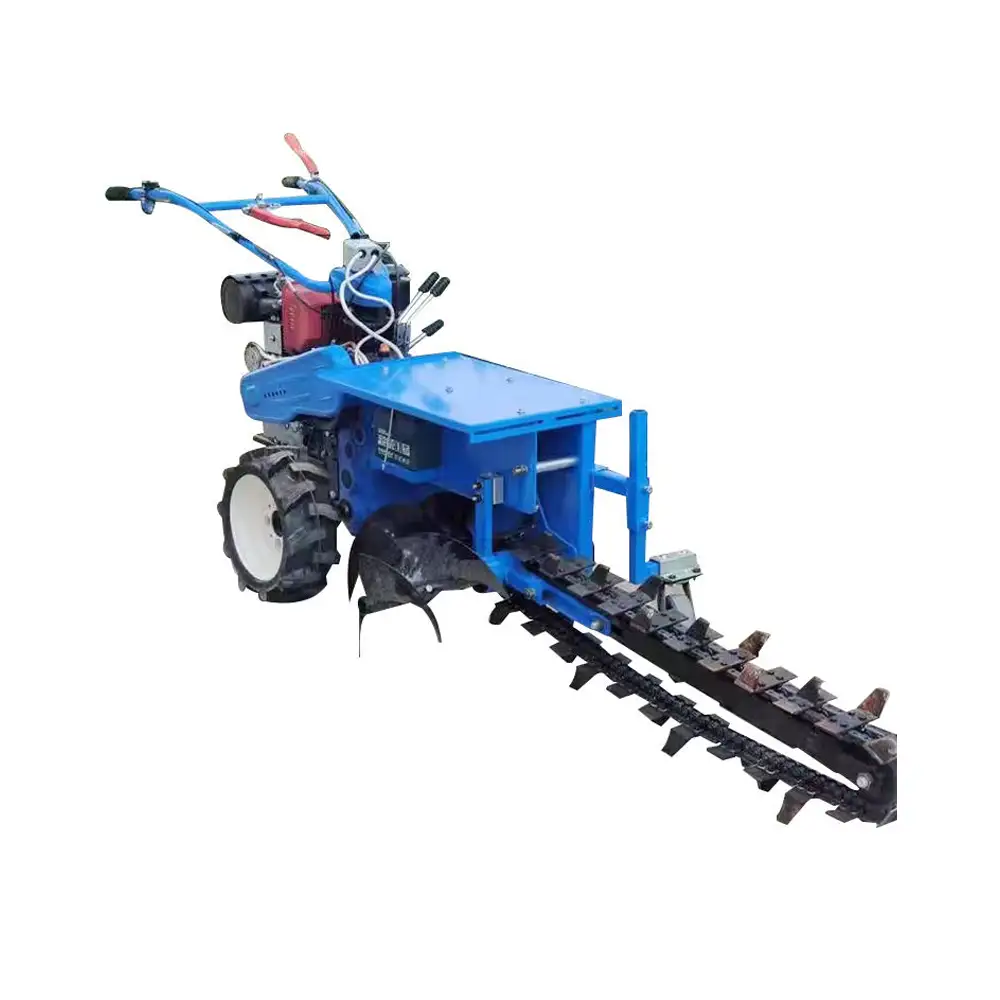

Self-walking chain ditching machine
The self-walking trencher has a chain-scraping construction and can be used in any type of soil. Self-propelled chain trencher can not only be used for farmland planting and harvesting, such as mountain medicine, burdock, sugar, sugar cane, green onion and other crops, greatly convenient farmers farming. It can also be used for orchard ditch fertilization, orchard ditch irrigation, etc., to help farmers realize orchard mechanization management. Additionally, the trenching chain can be replaced according to different work requirements to meet the needs of various trench depths and widths.
|
Item
|
Parameter
|
| Power | Air-cooled diesel 192F/195F |
| Diesel Engine | CHANGGONG |
| Output Power | 8.3-9.2KW |
| Trench Width | 10-30CM |
| Trench Depth | 10-100CM |
| Lifting Mode | Electric-hydraulic |
| Clutch Mode | Belt tightening type |
| Weight | 280KG± |
| Machine Size | 270*100*120CM± |
| Handle | 360°Rotatable Control |
| Trenching Speed | 2M/min |
| Chain | Working Width | Trenching Depth |
| Single Chain | 120mm | 1000mm |
| 150mm | 900mm | |
| 200mm | 800mm | |
| Double Chain | 250mm | 600mm |
| 300mm | 500mm |
You can tell me the usage requirements, required width and depth. We are the source factory and support customization. Blade consists of a curved blade and a straight blade made of manganese steel Wear-resistant and durable.
