Product Descriptions

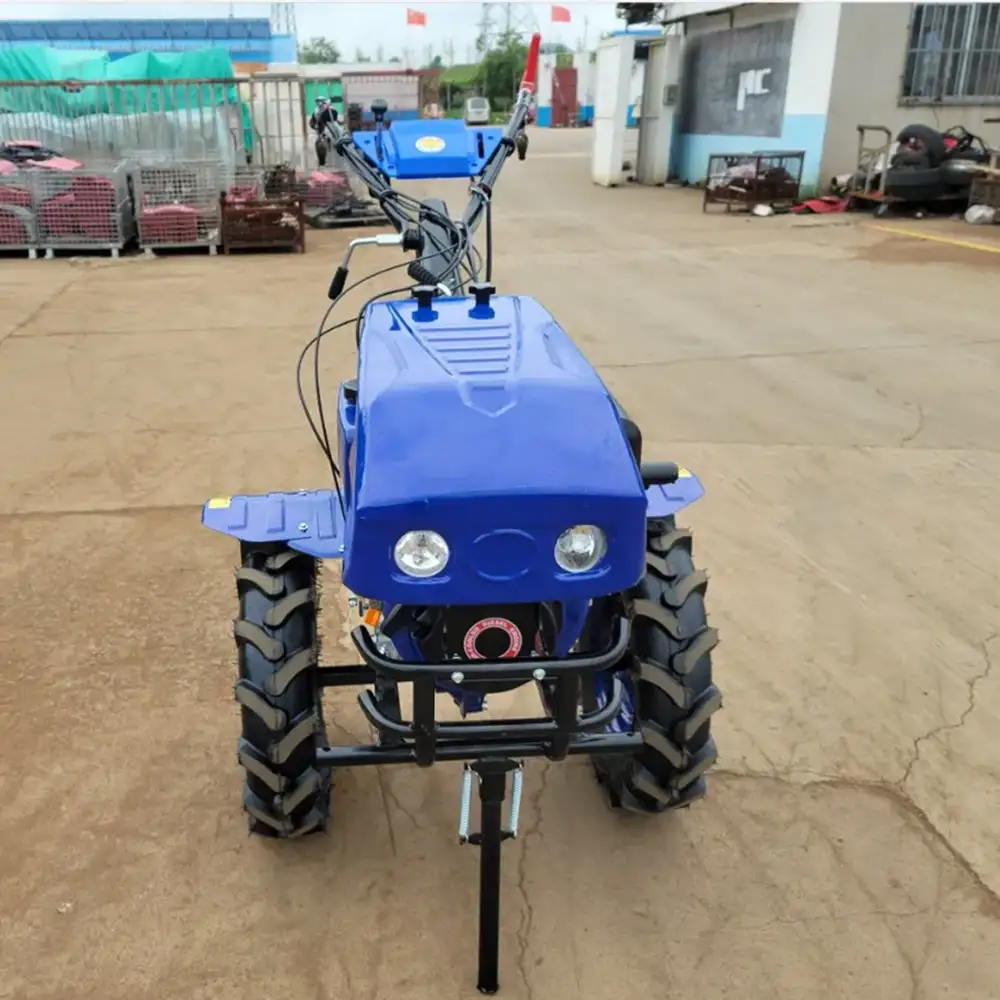

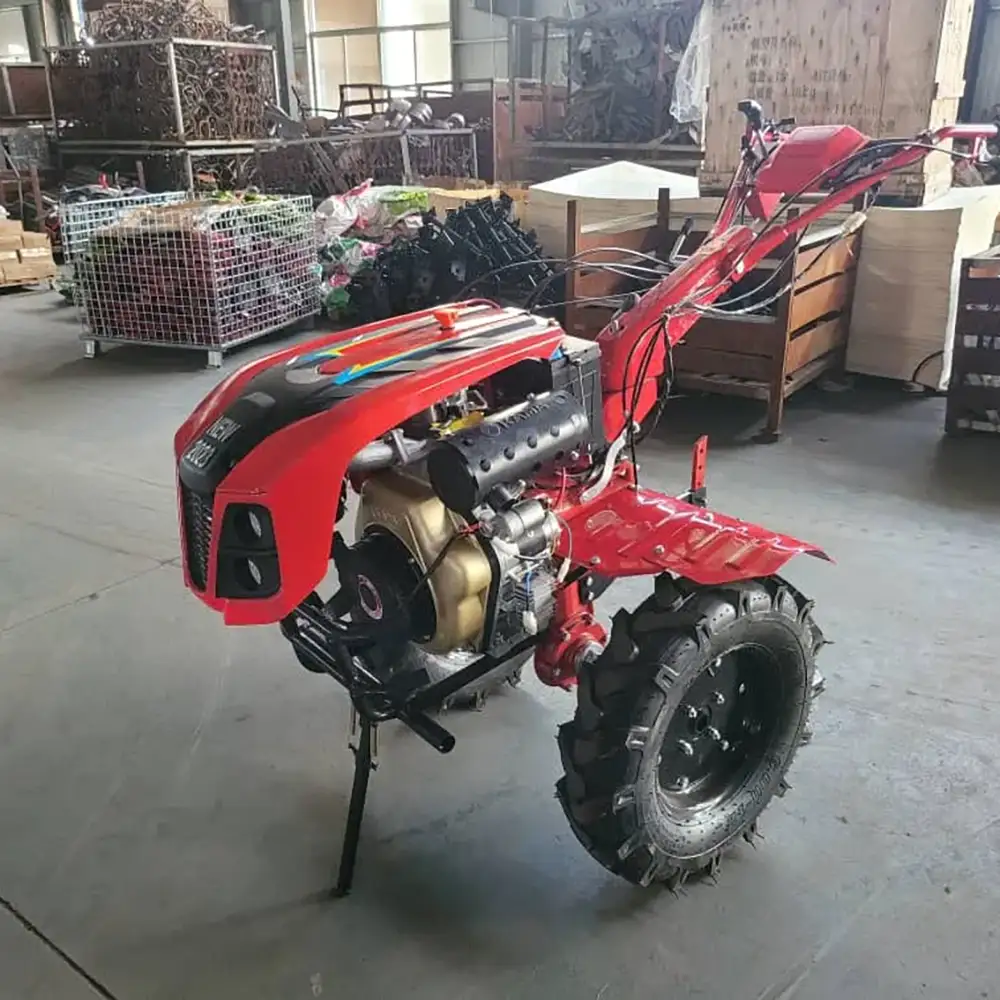

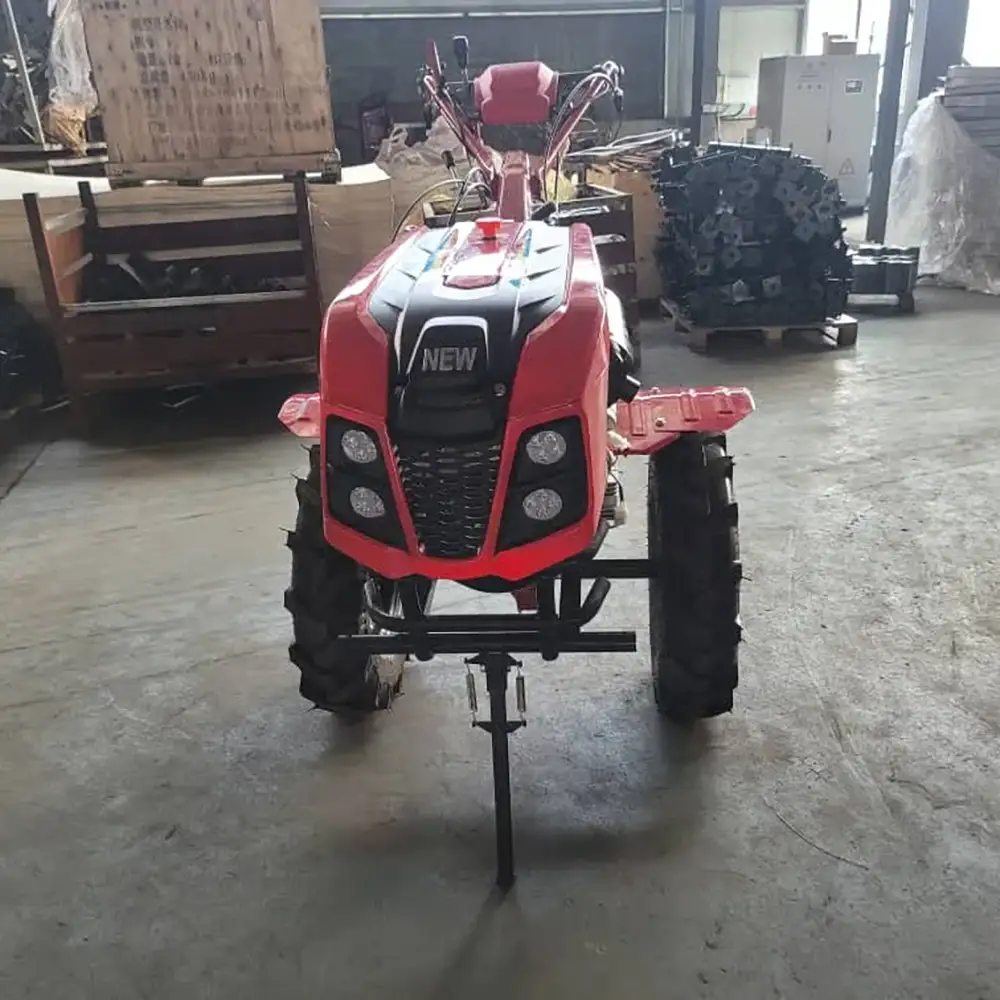

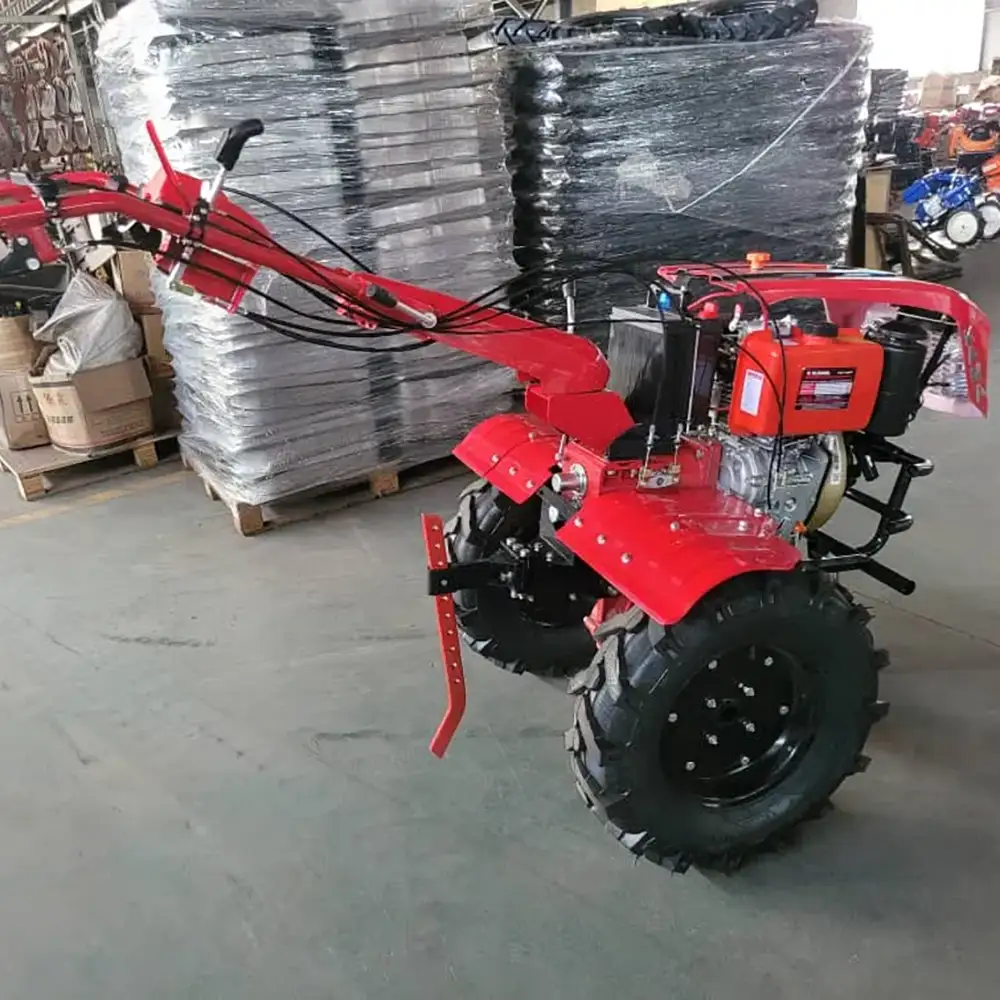

Farm Machinery Gasoline/Diesel Engine Walking Tractor Motocultor Rotary Tiller Mini Power Tiller Power Weeder Mini Cultivator Agricultural Machinery,This series power tiller can be equipped with lamp, water pump, ridge, sprayer, trailer, furrow plough, seeder, fertilizer distributor. etc. Well perform between mountain and hilly farmland, dry and paddy field, orchard, vegetable greenhouse, potato land, corn land and coco land, sand land etc.| Product name | 170 Gasoline Tiller | 177 Gasoline Tiller | 182 Gasoline Tiller | 173 Diesel Tiller | 178 Diesel Tiller | 186 Diesel Tiller | ||
| Structure Type | Forced air-cooled, four-stroke, swashplate, single-cylinder | Forced air-cooled, four-stroke, swashplate, single-cylinder | Forced air-cooled, four-stroke, swashplate, single-cylinder | Forced air-cooled, four-stroke, swashplate, single-cylinder | Forced air-cooled, four-stroke, swashplate, single-cylinder | Forced air-cooled, four-stroke, swashplate, single-cylinder | ||
| Nominal Power | 4 kW | 4.5 kW | 6.5 kW | 4.05 kW | 4 kW | 6.5 kW | ||
| Overall dimension(mm) | 1680x1000x800 mm | 1680x1000x800 mm | 1580x1010x950 mm | 1580x1000x800 mm | 1700x1050x800 mm | 1470x1350x800 mm | ||
| Weights | 70kg | 90kg | 100kg | 100kg | 100kg | 100kg | ||
| Transmission mode | Gear | Gear | Gear | Gear | Gear | Gear | ||
| Connection mode | Direct connection | Direct connection | Direct connection | Direct connection | Direct connection | Direct connection | ||
| speed |
Fast gear F:127 r/min Slow gear S:83 r/min |
Fast gear F:145 r/min Slow gear S:83 r/min |
Fast gear F:145 r/min Slow gear S:83 r/min |
Fast gear F:130 r/min Slow gear S:93 r/min |
Fast gear F:146 r/min Slow gear S:93 r/min |
Fast gear F:146 r/min Slow gear S:93 r/min |
||
| Ploughing width | 1000 mm | 1050 mm | 1350 mm | 1000 mm | 1050 mm | 1350 mm | ||
| Ploughing depth | ≥100 mm | ≥100 mm | ≥100 mm | ≥100 mm | ≥100 mm | ≥100 mm | ||
| Working speed | 0.1~0.3 m/s | 0.1~0.3 m/s | 0.1~0.3 m/s | 0.1~0.3 m/s | 0.1~0.3 m/s | 0.1~0.3 m/s | ||
| Hourly productivity | ≥0.04 hm² | ≥0.04 hm² | ≥0.04 hm² | ≥0.04 hm² | ≥0.04 hm² | ≥0.04 hm² | ||
| Fuel consumption per unit of working area | ≤35 kg/hm ² | ≤35 kg/hm ² | ≤35 kg/hm ² | ≤30 kg/hm ² | ≤30 kg/hm ² | ≤30 kg/hm ² | ||
