Product Descriptions

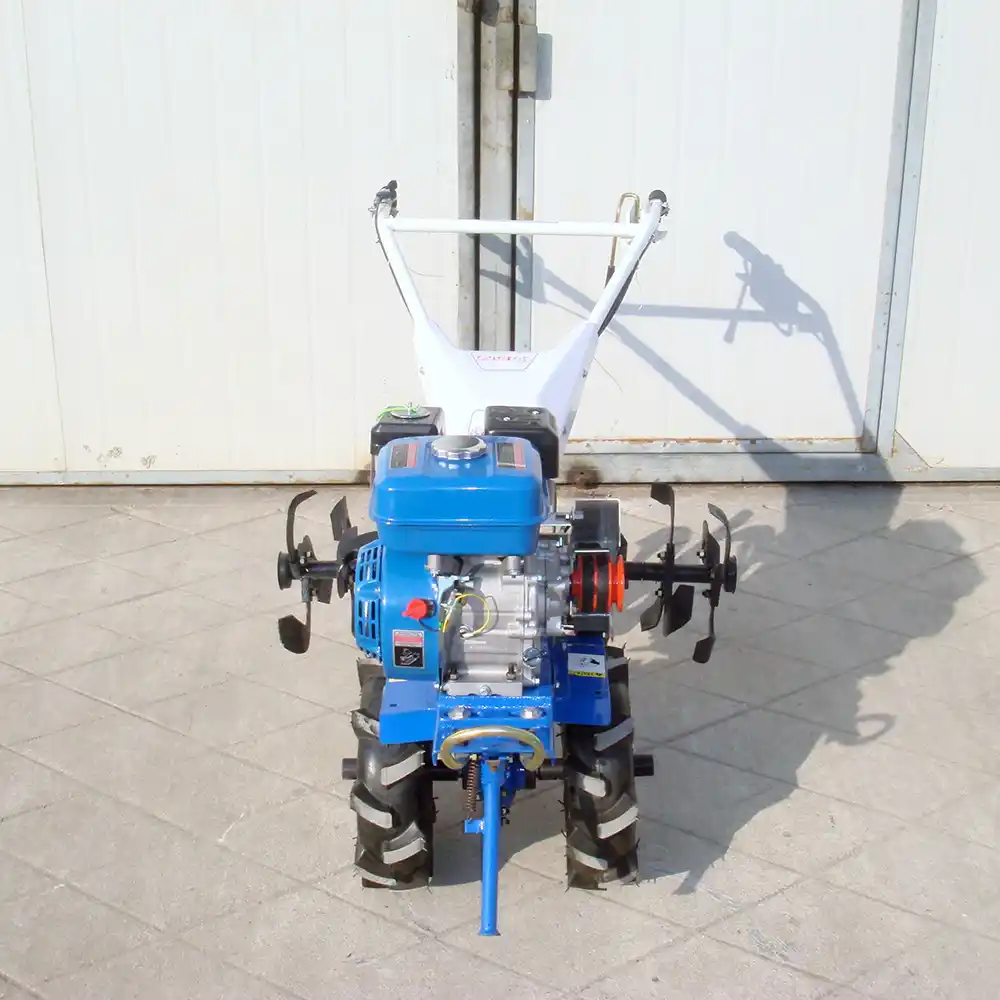

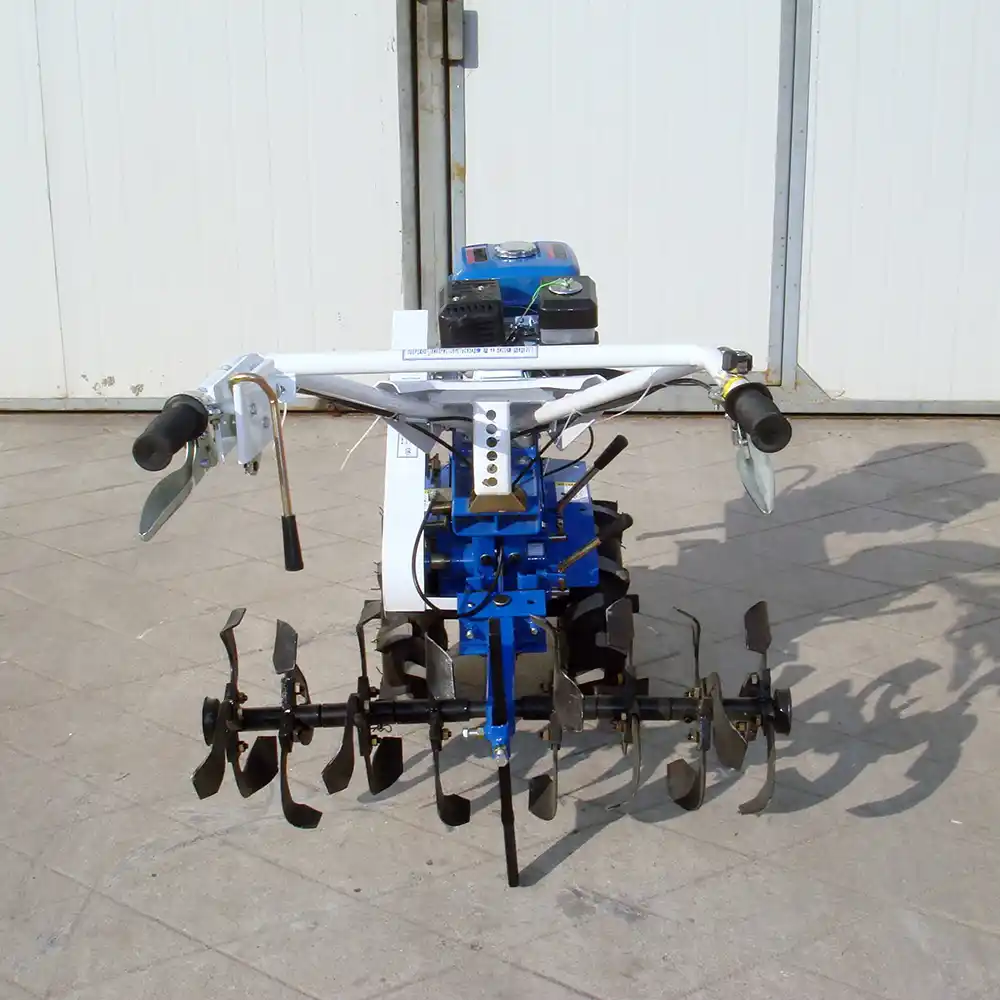

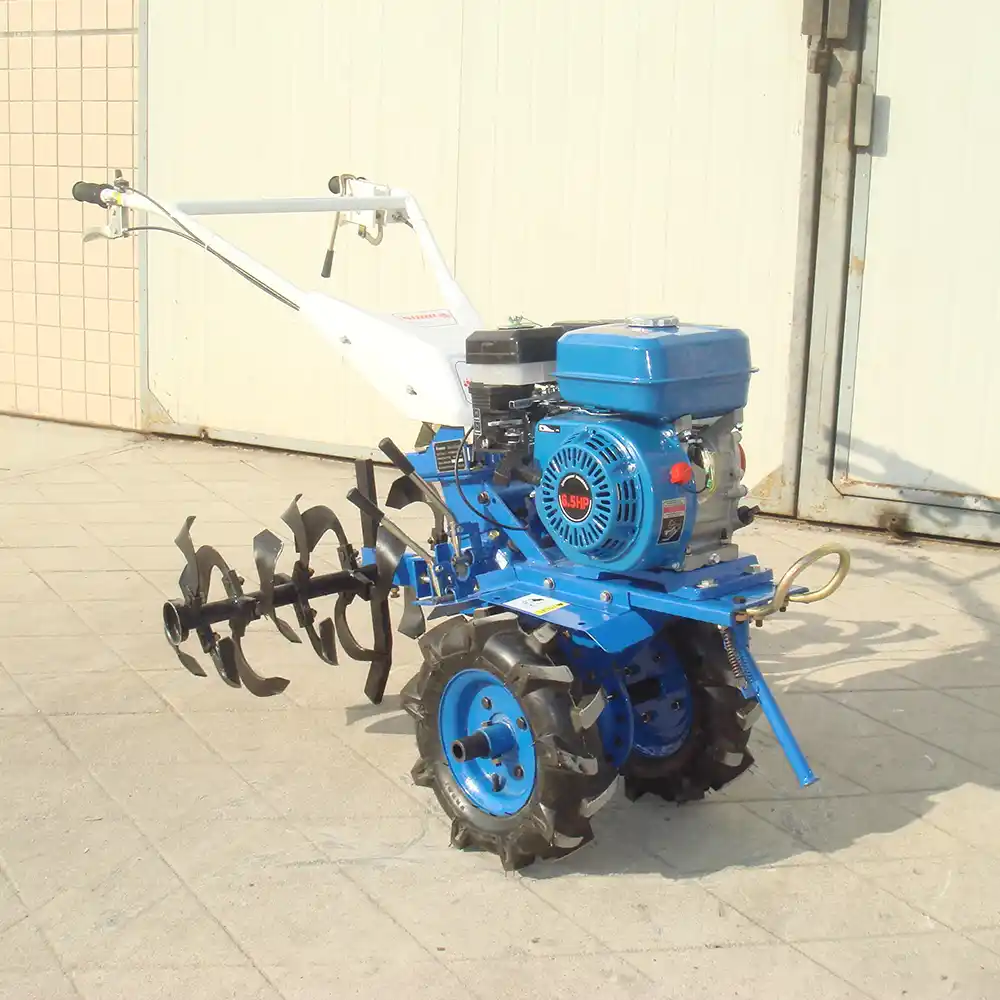

Small Walking Tractor, Mini Cultivator
Small Walking Tractor, Cultivation machinery mainly refers to machinery used for weeding, loosening soil, breaking up topsoil, building up soil and ridges during the growth of crops, or completing the above operations and applying fertilizers at the same time, including full-scale cultivators, inter-row cultivators and special cultivators.
| Model | Unit | GT-4 (MD-4) |
| Overall dimensions (L*W*H) | mm | 1570*600*980 |
| PTO speed | r/min. | 1511 |
| Overall dimensions (L*W*H) | mm | 1000x400x970 |
| Net weight | kg | 115 |
| Gross weight (with packing) | kg | 125 |
| Max. tilling width | mm | 840 |
| Max. tilling depth | mm | 18 |
| Clutch | Tension pulley | |
| Driving wheel | 4.00-7 | |
| Ground clearance | mm | 85 |
| Wheel tread | mm | 350-600 (adjustable) |
| Tyre inflation pressure | kPa | 100-120 (in the field) 160-180 (for transportation) |
| Transmission | (1+1) × 2 compound type with spur gears | |
| Speed | km/h. | (I) 4.457, (II) 7.485, (RI )3.13, (RII) 5.307 |
| Main drive | Two pcs V-belt (B1270) | |
| Transmission oil capacity | L | 1.5 |
| Working speed | m/s | 0.25 |
| Rotary speed of driving shaft | r/min. | 85 (high spped)/50 (low speed) |
| Trailer rated load | kg | 300 |
| Engine | Model | 170F |
| Engine type | Water cooled, 4-stroke, single cylinder, horizontal. | |
| Max. output | hp | 4.4 |
| Max. fuel consumption | g/kw. h | 289.7 |
| Rotary speed of engine | r/min. | 2600 |
