Double Shaft Small Flat Grinding Machine

Product Descriptions

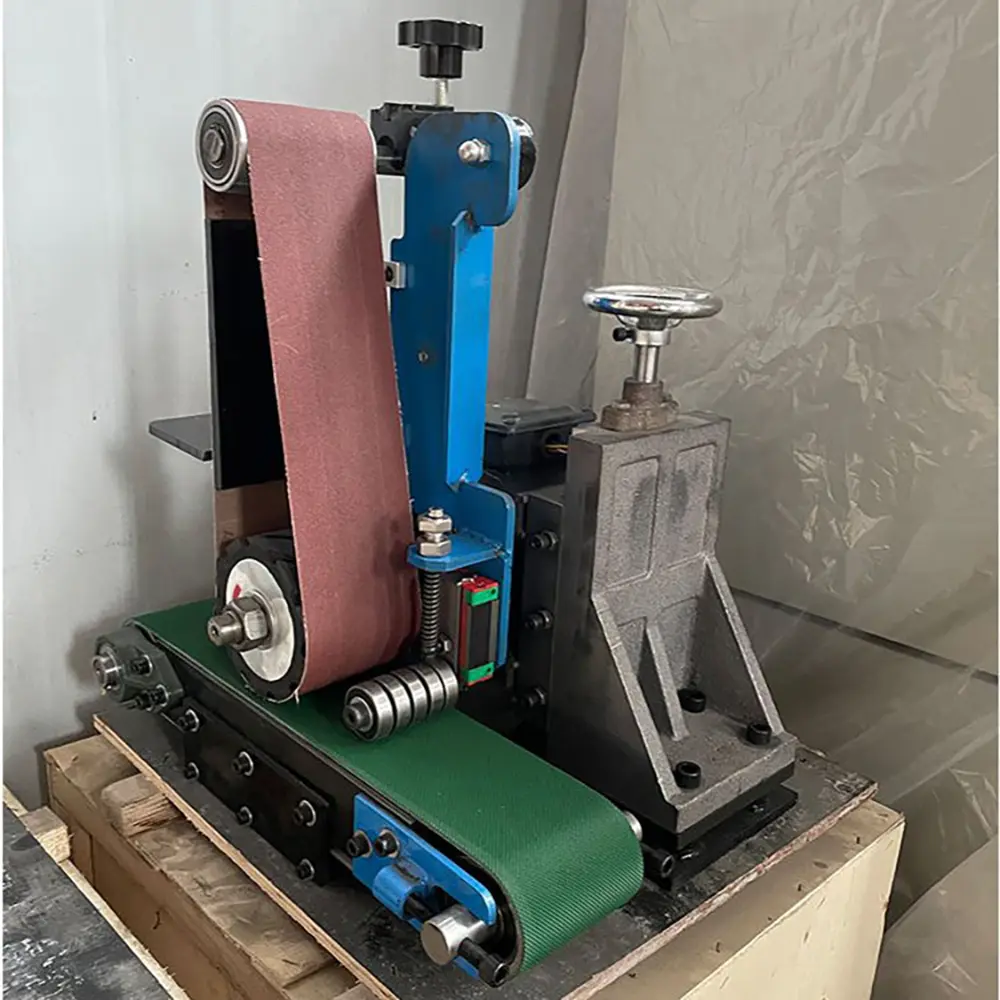

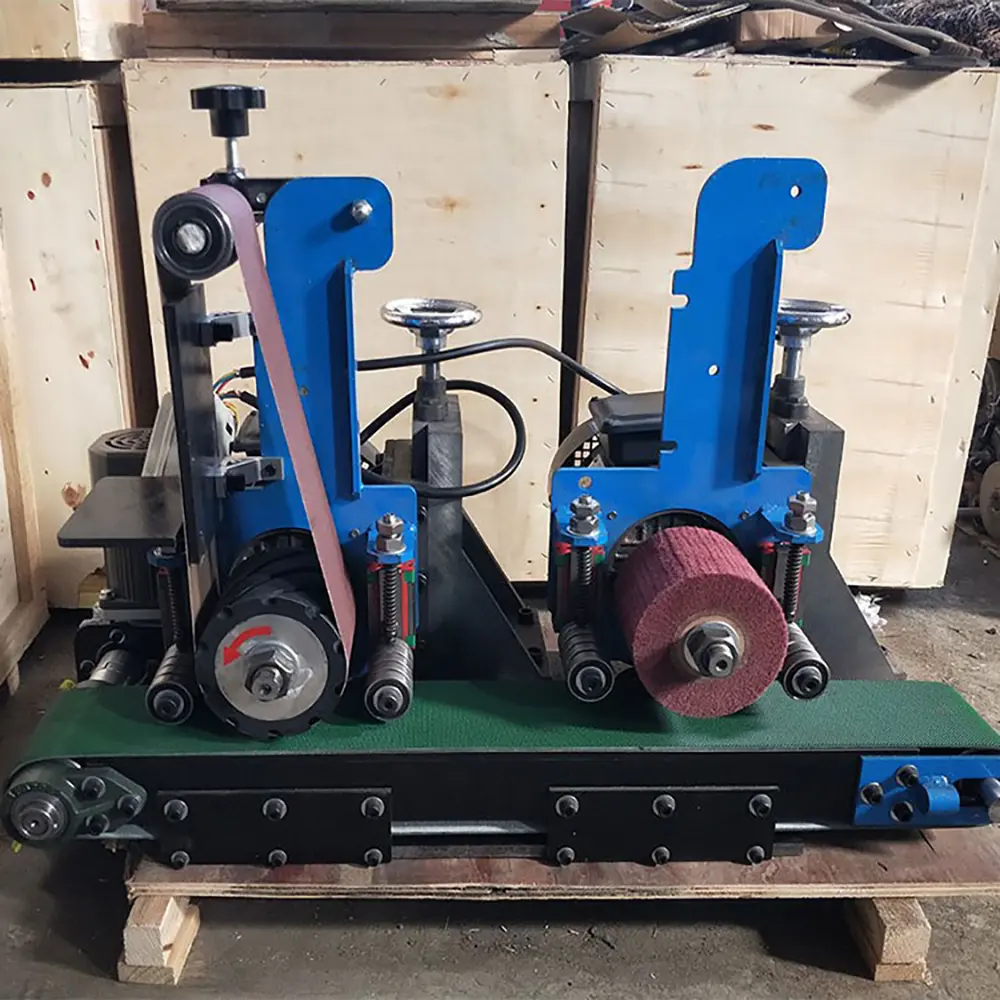

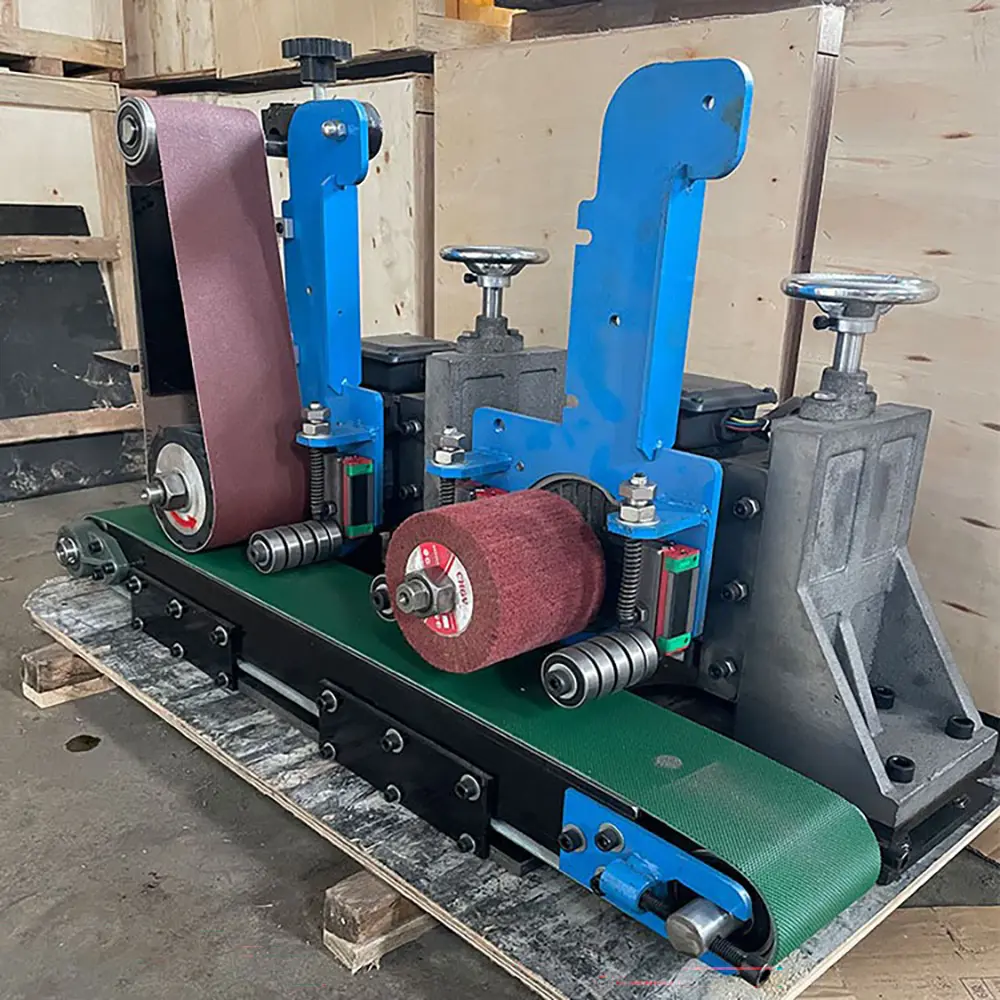

The Double Shaft Small Flat Grinding Machine is a compact and efficient precision grinding solution designed for flat surface grinding, edge finishing, and surface improvement of various metal components. Equipped with a double shaft grinding structure, this machine provides stable operation, balanced processing performance, and excellent finishing results for small and medium-sized workpieces.

In modern manufacturing industries, precise surface finishing is essential for improving product quality, assembly accuracy, and appearance. After cutting, stamping, machining, or molding processes, metal parts often require additional grinding to remove burrs, uneven surfaces, oxidation layers, and machining marks. The Double Shaft Small Flat Grinding Machine offers an effective automated solution to achieve smooth and uniform surfaces while reducing manual labor requirements.

This machine is widely used in hardware processing, precision parts manufacturing, electronics components, automotive accessories, stainless steel products, and general metal fabrication industries.

Model	100 type flat sanding polishing machine	100 type double shaft flat sanding polishing machine
Max. Sanding width	100mm	100mm
MIn. Sanding length	180mm	180mm
Sanding thickness	0.2~80mm	0.2~80mm
Sanding motor power	2.2kw	2.2KW*2
Feeding motor power	120W	120W
Sanding belt	915*100mm	915*100mm
Main grinding wheel	25mm120mm100mm	25mm120mm100mm
Dimension	530520600mm	850520600mm
Weight	100kg	150kg

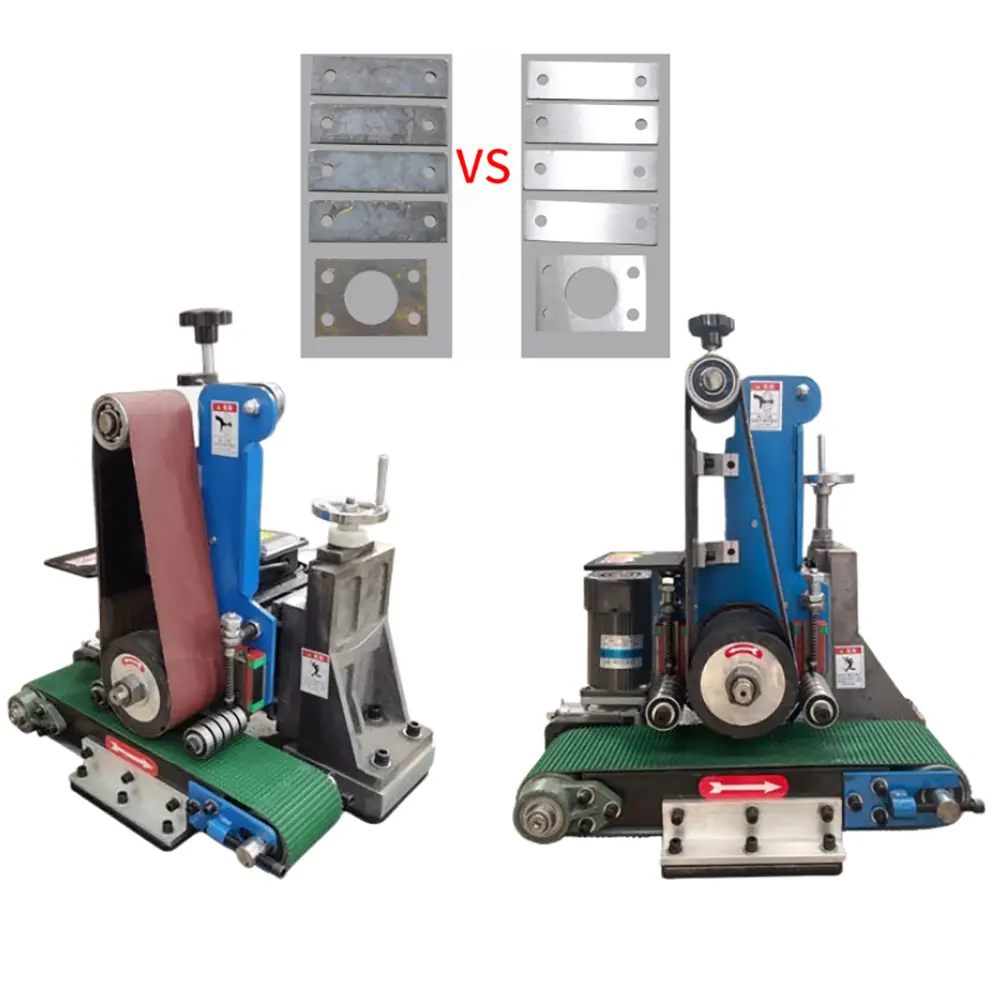

Application: Stainless steel grinding and wire drawing, aluminum plate grinding, sheet metal deburring, hardware processing parts surface grinding and wire drawing. High Efficiency Double Shaft Grinding Performance The Double Shaft Small Flat Grinding Machine adopts a dual-shaft grinding system that improves processing stability and efficiency. The two grinding shafts work together to provide balanced grinding force, ensuring uniform material removal and consistent surface quality. Compared with traditional single grinding equipment, the double shaft design offers: Higher grinding efficiency More balanced operation Better surface consistency Reduced processing time Improved production capacity The machine is suitable for batch production where stable and repeatable grinding performance is required. Precision Flat Surface Grinding Solution The main purpose of the Double Shaft Small Flat Grinding Machine is to achieve accurate flat surface finishing on different metal parts. The precision grinding system helps remove: Surface burrs Cutting marks Welding imperfections Oxide layers Uneven edges Minor surface defects After grinding, workpieces obtain a smoother surface, improved appearance, and better preparation for subsequent processes such as coating, welding, assembly, and polishing. Compact Design For Small Parts Processing The Double Shaft Small Flat Grinding Machine features a compact structure that saves production space while maintaining excellent grinding performance. It is especially suitable for manufacturers processing: Small metal plates Hardware components Precision mechanical parts Stainless steel accessories Aluminum components Electronic parts Custom metal products The compact design makes it easy to install in workshops, production lines, and small manufacturing facilities. Wide Application Industries The Double Shaft Small Flat Grinding Machine is widely used in: Hardware Manufacturing For screws, fittings, brackets, and precision hardware components. Automotive Parts Production For grinding and finishing automotive accessories and metal components. Stainless Steel Processing For surface improvement of stainless steel products and decorative parts. Electronics Manufacturing For precision finishing of small metal components. Machinery Manufacturing For improving the quality of mechanical parts after machining. Metal Fabrication For general flat surface grinding and finishing applications. Suitable Materials The machine can process various materials, including: Stainless Steel Carbon Steel Aluminum Copper Brass Alloy Steel Metal Plates Small Mechanical Components Different grinding wheels or abrasive tools can be selected according to material characteristics and required finishing effects. Stable And Durable Machine Structure The Double Shaft Small Flat Grinding Machine is built with a strong industrial structure to ensure reliable operation during continuous production. Main structural advantages include: High-strength machine frame Precision double shaft system Stable grinding operation Low vibration design Easy adjustment system Convenient maintenance The durable construction ensures long service life and reliable performance in demanding industrial environments. Automatic Grinding Advantages Compared with manual grinding methods, this machine provides significant benefits: Improved Efficiency Automatic grinding reduces processing time and increases output. Consistent Quality Stable grinding pressure ensures uniform surface results. Reduced Labor Cost Less manual operation improves production efficiency. Better Safety Automatic processing reduces operator exposure to grinding operations. Higher Product Value Smooth and precise surfaces improve final product quality. Key Features Of Double Shaft Small Flat Grinding Machine 1. Double Shaft Grinding Structure Provides balanced grinding force and stable processing results. 2. Precision Flat Surface Processing Creates smooth and accurate metal surfaces. 3. Compact Machine Design Suitable for workshops with limited production space. 4. Wide Material Compatibility Works with various metal materials and components. 5. Efficient Batch Processing Ideal for continuous industrial production. 6. Easy Operation And Maintenance Simple controls improve production convenience. Why Choose Our Double Shaft Small Flat Grinding Machine? Professional Industrial Equipment Manufacturer We provide reliable grinding and finishing machines designed for modern manufacturing requirements. High Precision And Stable Performance The double shaft structure ensures excellent grinding accuracy and consistent processing quality. Customized Solutions Available Machine size, grinding configuration, automation level, and processing requirements can be customized according to customer needs. Competitive Factory Direct Supply We offer cost-effective solutions with dependable machine quality and professional technical support. Complete After-Sales Service We provide installation assistance, operation guidance, maintenance support, and spare parts service. FAQS Q1: What is a Double Shaft Small Flat Grinding Machine used for? A Double Shaft Small Flat Grinding Machine is used for precision grinding, surface finishing, and burr removal of flat metal parts and small components. Q2: What are the advantages of double shaft grinding? The double shaft design provides more balanced grinding force, improved efficiency, and more uniform surface finishing. Q3: What materials can this machine process? It can process stainless steel, carbon steel, aluminum, copper, brass, alloy steel, and other metal materials. Q4: Is this machine suitable for small parts? Yes. It is specially designed for small and medium-sized metal components requiring precise flat surface grinding. Q5: Can the grinding effect be adjusted? Yes. Grinding parameters can be adjusted according to material type and required surface quality. Q6: What industries use this machine? It is widely used in hardware, automotive parts, electronics, machinery, stainless steel, and metal fabrication industries. Q7: Can you customize the machine? Yes. Customized solutions are available according to workpiece size, production capacity, and processing requirements.
