Product Descriptions

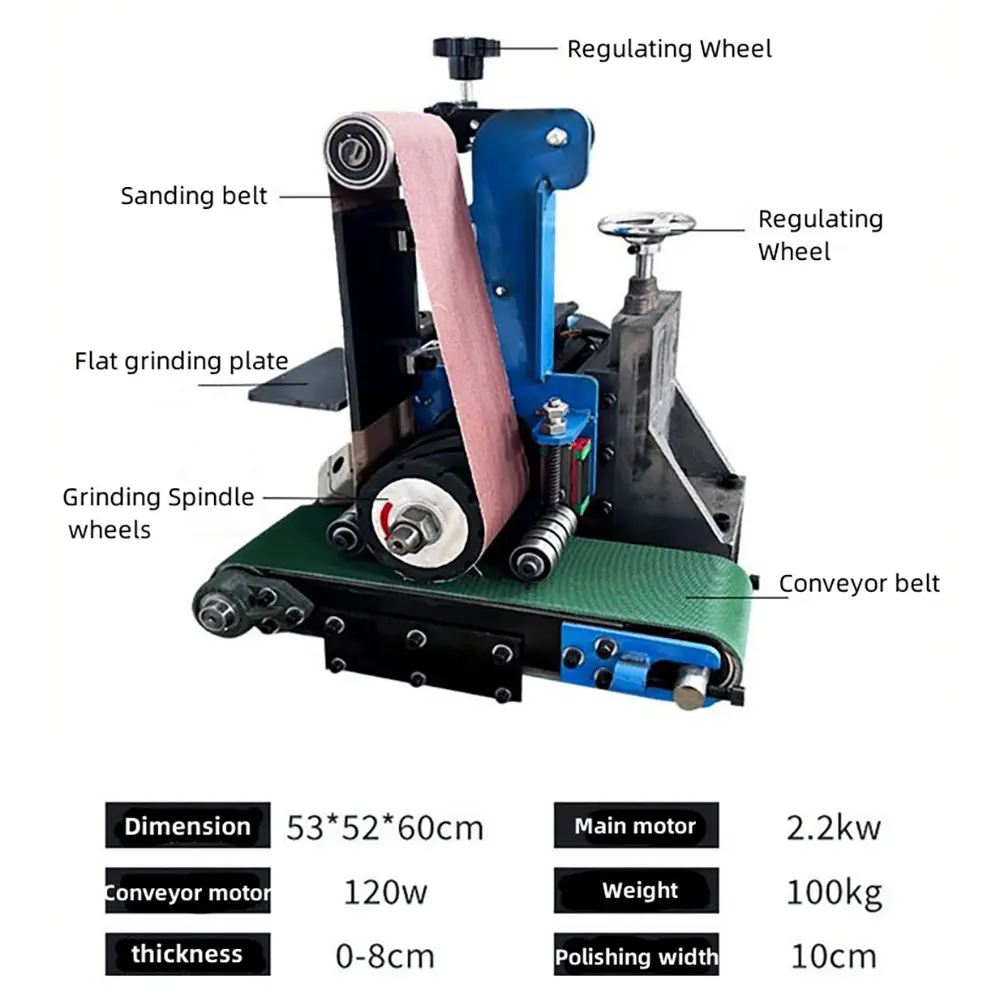

The Single Shaft Small Flat Grinding Machine is a compact and efficient metal finishing machine designed for precision flat surface grinding, burr removal, and surface improvement of small and medium-sized metal components. With a reliable single shaft grinding structure, this machine provides stable performance, accurate processing, and excellent surface finishing results for various industrial applications.
During machining processes such as cutting, stamping, milling, drilling, and casting, metal parts often develop burrs, uneven edges, scratches, and surface imperfections. These defects can affect product appearance, assembly accuracy, and final performance. The Single Shaft Small Flat Grinding Machine provides an efficient solution to remove unwanted material and create smooth, uniform surfaces.
Due to its compact size, simple operation, and high processing efficiency, this machine is widely used in hardware manufacturing, precision parts production, automotive components, stainless steel products, electronic components, and general metal fabrication industries.
| Model | 100 type flat sanding polishing machine | 100 type double shaft flat sanding polishing machine |
| Max. Sanding width | 100mm | 100mm |
| MIn. Sanding length | 180mm | 180mm |
| Sanding thickness | 0.2~80mm | 0.2~80mm |
| Sanding motor power | 2.2kw | 2.2KW*2 |
| Feeding motor power | 120W | 120W |
| Sanding belt | 915*100mm | 915*100mm |
| Main grinding wheel | 25mm*120mm*100mm | 25mm*120mm*100mm |
| Dimension | 530*520*600mm | 850*520*600mm |
| Weight | 100kg | 150kg |
|

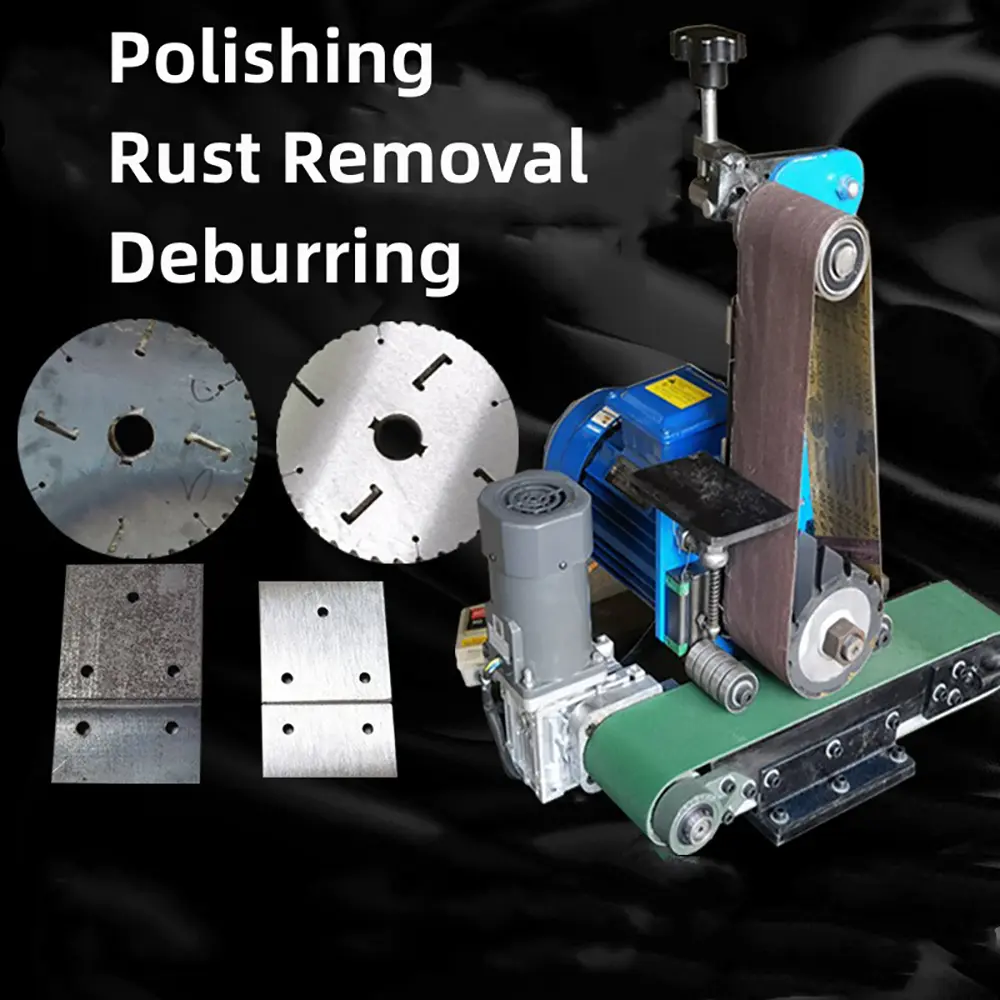

Application: Stainless steel grinding and wire drawing, aluminum plate grinding, sheet metal deburring, hardware processing parts surface grinding and wire drawing. Efficient Single Shaft Grinding Performance The Single Shaft Small Flat Grinding Machine adopts a high-performance single shaft grinding system that provides stable rotation and consistent grinding force. The optimized structure ensures smooth operation and accurate material removal during continuous production. Compared with manual grinding methods, this machine offers: Faster processing speed More uniform grinding results Lower labor requirements Improved production efficiency Better surface consistency The single shaft design provides a practical and economical solution for manufacturers requiring reliable flat surface grinding without complex equipment structures. Precision Flat Surface Finishing The main function of the Single Shaft Small Flat Grinding Machine is to achieve smooth and accurate finishing on flat metal surfaces. The machine effectively removes: Metal burrs Cutting marks Oxidation layers Welding residues Surface scratches Uneven areas After processing, workpieces achieve improved flatness, cleaner edges, and better surface quality, making them suitable for further operations such as coating, painting, welding, polishing, and assembly. Compact Design For Small Parts Processing The Single Shaft Small Flat Grinding Machine features a space-saving design, making it suitable for workshops and production facilities with limited space. It is ideal for processing: Small metal plates Hardware components Machine accessories Stainless steel parts Aluminum components Precision mechanical parts Custom fabricated products The compact structure allows easy installation and operation while maintaining reliable industrial performance. Wide Application Industries The Single Shaft Small Flat Grinding Machine is widely applied in: Hardware Manufacturing Used for finishing screws, brackets, fittings, and small metal components. Automotive Parts Production Suitable for grinding and deburring automotive accessories and precision parts. Stainless Steel Processing Provides smooth finishing for stainless steel products and decorative components. Electronics Industry Used for surface treatment of small metal housings and precision parts. Machinery Manufacturing Improves surface quality of mechanical components after machining. Metal Fabrication Provides efficient grinding solutions for various fabricated metal products. Suitable Materials The Single Shaft Small Flat Grinding Machine can process different metal materials, including: Stainless Steel Carbon Steel Aluminum Copper Brass Alloy Steel Metal Plates Small Mechanical Components Different abrasive wheels and grinding tools can be selected according to material hardness and required finishing effects. Reliable Machine Structure The machine is built with a durable industrial structure to ensure long-term operation and stable grinding performance. Main advantages include: Strong machine frame Stable single shaft transmission system Low vibration operation Precise grinding control Easy maintenance User-friendly operation The robust construction ensures reliable performance in continuous manufacturing environments. Advantages Of Automatic Flat Grinding Compared with traditional manual grinding, the Single Shaft Small Flat Grinding Machine provides many benefits: Higher Efficiency Automatic grinding significantly reduces processing time. Consistent Quality Stable grinding force ensures uniform surface results. Lower Production Costs Reduced manual labor improves overall production efficiency. Improved Safety Minimizes direct contact with grinding operations. Better Product Appearance Creates smooth and professional finished surfaces. Key Features Of Single Shaft Small Flat Grinding Machine 1. Single Shaft Grinding System Provides stable and efficient flat surface processing. 2. Precision Surface Grinding Ensures accurate and consistent finishing results. 3. Compact Industrial Design Saves production space and simplifies installation. 4. Wide Material Compatibility Suitable for various metal parts and components. 5. Easy Operation Simple controls allow quick adjustment and operation. 6. Low Maintenance Requirements Designed for reliable long-term industrial use. Why Choose Our Single Shaft Small Flat Grinding Machine? Professional Manufacturing Experience We specialize in industrial grinding and finishing equipment, providing reliable solutions for global customers. Stable Performance And High Precision Our machines are manufactured with quality components to ensure accurate grinding and consistent processing results. Customized Solutions Grinding width, machine configuration, automation options, and processing requirements can be customized according to customer needs. Competitive Factory Direct Supply Direct manufacturer supply provides cost-effective equipment with reliable quality and professional support. Complete Technical Service We provide installation assistance, operation guidance, maintenance support, and spare parts service. FAQS Q1: What is a Single Shaft Small Flat Grinding Machine used for? A Single Shaft Small Flat Grinding Machine is used for grinding, deburring, and finishing flat surfaces of small and medium-sized metal parts. Q2: What is the difference between single shaft and double shaft grinding machines? A single shaft machine uses one grinding shaft and provides a simpler, more economical solution, while a double shaft machine offers higher processing efficiency with dual grinding systems. Q3: What materials can this machine process? It can process stainless steel, carbon steel, aluminum, copper, brass, alloy steel, and other metal materials. Q4: Is it suitable for small workshops? Yes. Its compact design makes it suitable for small factories, workshops, and production lines with limited space. Q5: Can it remove burrs from metal parts? Yes. The machine effectively removes burrs, sharp edges, scratches, and machining marks. Q6: Can grinding parameters be adjusted? Yes. Grinding pressure, speed, and abrasive selection can be adjusted according to different processing requirements. Q7: Do you provide customized machines? Yes. Customized solutions are available according to workpiece size, production capacity, and surface finishing requirements. |
||
