Product Descriptions

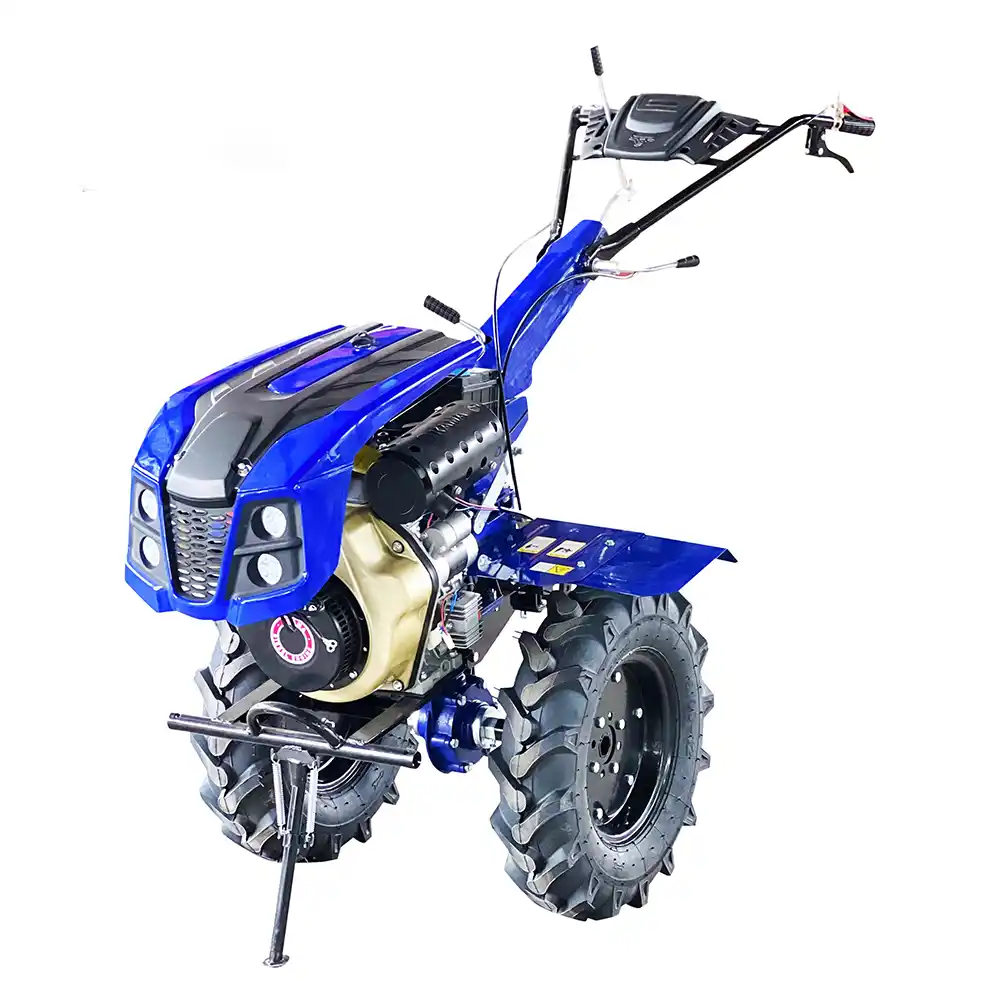

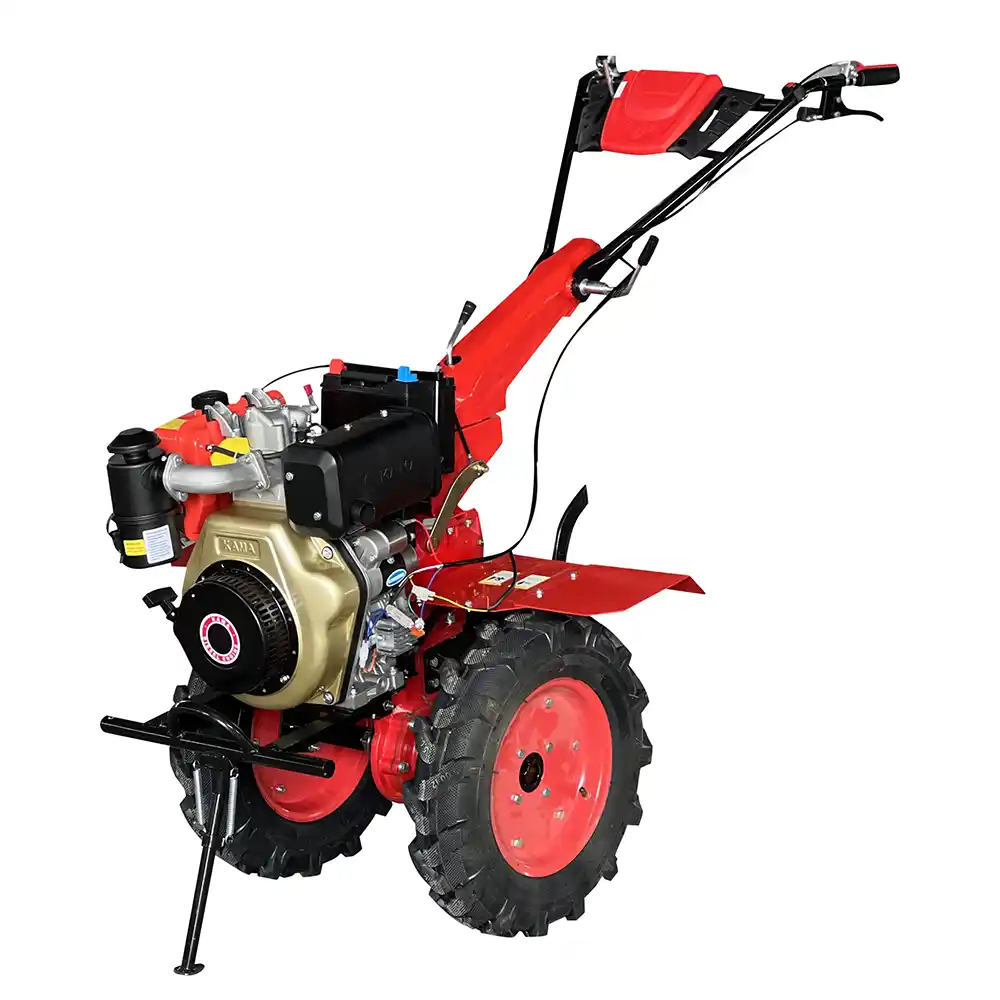

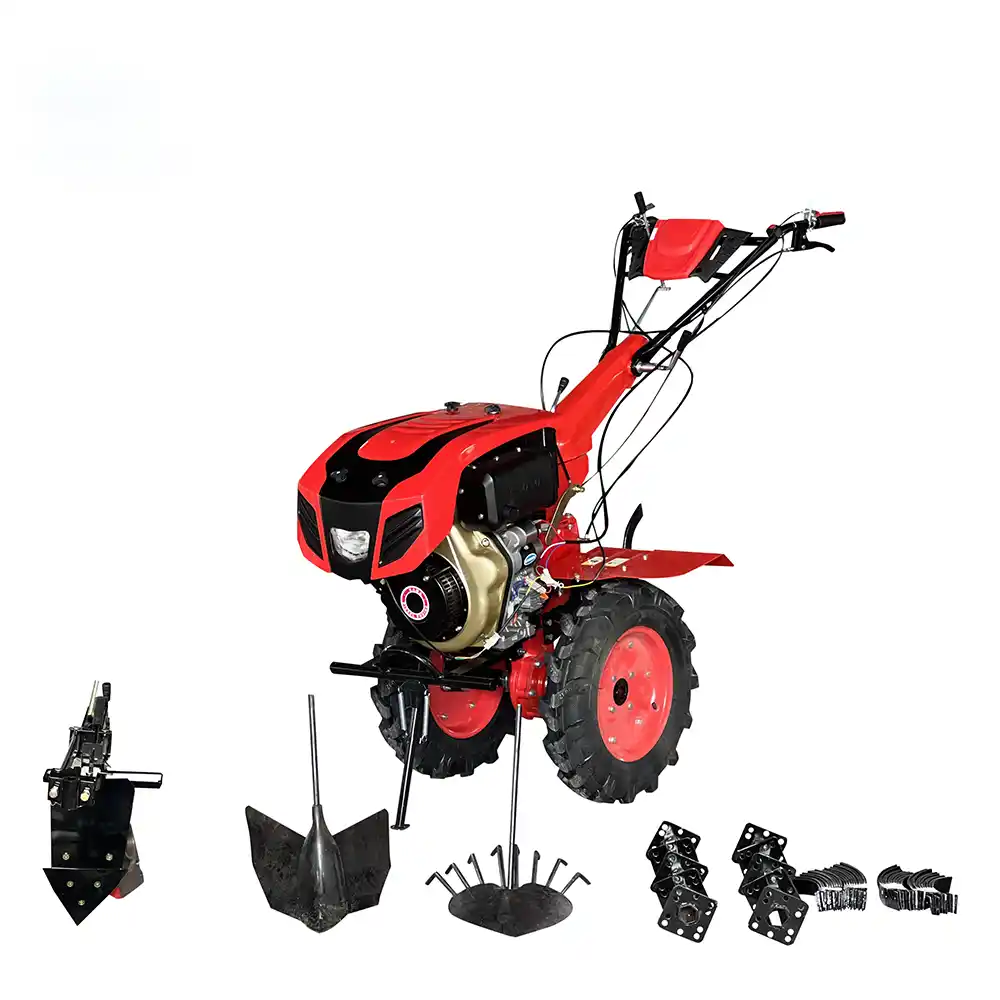

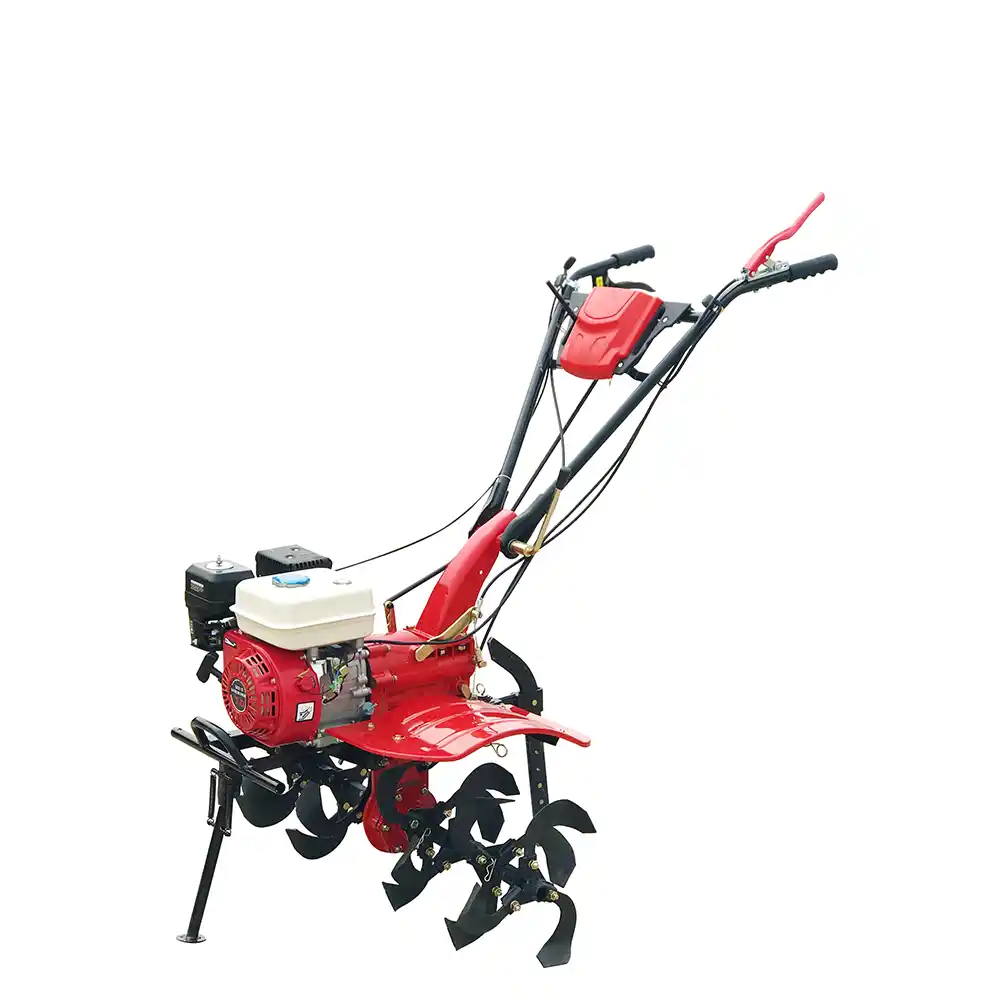

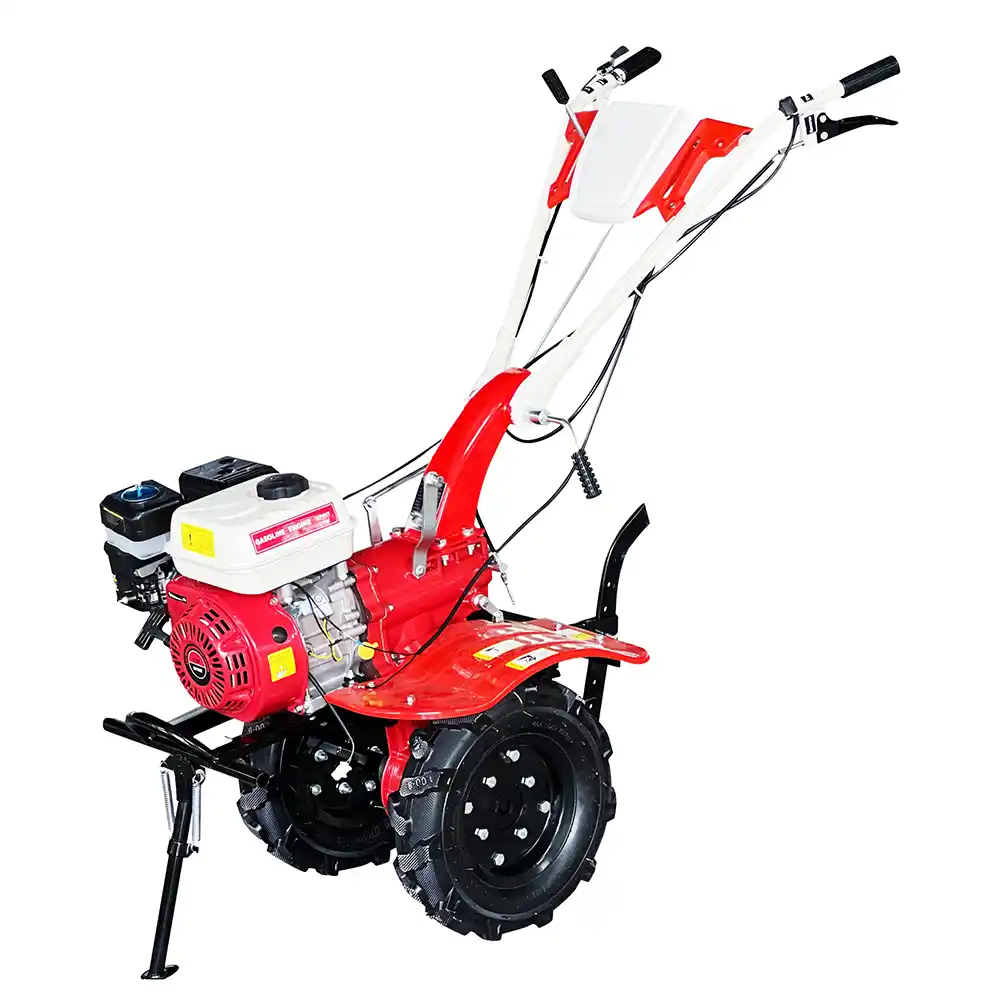

Hand Power Tiller, Mini-power tillers are widely used for rotary cultivation in wet soils. They work on small farms, mostly terrain where tractors cannot be maneuvered. Unlike bulky tractors, which can use their weight to compact the soil and plough to a deeper depth than needed, mini-power tillers can only plough to the desired depth while softening and loosening the ground, allowing rice to be grown in water fields that have.
| Model | WG4.0-100FC-ZC | WG4.5-105FC-ZC | WG6.5-135FC-ZC |
| Engine model | FSH173F | FSH178F (6HP Diesel) | FSH186FA(10HP Diesel) |
| Starting mode | Manual starter,Recoil | Manual starter,Recoil | Manual starter,Recoil |
| Transmission box | Aluminium alloy + die cast iron | Aluminium alloy + die cast iron | Aluminium alloy + die cast iron |
| Drive type | Gear | Gear | Gear |
| Clutch type (optional) | Forward clutch | Forward clutch | Forward clutch |
| Bumper | Common type with stand | Common type with stand | Common type with stand |
| Handrail | Common type | Common type | Common type |
| Direction adjust | Up/Down | Up/Down | Up/Down |
| Shifting | 1,0,2,-1 | 1,0,2,-1 | 1,0,2,-1 |
| Blade | 3pcs 4 groups dryland blade, total 24pcs | 4pcs 4 groups dryland blade, total 32pcs | 4pcs 5 groups dryland blade, total 40pcs |
| Wheel | 4.00-8 | 5.00-12 | 5.00-12 |
| Tilling width | 100cm | 105cm | 135cm |
| Tilling depth | ≥10cm | ≥10cm | ≥10cm |
| Efficiency per hour | ≥0.04hm²/(h·m) | ≥0.04hm²/(h·m) | ≥0.04hm²/(h·m) |
| Blade revolutions | Fast-130r/min; Slow-93r/min; R-68r/min | Fast-145r/min; Slow- 83r/min; R-63r/min | Fast-145r/min; Slow- 83r/min; R-63r/min |
| Packing method | Iron frame inside + carton outside | Iron frame inside + carton outside | Iron frame inside + carton outside |
| Master qty | 1pc/ctn | 1pc/ctn | 1pc/ctn |
| Net weight | 105kg | 100kg | 105kg |
| Gross Weight | 115kg | 110kg | 115kg |
| Packing meas. | 840*465*690 | 1005*560*845 | 1005*560*845 |
| 40HQ loading qty | 198 | 144 | 144 |
