Product Descriptions

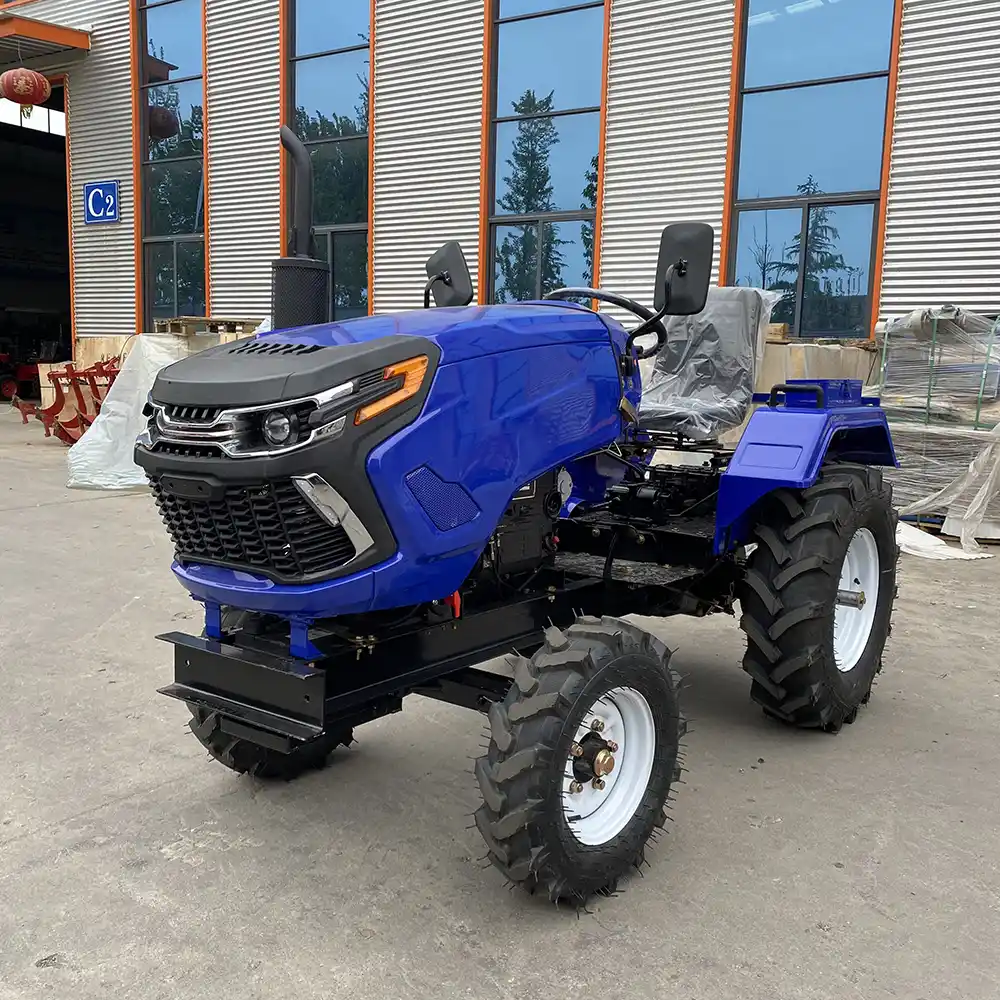

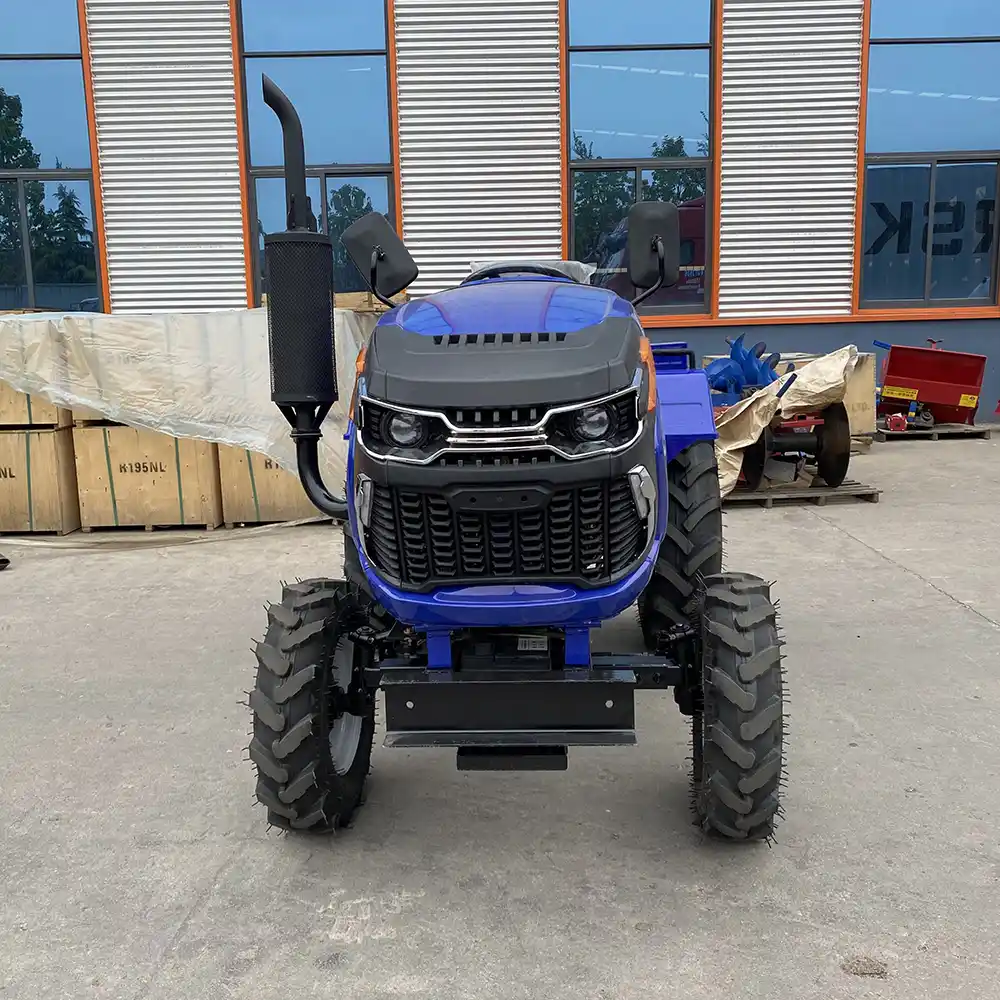

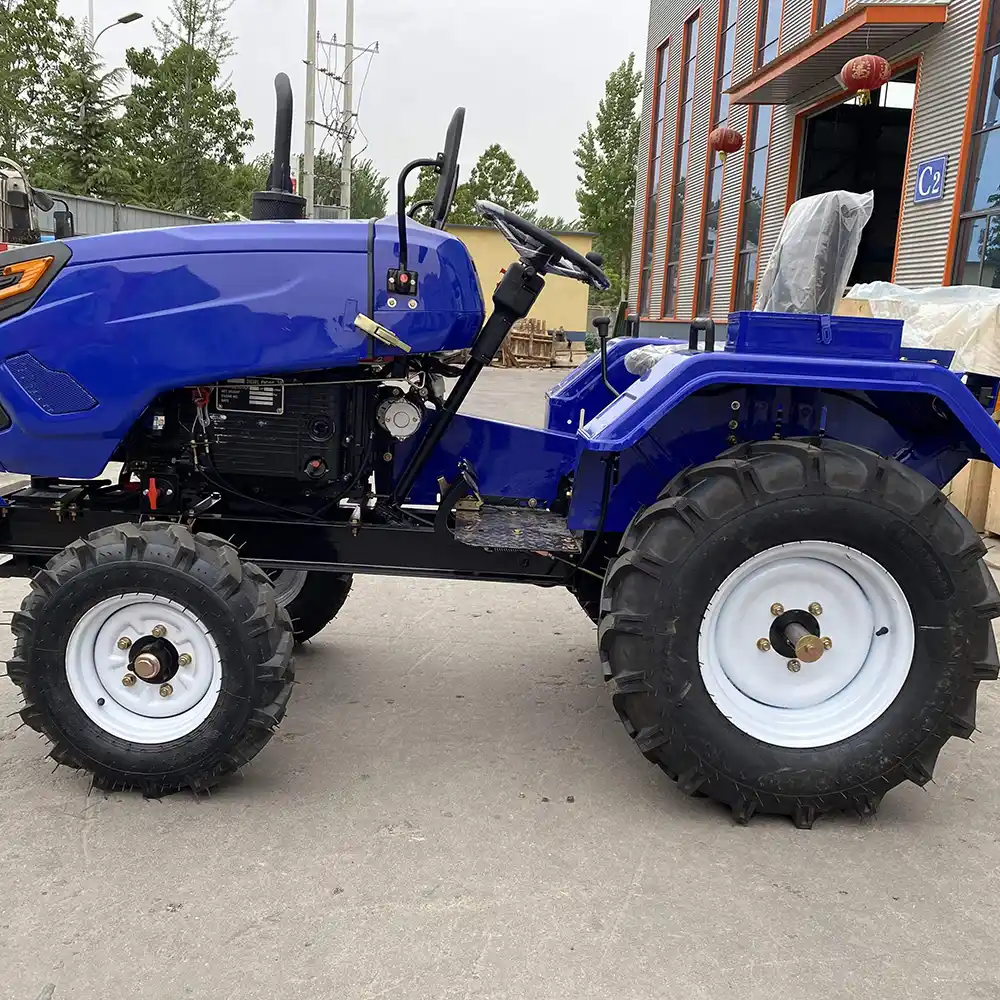

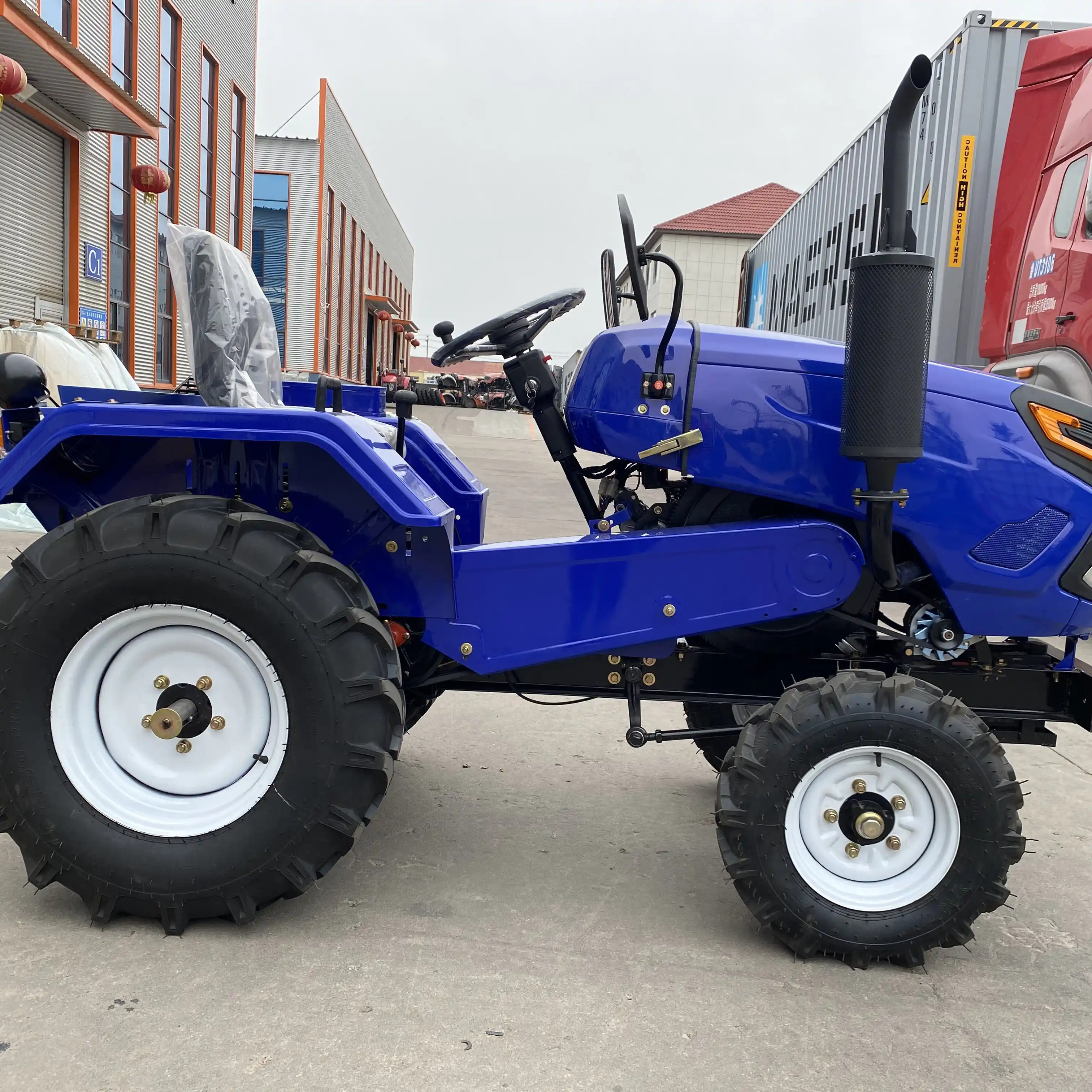

Mini Agricultural Tractor, 4 Wheels, Chinese manufacturer free shipping 4wd mini farm garden tractor with front loader epa engine
Tractors are the most widely used agricultural machinery.
It only needs to replace the connected different accessories (front loader, rear digger, agricultural trailer, disc plow, harrow, seeder, rotary tiller, etc.) to complete various agricultural work: plowing, plowing, sowing, harvesting wait
We have small tractors (25-60hp), medium tractors (70-100hp), large tractors (110-220hp), Euro V tractors (25, 50, 75hp) to meet the needs of different regions and different customers
| Parameters | Drive Type | / | 4WD | |
| Overall Dimensions L×W×H | mm | 3180×1285/1450×2290 | ||
| Wheel Track | Front | mm | 970/1210 | |
| Rear | mm | 1000/1160 | ||
| Wheel Bass | mm | 1540 | ||
| Ground Clearance | mm | 300 | ||
| Rated Traction Force | N | 6620 | ||
| Construction Mass | kg | 1080 | ||
| Min.Turning Radius | mm | 3270 | ||
| Theoretical Speed | Forward（low-grade） | km/h | 0～8.2 | |
| Reverse（low-grade） | km/h | 0～8.2 | ||
| Forward（high grade） | km/h | 0～20 | ||
| Reverse（high grade） | km/h | 0～20 | ||
| Engine Specifications | Model |
/
|
Perkins 403F-11 | |
| Type |
/
|
3-Cylinder Vertical, water cooled,4 stroke cycle indirect injection, |
||
| Rated Power | kw/hp | 18.4/25 | ||
| Rated Speed | rpm | 2600 | ||
| Bore×Stroke | mm | 77×81 | ||
| Total Displacement | L | 1.131 | ||
| Drive System | Clutch |
/
|
Monolithic dry combined with friction | |
| Gear Box |
/
|
HST+Two gears | ||
| Main Drive |
/
|
A pair of spiral bevel gears | ||
| Differential |
/
|
Two closed planetary wheel | ||
| Differential Lock |
/
|
Tooth type | ||
| Final Transmission |
/
|
Ingle - stage straight - tooth cylindrical gear external type | ||
| Traveling Mechanism | Tyre | Front |
/
|
26×7.5-12 grass tire |
| Rear |
/
|
11.2-20 grass tire | ||
| Steering Gear |
/
|
Full Hydraulic Steering | ||
| Brake |
/
|
Double pedal disc brakes | ||
| Working Device | Hydraulic System |
Lifting Capacity at 610mm Behind Lift |
/
|
3900 |
| 3-Point Suspension |
/
|
Category :I | ||
|
P.T.O Shaft （Rear） |
Rotating Speed | rpm | 540/1000 | |
| Spline Size |
/
|
6-Φ35 Rectangular Spline | ||
|
P.T.O Shaft （Mid） |
Rotating Speed | rpm | 2000 | |
| Spline Size |
/
|
11 teeth involute spline | ||
