Product Descriptions
| Technical details of PTO driven model Wood Chipper | ||
| Model | WC- 8H | WC- 8M |
| Max. Dia. of Feeding | 8'' | |
| POWER | Tractor (18~100hp, 540/720rpm) | |
| Diameter of Chipper Disk | 600mm | 600mm |
| Turning Speed of Chipper Disk | 1080rpm/1410rpm | |
| Feeding System | Hydraulic Feeding, | Feeding by Worm Reduction |
| Adjustable Speed, | Gear(4mm/s) | |
| Stop-Reverse-Forward Function | Only Forward Function | |
| Blade material | Durable Chromium CR-12 | |
| Sawdust Measurement | Thickness<4mm | |
| Rotation Angle of Discharge Spout | 360 | |
| Weight | 450kg(990LBS) | 420kg(930LBS) |
| Working Efficiency | 8~9m 3 /h | 6~9m 3 /h |
| Volume of TANK | 26L | / |
| PACKAGE DIMENSIONS (L×B×H) | 1150×900×1300 (mm) | 1150×900×1300 (mm) |
| 20GP/40HC container | 22unit/46units | 22units/46units |

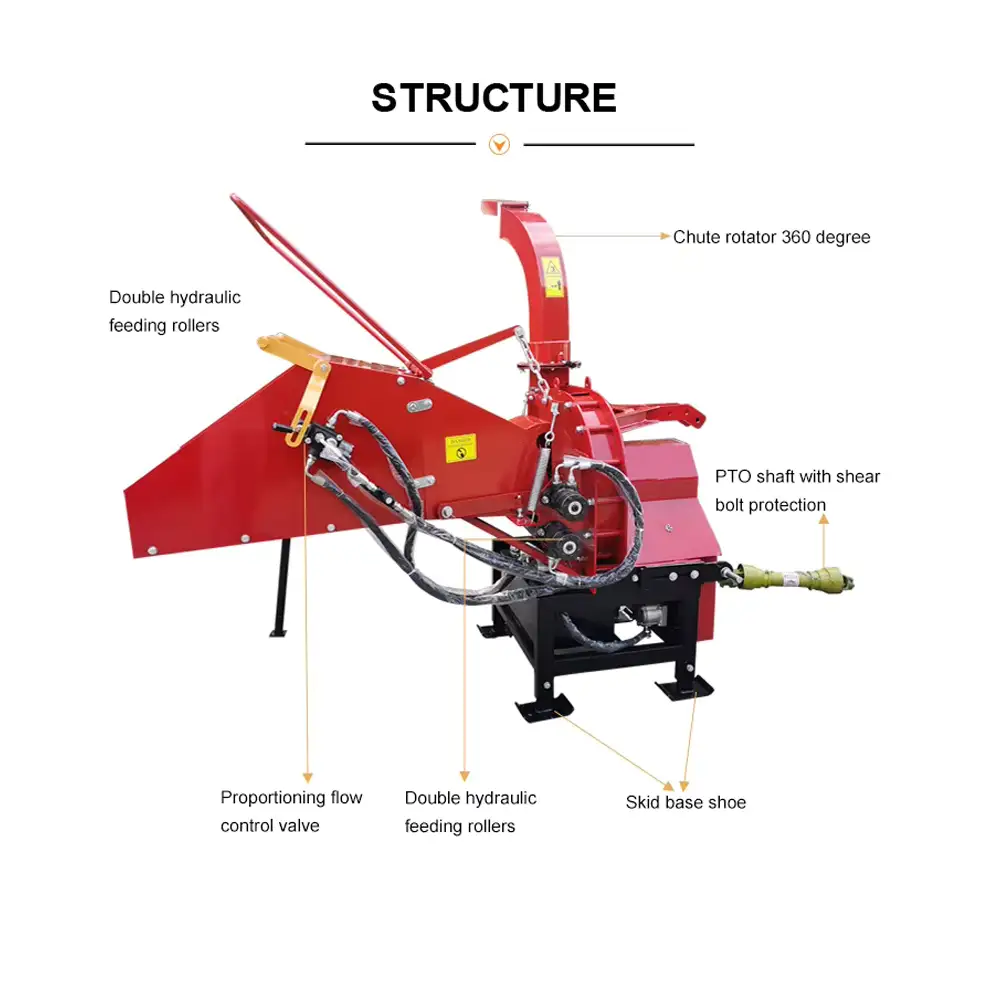

Machine Parts
Name: hydraulic in-feed motor
Quantity: 2pcs
Adjust feeding speed
stop-reverse-forward functionName: Self hydraulic oil tankChipper is complete with a self contained hydraulic pump and a 26L tank to power the two infeed motors. Hydraulics are not required from the tractor.

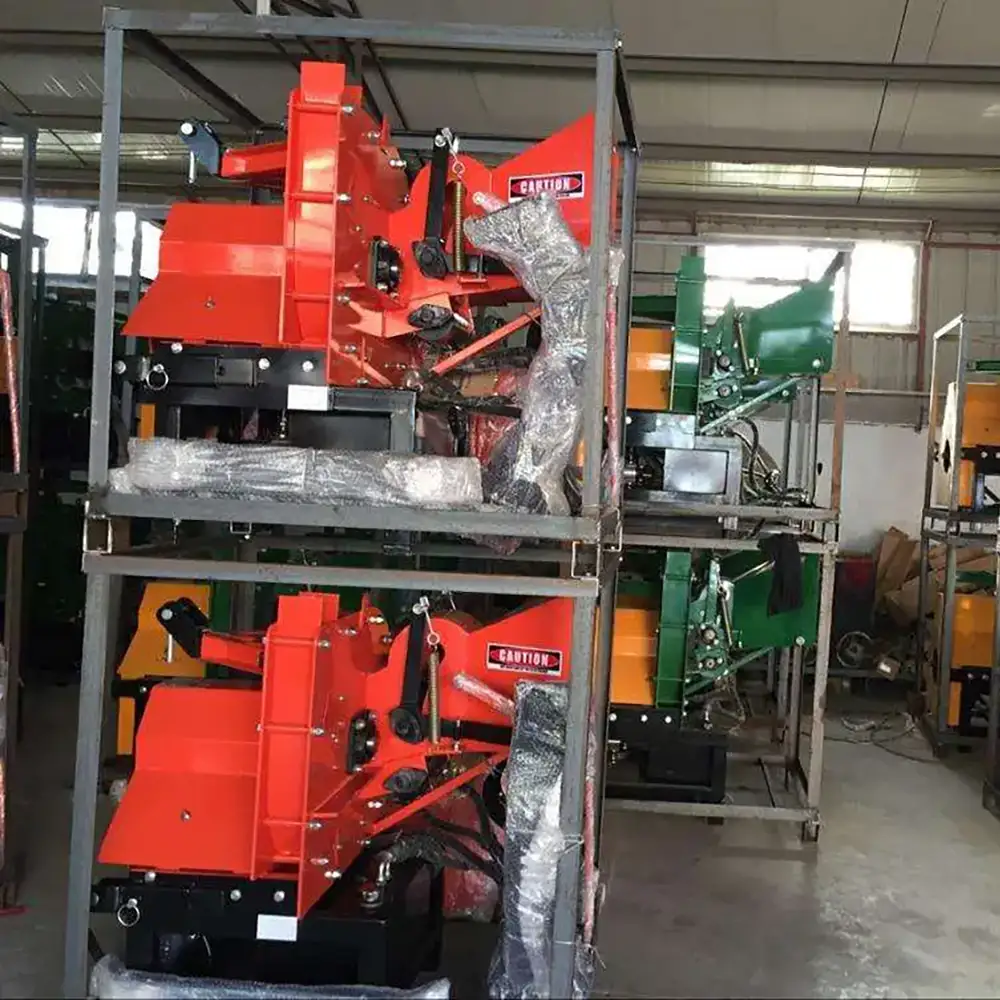

WC-6 6" Wood chipper packing in iron crate when shipping:
Dimension : 120 x 105 x 110cm or 48x 42 x 44inch
Gross weight: 375 kg/825 lbs Net weight: 305 kg/671 lbs.
WC-8 8" Wood chipper packing in iron crate when shipping:
Dimension : 120x 110 x 110 cm or 48 x 44 x 44 inch
Gross weight 420kg/924lbs Net weight 370kg/814lbs
