Product Descriptions
PTO wood chipper, suitable for 25hp to 120hp tractor
Self feeding gravity assisted feed in-feed system/hydraulic feeding system
360 degree swivel discharge chute
Laser cut steel construction
7/32" thick steel chipper drum housing
Easy knife access
Adjustable fixed knive (to achieve proper knife gap)
Safety stop bar
2- heavy duty main shaft bearings
|
Model
|

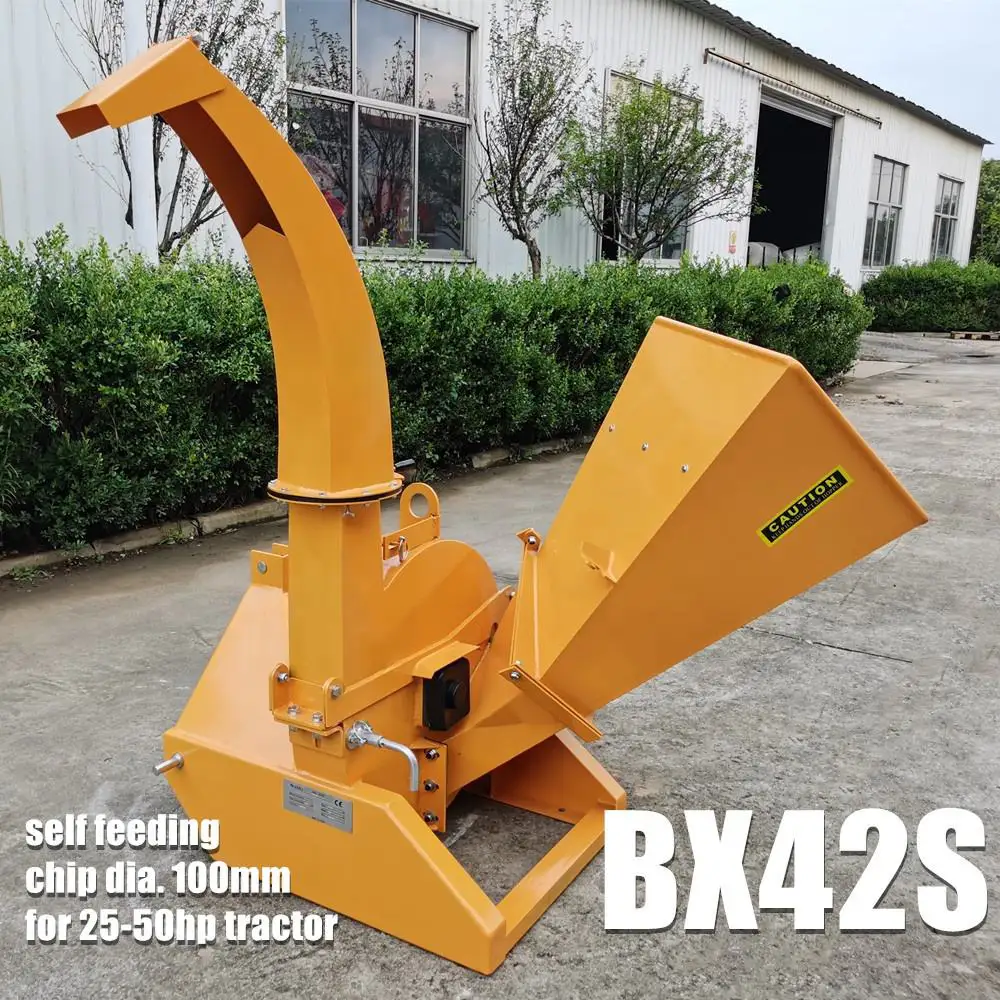

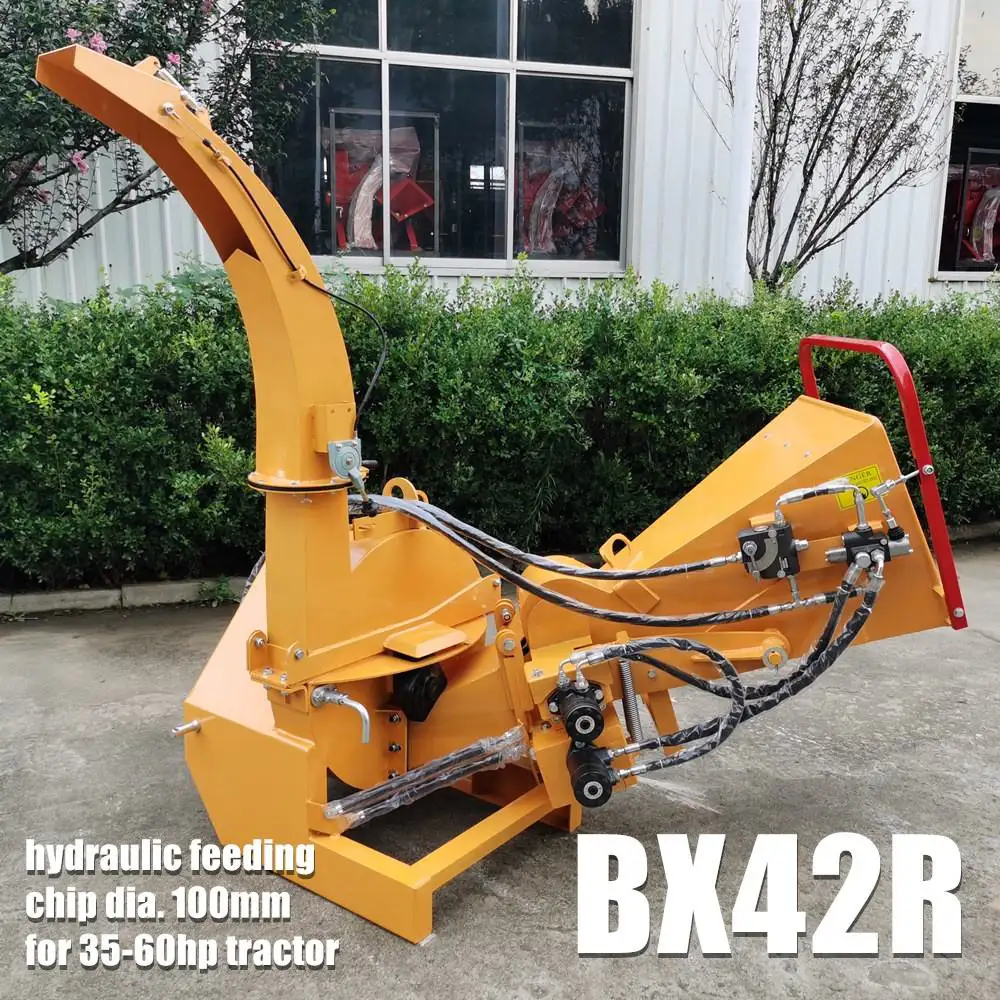

BX42 wood chipper
|

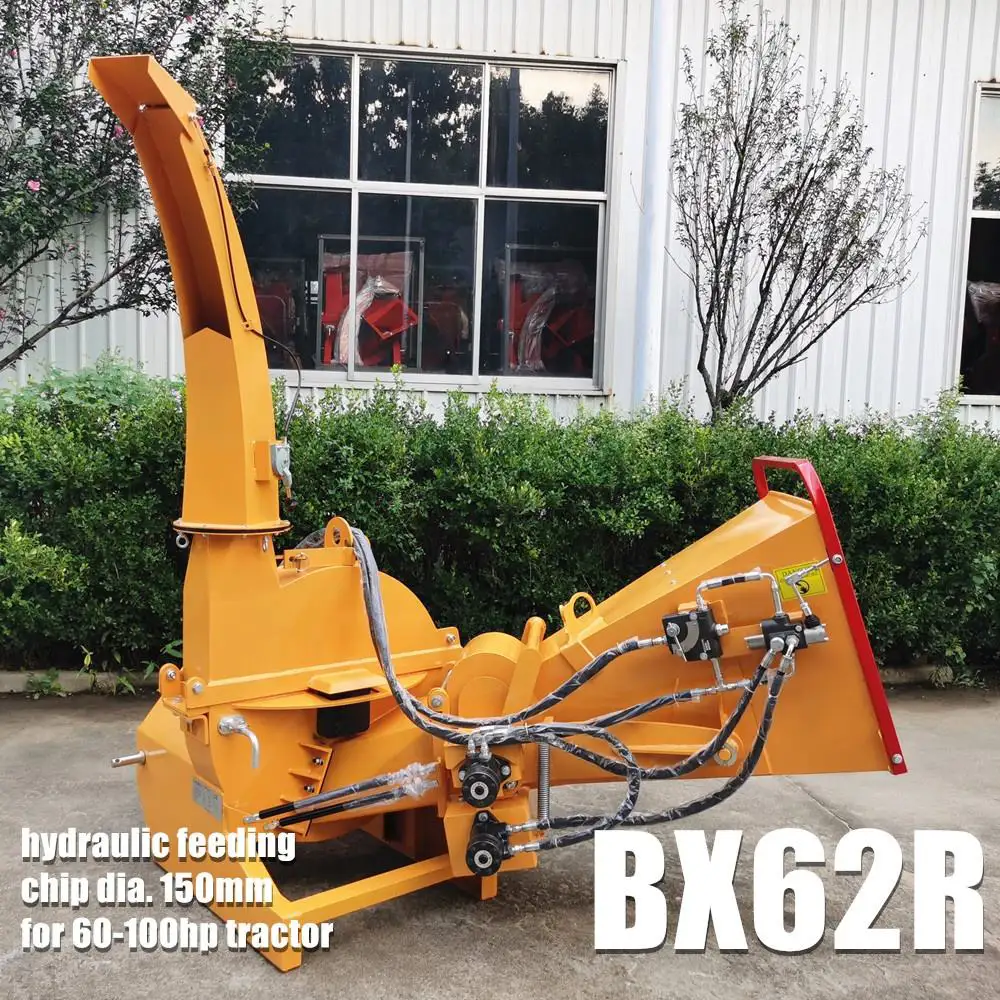

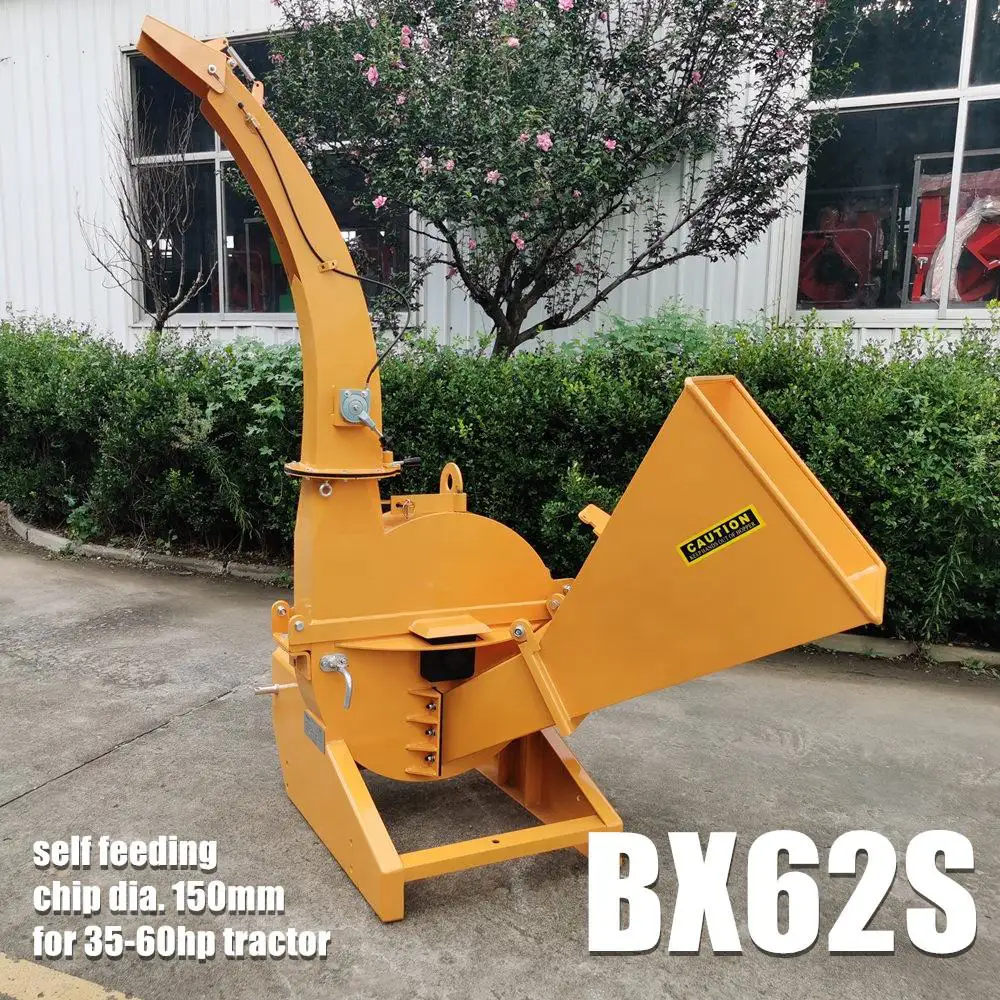

BX62 /BX62R wood chipper
|
BX82R wood chipper
|

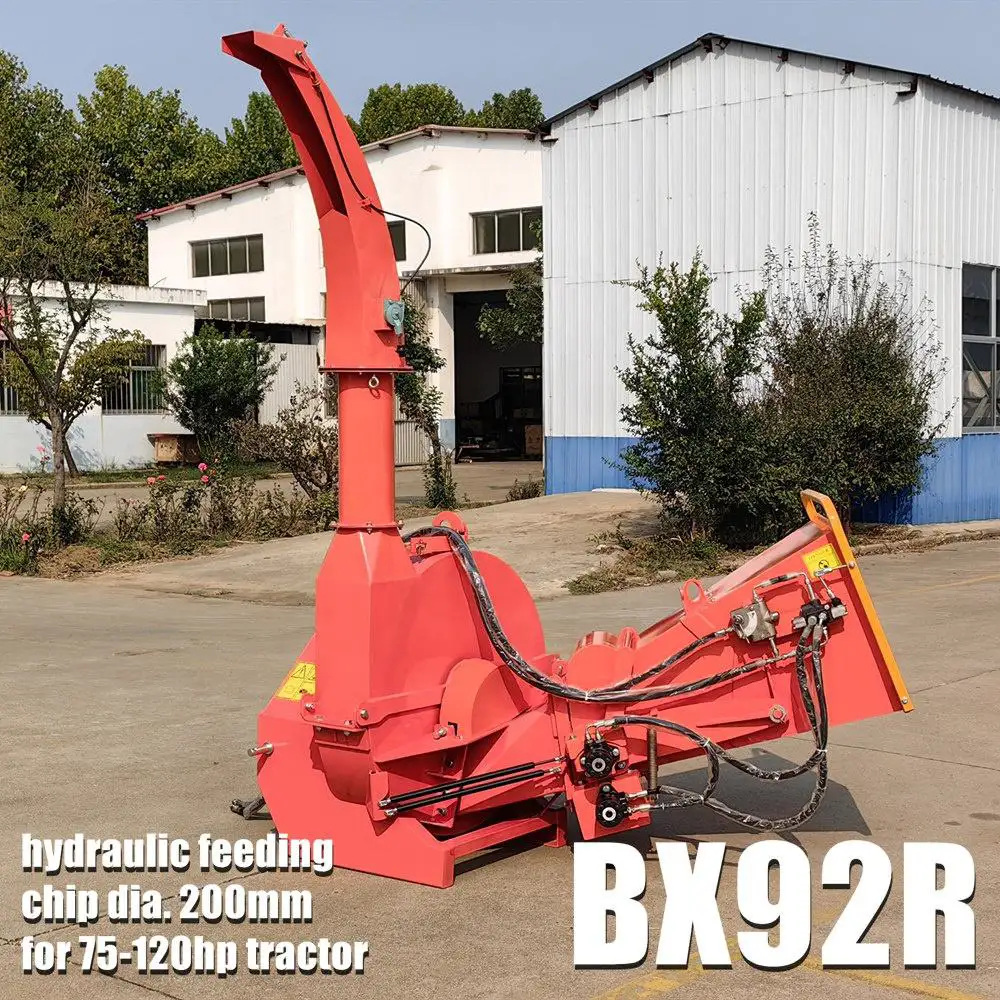

BX92R wood chipper
|
|
Drive System
|
Direct drive, PTO w/ shearbolt
|
Direct drive, PTO w/ shearbolt
|
Direct drive, PTO w/ shearbolt
|
Direct drive, PTO w/ shearbolt
|
|
HP Range
|
18-50
|
30-70
|
50-100
|
65-120
|
|
Chipper Capacity
|
4" Dia. (max. 12" slab)
|
6" Dia. (max. 12" slab)
|
8" Dia. (up to 13" slab)
|
10" Dia. (up to 14" slab)
|
|
Rotor Size
|
25"
|
29”
|
35"
|
37"
|
|
Number of Rotor Knives
|
4
|
4
|
4
|
4
|
|
Knife Type
|
Hardened tool steel
|
Hardened tool steel
|
Hardened tool steel
|
Hardened tool steel
|
|
Knife size
|
210*60*9mm
|
210*60*9mm
|
240*60*9mm
|
320*100*16mm
|
|
Rotor Weight
|
50kgs
|
98kgs
|
98kgs
|
242kgs
|
|
Rotor thickness
|
18mm
|
25mm
|
25mm
|
30mm
|
|
Feeding System Feed
|
Self Feed
|
Self or Hydraulic Feed
|
Hydraulic Feed
|
Hydraulic Feed
|
|
Mounting System
|
3 Point Hitch
|
3 Point Hitch
|
3 Point Hitch
|
3 Point Hitch
|
|
Dimensions (Hopper Folded)
|
1600*1600*1830mm
|
1850*1550*2040mm
|
1850*1550*2040mm
|
1950*1750*2040mm
|
|
Hopper Opening
|
500 x 500mm
|
6½" x 12"
|
630 x 630 mm
|
640 x 640 mm
|
|
Discharge Hood Rotation
|
360°
|
360°
|
360°
|
360°
|
|
Discharge Hood Height
|
60"
|
74"
|
84"
|
87"
|
|
Rated RPM
|
540-1000
|
540-1000
|
540-1000
|
540-1000
|
|
Weight
|
220 kgs
|
420 kgs
|
600 kgs
|
780 kgs
|
