Product Descriptions

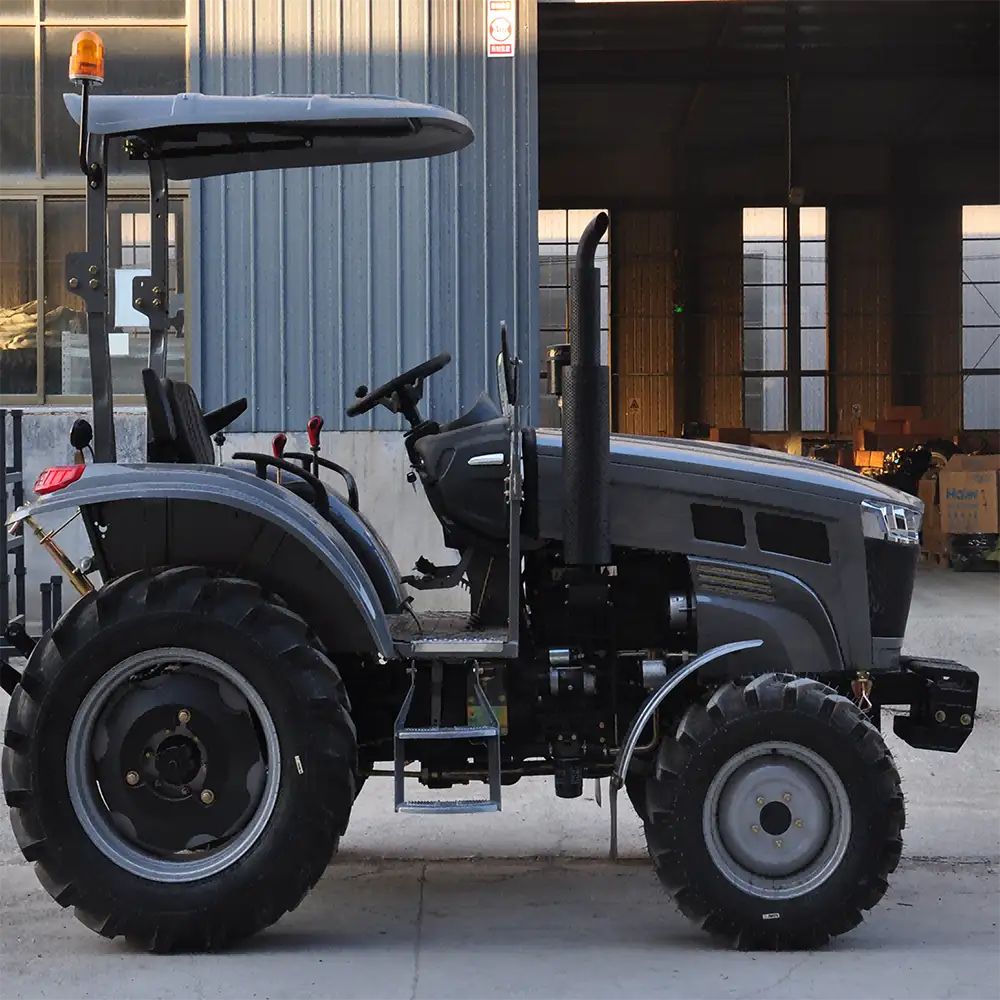

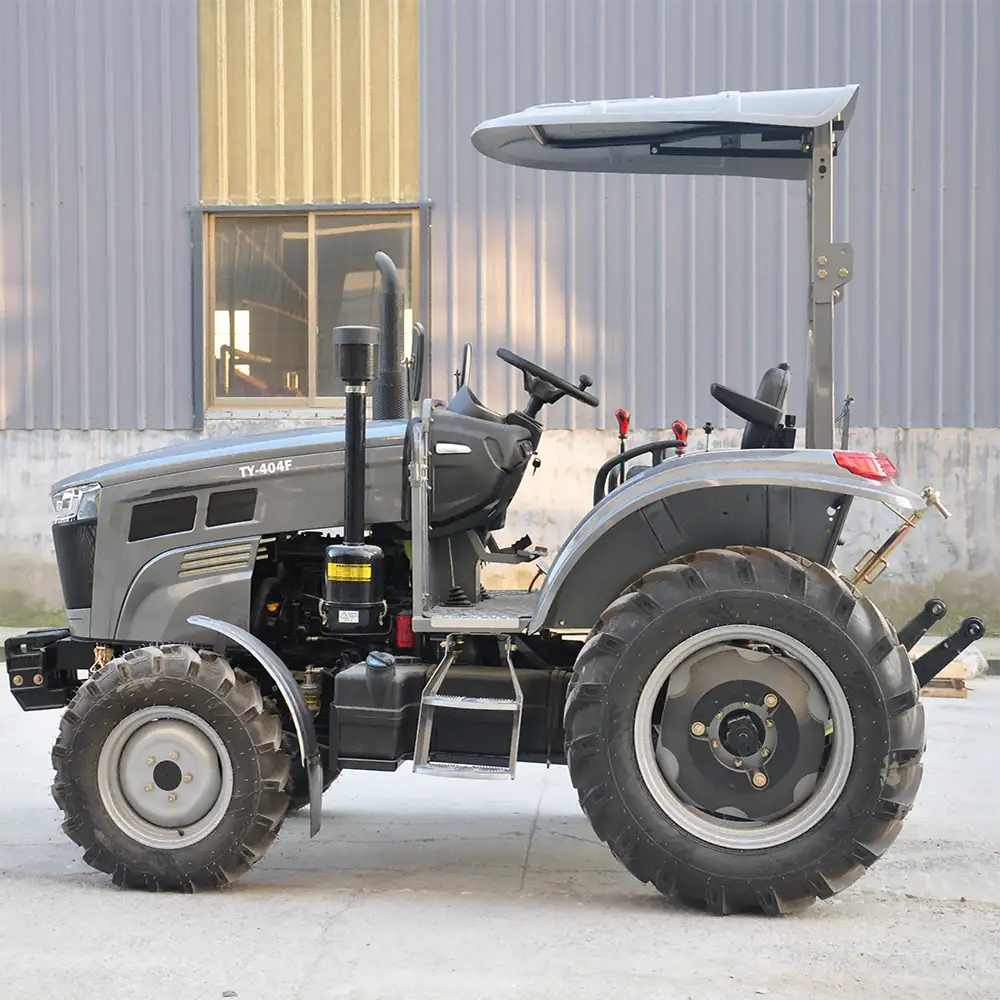

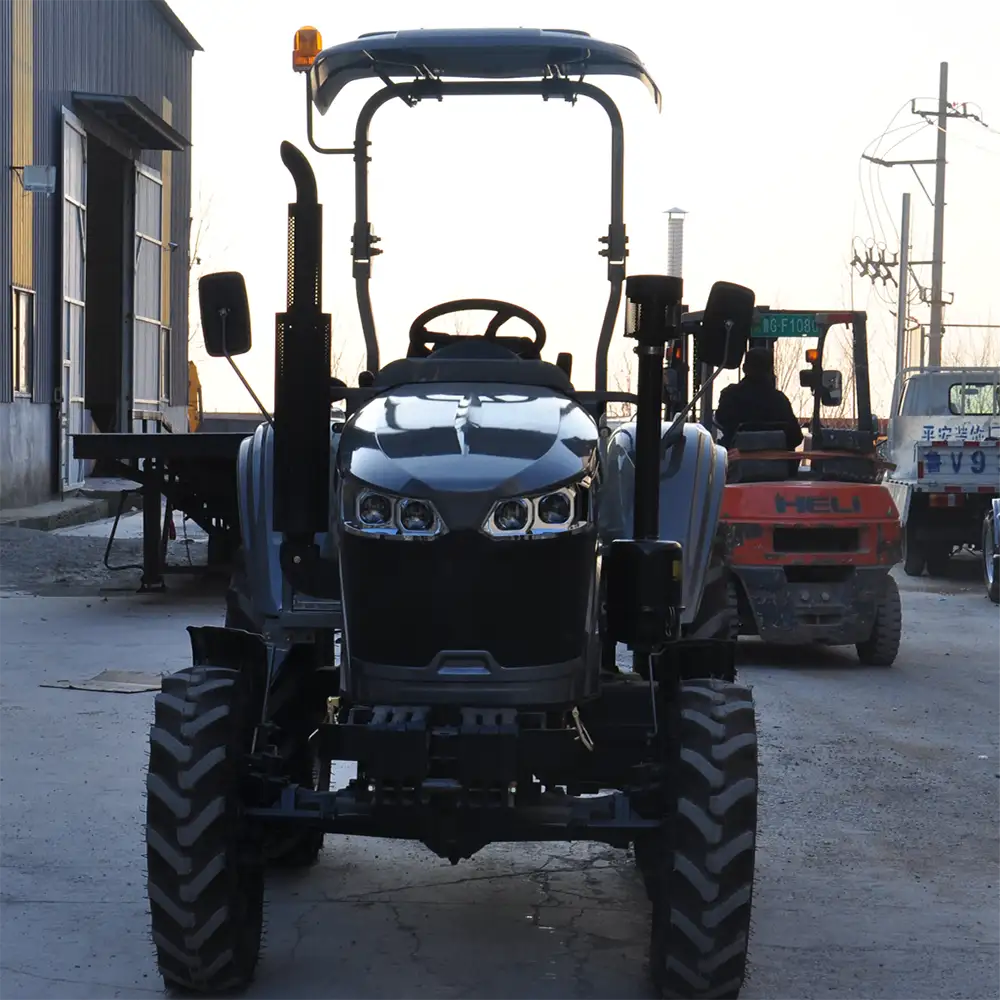

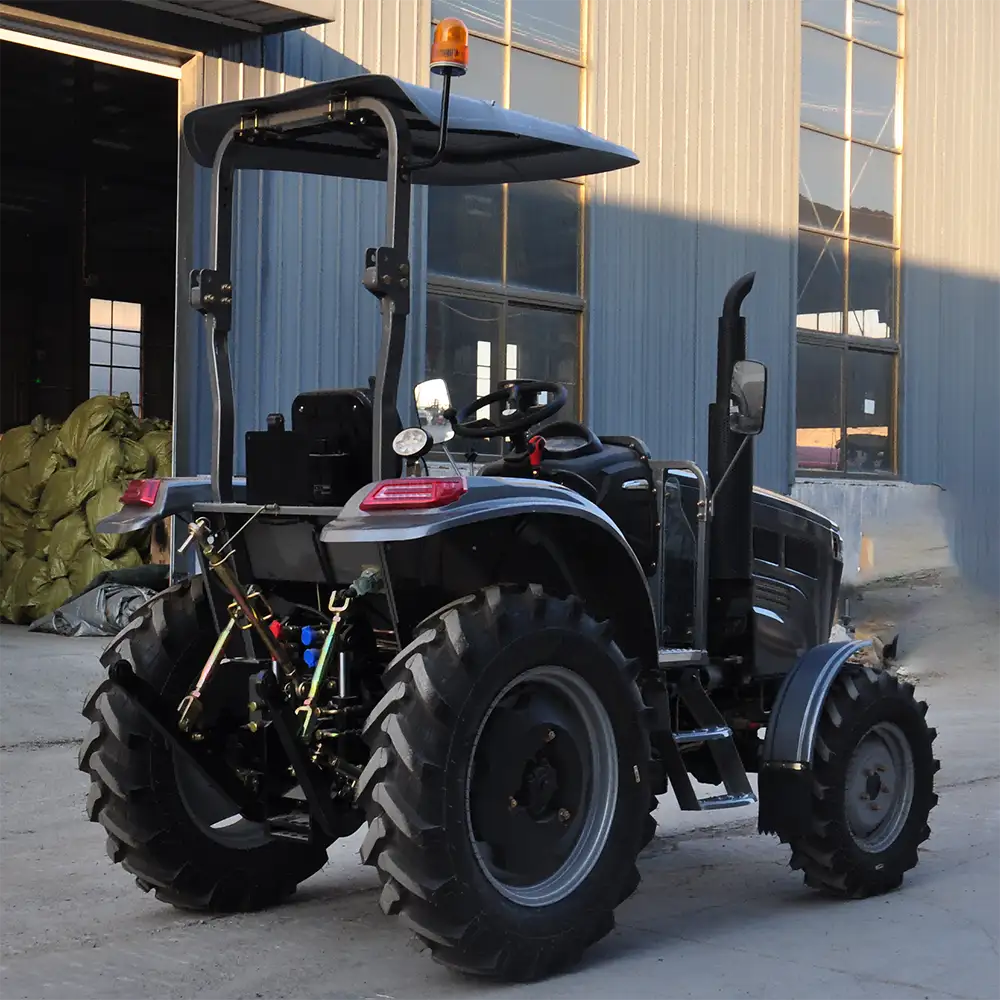

4×4WD Tractor,Tractor with Canopy Sunshade,20-45HP Tractor has the characteristics of high transmission efficiency, low tremble, high traction, high adaptability and easy star
1. Power: 25hp to 45hp
2. Engine: Laidong 3/ 4 cylinder diesel engine
3. Drive type: 2 / 4 wheel drive
4. Steering type: hydraulic power steering
5. Clutch: dual function clutch
6. Transmission type: F8+R2 collar shift gear
7. Instrument panel: combined instrument panel or seperated instrument panel
8. Linkage: category 1 rear-mounted 3-point linkage
9. Lifter: Draft and Positional adjustable
10. Front tyre: 6.00-16 Rear tyre: 9.5-24 (big tyre for optional)
| Dimension(L×M×H） | 3800×1580×2350mm | |||
| Wight | 1600kg-2800kg | |||
| Front wheel tread | 1210mm | |||
| Rear wheel tread | 1240mm | |||
| Wheel base | 1700mm | |||
| Wheel size | 6.00-16/9.50-24（6.50-16/11.2-24） | |||
| Engine type | 3 Cylinders-Natural Aspiration | |||
| HP | 25hp-18.4kw/30hp-22.1kw/40hp-29.4kw | |||
| Clutch | Single Dry Type | |||
| Gear | 8 Forward+2 Reverse-Sliding Spur | |||
| Gear | 16 Forward+4 Reverse/8 Forward+8 Reverse | |||
| PTO dual speed | 540/720rpm | |||
| Fuel tank | 35L | |||
| Hydraulic pump | 50L/min | |||
| Battery | 12V，100Ah | |||
