Product Descriptions

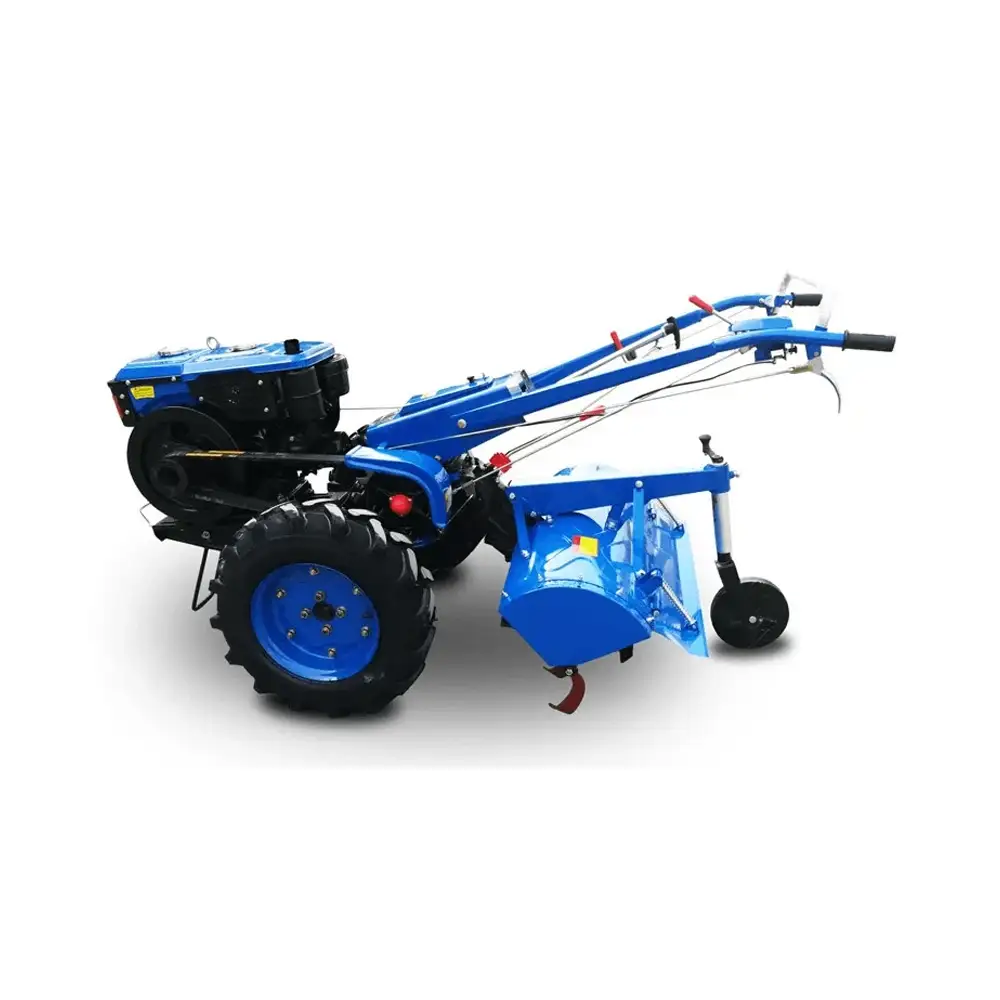

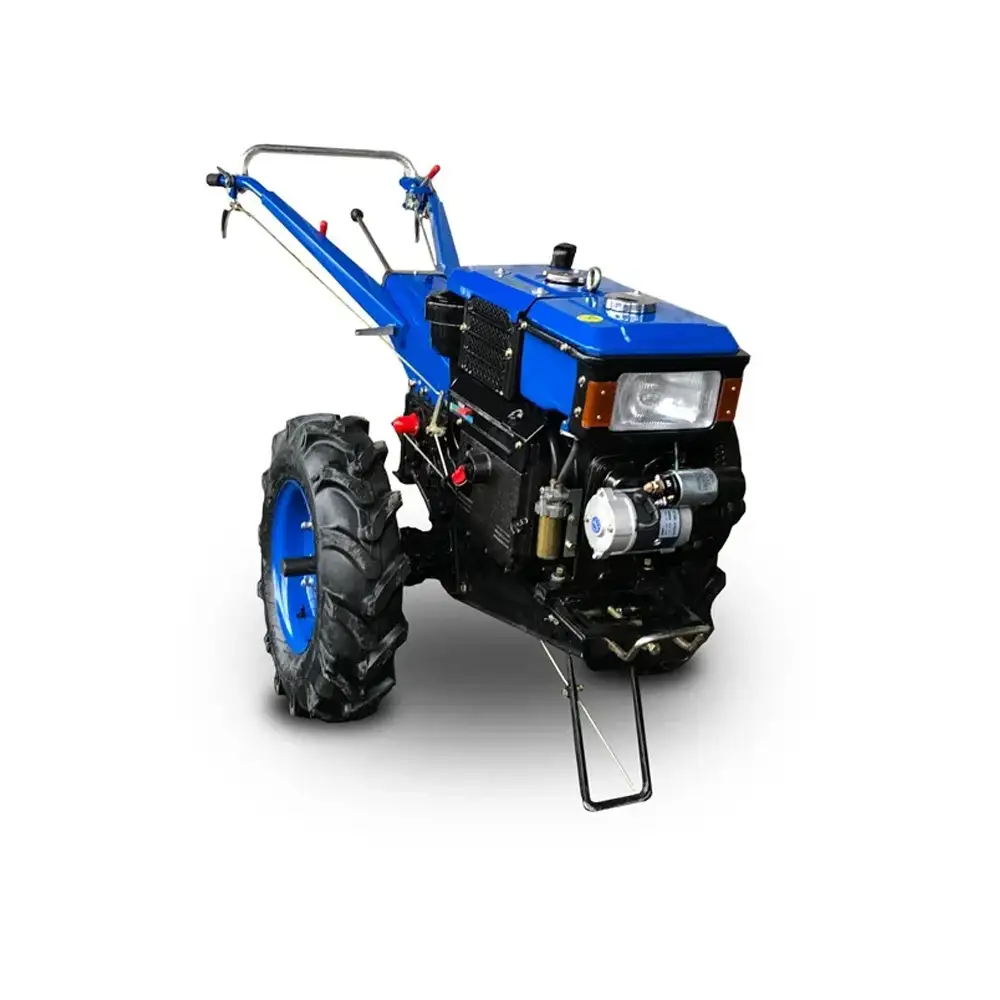

The tractor mainly used for farming work, such as tilling, ploughing, raking, bed preparation moving and harvesting in dry or wet fields when suitable implements are matched. When attached with a trailer, it may be used for transportation, and when power is taken out from its P.T.O. shaft is also a stationary power source for spraying, four milling, rice milling, tuber crops grinding, etc. The tractor is especially suitable for mountain areas and hilly land.Advantages:
1. It adopts gear drive directly, which is of high transmission efficiency.
2. When doing farm work in the deep mud field, the clutch will neither skid, nor wind grass.
3. When operating in fields filled with high straw or intensive seeds
4. The diesel engine is using natural convection circulation for cooling water and the circulating water won't evaporate. No need to add water often. The water temperature is not high and very powerful, which is especially suitable for the farm working in mountainous area and the paddy field or upland in the tropical area.
Following Implements Are Optional:
1) Rotary Tiller (optional)2) Single plough (optional)
3) Electric start (optional)
4) Trailer (optional)
5) Grass cutter
6) Seat
Products Specifications
| Model | Unit | SH81/101/121 | |
| Structure weight | Without rotavator | kg | 215 |
| With rotavator | 265 | ||
| Working weight (with rotavator) | kg | 305 | |
| Overall dimensions (LxWxH) | mm | 2180x890 x 1250 | |
| Number of blades | PCS | 14 | |
| Rototilling width | mm | 700 | |
| Type of tractor | Single axle, dual-purpose for both traction & drive | ||
| Travelling speed | Forword | Km/h | 2.01, 3.32, 5.31, 6.76, 11.18, 17.86 |
| Reverse | 3.28, 11.03 | ||
| Type size | 6.00-12 | ||
| Wheel track | mm | 650~730(normally use 730) | |
| Min. ground clearance | mm | 214 | |
| Min. turning radius | m | 0.9(with no rotavator) | |
| Model of engine | R180AN/R190NM/R195NM | ||
| Type of engine | Horizontal 4-stroke | ||
| Bore x stroke | mm | 80×80 | |
| Total displacement | L | 0.402 | |
| Compression ratio | 22:01 | ||
| Turing speed of crankshaft | rpm | 2600 | |
| 1-hour rated output | KW/hphp | 5.66/7.7 | |
| 12-hour rated output | KW/hp | 5.15/7 | |
| Specific fuel consumption | g/kw.h | ≤287 | |
|
Specific lube oil consumption |
g/kw.h | ≤4.08 | |
| Cooling mode | Condenser (Radiator) | ||
| Main farm implements (optional) |
Anti-skid steel wheel Single-furrow plough Turnover plough Rotary tiller Sprinkler Swather/reaper Trailer (Standard) |
||
