Tractor backhoe descriptionTractor backhoe is widely used on small farm ,gardenand construction digging works,use 3 point hitch,driven by tractor PTO,easy transport.
1. Matched any tractor.
2. Powered by PTO driven with hydraulic pump.

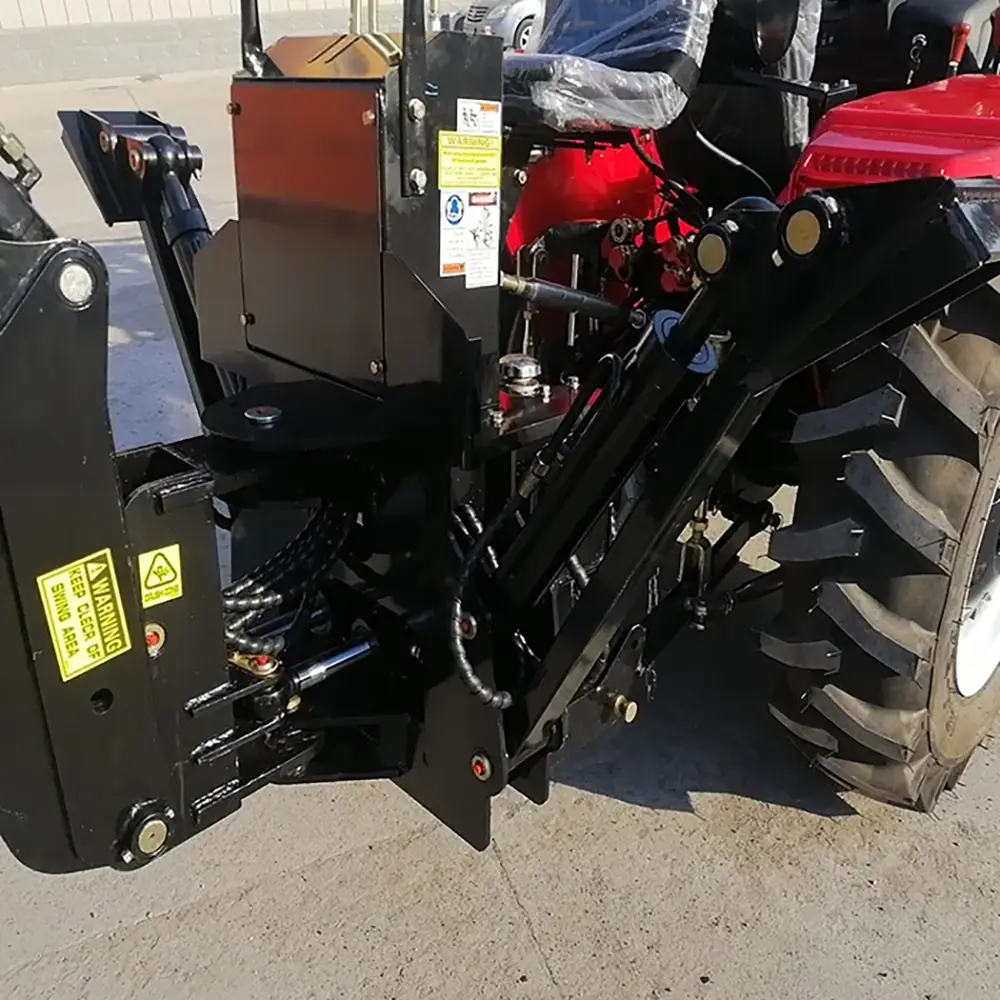

3.3-point hitched backhoe, steady structure
4.Oil tank, oil show, gas-permeable cap

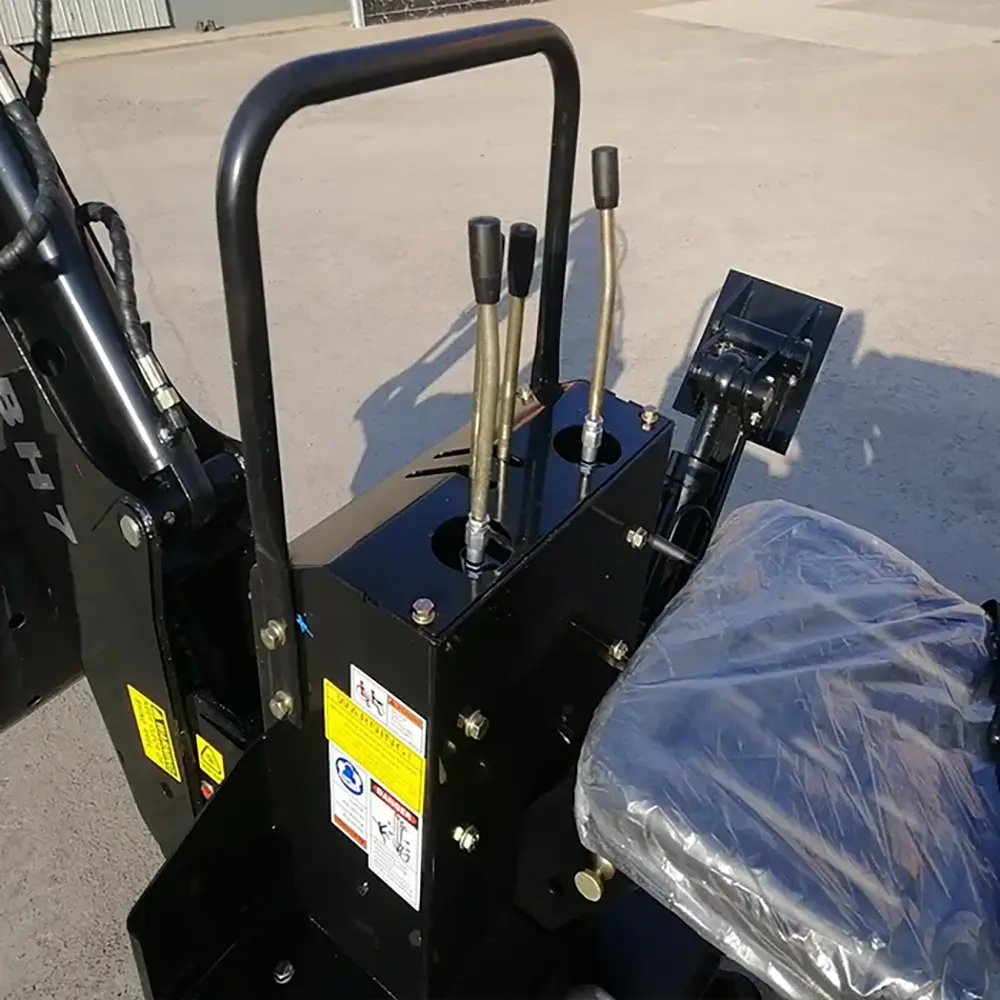

5.claw on boom, handed control valve
6.luxury spring seat and safety belt.

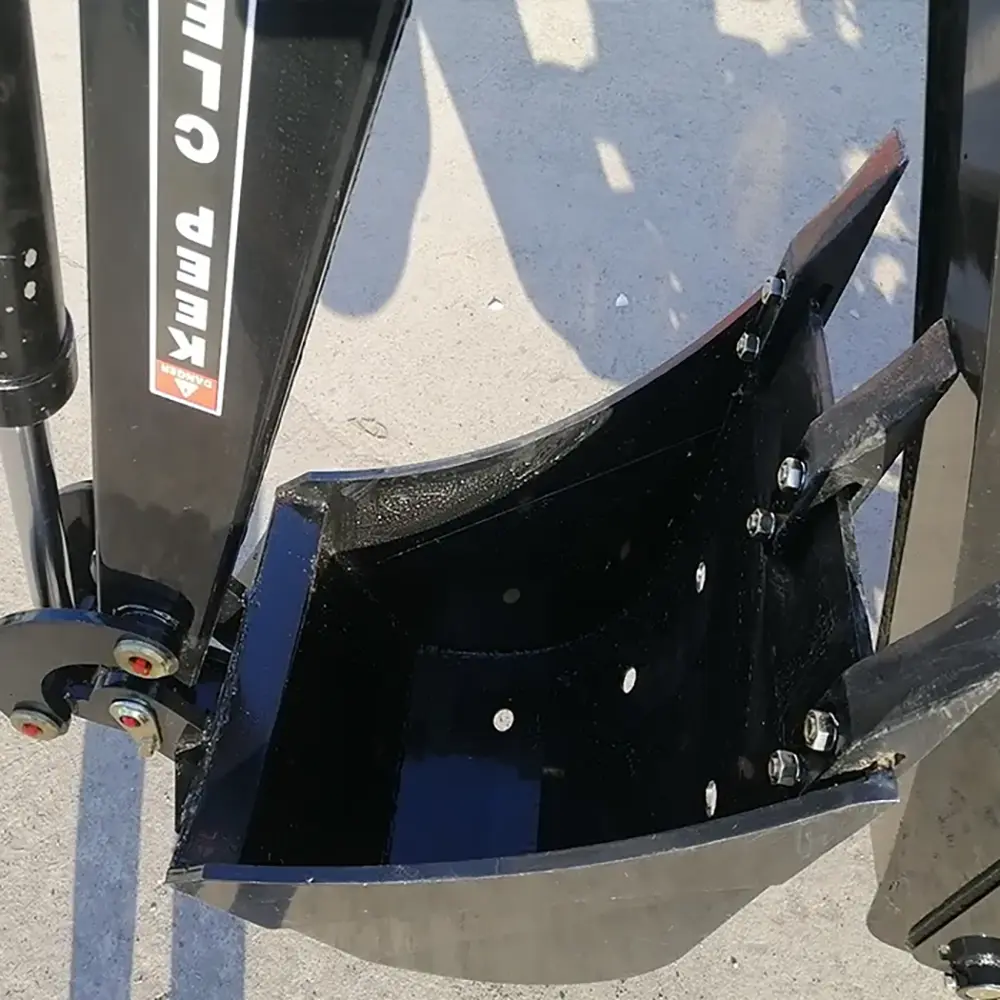

7.Optional buckets, 300-800mm width
8.Work independently, only need vehicle to tow to the working destinationTractor backhoe specification
| Technical Specifications | BH-6 | BH-7 | BH-8 |
|
Dimensions (H x W x D) (mounted on tractor) |
68x51x48 in. | 71x51x48 in. | 78x51x55 in. |
| Total Weight | 1170 lb. | 1,203 lb. | 1,230 lb. |
| 3-point hitch | CAT I/II | CAT I/II | CAT I/II |
| max. PTO shaft RPM | 540 RPM | 540 RPM | 540 RPM |
| Drive System | PTO Shaft Pump | PTO Shaft Pump | PTO Shaft Pump |
| Hydraulic Tank (with site glass) | 17L/4.3Gal | 17L/4.3Gal | 17L/4.3Gal. |
| Max. Pump Performance | 22L/min at 2250psi | 22L/min at 2250psi | 22L/min at 2250psi |
| Tractor Engine Power rec | 18-35 HP | 25-55 HP | 40-75 HP |
| Mechanical Thumb | Included | Included | Included |
| Bucket size | 3 Rippers | 4 Rippers | 4 Rippers |
| Bucket width | 12 in. | 15 in. | 15 in. |
| Other Buckets available | 18″ | 18″ | 18″ |
| Max. working depth | 6 ft. | 7 ft. | 8 ft. |
| Max. working radius | 102 in. | 116 in. | 126 in. |
| Max. height | 108 in. | 122 in. | 138 in. |
| Max. off-loading height | 63 in. | 70 in. | 75 in. |
| Max. lifted weight | 880 lb. | 880 lb. | 880 lb. |
| Max. bucket digging force | 3,300 lb. | 3,300 lb. | 3,300 lb. |
|
Backhoe turning angle |
180 Degrees | 180 Degrees | 180 Degrees |
| Bucket rotation | 172 Degrees | 172 Degrees | 172 Degrees |
| Up position | 47 in. | 47 in. | 47 in. |
| Down position | 85 in. | 85 in. | 85 in. |
| Transport height | 63 in. | 71 in. | 79 in. |
| Transport depth | 48 in. | 52 in. | 56 in. |
| Transport width | 47 in. | 47 in. | 47 in. |
| Painting | Powder coated | Powder coated | Powder coated |
| Metal crate (L x W x H) | 87 x 26 x 57 in. | 87 x 26 x 55 in. | 87 x 26 x 58 in. |

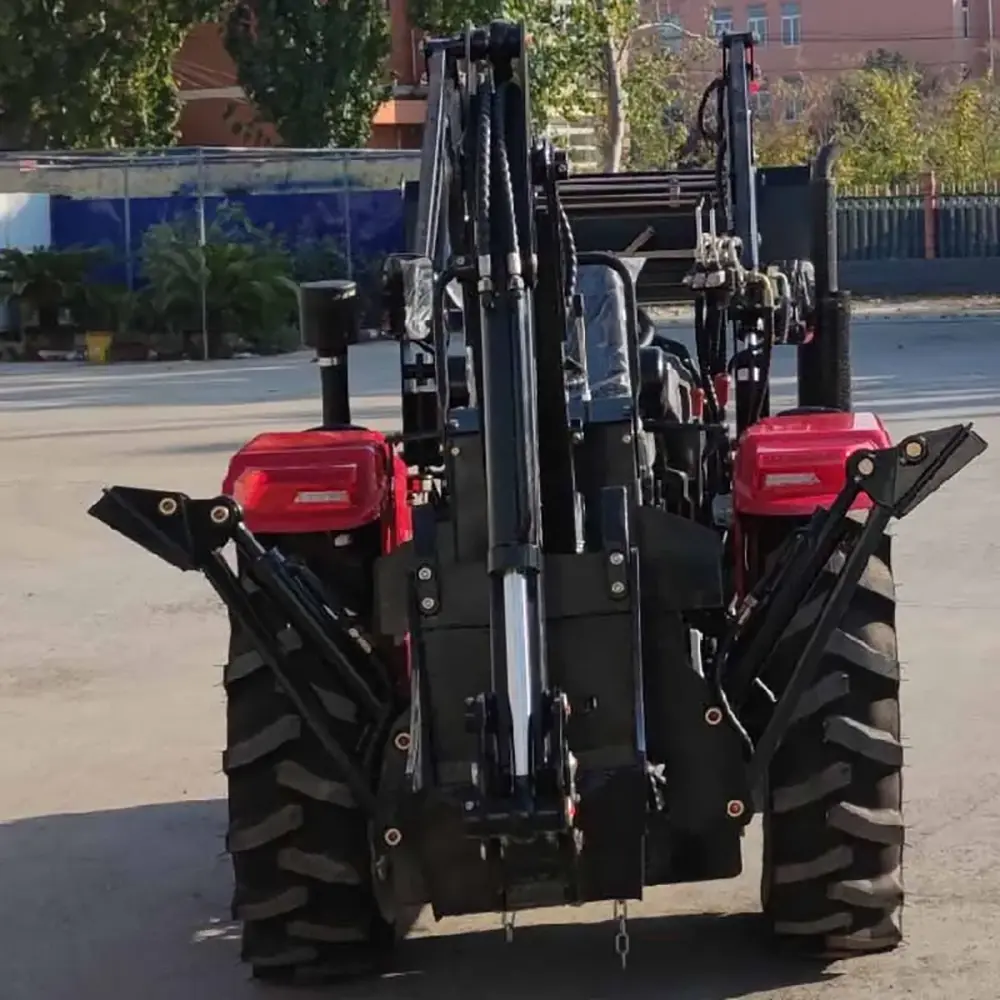

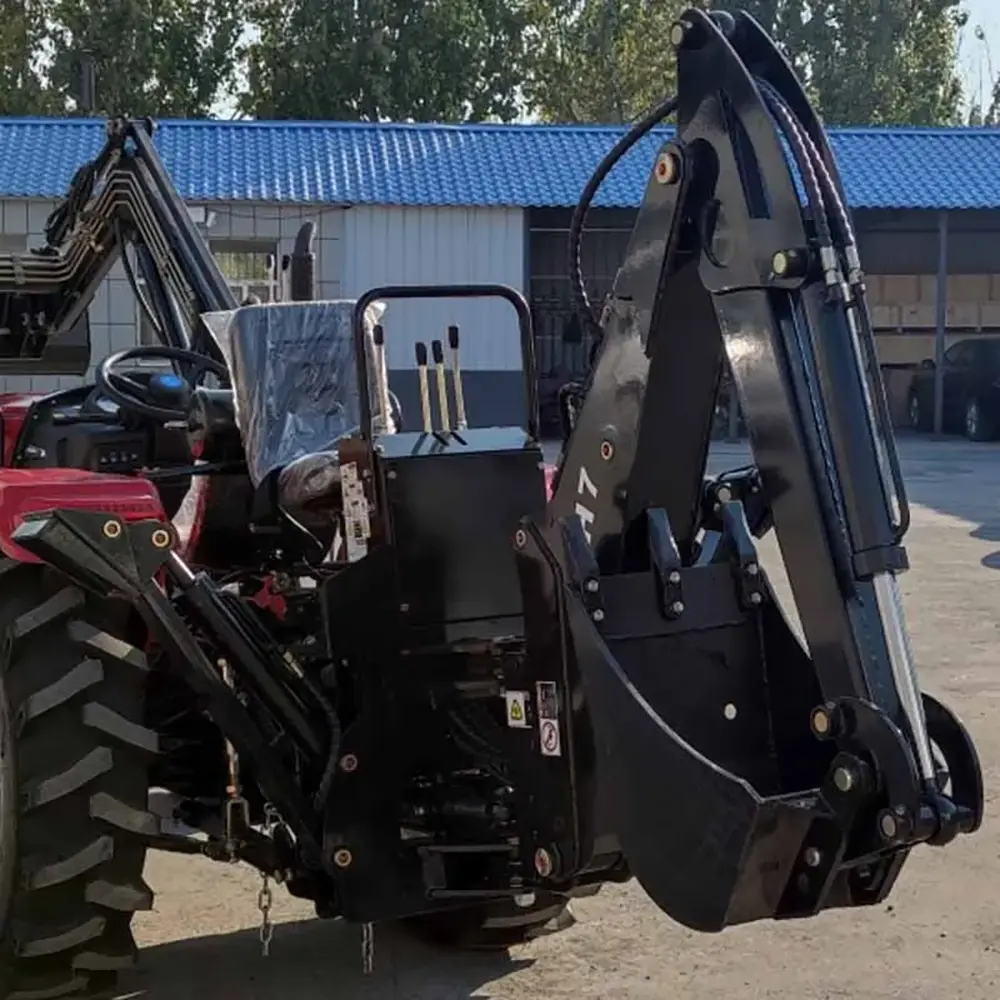

The BH-6, BH-7, and BH-8 3 Point Hitch Backhoe is a professional hydraulic digging attachment designed for compact and utility tractors. Built with high-strength steel construction and advanced hydraulic components, this backhoe delivers powerful digging performance for agriculture, landscaping, construction, and property maintenance.
Featuring a standard Category I/II three-point hitch system, the BH Series backhoe can be quickly mounted to most tractors, providing a cost-effective alternative to dedicated excavators. CE certification ensures reliable quality, operator safety, and compliance with international market standards.
