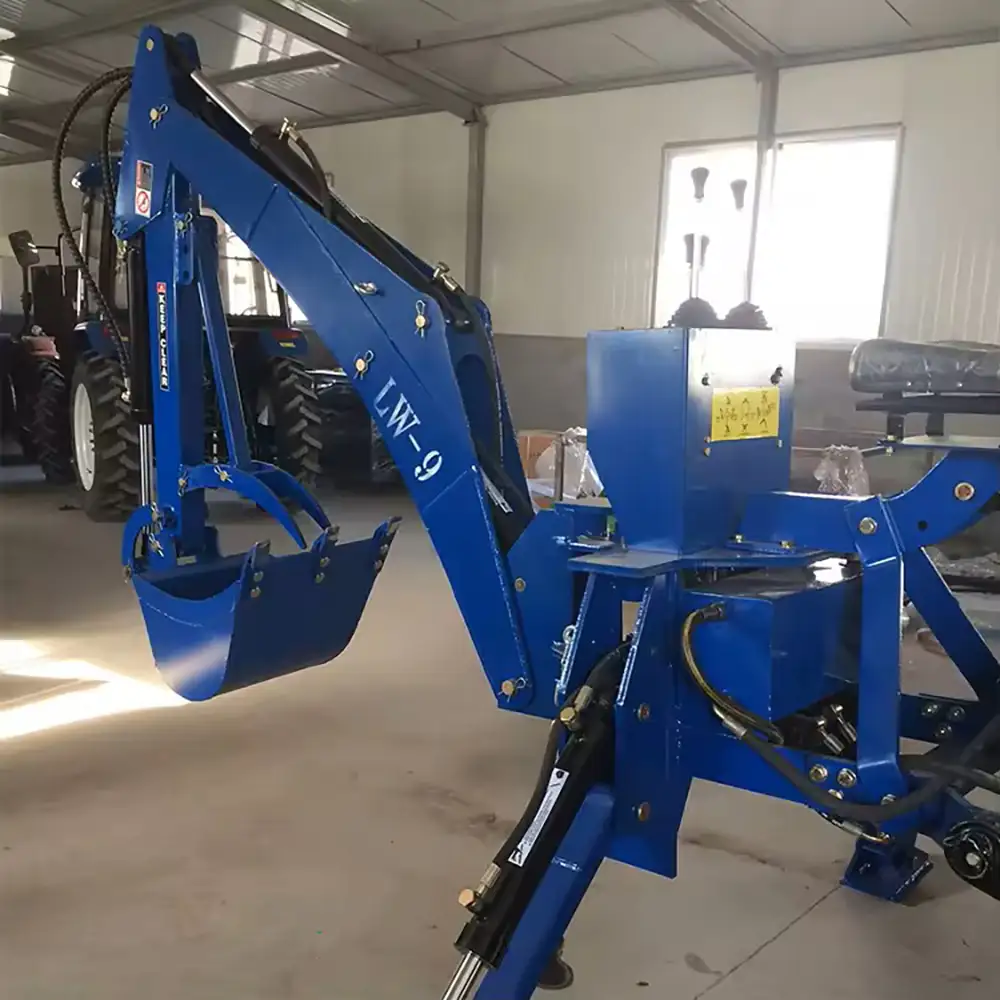

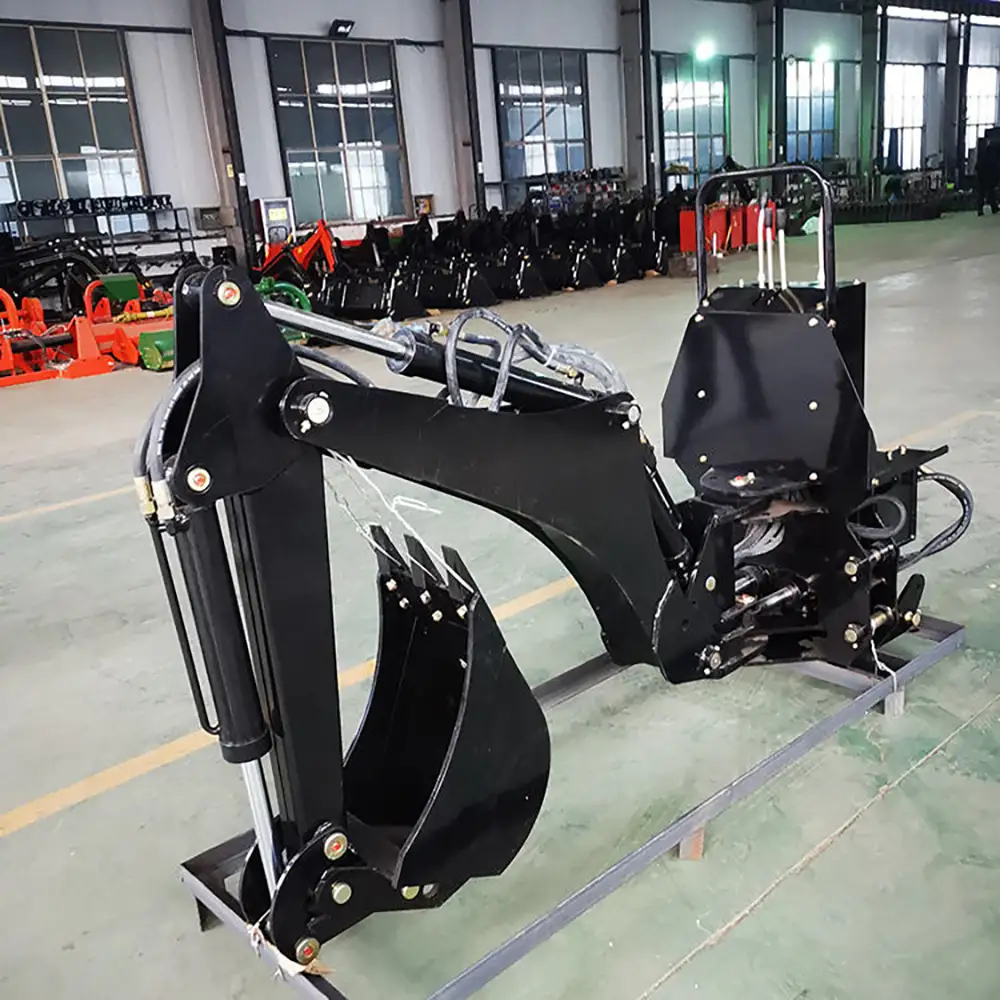

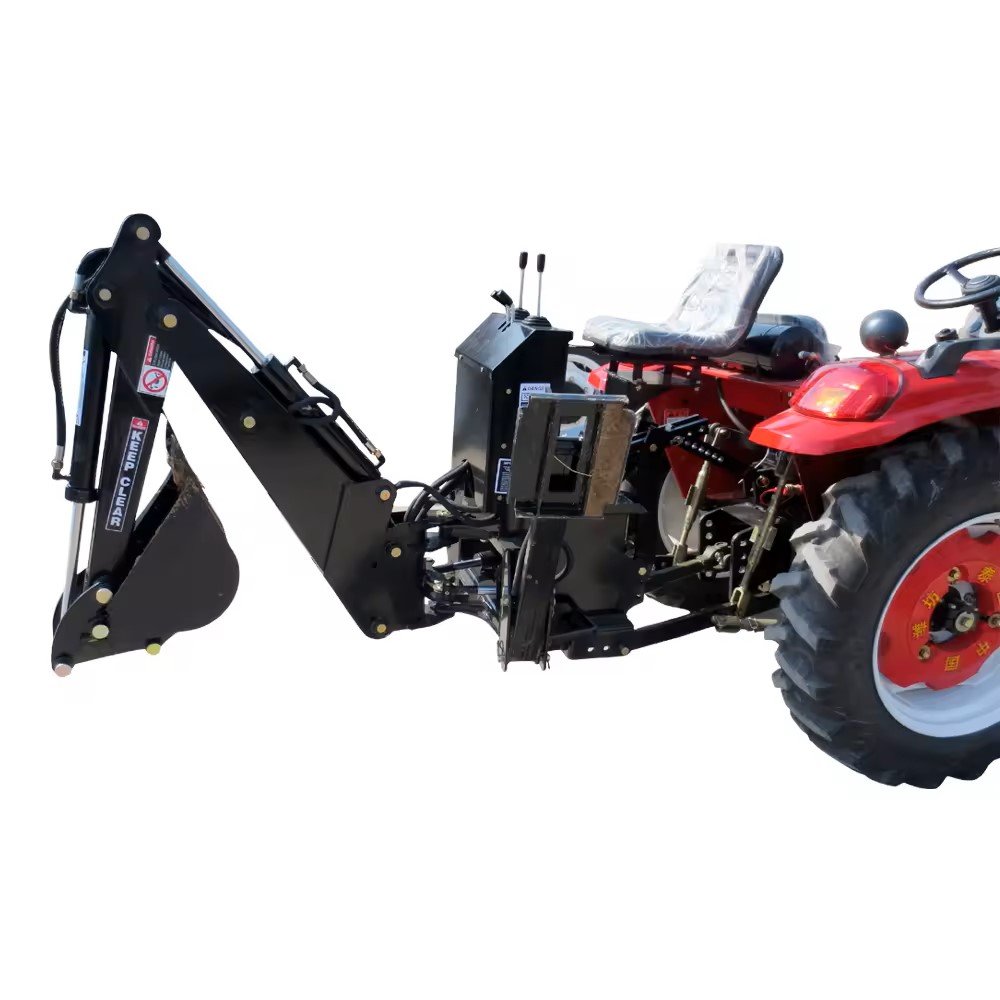

WTLW Backhoe, 3 Point Backhoe with Thumb Excavator, Tractor Backhoe Excavator

Negotiation Price

Send Inquiry Conatact Us Packaging & Shipping

Product Descriptions

Application
1.Matched any tractor
2.The pump combined with increasing speed gearbox and connect PTO shaft directly.
3.3-point hitched backhoe,steady structure.
4.With hydraulic pump/oil tank/gauge and thumb on boom.
5.Claw on boom, handed control valve.
6.Luxury spring seat and safety belt.
7.Optional buckets.
8.Can be used for garden digging and construction digging.

Model	WTLW—6	WTLW—7	WTLW—8	WTLW—9	WTLW—10	WTLW—12
Fitting power	25-35 hp	35-75 hp	45-85hp	50-100hp	70—125hp	80-150hp
Max. digging depth	1850 mm	2150 mm	2640 mm	2900 mm	3000 mm	3500 mm
Digging depth Flat bottom	1600 mm	2000 mm	2500 mm	2760 mm	2800 mm	3350 mm
Max. digging height	2500 mm	3400 mm	3510 mm	3900 mm	4000 mm	4300
Loading heigh	1400 mm	1760 mm	2000 mm	2362 mm	2337 mm	2700
Unloading heigh	1733 mm	1878 mm	1952 mm	2413 mm	2540 mm	2770
Max. digging radius	2800 mm	3360 mm	3930 mm	3977 mm	3886 mm	4300
Bucket rofation (°)	160°	160°	160°	160°	160°	172°
Swing angle (°)	160°	160°	160°	160°	160°	180°
Valve standard press	16 Mpa	16 Mpa	16 Mpa	16 Mpa	16 Mpa	16 Mpa
Bucket width	300 mm	400 mm	450 mm	480 mm	500 mm	550 mm
Bucket volume	0.03 m3	0.036 m3	0.048 m3	0.054 m3	0.06 m3	0.07 m3
Weight	520 kgs	550 kgs	610 kgs	720 kgs	850 kgs	930 kgs
