Product Descriptions
Tractor backhoe descriptionTractor backhoe is widely used on small farm ,gardenand construction digging works,use 3 point hitch,driven by tractor PTO,easy transport.
1. Matched any tractor.
2. Powered by PTO driven with hydraulic pump.
3.3-point hitched backhoe, steady structure
4.Oil tank, oil show, gas-permeable cap
5.claw on boom, handed control valve
6.luxury spring seat and safety belt.
7.Optional buckets, 300-800mm width
8.Work independently, only need vehicle to tow to the working destinationTractor backhoe specification
| Model | LW-5 | LW-6 |
LW-7 |
LW-8 |
LW-9 |
LW-10 |
LW—12 |
| Matching Power | 15-25hp | 20-35hp | 30-50hp | 40-65hp | 50-75hp | 65-90hp | 80-150hp |
| Max Digging Depth | 150cm/5 feet | 180cm/6 feet |
210cm/7 feet |
240cm/8 feet |
270cm/9 feet |
300cm/10 feet |
360cm/12 feet |
| Max Digging Height | 210cm | 250cm | 310cm | 345cm | 390cm | 410cm | 430cm |
| Max Unloading Height | 145cm | 160cm | 177cm | 195cm | 240cm | 255cm | 277mm |
| Max Digging Radius | 230cm | 270cm | 310cm | 350cm | 380cm | 400cm | 430cm |
| Bucket rotation angel | 160° | 160° | 160° | 160° | 160° | 160° | 160° |
| Swing angle for boom | 180° | 180° | 180° | 180° | 180° | 180° | 180° |
| Valve standard Pressure | 16Mpa | 16Mpa | 16Mpa | 16Mpa | 16Mpa | 16Ma | 16 Mpa |
| Bucket Width | 30cm | 30cm | 40cm | 40cm | 45cm | 50cm | 50cm |
| Weight | 340kg | 470kg | 480kg | 510kg | 580kg | 620kg | 650kg |

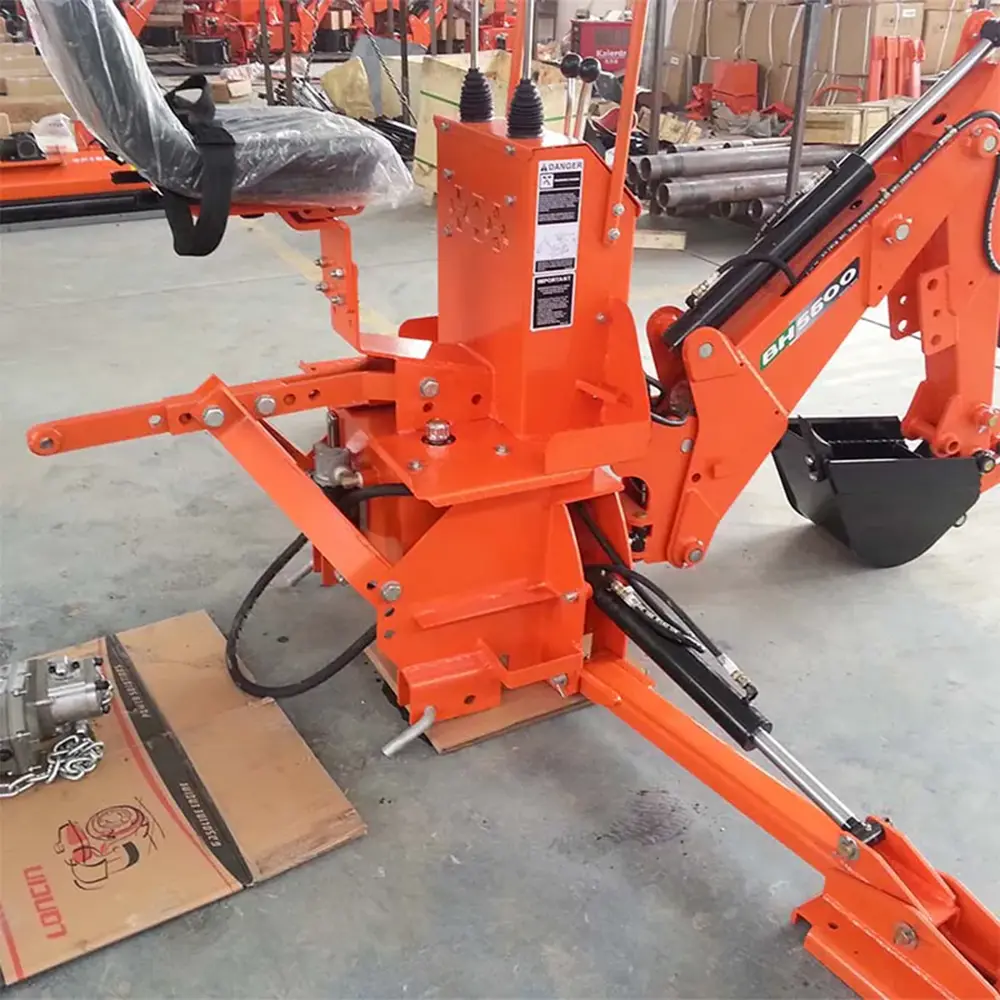

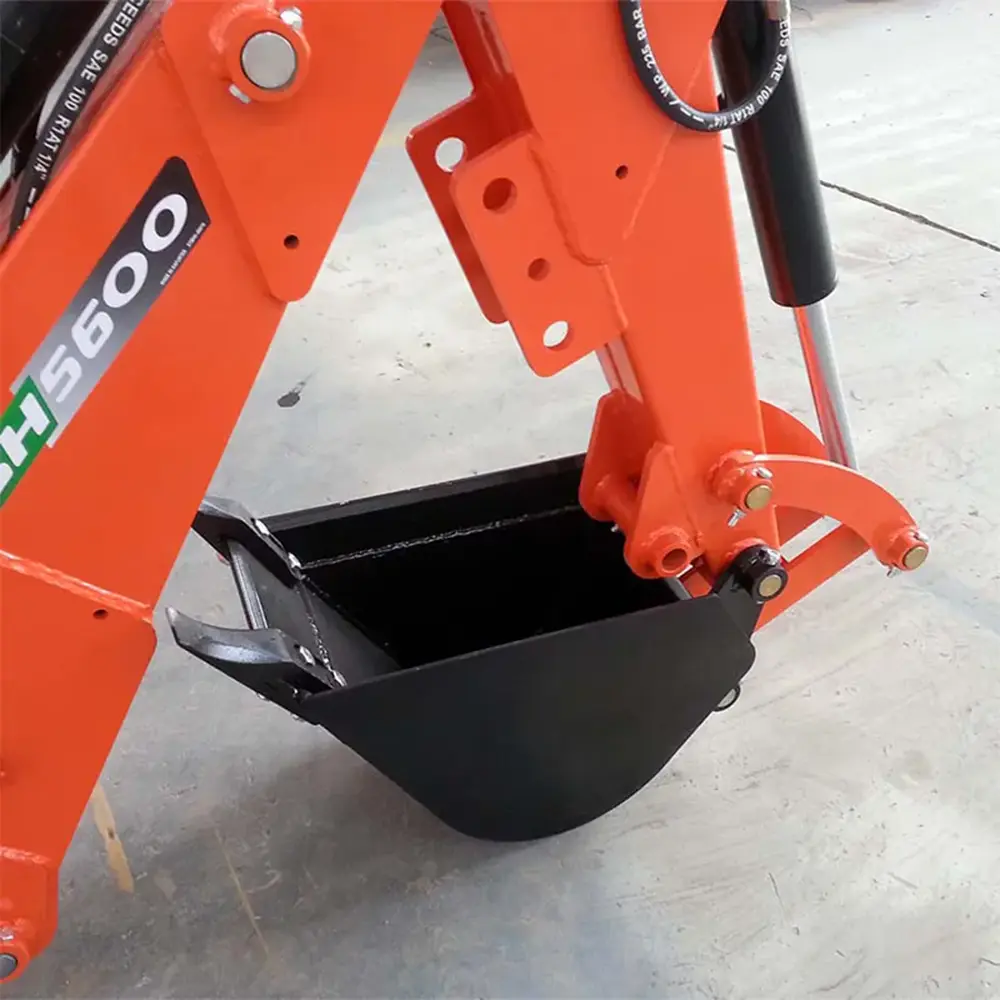

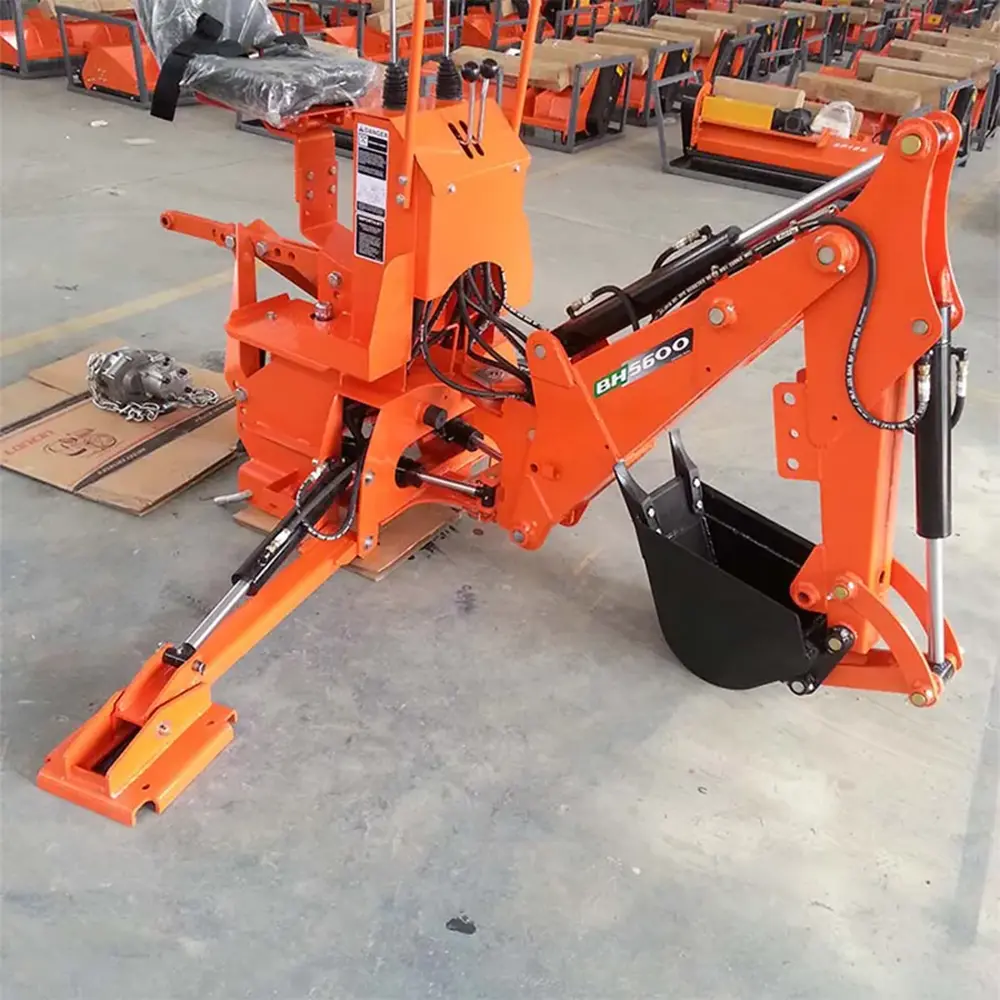

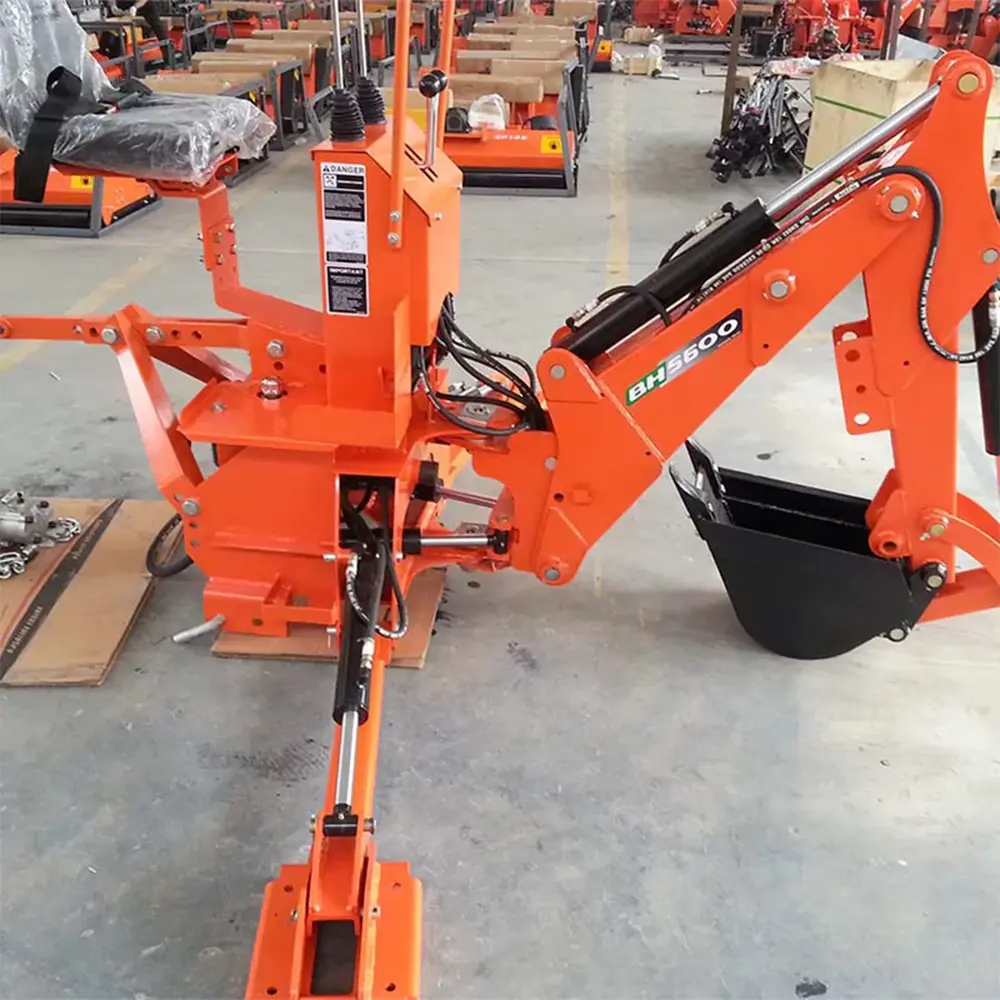

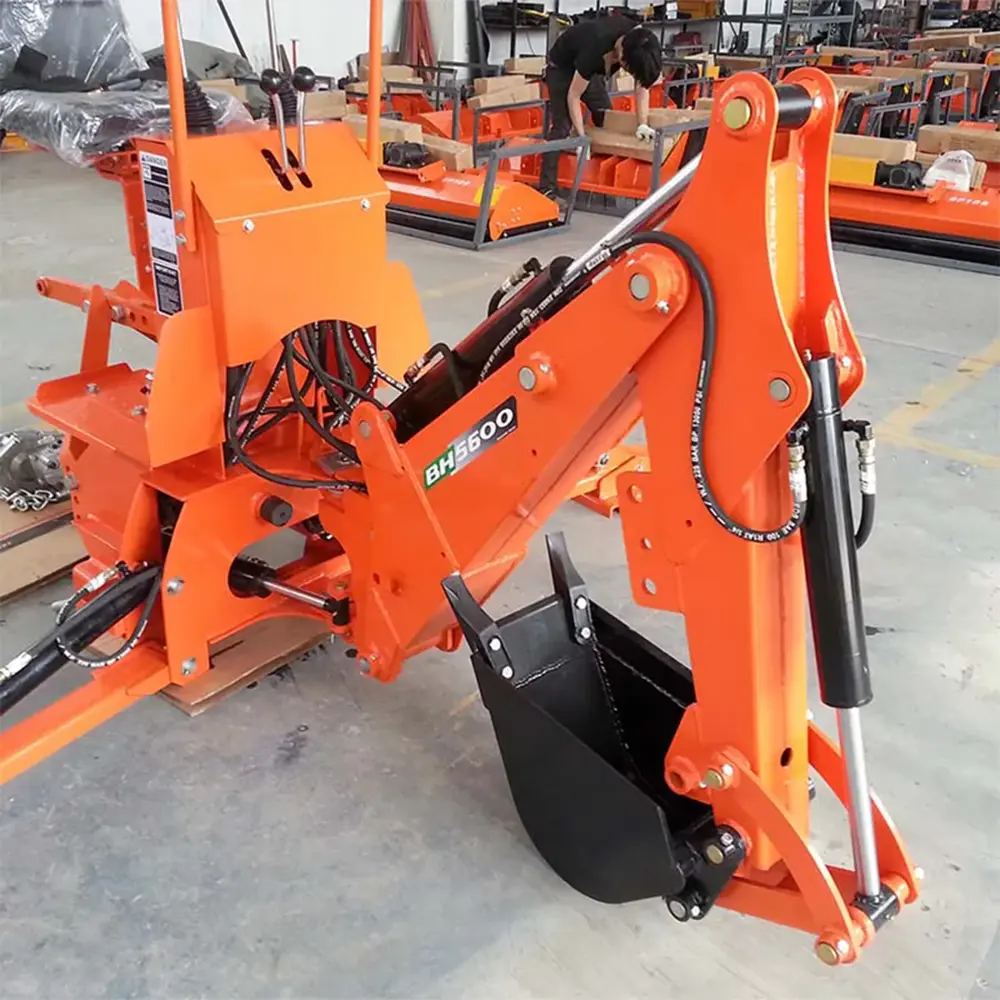

With multiple model options from LW-4 to LW-12 plus the heavy-duty BH5600, users can select the most suitable configuration based on tractor horsepower and working requirements. All models are designed with a standard 3-point hitch system for quick installation and compatibility with a wide range of tractors.
