Product Descriptions

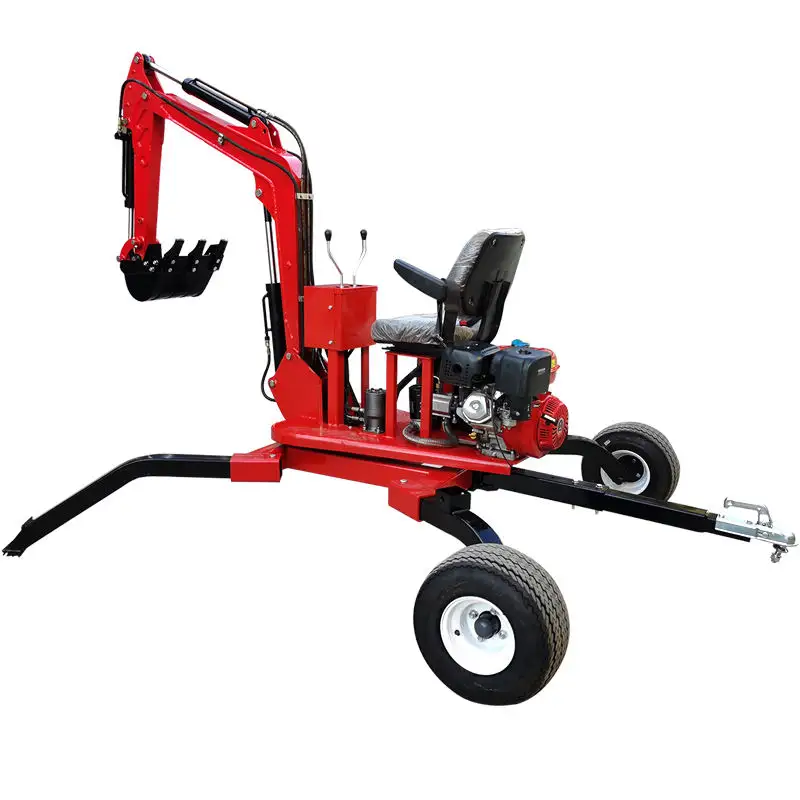

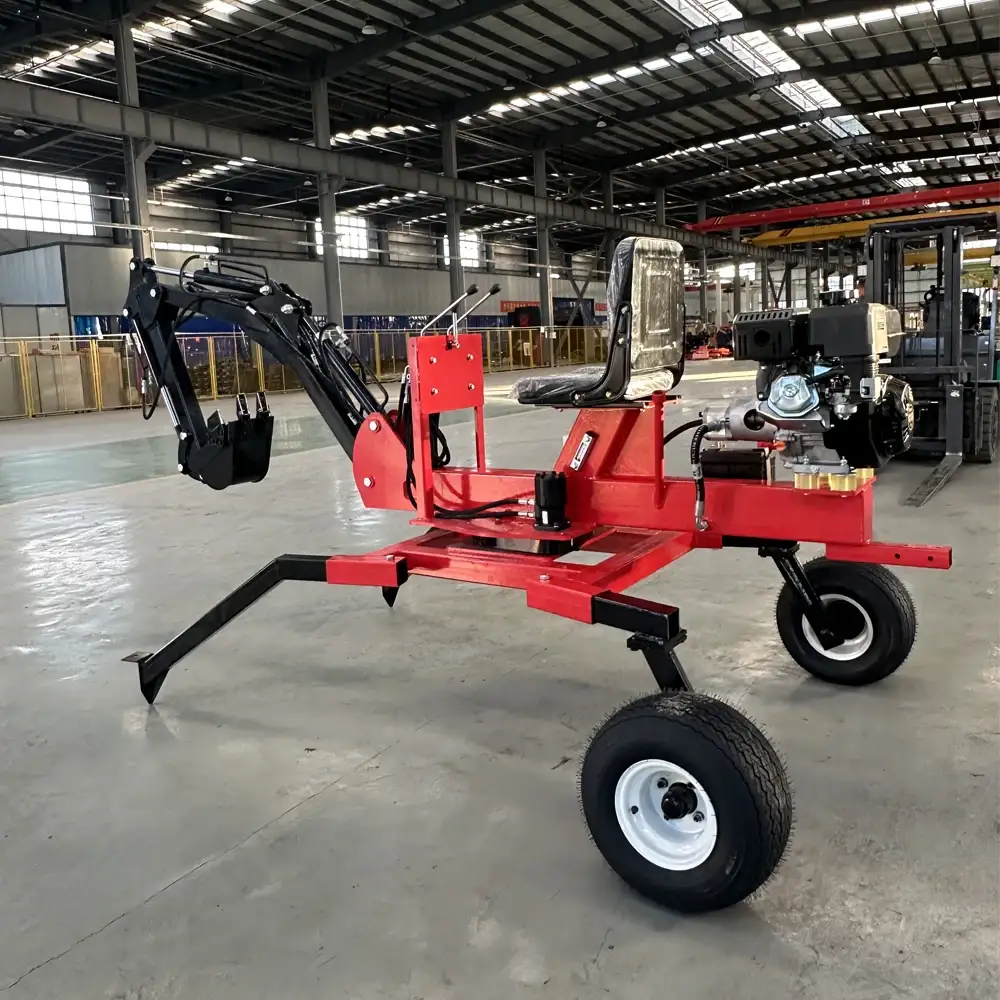

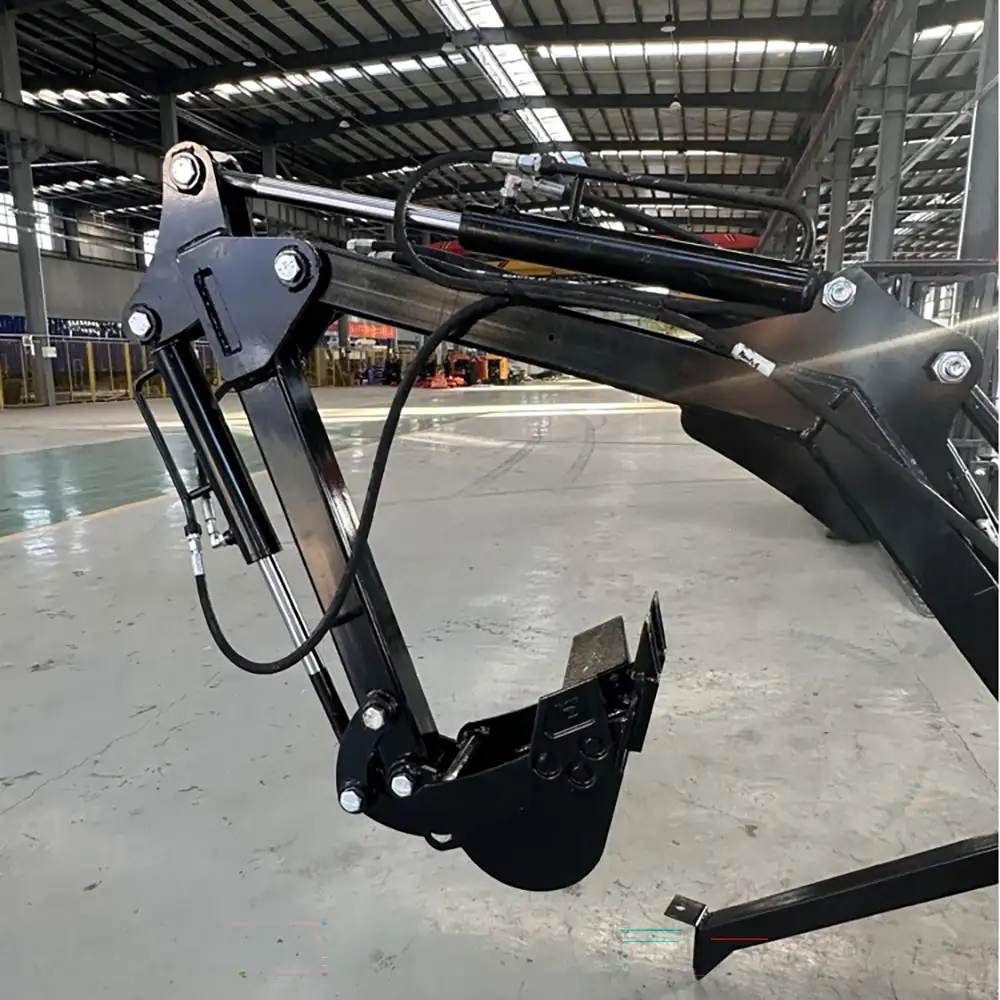

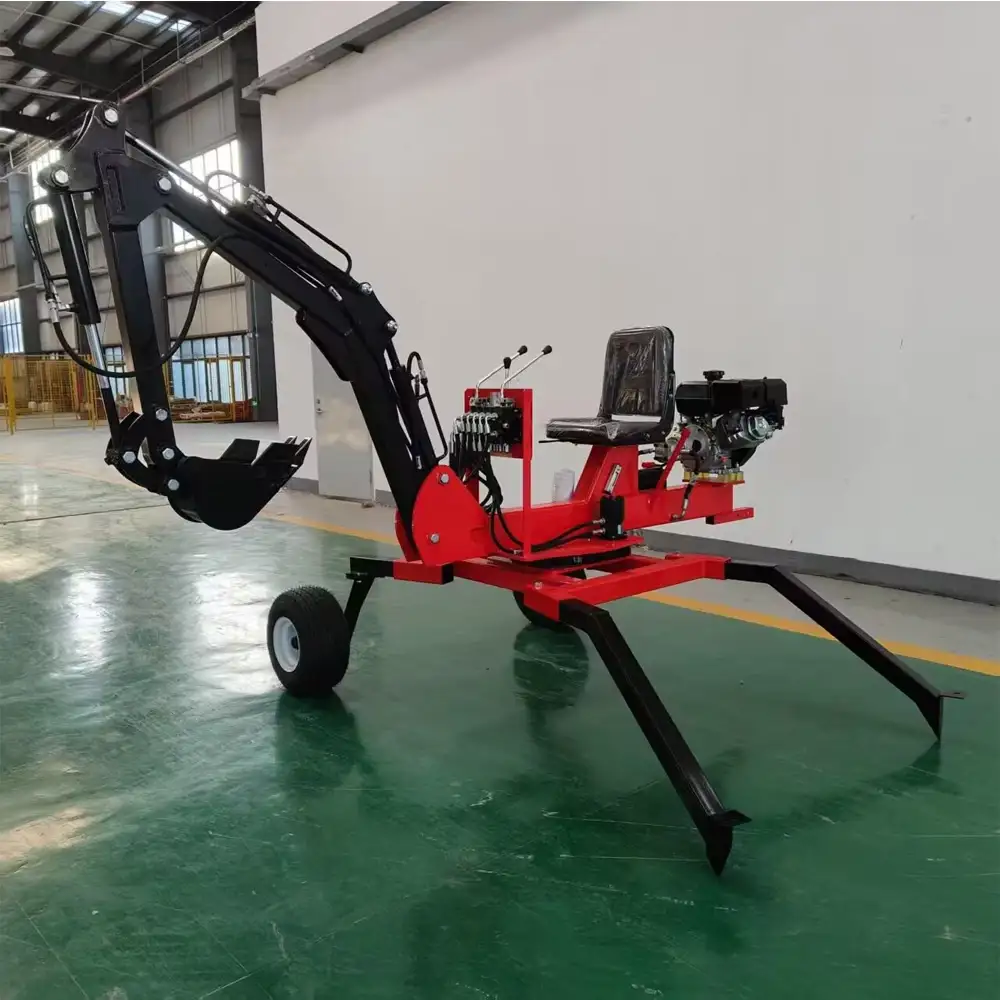

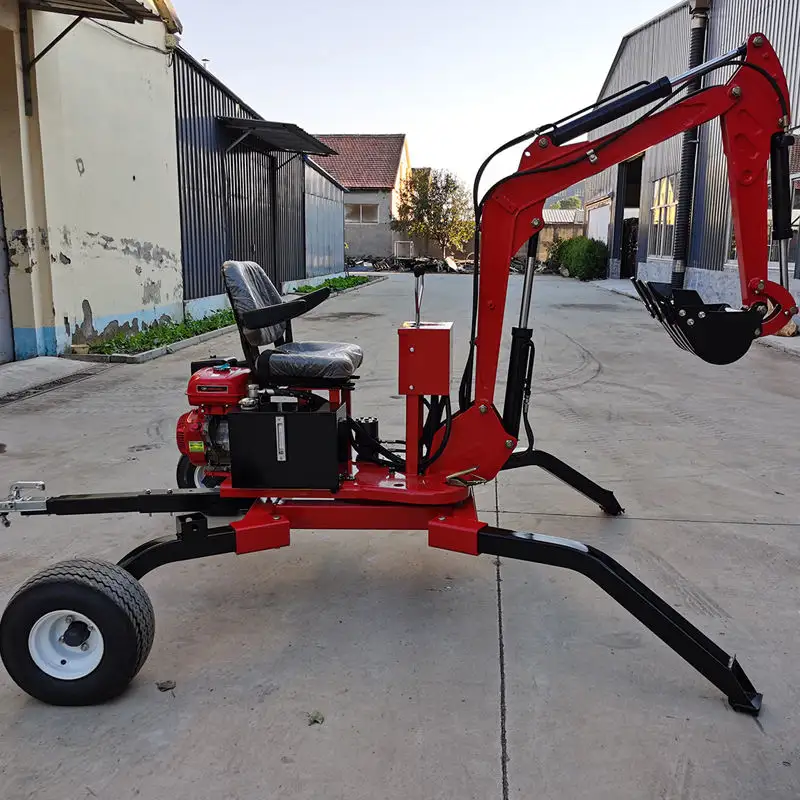

Towable Backhoe, ATV Towable Backhoe With Sunshade
Mini Excavator Towable Backhoe Digger
Application
1) ATV towable backhoe excavator can match any vehicle;
2) It is used for dicthing in farms and grazing lands, digging pool, cleaning waterways as well as assistant excavating work in construction and building roads;
3) Hydraulic transmission is used. featured with compact structure. Flexibility, convenient operation and quick mounting and dismounting.
| Model | ATV-9 |
| Power | 9HP / 13HP/15HP Gasoline engine/ 22HP diesel engine |
| Structure Weight | 550kgs |
| Max. Digging Depth | 2400mm |
| Max. Digging Radius | 2800mm |
| Max. Digging Height | 2500mm |
| Max. Unloading Height | 1200mm |
| Stabilizer Wdith | 1800mm |
| Swing Angle For Boom | 140 degree |
| Bucket Turning Angle | 160 degree |
| Bucket Capacity | 0.036m³ |
| Bucket Width | Optional: 220mm/300mm/400mm/500mm,600mm |
| Pump | Double Speed Gear Pump |
| Coupler Size | 2" Ball For Easy Towing |
| Dimension (L x W x H) | 1800mmx1100mmx900mm |
| Quantity in 20’GP / 40’HQ | 12/36PCS |
