Product Descriptions

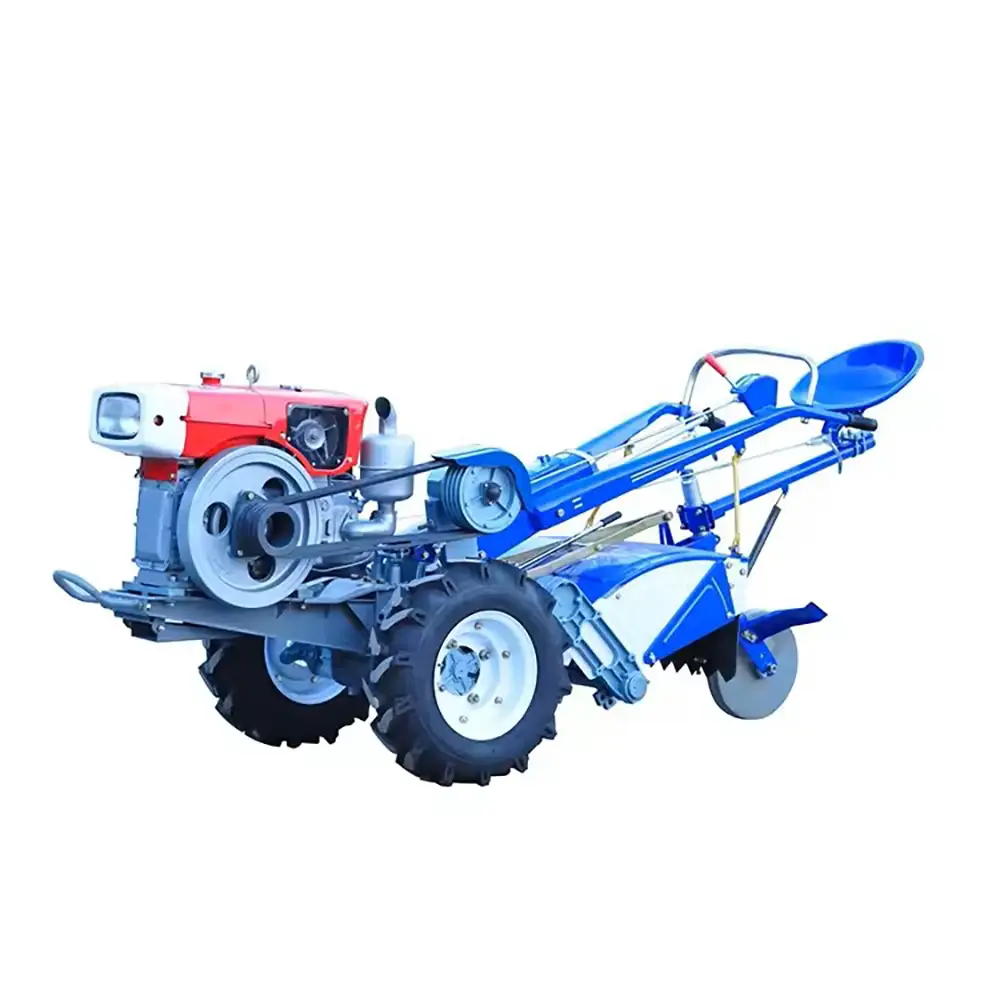

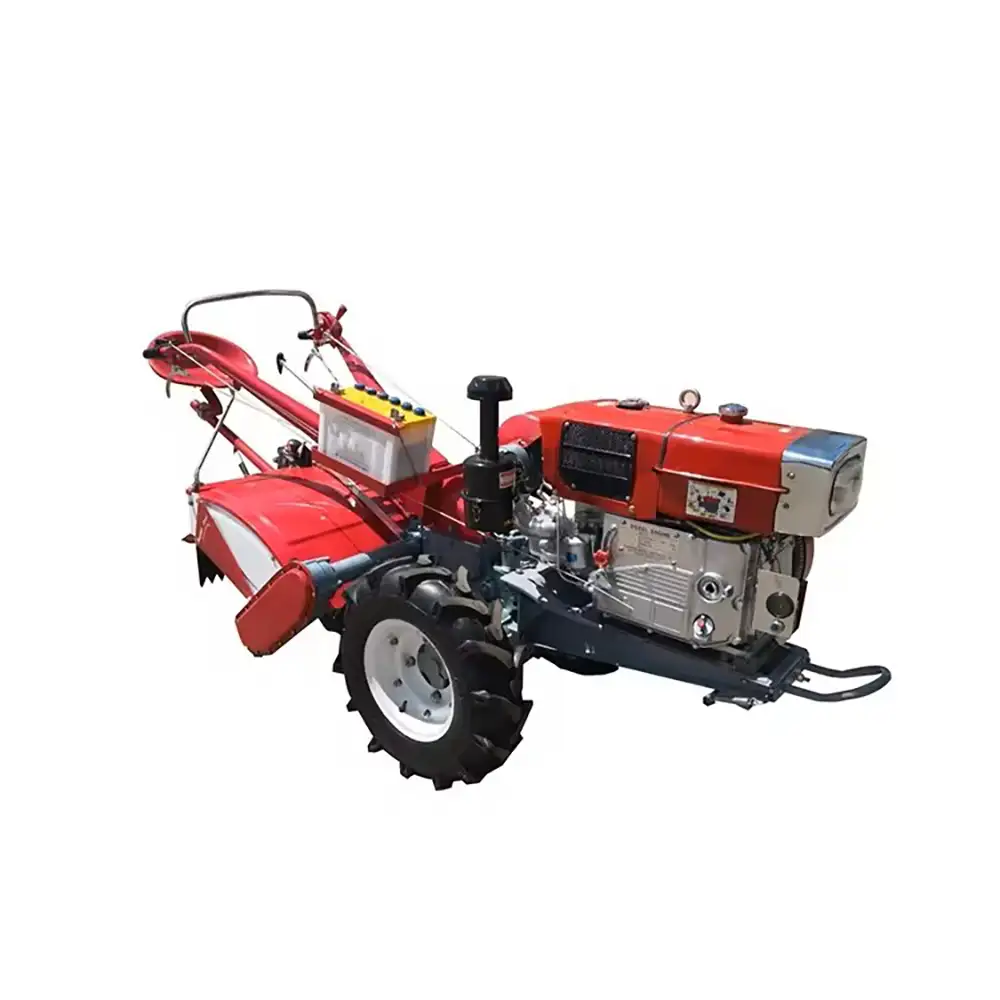

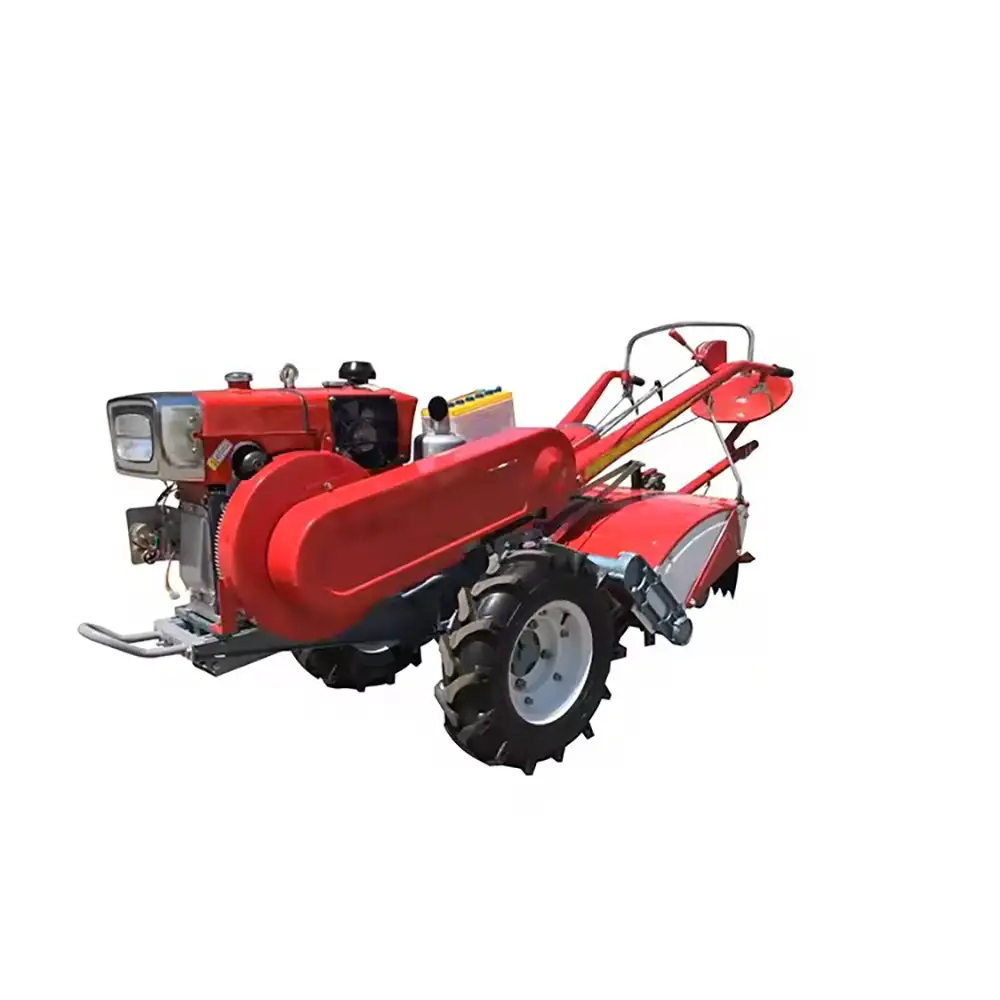

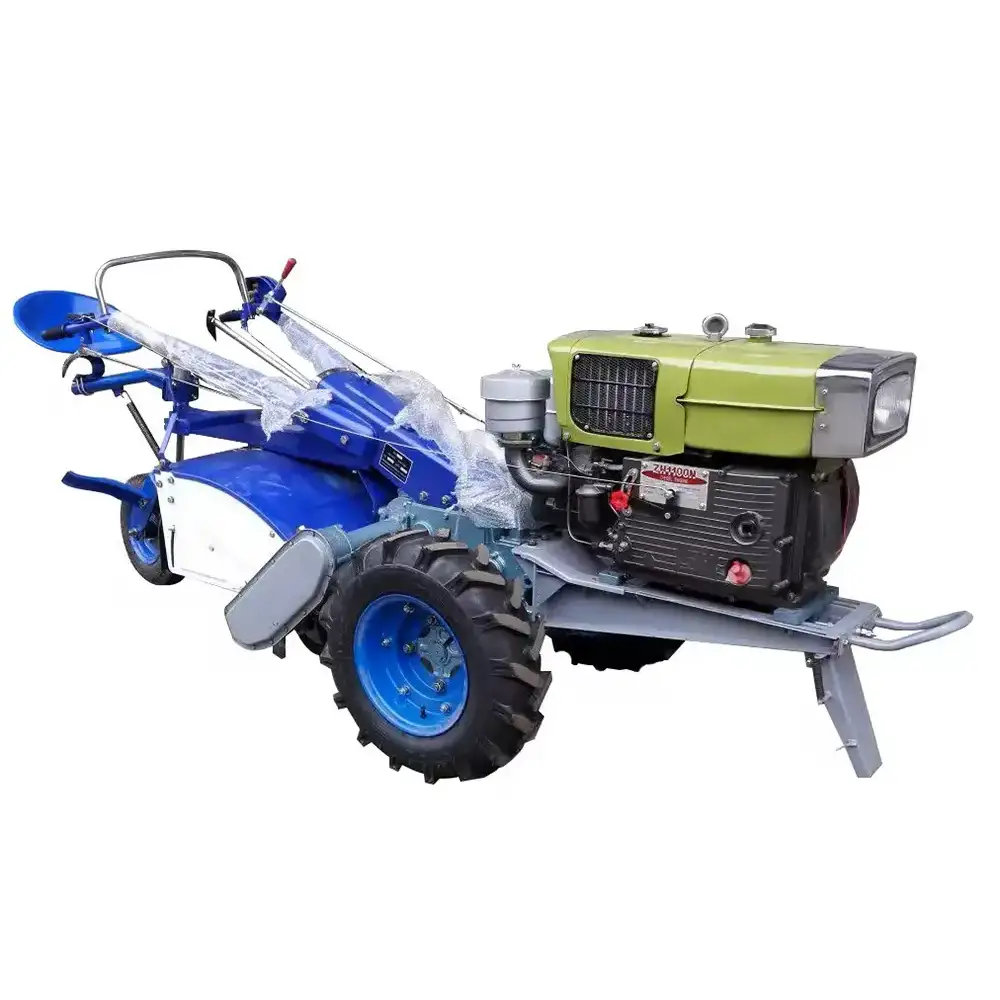

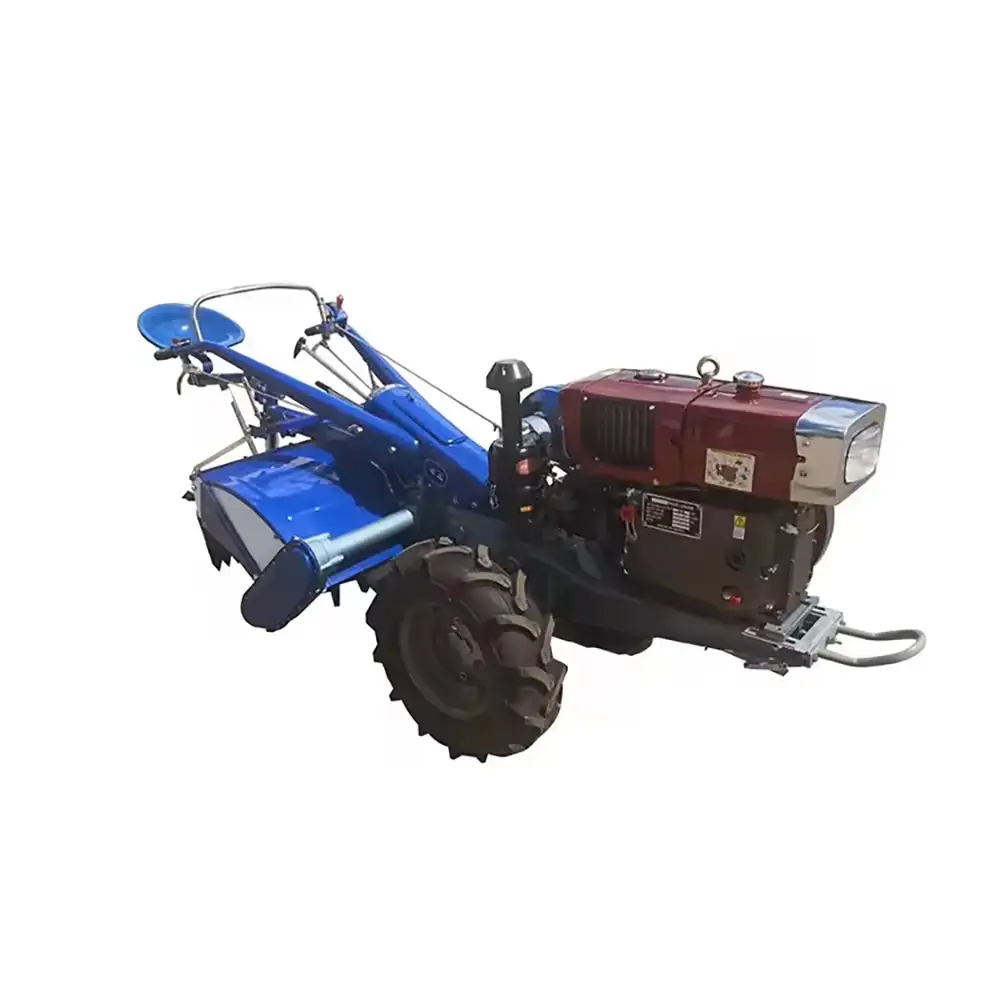

This best two wheel tractor offers great performance and a variety of configurations. Adopting advanced technology and high-quality materials, with a speed range of 750~2400rpm and a pulling force of 4.9kN, it can easily handle a variety of agricultural jobs. Complete with accessories including a plug-in tractor frame, motor tractor chassis, front bar assembly and multiple blades, this tractor is the perfect walk-behind tractor.| Model | Unit | DF-15L | DF-15SL | DF-15KL | DF-15EL | DF-15ESL | |
| Structure weight | without rotavator | kg | 360 | 368 | 390 | 393 | 396 |
| with rotavator | kg | 475 | 478 | 500 | 503 | 506 | |
| Working weight (with rotavator) | kg | 509 | 512 | 534 | 534 | 540 | |
| Turning speed of roto-tilling shaft | rpm | 188 | 188 / 300 | 188 | 188 | 188 / 300 | |
| Overall dimension (L x W x H) | mm | 2680 x 960 x 1250 | 2680 x 1030 x 1250 | 3180 x 960 x 1250 | |||
| Number of blades | PCS | 18 (22) | 24 (28) | 18 (22) | |||
| Roto-tilling width | mm | 600 | 800 | 600 | |||
| Type of tractor | Single axle, dual-purpose for both traction and drive | ||||||
| Traveling speed | Forward | kph | 1.4, 2.5, 4.1, 5.3, 9.4, 15.3 | ||||
| Reverse | 1.1, 3.8 | ||||||
| Tire size | 6.00 - 12 | ||||||
| Wheel track | mm | 800, 740, 640, 580 (normally use 800) | |||||
| Min. ground clearance | mm | 182 | |||||
| Min. turning radius | m | 0.9 (with no rotavator) | |||||
| Engine Model | S1100A2N | ||||||
| Engine type | Horizontal 4-stroke | ||||||
| Bore x stroke | mm | 100 x 115 | |||||
| Total displacement | L | 0.903 | |||||
| Compression ratio | 19.5 : 1 | ||||||
| Turning speed of crankshaft | rpm | 2000 | |||||
| 1-hour rated output | kW/ HP | 10.50 / 14.30 | |||||
| 12-hour rated output | kW/HP | 9.80 / 13.33 | |||||
| Specific fuel consumption | g/kW.hr | 257 | |||||
| Specific lube oil consumption | g/kW.hr | </= 2.04 | |||||
| Cooling method | condenser (radiator) | ||||||
